Summary of Contents for Inter-m PB-9207
- Page 1 PB-9207A Battery Charger POWER DC Volt DC Ampere...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning............................1 Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Accessories.............................3 Operation ............................3 Front Panel ............................4 Rear Panel ............................5 Applications ............................6 Block Diagram ..........................7 Specifications ..........................8 Service Procedures............................9 Schematic ............................9 Parts List ............................9 Variations and Options .........................9 Warranty ............................9... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
BATTERY CHARGER Unpacking Although your PB-9207A is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
BATTERY CHARGER Features Features - AUTOMATIC CHARGING Tapered charging circuitry charges your backup batteries without risk of overcharging. - EASY BATTERY MONITORING Integrated digital voltmeter and digital ampere meter allows you to monitor the status of your batteries. Accessories One detachable AC power cord is provided for use with this product. Operation Operation Make certain that speakers and input sources are properly connected before switching on. -
Page 6: Front Panel

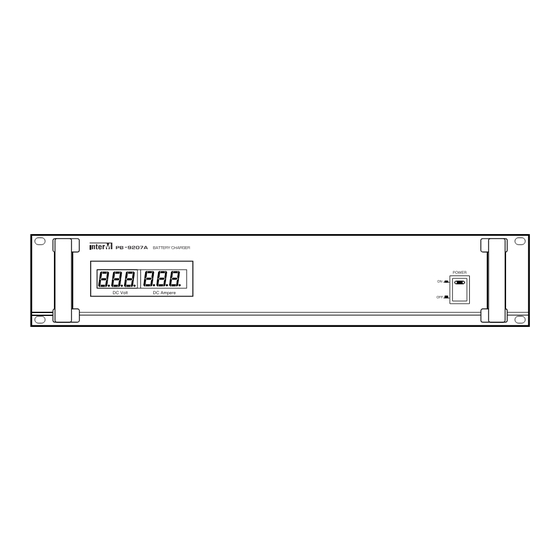

BATTERY CHARGER Front Panel Front Panel PB 9207A BATTERY CHARGER POWER DC Volt DC Ampere 1. VOLT METER Indicates the voltage of the battery, as well as the current state of charging or discharging. 2. AMPERE METER Indicates the charging current. Condition Volt Meter Ampere Meter... -
Page 7: Rear Panel
BATTERY CHARGER Rear Panel Rear Panel CAUTION; CAUTION; TO REDUCE THE RISK OF ELE- TO REDUCE THE RISK OF ELE- CTRIC SHOCK, DO NOT REMOVE COVER. CTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE REFER SERVICING TO QUALIFIED SERVICE BATTERY IN... -
Page 8: Applications
DC FUSE T5AL/250V SWED 3 UNSWED (2000W) (700W) AC INPUT www.inter-m.com 230V 50Hz, 217VA CAUTION; CAUTION; TO REDUCE THE RISK OF ELE- TO REDUCE THE RISK OF ELE- CTRIC SHOCK, DO NOT REMOVE COVER. CTRIC SHOCK, DO NOT REMOVE COVER. -
Page 9: Block Diagram
BATTERY CHARGER Block Diagram Block Diagram PB-9207A... -
Page 10: Specifications
BATTERY CHARGER Specifications.............. Specifications 0dB=0.775Vrms - ELECTRICAL Battery Requirement ..........................24 VDC Starting Current..........................3A Max. Charge Complete Voltage ......................27.3V ±10% - GENERAL Power Source ................100–120VAC or 220–240VAC; 50/60Hz ..............(Supplied AC mains transformer depends on country requirements) Power Consumption ...........................120VA Weight ............................6.2kg/13.6lb Dimensions ..............482(W) x 88(H) x 280(D)mm/19(W) x 3.5(H) x 11(D)in * Specifications and design subject to change without notice. -
Page 11: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. - Page 12 MADE IN KOREA December 2005 9007973912 A...
