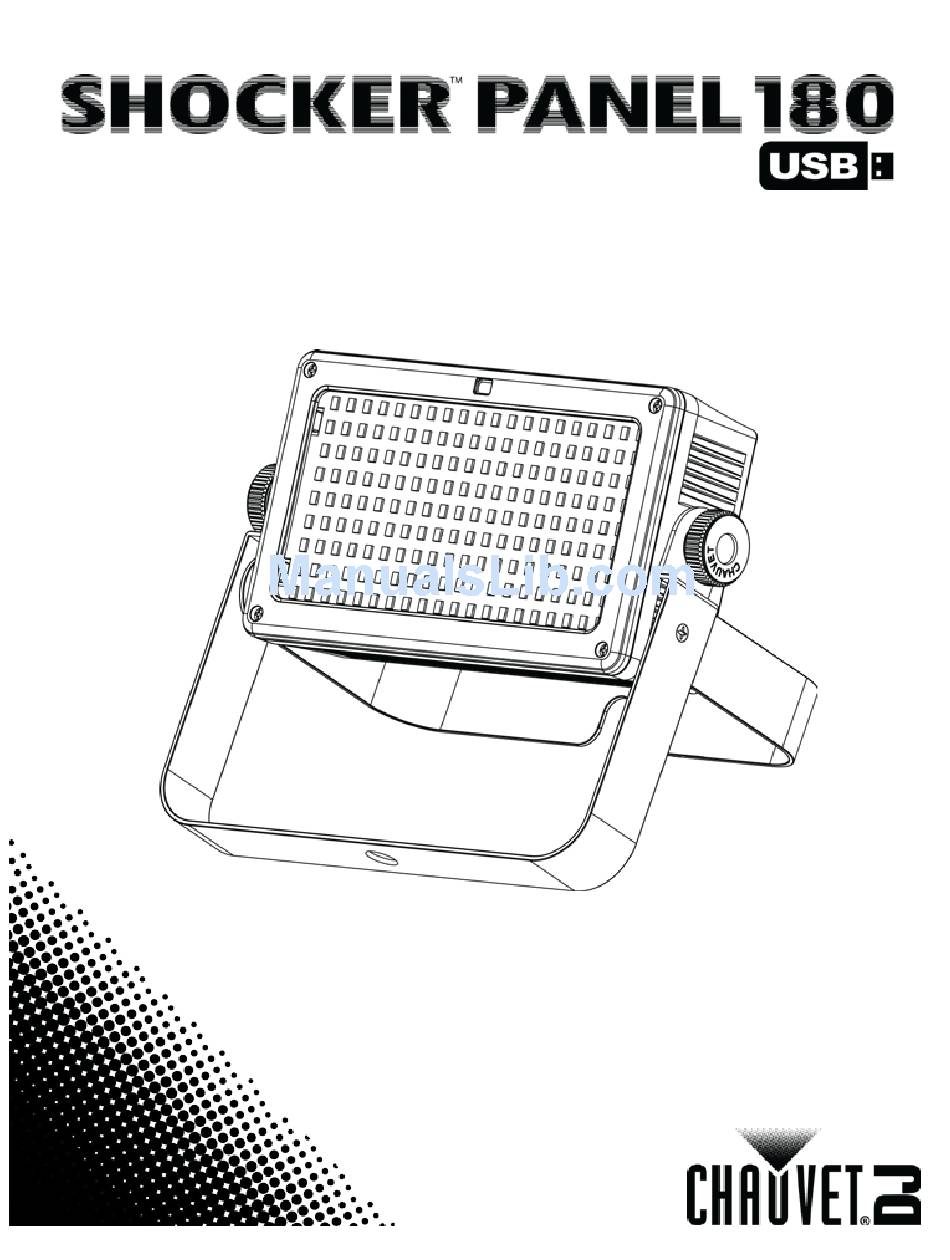

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ..............................3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance ........................4 Safety Notes ............................ 4 2. -
Page 3: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Front View IR Sensor Mounting Brackets Bracket Adjustment Knob D-Fi™ USB Microphone Port Safety Loop LCD Display Menu Buttons Back Panel View DMX Out DMX In Power Out Power In Fuse holder WARNING! DO NOT plug anything other than a D-Fi™ USB into the USB port. Doing so may cause damage to the product. -
Page 6: Product Dimensions
Product Dimensions 8.8 in 223 mm 7.8 in 198 mm 2.25 in 57 mm Page 6 of 19 Shocker™ Panel 180 USB User Manual Rev. 1... -
Page 7: Setup
The power linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Mounting Clamp (such as the CLP-15N from Chauvet) Hanging/Mounting Bracket (also used as floor supports) -
Page 9: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel. Operation Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 10: Dmx Linking
The Shocker™ Panel 180 USB is able to become a D-Fi™ wireless receiver/transmitter with D-Fi™ USB the use of the D-Fi™ USB from Chauvet DJ. Simply set the product's DMX Personality and Connectivity DMX Address, set the DIP switch D-Fi™ receiving/transmitting channel, then plug it into the D-Fi™... -
Page 11: Dmx Personality And Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the DMX Personality selected DMX mode uses. If you choose a starting address that is too high, you could and Starting restrict the access to some of the product’s channels. Address The Shocker™... -
Page 12: 5-Ch
Channel Function Value Percent/Setting 5-CH 000ó005 No function Dimmer 006ó255 0–100% 000ó005 No function Strobe Speed 006ó255 Strobe speed (slow to fast) Shutter 000ó005 Open (When Channel 2 is set 006ó255 Pulse speed (slow to fast) at 006–255) 000ó005 No function 006ó042 Ramp up 043ó085... -
Page 13: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. -
Page 14: Irc-6 Infrared Remote Control
The Shocker™ Panel 180 USB is compatible with the IRC-6 infrared remote control from IRC-6 Infrared Chauvet. To activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SEr shows on the display. Control Press <ENTER> to accept. -
Page 15: Master/Slave Mode (Wired)
Master/Slave The Master/Slave mode allows a single Shocker™ Panel 180 USB product (the “master”) to control the actions of one or more Shocker™ Panel 180 USB products (the “slaves”) Mode without the need of a DMX controller. The master product will be set to operate in either (wired) Automatic or Sound-Active mode, while the slave products will be set to operate in Slave mode. -
Page 16: Maintenance
5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 17: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 2.25 in (57 mm) 8.8 in (223 mm) 7.8 in (798 mm) 3.4 lb (1.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 18: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 19: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web www.chauvetlighting.co.uk...
