Connecting Other Equipment

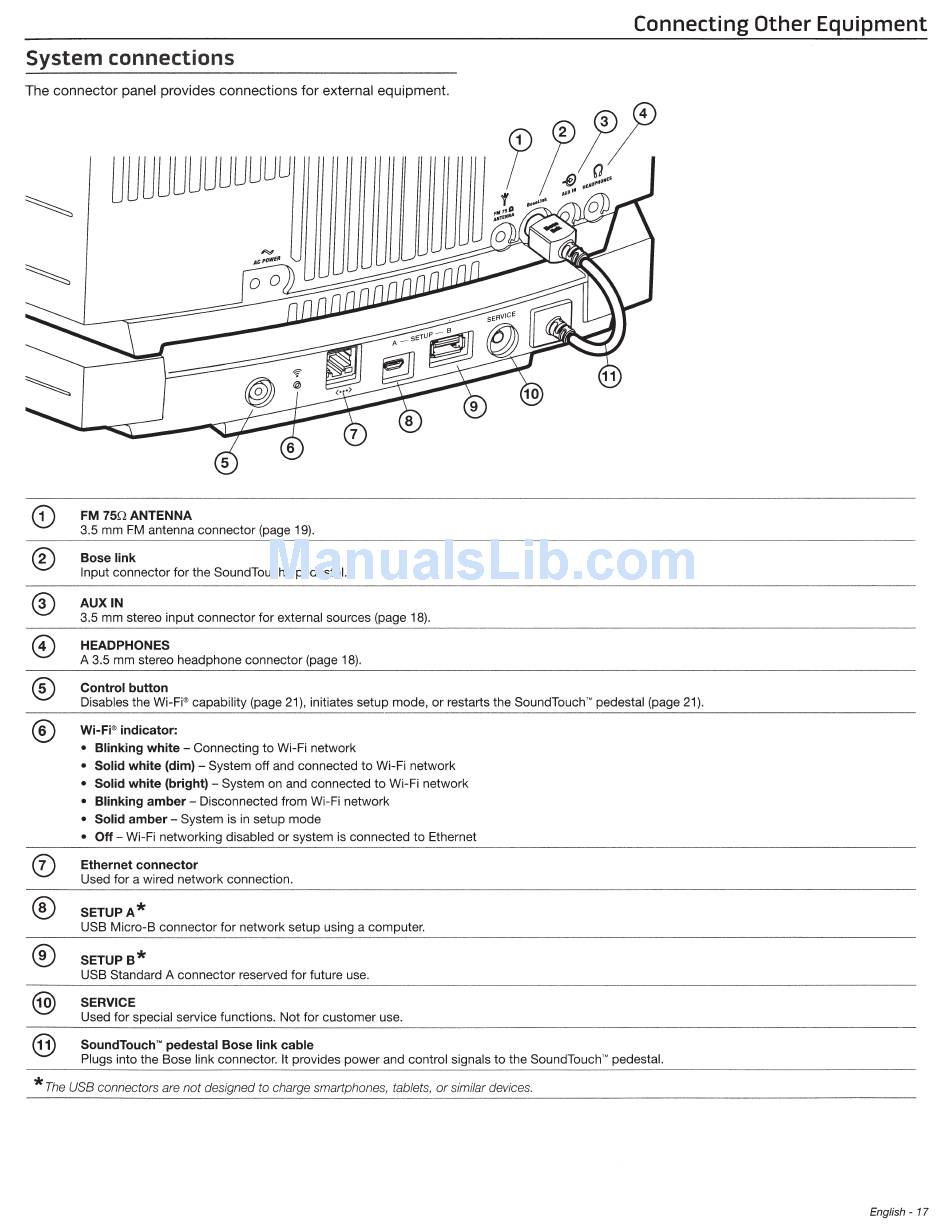

System connections
The connector panel provides connections for external equipment.
lJ[JUUUUUUuuuu
FM 750 ANTENNA
3.5 mm FM antenna connector (page
19).
®
Bose link
Input connector for the
SoundTouch'"
pedestal.
®
AUXIN
3.5 mm stereo input connector for external sources (page
18).
HEADPHONES
A 3.5 mm stereo headphone connector (page 18).
Control button
Disables the
Wi-Fi'"
capability (page
21),
initiates setup mode,
or
restarts the SoundTouch'" pedestal (page 21).
®
Wi·Fi'"
indicator:
• Blinking white - Connecting to Wi-Fi network
• Solid white (dim)- System off and connected to Wi-Fi network
• Solid white (bright)
-
System on and connected to Wi-Fi network
• Blinking amber - Disconnected from Wi-Fi network
• Solid amber - System is in setup
mode
• Off-
Wi-Fi networking disabled or system is connected to Ethernet
Ethernet connector
Used for a wired network connection.
®
SETUP A*
USB Micro-S connector for network setup
using
a
computer.
®
SETUPS*
@
@
USB Standard A connector reserved for f
uture
use.
SERVICE
Used for special
service functions.
Not for customer use.
-
-
SoundTouch'"
pedestal Bose link cable
Plugs
into the Bose link connector. It provides power and control
signals
to the
SoundTouch'"
pedestal.
*
The USB
connectors
are not designed to charge smartphones,
tablets, or
similar
devices.
--------------------
·······················-
-
- - - ·
-····--··
· ·
- -
--
--
-- - -
English- 17
