Razer Leviathan Quick Start Manual

5.1 channel surround sound bar
Hide thumbs
Table of Contents

Advertisement

Quick Links

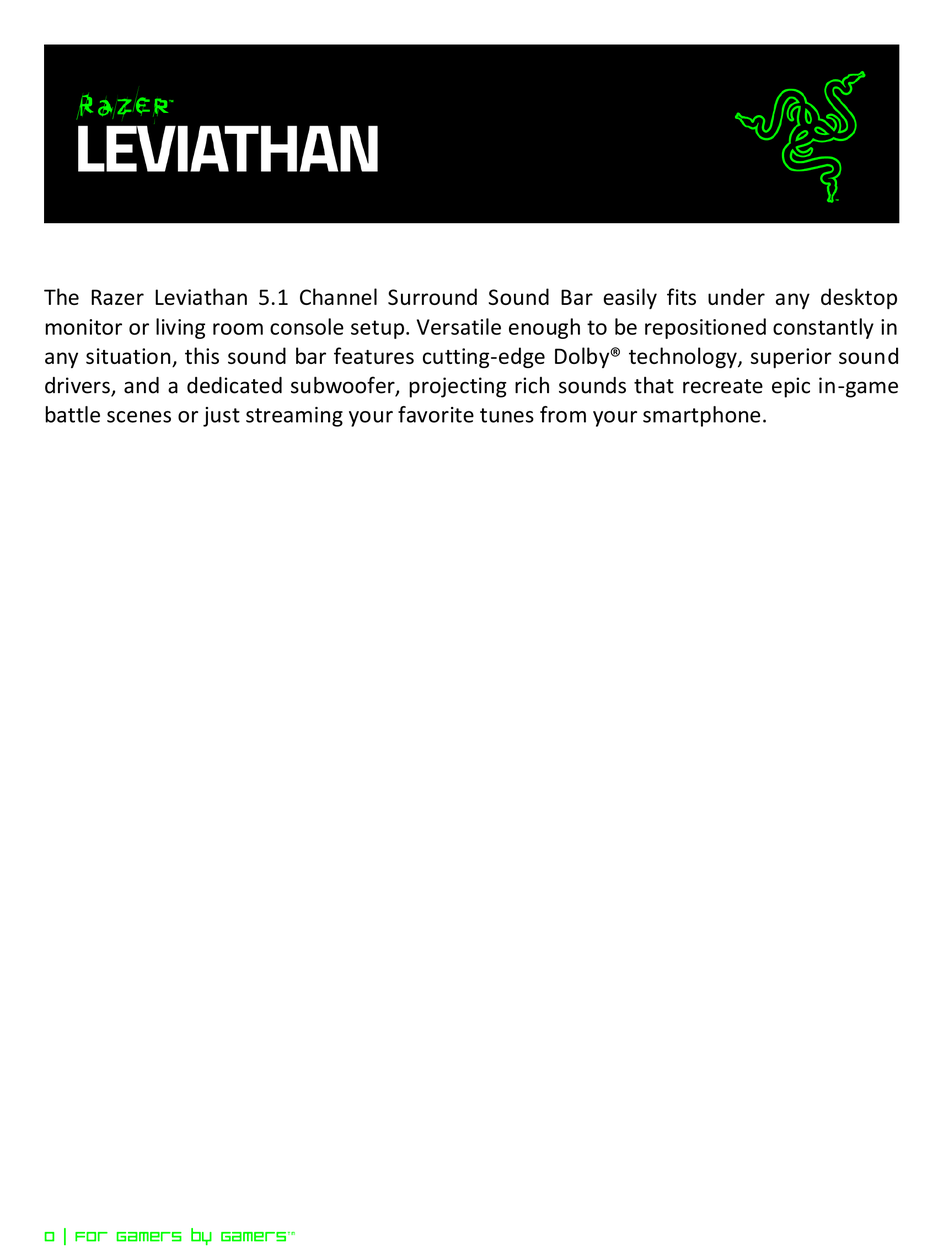

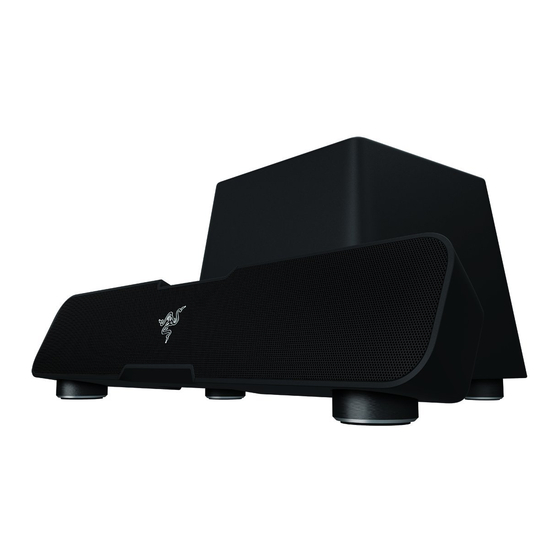

The Razer Leviathan 5.1 Channel Surround Sound Bar easily fits under any desktop
monitor or living room console setup. Versatile enough to be repositioned constantly in
any situation, this sound bar features cutting-edge Dolby® technology, superior sound
drivers, and a dedicated subwoofer, projecting rich sounds that recreate epic in-game
battle scenes or just streaming your favorite tunes from your smartphone.
0 | For gamers by gamers™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leviathan and is the answer not in the manual?

Questions and answers

Related Manuals for Razer Leviathan

Summary of Contents for Razer Leviathan

  • Page 1 The Razer Leviathan 5.1 Channel Surround Sound Bar easily fits under any desktop monitor or living room console setup. Versatile enough to be repositioned constantly in any situation, this sound bar features cutting-edge Dolby® technology, superior sound drivers, and a dedicated subwoofer, projecting rich sounds that recreate epic in-game battle scenes or just streaming your favorite tunes from your smartphone.

  • Page 2: Table Of Contents

    1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS ......... 2 2. REGISTRATION / TECHNICAL SUPPORT ............... 3 3. TECHNICAL SPECIFICATIONS ................4 4. DEVICE LAYOUT ....................5 5. USING YOUR RAZER LEVIATHAN ................. 8 6. SAFETY AND MAINTENANCE ................16 7. LEGALESE......................19 1 | razer™...

  • Page 3: In The Box

    1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS PACKAGE CONTENTS  Razer Leviathan  Power adapter with interchangeable plugs  Subwoofer  Optical cable  3.5mm analog audio cable  2 pairs of detachable feet  Quick start guide  Important product information guide...

  • Page 4: Registration / Technical Support

    To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse. If you are already a Razer Synapse user, register your product by clicking on your email address at the Razer Synapse application and select Warranty Status from the dropdown list.

  • Page 5: Technical Specifications

    3. TECHNICAL SPECIFICATIONS Sound bar  Total power output: 30W (15W x 2RMS)  Full range drivers: 2 x 2.5” / 63.5mm  Tweeter drivers: 2 x 0.74” / 19 mm  Impedance: 8Ω  Frequency response rate: 180Hz – 20kHz ...

  • Page 6: Device Layout

    B. Subwoofer with attached cable C. Optical cable D. 3.5mm to 3.5mm cable E. Power adapter with interchangeable plugs* *Use the appropriate adapter plug for your region F. Mounting keyholes G. Input panel H. Detachable feet for sound bar angle adjustment 5 | razer™...

  • Page 7: Top Panel Overview

    Top Panel Power button Turns the sound bar on/off Input indicator LED Indicates the current input audio source.  OPT: Optical  AUX: Analog  : Bluetooth Equalizer indicator Indicates the currently selected preset equalizer setting.  : Game  : Music ...
  • Page 8 Input Panel K. Subwoofer output L. Main power input M. Optical input N. Analog 3.5mm input 7 | razer™...

  • Page 9: Setting Up/Positioning Sound Bar

    5. USING YOUR RAZER LEVIATHAN SETTING UP AND POSITIONING YOUR SOUND BAR 1. Select the appropriate power plug for your region and attach it to the power adapter. 2. Position your sound bar and subwoofer. For optimal performance, ensure that the subwoofer is placed on the floor regardless of the positioning of your sound bar.

  • Page 10: Powering On/Off

    3. Connect your sound bar to the subwoofer and an appropriate power source. Note: Ensure that you press down on the connector catch clip and have it aligned accurately when connecting/disconnecting the subwoofer to/from the Razer Leviathan. Detaching the subwoofer cable incorrectly may void your product warranty.
  • Page 11 CONNECTING TO AN AUDIO SOURCE Note: When connected to devices with inbuilt speaker systems, audio may continue to be played via the inbuilt speaker. In such cases, manually switch your device’s audio output to the Razer Leviathan. Connecting via the optical cable Connect via Razer Leviathan’s optical port and press the...

  • Page 12: Connecting Via Analog Cable

    Connecting via the analog cable Connect via Razer Leviathan’s auxiliary port and press the button until the AUX LED indicator lights up. 11 | razer™...

  • Page 13: Connecting Via Nfc

    The Bluetooth LED will start to blink slowly. 2. Enable Bluetooth on your device and search for new Bluetooth devices. 3. Select “Razer Leviathan” from the list of devices found. 4. Wait for pairing to complete. The Bluetooth indicator on your sound bar top panel will change to a solid lighting once successfully connected.

  • Page 14: Understanding Bluetooth Modes

    1 of 4 last is connected to device paired devices. the sound bar Turn on Bluetooth via Bluetooth on your device and select Razer Leviathan to connect. Discoverable? Any Bluetooth Only the last Only the last 4 enabled device...
  • Page 15 CHANGING THE INPUT SOURCE The Razer Leviathan supports 3 types of audio input - Optical, Analog and Bluetooth. The sound bar starts up in analog input when powered on. You can manually change the input source by pressing the button. The LED indicator displays the currently selected input source.

  • Page 16: Turning Led On/Off

    2 pairs of detachable feet lets you adjust your sound bar angle to ensure that sound is delivered to you with the least amount of obstruction. Depending on the feet / orientation, you can set the sound bar to an angle of 15°, 0° or 18°. 15 | razer™...

  • Page 17: Safety And Maintenance

    To operate your Razer Leviathan safely and reduce the possibility of heat-related injuries, follow these guidelines: 1. Set up your Razer Leviathan and power adapter on a stable work surface that allows for adequate air circulation under and around the computer/TV.
  • Page 18 If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer. 1. Use only the power adapter that came with your Razer Leviathan, or the Razer-authorized power adapter that is compatible with this product.
  • Page 19 SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Leviathan, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com...

  • Page 20: Legalese

    Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer Leviathan (the “Product”) may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear.
  • Page 21 LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
