RAZER NOMMO V2 PRO
MASTER GUIDE
™
F O R G A M E R S . B Y G A M E R S .
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOMMO V2 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Razer NOMMO V2 PRO

Summary of Contents for Razer NOMMO V2 PRO

  • Page 1 RAZER NOMMO V2 PRO MASTER GUIDE ™ F O R G A M E R S . B Y G A M E R S .
  • Page 2 Experience absolute power and precision that blows you away with the Razer Nommo V2 Pro—a fully-loaded, full-range speaker system and wireless subwoofer combo. Amplified by THX® Spatial Audio and Razer Chroma™ RGB, set the stage for a cinematic audio-visual experience primed for your battlestation.

  • Page 3: Table Of Contents

    5. SETTING UP YOUR RAZER NOMMO V2 PRO ..................10 6. CONNECTING TO YOUR GAMING SPEAKERS ..................13 7. USING YOUR GAMING SPEAKERS ......................17 8. CONFIGURING YOUR RAZER NOMMO V2 PRO VIA RAZER SYNAPSE........... 22 9. SAFETY AND MAINTENANCE ........................ 34 10. LEGALESE ............................35 ™...

  • Page 4: What's Inside

    1. WHAT'S INSIDE ▪ Razer Nommo V2 Pro LEFT SPEAKER RIGHT SPEAKER Rear projection Razer Chroma™ RGB lighting USB Type C port Power port Left speaker port Left speaker connector ™ F O R G A M E R S . B Y G A M E R S .

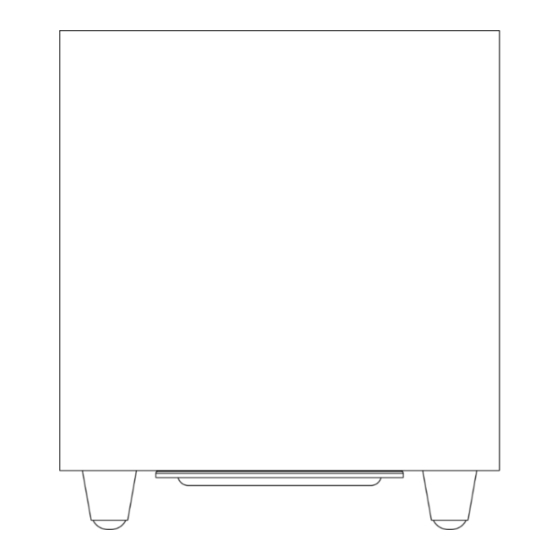

  • Page 5 ▪ Wireless subwoofer FRONT REAR Rear-facing bass port Subwoofer pairing button Power port Subwoofer status indicator ▪ Razer Wireless Control Pod Power button / Media control knob Bottom cover Source button Battery compartment Status indicator ™ F O R G A M E R S . B Y G A M E R S .
  • Page 6 ▪ USB Type A to USB Type C cable ▪ Power adapter for speakers + regional plugs* US/ TW/ JP AUS / NZ UK / MY / SG / UAE KOREA CHINA ▪ Subwoofer regional power cords* ▪ 2 x AAA batteries ▪...

  • Page 7: What's Needed

    RAZER SYNAPSE REQUIREMENTS ▪ Windows® 10 64-bit (or higher) ▪ Internet connection for software installation *Required for the Razer Wireless Control Pod. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 8: Let's Get You Covered

    3. LET'S GET YOU COVERED Register your product and score exclusive benefits razerid.razer.com/warranty Your product’s serial number can be found here. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 9: Technical Specifications

    CONNECTIVITY ▪ Bluetooth connection ▪ USB Type C to USB Type A ▪ Toggle PC audio devices (supported via Razer Synapse) ▪ Cable length: o USB Type C to USB Type A cable: 2 m o Speaker cable: 2 m...

  • Page 10: Setting Up Your Razer Nommo V2 Pro

    5. SETTING UP YOUR RAZER NOMMO V2 PRO 1. Connect the left speaker connector to the left speaker port on the right speaker. RIGHT SPEAKER LEFT SPEAKER Before connecting the left speaker connector, align its pins correctly to the left speaker port.
  • Page 11 2. With the appropriate AC plug for your region attached to the power adapter, connect it to the power port on the right gaming speaker and plug it into a power outlet. Power outlet 3. Connect the regional power cord to the power port on the subwoofer and plug it into a power outlet.
  • Page 12 Use the appropriate power cord for your region. 4. Rotate the bottom cover to detach and insert the AAA batteries as indicated in the battery compartment. Caution: The included AAA batteries are non-rechargeable. Dispose of batteries in accordance with your local environmental laws. For your safety, use only lithium or alkaline batteries.

  • Page 13: Connecting To Your Gaming Speakers

    6. CONNECTING TO YOUR GAMING SPEAKERS A. VIA PC MODE 1. Connect the gaming speakers to any of the USB Type A ports on your PC. Type C Type A 2. Press and hold the Power button on the control pod to power on the gaming speakers. The control pod's status indicator will turn white to indicate that it's connected to the gaming speakers, then turn solid green to indicate that the gaming speakers are in PC mode.
  • Page 14 SPEAKERS (Blinking green) (Solid green) 3. Set the Razer Nommo V2 Pro as the default Output device on your PC. Razer Nommo V2 Pro When using the gaming speakers with compatible devices, set the Razer Nommo V2 Pro as its default output device (if applicable).
  • Page 15 MODE FROM PC MODE BLUETOOTH MODE (Solid green) (Pairing - Blinking blue) 2. Activate Bluetooth on your device and select "Razer Nommo V2 Pro (BT)" from the available devices. Razer Nommo V2 Pro (BT) ™ F O R G A M E R S . B Y G A M E R S .
  • Page 16 Learn more about switching between audio sources The Razer Nommo V2 Pro is now ready for use in Bluetooth mode. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 17: Using Your Gaming Speakers

    7. USING YOUR GAMING SPEAKERS LOW BATTERY INDICATOR The control pod's status indicator will blink red repeatedly to indicate that its batteries are less than 10%. This lighting sequence will repeat until the batteries are drained or replaced. POWER ON/OFF Press and hold the Power button on the control pod for 3 seconds to power on or off the gaming speakers.
  • Page 18 In PC mode, the rear projection lighting on the gaming speakers will briefly turn solid green when powered on or solid red when powered off. REAR PROJECTION LIGHTING REAR PROJECTION LIGHTING (Powered off - Solid red) (Powered on - Solid green) CONTROLLING MEDIA Other media control functions below are available for the Power button: Single press...
  • Page 19 While powered on and in PC mode, press and hold the Source button to switch between the gaming speakers and a selected secondary PC playback device on Razer Synapse. The status indicator will briefly blink in yellow to indicate that the gaming speakers toggled to a secondary PC playback device and vice versa.
  • Page 20 BLUETOOTH MODE FROM BLUETOOTH MODE (Pairing - Blinking blue) (Paired - Solid blue) 2. Activate Bluetooth on your device and select "Razer Nommo V2 Pro (BT)" from the list of devices found. Razer Nommo V2 Pro (BT) 3. Wait until both devices are connected. The status indicator on the control pod will turn solid blue, and an audio prompt will be heard to indicate that the gaming speakers are now connected to your device.
  • Page 21 BLUETOOTH MODE (Paired - Solid blue) RAZER SYNAPSE (PC) Use the Razer Synapse app to switch between audio sources, customize your speakers' lighting, personalize an EQ preset, and adjust other advanced features for a truly immersive listening experience. Only available on Windows® 10 64-bit (or higher). Install Razer Synapse when prompted, or download the installer from razer.com/synapse.

  • Page 22: Configuring Your Razer Nommo V2 Pro Via Razer Synapse

    Razer ID account is recommended but optional. All listed features are subject to change based on the current software version, the connected device(s), and supported apps and software. SYNAPSE TAB The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab. Dashboard The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.
  • Page 23 Modules The Modules subtab displays all installed and available modules for installation. Global Shortcuts Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse- enabled device inputs, which apply across all device profiles. Learn more about Profiles Only Razer Synapse-enabled device inputs will be recognized.
  • Page 24 AUDIO TAB The Audio tab is the main tab for your Razer Nommo V2 Pro, where you can customize your gaming speakers' settings to unleash their full potential. Changes made under this tab are automatically saved to your system and cloud storage.
  • Page 25 Profile A Profile is a data storage for keeping all your Razer peripherals' settings. By default, the profile name is based on your system's name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button ( Stereo / THX Spatial Audio Toggle between Stereo audio and THX Spatial Audio.
  • Page 26 Allows you to switch the gaming speakers to Bluetooth mode using Razer Synapse. Razer Synapse won't be able to revert to PC mode when the gaming speakers have been set to Bluetooth mode. To set the gaming speakers to PC mode, press the Source button.
  • Page 27 Brightness You can turn off the gaming speakers' lighting by toggling the Brightness option or increase/decrease their luminance using the slider. Switch Off Lighting This power-saving tool allows you to disable the gaming speakers' lighting when your system's display is turned off. Quick Effects Several quick effects can be selected and applied to your gaming speakers' lighting, as listed here: Name...
  • Page 28 Only devices that support the selected lighting effect will synchronize. Advanced Effects The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma Studio button ( ™...
  • Page 29 Power Use the Power subtab to enable the gaming speakers to enter standby mode when left idle for a certain period. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 30 PROFILES TAB The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications. Devices View which games are linked to each device's profiles or which Chroma Effect is linked to specific games using the Devices subtab.
  • Page 31 Razer device. To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with.
  • Page 32 Dashboard. Reset tab The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse's new features on its next launch.
  • Page 33 The About tab displays brief software information and copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as quick access to Razer's social communities. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 34: Safety And Maintenance

    SAFETY GUIDELINES To achieve maximum safety while using your Razer Nommo V2 Pro, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com...

  • Page 35: Legalese

    Product. In no event shall Razer's liability exceed the retail purchase price of the Product.
