Summary of Contents for Razer LEVIATHAN V2
- Page 1 RAZER LEVIATHAN V2 MASTER GUIDE...

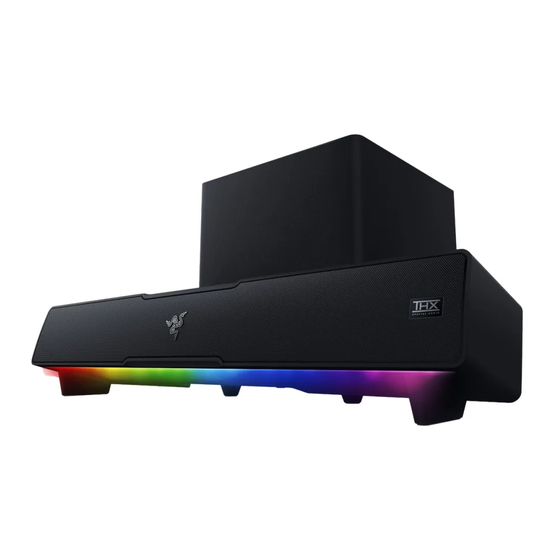

- Page 2 Amp up your setup in every way imaginable with the Razer Leviathan V2—a multi-driver gaming soundbar and subwoofer featuring THX® Spatial Audio and Razer Chroma™ RGB. Experience unrivalled immersion in both sight and sound, backed by low-latency Bluetooth 5.2 for seamless PC and mobile use.
-
Page 3: Table Of Contents
2. LET’S GET YOU COVERED ........................6 3. TECHNICAL SPECIFICATIONS ........................7 4. GETTING STARTED ..........................8 5. USING THE SOUNDBAR ........................13 6. CONFIGURING YOUR RAZER LEVIATHAN V2 PRO VIA RAZER SYNAPSE ..........17 7. SAFETY AND MAINTENANCE ........................ 27 8. LEGALESE .............................. 28 ™... -
Page 4: What's Inside / What's Needed
REAR Source button Bluetooth button Power button Volume control buttons Soundbar lighting Powered by Razer Chroma Power port Type-C port Subwoofer output port ™ F O R G A M E R S . B Y G A M E R S . - Page 5 ▪ Subwoofer Rear facing bass port Subwoofer connector ▪ Type-C to Type-A cable ▪ Detachable feet for soundbar angle adjustment Flat-feet (pre-installed) ™ F O R G A M E R S . B Y G A M E R S .
- Page 6 ▪ Windows® 10 64-bit (or higher) ▪ Internet connection for software installation Razer Audio / Razer Chroma RGB app requirements ▪ iOS 12 / Android 8.1 Oreo (or higher) device with Bluetooth 5.0 connectivity ▪ Internet connection for app installation ™...
-
Page 7: Let's Get You Covered
2. LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Your product’s serial number can be found here. -
Page 8: Technical Specifications
3. TECHNICAL SPECIFICATIONS ▪ Razer Chroma™ RGB (18 zones) ▪ THX® Spatial Audio (PC based via Razer Synapse) ▪ Bluetooth 5.2 (60ms low latency) ▪ USB audio input ▪ Wired subwoofer ▪ Razer Audio app ▪ Razer Chroma RGB app ▪... -
Page 9: Getting Started
4. GETTING STARTED SETTING IT UP 1. Position the soundbar and subwoofer on a flat and stable surface as required in your setup. It’s recommended to place the subwoofer on the floor regardless of the positioning of the soundbar. 2. Connect the subwoofer to the subwoofer output port on the soundbar. Make sure to press down on the connector catch clip before plugging/unplugging the subwoofer connector. - Page 10 3. With the appropriate power cord connected to the power adapter, insert its AC plug into a power outlet, and then connect it to the power port of the Razer Leviathan V2. AC power cord Power adapter ™ F O R G A M E R S . B Y G A M E R S .
- Page 11 CONNECTING YOUR SOUNDBAR To a PC via PC mode Connect the soundbar to any of the USB-A ports on your PC using the included Type-C to Type- A cable. Type-C Press the Power button to turn on the soundbar. The Power button and Source button will light up in green to show that the soundbar is on and in PC mode.
- Page 12 On the Sound window, set Razer Leviathan V2 as the default Output device. The Razer Leviathan V2 is now ready for use in PC mode. To other devices via Bluetooth mode Press the Power button to turn on the soundbar. The Power button will light up to show that the soundbar is on.
- Page 13 The Razer Leviathan V2 is now ready for use in Bluetooth mode. ACTIVATE THX® SPATIAL AUDIO* Unleash the full potential of the Razer Leviathan V2 by enabling 360° positional audio for a natural and lifelike experience through Razer Synapse. *Only available on Windows 10 and above. ™...
-
Page 14: Using The Soundbar
5. USING THE SOUNDBAR POWER BUTTON Press the Power button to turn on or off the soundbar. The Power button will light up to show that the soundbar is on. SOURCE BUTTON While powered on, press the Source button to switch between PC mode and Bluetooth mode. PC mode Bluetooth mode Connected... - Page 15 Follow your device’s instructions and select “Razer Leviathan V2” from the list of found devices. The Source button will briefly change to static blue to indicate that the soundbar is now connected to your device.
- Page 16 VOLUME CONTROL BUTTONS Press the volume control buttons to increase or decrease the volume of the current source mode. SOUNDBAR FEET The extra pair of detachable feet lets you change the soundbar angle to ensure that sound is delivered with the least amount of obstruction. Depending on the feet orientation, you can set the soundbar to either a flat or raised angle.
- Page 17 Razer Audio Razer Chroma RGB app (mobile) With 16.8 million colors and a suite of effects to choose from, use the Razer Chroma RGB app to change the lighting effect of the soundbar from your mobile device. Razer Chroma RGB ™...
-
Page 18: Configuring Your Razer Leviathan V2 Pro Via Razer Synapse
Razer ID account is recommended, but optional. All listed features are subject to change based on the current software version, connected device(s), and supported apps and software. SYNAPSE TAB The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab. Dashboard The Dashboard subtab is an overview of your Razer Synapse where you can access all your Razer devices, modules, and online services. - Page 19 Modules The Modules subtab displays all installed and available modules for installation. Global Shortcuts Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse- enabled device inputs which apply across all device profiles. Learn more about Profiles Only Razer Synapse-enabled device inputs will be recognized.
- Page 20 AUDIO TAB The Audio tab is the main tab for your Razer Leviathan V2. From here, you can customize your soundbar’s settings to unleash its full potential. Changes made under this tab are automatically saved to your system and cloud storage.
- Page 21 Stereo / THX® Spatial Audio Toggle between stereo audio and THX® Spatial Audio. Volume Adjust the audio volume of the soundbar. You may also access the Windows volume mixer of the current playback device, where you can proportionally adjust the overall volume of the system or individually adjust the volume of each active application.
- Page 22 Lighting The Lighting subtab enables you to customize the lighting on the soundbar. Brightness You can turn off the soundbar lighting by toggling the Brightness option or increase/decrease the luminance using the slider. Switch Off Lighting This power saving tool allows you to disable soundbar lighting when your system’s display is turned off.
- Page 23 Only devices that support the selected lighting effect will synchronize. Advanced Effects The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled devices. To start making your own Chroma Effect, press the Chroma Studio button ( ™...
- Page 24 PROFILES TAB The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications. Devices View which games are linked to each device’s profiles or which Chroma Effect is linked to specific games using the Devices subtab.
- Page 25 You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device. To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with.
- Page 26 Reset tab The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse’s new features on its next launch.
- Page 27 The About tab displays brief software information, copyright statement and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer’s social communities. ™ F O R G A M E R S . B Y G A M E R S .
-
Page 28: Safety And Maintenance
7. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Leviathan V2, we suggest that you adopt the following guidelines: ▪ Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com... -
Page 29: Legalese
Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. - Page 30 Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice.
