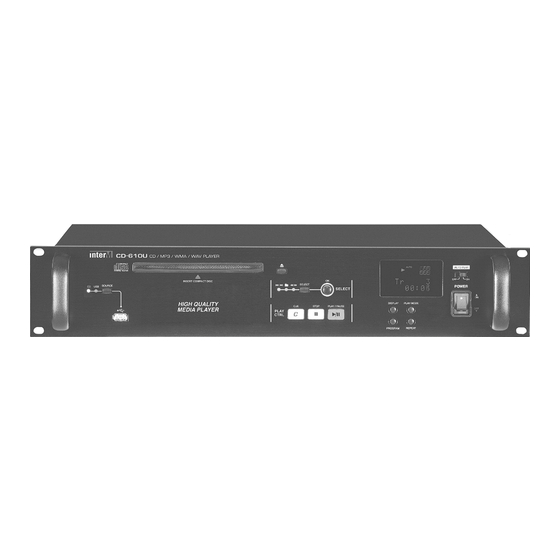

  • Page 1 Operation anual CD/MP3/WM /W V Player D-610U *Rack mount products in the Western Hemisphere (North merica, South merica, and the Caribbean) do not have handles installed due to customer preference.
  • Page 2 A personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    ..........................2 Installation Environment ...........................2 Important Safety Instructions .....................2 Features ..........................3 Additional Descriptions ......................3 How to manage the Compact Disc (CD) ................4 Front Panel ..........................5 Rear Panel ..........................7 Operation Method .......................8 Block Diagram ........................11 Specifications ........................12 Service ..........................14 Warranty ..........................14 CD-610U...

  • Page 4: Unpacking

    CD/MP3/WM /W V PL YER Unpacking Unpacking lthough your CD-610U is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.

  • Page 5: Features

    1. RS-232 PIN OUT Used Receive Transmit Ground 2. Remote control function Play/Pause, Stop, Skip down/up, Search Down/up, etc. can be controlled by a remote controller. 3. Downloading of the control protocol You can download the protocol at the home page (www.inter-m.com). CD-610U...

  • Page 6: How To Manage The Compact Disc (Cd)

    - Do not paste papers, etc. to the label side. Do not write on the disc with a ballpoint pen. - Only use circular compact discs, void using non-circular promotional, etc. discs. - The CD-610 cannot play unfinalized CD-R/RW discs. CD-610U...

  • Page 7: Front Panel

    - ◀ ◀ ▶ ▶(Search) : turning the ENCODER switch to the clockwise, then it searches forward continuously. Turning the encoder switch to the counter clockwise, then it searches backward continuously. Press the OK button to stop searching and playback the track. CD-610U...
  • Page 8 When the play button is pressed, playback begins at exactly that point. 18. USB PORt Use this terminal to mount USB memory. The unit supports USB1.1 When CD LED is on, USB will not be played. When USB LED is on, CD will not be played. CD-610U...

  • Page 9: Rear Panel

    CD/MP3/WM /W V PL YER Rear Panel Rear Panel 1. AC InLEt Connect the power cable supplied with the CD-610U. 2. RS-232C tERMInAL This terminal allows control by a remote controller such as MX /CRESTRON etc. 3. DC InPUt DC 24V Power input terminal and can be used as back up power.

  • Page 10: Operation Method

    3. When a disc is inserted upside down, then the window displays “RE DING ERROR”. Check the disc status and format because these are not failure of this unit. 2) How to play USB (1) Insert a USB memory to the USB terminal. CD-610U...
  • Page 11 3. AUtO PLAy UTO Play is the function to preset the source (CD, USB or Memory disc) to playback and to playback the preset source when the power of the CD-610U is turned on. 1) UTO PL Y setting To set the UTO PL Y function, set the UTO PL Y switch to ON position.
  • Page 12 UTO PL Y ON/OFF the unit power is interrupted while CD or USB is playing, when power is back on it will play the beginning of the song that stopped causing by power interruption. ※ Note : CD-610U can play the MP3 file which has 44.1kHz sampling frequency and 64kbps~320kbps bit rates.

  • Page 13: Block Diagram

    CD/MP3/WM /W V PL YER Block Diagram Block Diagram CD-610U...

  • Page 14: Specifications

    CD/MP3/WM /W V PL YER Specifications Specifications CD-610U DISC (CD, CD-R, CD-RW) 12cm Number of Channels 3CH(L, R, MONO) Frequency Response (20Hz ~ 20kHz) +0.5/-2.0dB T.H.D. (20kHz LPF) 0.01%(NOR), 0.03% less(LIMIT) S/N (20kHz LPF, -WTD) 84dB(NOR), 80dB(LIMIT) UDIO Output Level (Max) +6dBV±2dB (2Vrms)
  • Page 15 CD/MP3/WM /W V PL YER ※ DIMEnSIOnS CD-610U...

  • Page 16: Service

    To obtain specific warranty information and available service locations, contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 17 NOTE...
  • Page 18 NOTE...
  • Page 19 NOTE...
  • Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
