Summary of Contents for Onix N4120

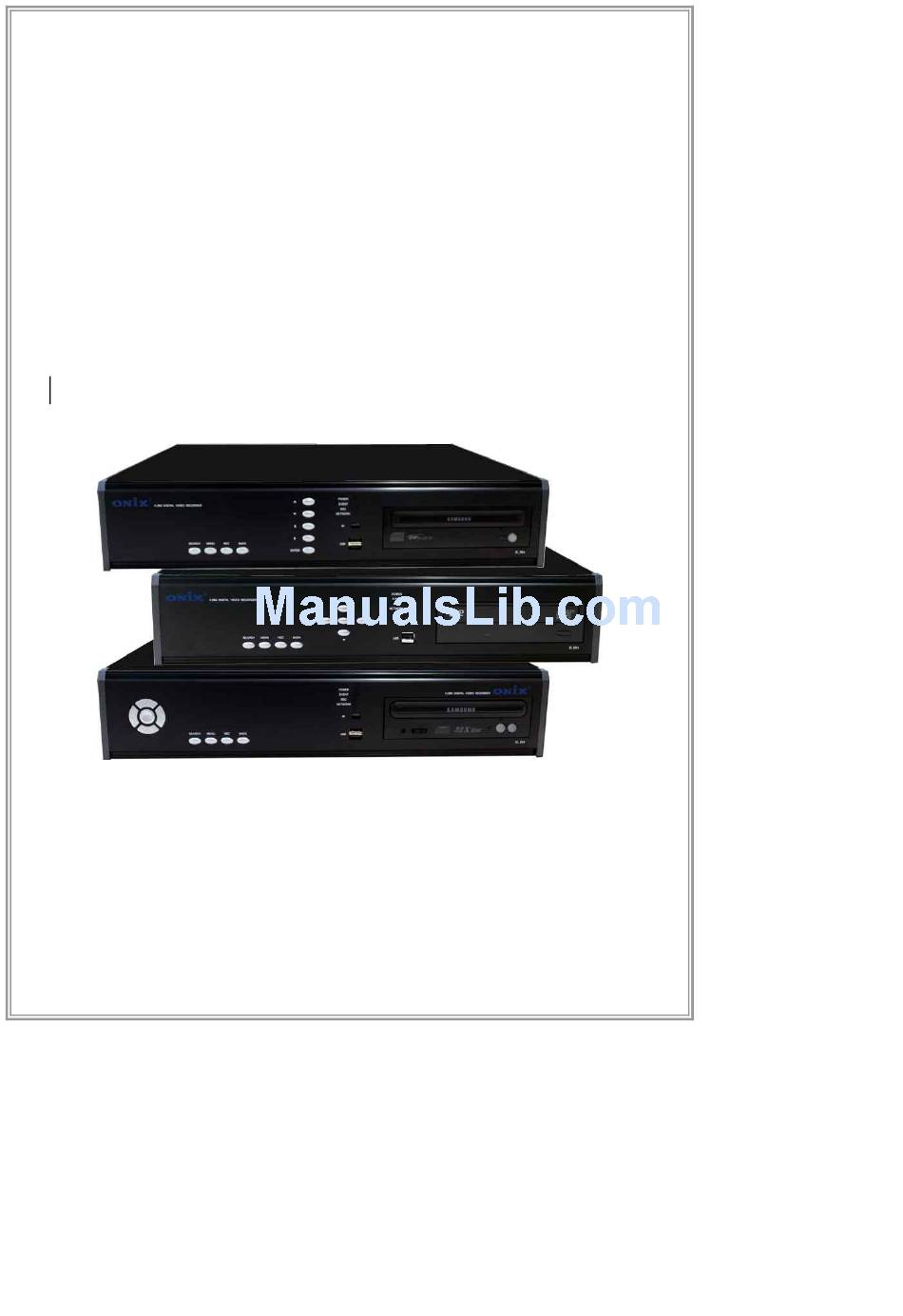

  • Page 1: User Manual

    User Manual Network Standalone DVR N Series (N4120 , N8240 , N1648) Standalone DVR Manual v2.1...

  • Page 3: Table Of Contents

    Contents CONTENTS NOTICE BEFORE USING PRODUCT SAFETY WARNING & PRECAUTION PRODUCT DESCRIPTION 오류! 책갈피가 정의되어 있지 않 습니다. RODUCT PECIFICATION Package Contents Front Panel Layout LED Status Lights USB Port CD/DVD-RW (Optional Type) Front Panel Buttons Rear Panel Remote Control Unit Layout PRODUCT INSTALLATION (4CH ONNECTION...
  • Page 4 /PTZ C LARM ENSOR ONNECTION Alarm Sensor ETWORK ONNECTION RIVE OWER ONNECTION YSTEM NSTALLATION OMPLETE STANDALONE DVR SET MANUAL TARTING THE YSTEM URVEILLANCE Main Screen Video Screen Control Panel Split Screen Modes LAYBACK EARCH Quick Search Mode Search Initial Menu EARCH Recording Configuration PTZ Configuration...
  • Page 5 STANDALONE CLIENT ONFIGURATION GUI Main Feature Display Configuration Storage Space Setup Creating Recording Repositories Device List Configuration Device Configuration MD (Motion Detection) Configuration Bookmark Configuration Network Event Configuration Recording Configuration by Events Recording Duration Configuration by Events Recording / Schedule Configuration PTZ(Pan/Tilt/Zoom) Configuration Preset Configuration Network Configuration...
  • Page 6 2-Way Audio Control Panel I/O control Panel Playback Control Panel Event List Panel Display Floating Bar URVEILLANCE CENARIO Login Process Assigning & Moving Server/Device List Disconnecting / Removing Assigned Channels Connection Fail of the registered video channels Controlling selected surveillance video channels Enhanced Function for Server List/Surveillance Area OSC(On Screen Command) Function E-MAP C...
  • Page 7 WEBCLIENT OPERATION ENVIRONMENT & INSTALLATION INIMAL SPEC REQUIRED TO OPERATE LIENT & ONNECTION INSTALLATION OF LIENT Web Browser-Based Connection of WebClient Install ActiveX – 1 Stage Install ActiveX – 2 Stage Stage Stage (Win Vista, Win7) HOW TO USE WEBCLIENT URVEILLANCE Selection of Channel Split Mode PTZ Control...
  • Page 8 ADD SERVER SETUP CHANNELS DELETE CHANNEL DELETE SERVER LIST ONSTITUTION OF CREEN ROCEDURE OF ERFORMANCE OF ECORDED IDEO...

  • Page 9: Notice Before Using Product

    Product Description Notice before Using Product Notice before Using Product Please beware of the following precautions before installing the DVR. ① Please avoid placing the system near moisture or dust ② Please avoid placing the system near direct sunlight or heat source ③...

  • Page 10: Safety Warning & Precaution

    Product Description Safety Warning & Precaution Safety Warning & Precaution The following warnings and cautions are for your own safety and to prevent damage of the DVR system and/or other properties. Warning (Review these warnings or you may be seriously injured or killed) Do not place any liquid container Turn off the system before installing...
  • Page 11 Product Description When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid Avoid any place with moisture, dust, using the plug if the holes on the or soot. outlet are too loose. [This can cause fire or electric shock] [This may cause fire or electric shock] Do not attempt to disassemble,...
  • Page 12 Product Description Caution (Review these cautions or you may be seriously injured or cause property damage) Install the system in a place Do not install the system in a place with appropriate moisture and with high magnetic, electric wave, or temperature level wireless devices such as radio or TV [Avoid installing the system with...

  • Page 13: Product Description 오류! 책갈피가 정의되어 있지 않 습니다

    Product Description Product Description Product Description Product Overview “Standalone DVRs" are Standalone DVRs that support H/W compression, Realtime Display, and Two-way Audio function. Their stability was maximized by adopting Embedded Linux as the Operating System. By supporting strong Remote Surveillance and Remote Playback through network, they can be the optimized security solutions for IP Surveillance Generation.

  • Page 14: Product Specification

    Product Description Product Specification Specification N4120 N8240 N1648 Video Input H.264 Video CODEC ADPCM Audio [BNC x 1, RCA x 1] CVBS, [BNC] SPOT x 1, Video Output VGA x 1 Video Signal NTSC/ PAL Operating System Embedded Linux Live Display, Recording, Playback, Pentaplex Function Backup &...
  • Page 15 Product Description Function Watermark, Pre-recording, Dual Streaming, 2-way Front LED Record, Alarm, Network Backup Media DVD-RW, USB Memory Stick Firmware Upgrade DVD-RW, USB Memory Stick, Network Search Modes Calendar, Event, Quick, Specific Time Watch Dog Hardware Watchdog Support PTZ Connection 1 Port Terminal Block, RS-485 Pelco-D, Samsung SCC-641 and approx.

  • Page 16: Package Contents

    Product Description Package Contents DVR System Adapter Remote Control Unit Installation Power Cable (Option) User Manual (Option) Batteries (AAA) (Option) Mouse (Option)

  • Page 17: Front Panel Layout

    Product Description Front Panel Layout LED Status Lights LED on when recording EVENT LED on when events occur LED on when network is connected USB Port USB Storage can be connected for backup and F/W upgrade purposes. CD/DVD-RW (Optional Type) Blank DVD/CD (depending on the optical drive type) can be inserted to back up data or to upgrade the firmware.

  • Page 18: Rear Panel

    Product Description Rear Panel ① Video In [BNC]Camera Input ② CVBS Out [BNC]Main Composite Video Out ③ SPOT Out [BNC]SPOT Out ④ CVBS Out [RCA]Main Composite Video Out ⑤ Audio In [RCA]LINE(MIC) Audio In ⑥ Audio Out [RCA]Audio Out ⑦ VGA Out VGA Output ⑧...

  • Page 19: Remote Control Unit Layout

    Product Description Remote Control Unit Layout POWER Power ON/OFF Pauses live view FREEZE screen for quick scan/review of event Start Recording MENU Launches the menu Back from the current BACK action Navigate through menus. Select the item. SEARCH Launches the search STOP Stop playback Launches the PTZ...

  • Page 20: Product Installation

    Product Description Product installation Product installation Connection Outline (4CH case)

  • Page 21: Video Connection

    Product Description Video Connection Input This series of DVR systems have a total of 16 camera inputs for recording. Either NTSC or PAL video signal cameras maybe used in this system and will be set in the system configuration menu. Please do not mix different video signal types into 16 channels.

  • Page 22: Audio Connection

    Product Description Audio Connection Input ① LINE (MIC) Input: This DVR supports up to 4 audio inputs. Please refer to the back panel of the DVR for input locations. ② Default audio input signal level is Line-In. An additional device should be installed to use MIC-In level of audio input. Output This DVR has 1 output for audio out.

  • Page 23: Alarm/Sensor/Ptz Connection

    Product Description Alarm/Sensor/PTZ Connection Alarm This product does not supply power to an alarm internally. The alarm type that should be used is Dry Contact Type. Up to 1 alarms can be connected. ① Use two wires for connection. ② Depending on type of Alarm used, please choose the right type from DVR’s Alarm Menu.

  • Page 24: Network Connection

    Product Description Network Connection DVR has an Ethernet port in the rear for standard RJ45 cable connection. Hard Disk Drive DVR System supports only SATA (Serial ATA) connection. Hard drives must be SATA and up to 2 hard drives may be connected. ①...

  • Page 25: Standalone Dvr Set Manual

    Standalone DVR Set Manual Standalone DVR Set Manual Standalone DVR Set Manual Starting the System Please make sure the power cord in the rear is firmly connected. Press the power button in front of unit for initial start. At initial power-up, the system will start automatically when the power cord is connected.

  • Page 26: Video Screen

    Standalone DVR Set Manual (Surveillance screen may differ from model to model) Video Screen [Screen 2-1] A single screen will appear upon startup, which will include all the video input into one single video output. [Screen 2-2] Each camera channel will show a status caption above the actual video image.

  • Page 27: Control Panel

    Standalone DVR Set Manual Control Panel At the bottom of main screen, a convenient DVR control panel is located. The DVR buttons and control is grouped into 3 types of controls, depending on the current mode, the grouping will come in handy.
  • Page 28 Standalone DVR Set Manual PTZ Control <PTZ Control> Click on “è” button to change the center side of panel to the PTZ control panel. This control panel provides PTZ control function to a video channel at which PTZ configuration is set. Playback Control <Playback date and time >...

  • Page 29: Split Screen Modes

    Standalone DVR Set Manual Split Screen Modes Full Screen View [Screen 2-3] Full Screen View View a channel in full screen, by double clicking on a channel [Screen 2-3]. Alternatively, click on button to full-size a selected channel. Double clicking on the screen while in full screen mode will turn back to previous split screen mode Clicking button once more will switch to the next available...
  • Page 30 Standalone DVR Set Manual 4 Split Screen View [Screen 2-4] 4 Split Screen View To view the DVR in 4 channel division, click button. [Screen 2-4] In addition, by clicking button once more, the next 4 set of channels will be shown and so on.
  • Page 31 Standalone DVR Set Manual 6 Split Screen View [Screen 2-5] 6 Split Screen View To view the DVR in 6 channel division, click button. [Screen 2-5] In addition, by clicking button once more, the next 6 set of channels will be shown and so on. In the above diagram, the ‘X’...
  • Page 32 Standalone DVR Set Manual 8 Split Screen View [Screen 2-6] 8 Split Screen View To view the DVR in 8 channel division, click button. [Screen 2-6] In addition, by clicking button once more, the next 8 set of channels will be shown and so on.
  • Page 33 Standalone DVR Set Manual 9 Split Screen View [Screen 2-7] 9 Split Screen View To view the DVR in 9 channel division, click button. [Screen 2-7] In addition, by clicking on button once more, the next 9 set of channels will be shown and so on. In the above diagram, the ‘X’...
  • Page 34 Standalone DVR Set Manual 16 Split Screen View [Screen 2-8] 16 Split Screen View To view the DVR in 16 channel division, click button. [Screen 2-8]...

  • Page 35: Playback Mode

    Standalone DVR Set Manual Playback Mode DVR is able to playback any recorded data with many different function modes of playback. In this section, each playback mode and search function is documented for usage. [Screen 3-1] Playback Screen Initial playback screen will show [Screen 3-1] with status bars at the bottom of the screen.
  • Page 36 Standalone DVR Set Manual Playback Date and Time It shows the current date and time of the video that is being played back. The speed of playback time will vary depending on the speed of playback. Playback Controls ① ② ③ ④ ⑤ Controls for playback are located at the bottom right of the status bar.

  • Page 37: Search Mode

    Standalone DVR Set Manual Search Mode [Screen 4-1] Shortcut to the search During surveillance mode, the buttons on the bottom right will enable 4 types of search mode. [Search Mode] ① Quick Search. This button plays playback the latest recorded video 1 minute before. ②...

  • Page 38: Quick Search Mode

    Standalone DVR Set Manual Quick Search Mode Clicking button will activate quick playback of latest video that was recorded. ※ Please go back to “Playback Mode” page for reference on how to use the playback mode.

  • Page 39: Search

    Standalone DVR Set Manual Search While in the main screen, click on button to enter the search menu. [Screen 4-2]. [Screen 4- 2] Search...
  • Page 40 Standalone DVR Set Manual Calendar Search [Screen 4-2] On the left side of the search menu, click on button to start calendar search. [Screen 4-3]. [Screen 4- 3] Calendar Search Click to select hour Recorded data [Screen 4-3] On the top right side of search screen, click on button to start calendar search.
  • Page 41 Standalone DVR Set Manual Selection [Screen 4- 4] Time bar Indicator (Minute) In the time bar indicator for minutes, minutes with available data will be indicated by colored bars. Select a minute, and click button to start playback. [Screen 4-4]. ※...
  • Page 42 Standalone DVR Set Manual Calendar Search – DST(Daylight Saving Time) ① ② [Screen 4- 5] DST(Daylight Saving Time) ① DST(Daylight Saving Time) § In countries that use daylight savings time, the last day of daylight savings time will be recorded as a 25 hour day. §...
  • Page 43 Standalone DVR Set Manual Event Search On the left side of search screen [Screen 4-2], click on button to start the event search. Event search [Screen 4-6] will be shown. ① ② ③ ④ ⑤ [Screen 4- 6] Event Search A database of all the events occurred is kept along with the date and time.
  • Page 44 Standalone DVR Set Manual ⑤ Search results will be shown in [Screen 4-7] ⑥ Choose an event from the result and click button, the display mode will be changed to playback mode, and then playback will be started from the time that the selected event was stamped .
  • Page 45 Standalone DVR Set Manual Specific Time Search [Screen 4-2] On the left side of search screen, click on button to start the time search. Time search [Screen 4-8] will be shown. ② ① ③ ④ [Screen 4- 8] Time Search Use time search to jump right to a specific time to watch recorded video.

  • Page 46: Menu Mode

    Standalone DVR Set Manual Menu Mode [Screen 5- 1] Menu Mode On the surveillance screen click the (Setup) button to access the menu mode.

  • Page 47: Initial Menu

    Standalone DVR Set Manual Initial Menu [Screen 5- 2] Initial Menu Initial Menu screen will open when button is clicked.

  • Page 48: Search Menu

    Standalone DVR Set Manual Search Menu Indicated above is the search mode button in the main menu.. Please refer to “Search Mode”.

  • Page 49: Recording Configuration

    Standalone DVR Set Manual Recording Configuration User can set the DVR to record video with specified perimeters. The DVR will start recording in the following cases: ① When user presses the button in the system front panel for manual emergency recording ②...
  • Page 50 Standalone DVR Set Manual Record Configuration ② ① ③ ④ ⑤ [Screen 5- 3] Record Configuration Configure the recording options as follows: ① OVERWRITE: Enable overwrite to allow new data to be overwritten over the oldest data when storage space is full.. ②...
  • Page 51 Standalone DVR Set Manual When selected, same settings will be applied to all channels Channel specific setting Select to turn on/off recording of a channel Recording size varies by motion with this setting. More motion takes more disk space to record. SIZE Adjust video resolution QUALITY...
  • Page 52 Standalone DVR Set Manual Record Schedule Configuration ① ② ③ [Screen 5- 4] Record Schedule Configuration Configure recording schedule ① Select a channel to schedule ② Select type of event to schedule ③ Click and drag using mouse cursor to select the specific time schedule.
  • Page 53 Standalone DVR Set Manual Event & Alarm Configuration ① ② ③ ④ ⑤ [Screen 5- 5] Event & Alarm Configuration Select which events will trigger which type of notification in this configuration screen. ① Select a channel to configure. ② Select which of the event triggers would activate an event. ③...
  • Page 54 Standalone DVR Set Manual Sensor In & Alarm Out Configuration ① ② ③ [Screen 5- 6] Sensor In & Alarm Out Configuration Configure SENSOR In or ALARM Out box to configure settings for SENSOR In or ALARM Out. In the above picture, each rows mean Video channels and each columns mean the channel of Sensor or Alarm.
  • Page 55 Standalone DVR Set Manual Alarm Schedule Configuration ① ② ③ [Screen 5- 7] Alarm Schedule Configuration Configure alarm schedule ① Enables alarm schedule configuration. ② Select a schedule option. ‘’NORMAL’, the alarm is schedule to normal action. ’ALARM ON’, the alarm is schedule to always active. ’ALARM OFF’, the alarm is schedule to always inactive.

  • Page 56: Ptz Configuration

    Standalone DVR Set Manual PTZ Configuration ① ② ③ ④ ⑤ ⑦ ⑥ ⑧ [Screen 5- 8] PTZ Configuration Configure PTZ protocol for each channel, ① Select channel to setup PTZ ② To activate a PTZ, please click PTZ ENABLE ③...

  • Page 57: System Configuration

    Standalone DVR Set Manual System Configuration OSD(On Screen Display) Configuration [Screen 5- 9] OSD Configuration Configure OSD of the live surveillance video channels. The following table is a detailed explanation of OSD setting. ITEM DESCRIPTION DATE TIME Center date/time status bar ON/OFF HDD GAUGE Center HDD status bar ON/OFF MD PREVIEW...
  • Page 58 Standalone DVR Set Manual Digital Zoom [Screen 5- 10] Enabling Digital Zoom In the screen, It enables Digital Zoom function by checking the Enable Digital Zoom check box. Digital Zoom function is for enlarging the Video Image for cameras even do not support zooming function. As the above screen, Digital Zoom icon will be displayed when moving the mouse pointer over the selected channel.
  • Page 59 Standalone DVR Set Manual [Screen 5- 11] Digital Zoom Mode The video image moves when mouse clicking to a point to move on the screen with Digital Zoom mode as the above screen. Click the Digital Zoom icon to quit Digital Zoom mode.
  • Page 60 Standalone DVR Set Manual Camera Configuration ① ② ⑦ ③ ④ ⑧ ⑤ ⑨ ⑥ [Screen 5- 12] Camera Configuration Adjust color settings for each channel, and other channel/camera- related setting ① Select a channel to configure (Indicated with Yellow) ②...
  • Page 61 Standalone DVR Set Manual ⑥ Camera Type: Select camera video signal by regions. ⑦ Configure motion detection area with mouse dragging or arrow buttons & OK button of the remote control unit(RCU). ⑧ Clicking “CLEAR” button unsets the entire area of motion detection area.
  • Page 62 Standalone DVR Set Manual Storage Configuration ① ② ④ ③ [Screen 5- 13] Storage Configuration Recording space can be chosen and status of each hard drive can be checked in this menu ① Select a storage to format ② Display storage usage status ③...
  • Page 63 Standalone DVR Set Manual Network Configuration ① ④ ② ⑤ ③ [Screen 5- 14] Network Configuration Configure network connection, ① Network settings allow Static IP, Dynamic IP, PPPoE ② The form to input setting values for Static IP ③ The form to input setting values for PPPoE. ④...
  • Page 64 Standalone DVR Set Manual Streaming Configuration ① ② ③ [Screen 5- 15] Streaming Configuration Configuration streaming environment, ① Streaming/ Remote Setup/ Web Port No. : Configure network ports for Standalone Client and TWC(Thin Web Client) ▪ The default value for streaming: 2000 ▪...
  • Page 65 Standalone DVR Set Manual ▪ AUTO PORT This option enables the DVR set to configure Port Forwarding setting of an IP router automatically when the DVR set is connected to an IP router in a LAN environment. It sets the network port number for both the DVR set and an IP router side by the setting value ①...
  • Page 66 Standalone DVR Set Manual Date & Time Configuration Calendar ③ ④ ① ② ⑤ [Screen 5- 16] Date & Time Configuration Configure system date & time setup, ① Check and configure the local time zone. ② Configure the time difference and location. ③...
  • Page 67 Standalone DVR Set Manual ⑥ ⑦ ⑧ [Screen 5- 17] Date Setup ⑥ Move from month to month by clicking ç, è ⑦ Select a date by clicking on a day in the calendar. ⑧ Click "Apply" or "OK" to save changes.
  • Page 68 Standalone DVR Set Manual User Management Configuration ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ [Screen 5- 18] User Management Configuration user management, ① Select user level to configure [ADMIN, MANAGE, USER1~4] ※ Warning: The factory default setting value for the password of the “ADMIN”...
  • Page 69 Standalone DVR Set Manual will open.. ⑦ Login Enable/Disable: If this box is checked, the login window will not pop up when opening the menu. ⑧ Login Timeout: After the most recent login, the login window will not pop up for certain time duration. The time is in seconds, and the default value is 60 seconds.
  • Page 70 Standalone DVR Set Manual User Management – Mail Server Configuration ② ③ ④ ⑤ ⑥ ⑦ ① ⑧ [Screen 5- 19] Mail Server Configuration Click SETUP button in the above screen to configure e-mail server information. ① SETUP: Click to open a pop up window for configuring e- mail server information.

  • Page 71: System Information

    Standalone DVR Set Manual System Information ① ② ③ [Screen 5- 20] System Information In system information menu, a number of system information is displayed, and user can also upgrade the DVR firmware. ① Upgrade ▪ Select the storage medium which contains the upgrade firmware ▪...
  • Page 72 Standalone DVR Set Manual ※ CAUTION: In case of upgrade with a USB memory stick, it’s strongly recommended to remove a USB memory stick just after executing “Safely Remove Hardware” in Windows Operating system when copying a F/W file to the USB memory stick. Unless it can cause a severe problem when upgrade.

  • Page 73: Backup

    Standalone DVR Set Manual Backup ① ② ③ ④ ⑤ ⑥ [Screen 5- 21] Backup Record data backup with the menu, ① Select the backup channel ② Select backup medium (CD-ROM, USB Storage) ③ Select the type of backup data. ④...

  • Page 74: Log Viewer

    Standalone DVR Set Manual Log Viewer ① ② ③ ⑤ ④ [Screen 5- 22] Log Viewer Search system logs, ① Select the channel ② Select the event ③ Start date, time ④ End date, time ⑤ Click "SEARCH" Results will be displayed in the following screen.
  • Page 75 Standalone DVR Set Manual [Screen 5- 23] Log View Searched Results...

  • Page 76: Standalone Client

    Standalone Client Standalone Client Standalone Client This chapter explains standalone client.

  • Page 77: Configuration

    Standalone Client Configuration GUI Main Feature ① ② ③ ① Configuration List Tab All configuration items are located on the Top Configuration Bar. Click a configuration icon to move to another configuration window. ② Configuration Window Detailed configuration settings for each configuration item are located here.

  • Page 78: Display Configuration

    Standalone Client Display Configuration ① ⑤ ② ④ ③ ⑦ ⑥ ⑧ ⑨ ⑩ ① RGB/YUV2/UYVY: Select an Overlay Surface type ▪ Color format depends on the graphic card ▪ Default Setting is YUV2 ② Fit To Screen: Select to fit standalone client window size to the monitor resolution ③...
  • Page 79 Standalone Client ⑦ Example: An example of OSD character that will be shown on the panel. ⑧ Sequential Switch: Set the time interval for Sequential Video Channel Switching ⑨ E-Map File: Select an E-Map background picture file ▪ If not selected, default background in use ▪...

  • Page 80: Storage Space Setup

    Standalone Client Storage Space Setup ① ② ③ ⑧ ⑥ ④ ⑤ ⑨ ⑦ ※ Important The standalone client requires selecting the storage space before running the program. It MUST be designated a storage and once the storage is created, data will only be recorded on that storage space.
  • Page 81 Standalone Client ▪ Remain(Remaining space): Number of storage space(bank) that can be created in the remaining HDD space. ▪ Created: Number of created storage spaces(banks) ▪ Unused: Number of storage spaces(banks) that have not been used yet. ④ Bank Command: Controllers for Creating/ Changing/ Deleting each selected repositories ⑤...

  • Page 82: Creating Recording Repositories

    Standalone Client Creating Recording Repositories ① Select a HDD Drive for creating recording repositories. ① HDD & Filebank Information ② Set the number of banks to create. Modified HDD & ② Filebank information...
  • Page 83 Standalone Client ③ Create banks by clicking “CREATE BANK” button. ③ Filebank creation status ④ Select a Local Drive in which Filebanks were created. Filebank creation completed ④...

  • Page 84: Device List Configuration

    Standalone Client Device List Configuration Device Input Table: A grid configuration table to configure added devices. ① ② ③ Device List ⑤ Queried ④ Device List ① Add: Add a device with the information entered in the Input Form. ② Added Device List ▪...
  • Page 85 Standalone Client ▪ Export: Export all configuration setting values to an XML-typed file. ▪ Add Sel: Click to add selected device. All available devices are queried by network and displayed the below grid table in figure ② ▪ Remove: Remove selected device from the device input grid table in figure ①...

  • Page 86: Device Configuration

    Standalone Client Device Configuration Remote Configuration of Each Device ※ This Device Configuration window does not support all Video Servers and IP cameras. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① Resolution: Video resolution ② FPS: Number of video frames per second(1~30) ③...

  • Page 87: Md (Motion Detection) Configuration

    Standalone Client MD (Motion Detection) Configuration ① ② ④ ③ ⓐ ⓑ ① Device List: The entire list of registered cameras in all servers ② Device Information: Displays information about the selected device ③ MD Area ▪ Configure the MD area with the mouse by click-and-drag ⓐ...

  • Page 88: Bookmark Configuration

    Standalone Client Bookmark Configuration ① ② ③ ⑥ ⑦ ⑧ ⑨ ④ ⑤ ① Bookmark List ▪ When selecting an added bookmark by mouse clicking, all relevant device names will be displayed at Device List at② ② Device List: Device Lists of a selected bookmark at ① ③...

  • Page 89: Network Event Configuration

    Standalone Client Network Event Configuration ⓐ ⓑ ⓒ ⓓ ② ① ③ ④ ⑤ ① Select a CH to configure a network event ▪ Network Event Information ⓐ CH: Channel name ⓑ Transmit Type: Select a data format that will be transmitted to panel.

  • Page 90: Recording Configuration By Events

    Standalone Client Recording Configuration by Events ② ③ ④ ⑤ ⑥ ⑦ ① ⑧ ⑨ ⑪ ⑩ ① CHANNEL: Currently registered camera list of a server ② EVENT: Enable/ Disable event ③ LIVE POPUP: Enable/ Disable live display channel popup when configured event occurs ④...

  • Page 91: Recording Duration Configuration By Events

    Standalone Client Recording Duration Configuration by Events ① ② ③ ④ ⑫ ⑤ ⑥ ⑦ ⑩ ⑧ ⑪ ⑨ ① Enable MD Recording Function: Enable/ Disable recording by Motion Detection. Set recording duration by moving the slide bar or inputting a number directly. (1sec~30min) ②...
  • Page 92 Standalone Client occur. Set display duration by moving the slide bar or inputting a number directly. (1sec~60sec) ⑦ Enable Live Popup: Enable/ Disable live displaying popup when events occur. Set display duration by moving the slide bar or inputting a number directly. (1sec~60sec) ⑧...

  • Page 93: Recording / Schedule Configuration

    Standalone Client Recording / Schedule Configuration ③ ④ ⑤ ① ⑥ ② ⑧ ⑦ ⑨ ① Enable the Schedule: Enable/ disable schedule recording ② All: Click to turn all schedule types, days, and hours ON or OFF ③ Enable *Switching Schedule: Enable/ disable switching schedule recording ④...

  • Page 94: Ptz(Pan/Tilt/Zoom) Configuration

    Standalone Client PTZ(Pan/Tilt/Zoom) Configuration ① ② ③ ④ ⑤ ⑥ ① Device List: The entire list of registered cameras in all servers ② PTZ Device List: List of supported PTZ protocols(standalone client basically supports over 75 PTZ devices) ③ Device Information: Displays information about the selected device ④...

  • Page 95: Preset Configuration

    Standalone Client Preset Configuration ① ② ⑦ ④ ③ ⑤ ⑥ ⑧ ⑨ ⑩ ① Device List: All registered device lists ② PTZ Configuration of Selected device ③ Preset: Preset number ④ Save: Preset position ⑤ Move: PTZ direction control ⑥...

  • Page 96: Network Configuration

    Standalone Client Network Configuration ① ② ③ ① Network Information: Displays information about the network adaptor(LAN Card) and MAC address(PC’s LAN Card ID) of the current system ② IP Address: IP address of the current system ③ Connect Management : reconnect delay and retry count setting...

  • Page 97: System Configuration (General Tab)

    Standalone Client System Configuration (General Tab) ① ② ③ ④ ⑤ ⑦ ⑥ ① SYSTEM INFORMATION: Displays basic information about the current system ② CONFIG BACKUP & RESTORE § BACKUP: Back-up system configuration to an XML file § RESTORE: Restore system configuration from a backup file (.XML ) APPLICATION START ③...

  • Page 98: System Configuration (Account Tab)

    Standalone Client System Configuration (Account Tab) ① ② ④ ③ ⑤ ⑥ ① Use Auto Login: Select this option to automatically log in when standalone client is run. ② Use Auto Logout: Select to automatically log out if there has been no activity for several minutes (Select the desired time on the right)

  • Page 99: System Configuration (Version Tab)

    Standalone Client System Configuration (Version Tab) ① ② ③ ④ ⑤ ① Module Name: Name of the engine used by standalone client ② BuildDate: Date that the engine was created ③ ModifiedDate: Date that the engine was modified ④ Version: Engine version ⑤...

  • Page 100: Standalone Client Function Manual

    Standalone Client Standalone Client Function Manual Standalone Client Function Manual In this chapter, it explains for functions of standalone client.

  • Page 101: Main Gui Feature

    Standalone Client Main GUI Feature Standalone client’s GUI has the following feature. ※ Main GUI features may be different for each client package. Essential Info Multi-Tab Area Display Area Control Panel Playback Control Panel...

  • Page 102: Information Panel

    Standalone Client Information Panel Information Panel: Displays the basic status of the program. ① ② ③ ④ ⑤ ⑦ ⑥ ① Displays program Icon and package type ② Displays the current date ③ Displays the current time ④ Displays the current network usage and HDD usage (When there is no space in created banks, the program will overwrite in order of oldest banks first.

  • Page 103: Menu Display Bar

    Standalone Client Menu Display Bar There’re tabs for video display, e-map and event list and some function buttons. ① ② ① Click tab to switch between display windows #1, E-Map, and Event list. ② Functions for buttons § Emergency Rec button: start recording for all the connected video channels.

  • Page 104: Server/ Device List

    Standalone Client Server/ Device List It displays the list of currently registered devices in the standalone client. ② ③ ① ④ ⓐ ⓑ ⓒ ⑤ ⑥ ① Select ‘Server List’ Tab ② The upper-most item in the device list ③ Server: Displays the name and IP address of a registered server ④...

  • Page 105: Bookmark

    Standalone Client Bookmark It displays the list of currently registered bookmarks. ② ③ ⓐ ⓑ ⓒ ① ① Select the bookmark tab ② The name of the bookmark group ※ Configure at the menu of Configuration>Device>Bookmark ③ Camera in bookmark: Displays the panel number and camera number of the currently displayed video.

  • Page 106: Control Panel

    Standalone Client Control Panel Buttons for controlling standalone client are located in the Control Panel ① ④ ② ⑤ ⑥ ③ ① Click tab to switch between General Control Panel / PTZ Control Panel / Audio Control Panel ② Click to select the desired split display mode ③...

  • Page 107: Ptz Control Panel

    Standalone Client PTZ Control Panel Panel For *PTZ cameras connected to standalone client. ※ PTZ(Pan/Tilt/Zoom): Horizontal movement / vertical movement / zoom in or out ② ① ④ ⑥ ⑧ ③ ⑤ ⑦ ⑨ ① Continuous/ Non-continuous mode: PTZ Speed control ※...
  • Page 108 Standalone Client ② Click to control camera’s up/down/left/right movements, and zoom/focus and selected preset Act ③ Select preset and touring number. ※ Use “Configuration>PTZ>Preset Menu” ④ Click to turn on/off scenario ⑤ Click to turn on/off touring mode ⑥ Click to turn on/off camera OSD ⑦...

  • Page 109: 2-Way Audio Control Panel

    Standalone Client 2-Way Audio Control Panel A Panel for broadcasting audio with standalone client. ※ 2-Way Audio: 1-Way Audio is when DVR is sending audio to a MagicEyes™ system. 2-Way Audio is when audio is sent from MagicEyes™ system to the DVR, and the DVR broadcasts the audio.

  • Page 110: I/O Control Panel

    Standalone Client I/O control Panel A Panel for controlling I/O manually with standalone client. The output control button allows the user to manually control the output of the connected device. This function can be used to control the output of the video server (an Intotech Inc. product, VS01).

  • Page 111: Playback Control Panel

    Standalone Client Playback Control Panel Search & Playback Control Panel. ① ② ③ ④ ⑦ ⑤ ⓐ ⓑ ⑥ ① Playback Mode Button: Select Playback mode between Local & Remote ② Calendar: Select a day for playback ③ Event Filter Button: Select an Event Filter Recording Motion Detection Sensor...
  • Page 112 Standalone Client ⑤ Time Bar : Select an Hour(0~23)/ Minute for Playback(0~55) Hour Minute ⓐ Current playback point ⓐ ⓑ ⓑ Region where recorded video data exists ⑥ User Time Input Area : Input time directly for Playback ⑦ A tab to switch between calendar search panel and event search panel of the recorded data.

  • Page 113: Event List Panel

    Standalone Client Event List Panel This panel displays event lists in real time. ① ② ③ ④ ⑤ ⑥ ① Filter: Select event type for real-time display. ② Server/ Camera: Camera and server name of the event that has occurred. ③...

  • Page 114: Display

    Standalone Client Display Region for Displaying Surveillance or Playback Video ① ⓐ ⓑ ⓒ ② ① On the top-left corner, the panel number is displayed. When a camera is added to the panel, the camera name is displayed there. In the middle, the current status of the panel is displayed ⓐ...

  • Page 115: Floating Bar

    Standalone Client Floating Bar Floating Bar with indicators and command buttons. ② ④ ① ③ ⑤ ⑥ ⑦ ⑧ ① Indicator for Continuous Recording ② Indicator for MD Recording ③ Indicator for Sensor Recording ④ Indicator for Schedule Recording ⑤ Indicator for *Digital Output ▪...

  • Page 116: Surveillance Scenario

    Standalone Client Surveillance Scenario Login Process Default Administrator Account ② ① ※ Default account Info ID: admin Password: admin ① Login: Click to open login window ② Logout: Click to logout the current account ③ ④ ⑤ ③ Login window ④...
  • Page 117 Standalone Client ※ Resolution: Login again with a right login account or login in with an account which has each relevant access right to use a command. ※ Auto Login: Configuration>System>Account menu provides Automatic Login function which enables MagicEyes can run without login steps with the previous login status.

  • Page 118: Assigning & Moving Server/Device List

    Standalone Client Assigning & Moving Server/Device List ① Assigning: Assigning by selecting a Video Processing Server or an IP Device (IP Camera) for surveillance from the left Server List and moving the list to the right side Vide Surveillance area by mouse drag & drop. ①...
  • Page 119 Standalone Client ② Channel Moving/ Swapping: It moves ready-assigned video channels to other panels. (Mouse Drag & drop: It swaps between two video channels when the target channel to move is assigned a video already.) ② ※ Assigning Server/Device: Under the menu, “Configuration> Device List”, Video devices can be added, and after that video channels can be assigned to the Video Surveillance Area and can be connected.

  • Page 120: Disconnecting / Removing Assigned Channels

    Standalone Client Disconnecting / Removing Assigned Channels Disconnecting / Removing assigned channels on the Video Display Area. ① ① Disconnect a video channel Server by clicking the Server Connection On/Off command button...
  • Page 121 Standalone Client ② ② Remove a video channel with ‘Delete Key’ or drag and drop a channel to the [Server List] while the target channel is selected Connection Fail...

  • Page 122: Connection Fail Of The Registered Video Channels

    Standalone Client Connection Fail of the registered video channels ② ① ① “Connection Fail” message shown when server connection fails. ※ Check Point for this case: Check network status between server and client. ② “Video Loss” message is shown when the channel is in video loss state ※...

  • Page 123: Controlling Selected Surveillance Video Channels

    Standalone Client Controlling selected surveillance video channels ① ③ ④ ① Selected: When selecting a video surveillance channel, the border of the channel changes to be green. ② Select All: Select All video channels in the video surveillance area. ③ Deselect All: Deselect all selected channels by clicking “Select All/Deselect All”...

  • Page 124: Enhanced Function For Server List/Surveillance Area

    Standalone Client Enhanced Function for Server List/Surveillance Area 메 모 [ R ] : 최 신 UI로 변 경 요 망 ① ② ① Highlighting Video channels by mouse clicking a server list in the Server List panel. All highlighted video channels can be deleted just after clicking a server list.

  • Page 125: Osc(On Screen Command) Function

    Standalone Client OSC(On Screen Command) Function ① ② ③ ① OSC OFF: OSC Function is off. Change OSC function on by clicking the button. ② PTZ OSC: In use of the PTZ OSC Function. Move a PTZ camera by mouse clicking a point of a video channel. Control Zoom In/Out by mouse clicking [+], [-] buttons.

  • Page 126: E-Map Configuration

    Standalone Client E-MAP Configuration Video can also be viewed on E-map for a more effective and realistic surveillance. ① ③ ④ ② ⑥ ⑤ ① Select E-MAP tab (Click) ② E-MAP select PIC File you want to display on screen (Refer to ‘Menu indicator bar’) ③...

  • Page 127: Event List/ Realtime Event View

    Standalone Client Event List/ Realtime Event View Real-time monitoring of events that are occurring is possible by selecting the type of events to see. Pop-up view of the channel is displayed when an event occurs. ① ② ① Select type §...

  • Page 128: Event List/ Search Event View

    Standalone Client Event List/ Search Event View Search for events that occurred by event-type, date, time, and text. Play-back the moment of the event. ② ① ③ ④ ① Select Type § Event: Select which events to search for. § System: Select which system-related events to search for.

  • Page 129: Record

    Standalone Client Record Continuous Recording (On / Off) pn1-VS01-1 pn1-VS01-1 ⓐ ① ① Start Recording: Click Record button to turn on Continuous Recording for the selected panel ⓐ Recording-ON Indicator will start blinking pn1-VS01-1 pn7-VS01-1 ⓑ ② ② Stop Recording: Click Record button again to stop recording ⓑ...

  • Page 130: Md(Motion Detection) Recording

    Standalone Client MD(Motion Detection) Recording Recording when MD events occur. MD Recording mode is activated after configuring MD Enable/Disable setting and MD area for each device in Configuration Window. ※ Configuring Motion detection can be available with the menu of “Configuration>Record>Event TIME” ※...

  • Page 131: Emergency Recording Command Button

    Standalone Client Emergency Recording Command Button A Command Button for Emergency Recording ② OFF ① ON ① Emergency Recording is off: Click to start Emergency Recording ② Emergency Recording is on: Click to stop Emergency Recording...

  • Page 132: Playback

    Standalone Client Playback For playback of the recorded video, a video channel should be assigned to a video display panel and its panel should be selected with mouse click. And then playback command can be done. ※ Clicking the playback button on the “Search Tab” without selecting a channel will start All Channel Playback.
  • Page 133 Standalone Client Playback mode Indicator pn7-IntoVS-1 pn7-IntoVS-1 Playback Mode Live Mode ① ② ③ pn7-IntoVS-1 Live Mode ① Run Backup Manager of the current channel ② Reserved ③ Switch to live surveillance mode ▪ Press LIVE button to convert to LIVE mode during playback.

  • Page 134: Remote Search

    Standalone Client Remote Search ① ② Remote Search ④ Select Day ③ Select Channel ⑤ Playback Control To execute Remote Search ① Select a server to that needs to be remote searched. ② Click on REMOTE button in the Playback Control Panel. ③...

  • Page 135: Backup

    Standalone Client Backup To execute Backup Manager, click ‘Backup Manager Command Button’ while in playback mode. ① ① Execute ‘Backup Manager’ by clicking Backup Manager Command Button while in playback mode. The available buttons floating will change automatically when in playback mode.

  • Page 136: Backup Manager

    Standalone Client Backup Manager ① ② ③ ④ ⑤ ⑥ ⑦ ① Device Location ② Backup Storage Devices ③ Calendar & Preview Area ④ Backup Controller Command Area ⑤ Markup backup time block Area ⑥ Select a *backup repository (HDD, USB, CD-RW/ DVD-RW) ※...
  • Page 137 Standalone Client The procedure for Backup ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① Select the location of the device that contains the data to back up. In case of remote backup, select a remote server. ② Backup Storage D vice Selection ③...
  • Page 138 Standalone Client The procedure for Backup Storage Device ① ② ③ ④ ⑤ ⑥ ⑦ ① Select the location of the device that contains the data to back up. In case of remote backup, select a remote server. ② Backup Storage Device Selection: Click [Select] button for backup devices.
  • Page 139 Standalone Client Executing Backup ② ③ ① ④ ① Backup button click to Start. ② The progress of backup is shown ③ Finish backup by clicking OK button when backup is complete. ④ Exit Backup Manager.
  • Page 140 Standalone Client The procedure to playback backup file ② ① ③ ④ ⑤ ① When backup process is finished, the backup data will be stored in a directory named “Data” in the designated storage medium. Also, Backup Viewer program, which is used for viewing the backup data, will be automatically installed.

  • Page 141: Backup Viewer

    Standalone Client Backup Viewer Backup Viewer Window ① ② ④ ③ ① Menu Area ② Display Area ③ Calendar Panel ④ Display and Playback Control Panel...
  • Page 142 Standalone Client Main Menu and Display Area ③ ① ⓒ ② ⓓ ⓐ ⓑ ⓓ ⓒ ① Menu Area ⓐ Open: Select the directory where the IVA backup files are stored. ⓑ Capture: Save the current screen of the selected channel as an image file.
  • Page 143 Standalone Client Playback Control Panel ① ⓐ ⓑ ⓒ ⓓ ⓔ ⓕ ⓖ ⑴ ③ ② ⑵ ⑷ ⑸ ⑹ ⑺ ⑻ ⑼ ⑽ ⑾ ⑶ ⑿ ⒀ ① Display Control Panel ⓐ ~ ⓕ 1, 4, 7, 9, 10, 16 channel split mode ⓖ...
  • Page 144 Standalone Client ⑶ Dates with recorded data are highlighted. ③ Playback Control Panel ⑷ Move 1 frame backward ⑸ Move 1 frame forward ⑹ Reduce Playback speed ⑺ Display current Playback speed ⑻ Increase Playback speed ⑼ Reverse Playback ⑽ Stop Playback ⑾...
  • Page 145 Standalone Client Select Channel Window and Capture Window ⑴ ⑹ ⑶ ⑺ ⑵ ⑻ ⑼ ⑷ ⑸ ① Select Channel Window ⑴ Select Folder ⑵ Select the channels to play back ⑶ Displays the ID and name of the channel ⑷...
  • Page 146 Standalone Client Print Window and Watermark Detector Window ② ① ⑥ ⑦ ③ ⑧ ⑨ ④ ⑤ Print Window: A Window for printing the Current Screen of the Playback Window ① Channel List: List for selecting the channels to print ②...
  • Page 147 Standalone Client Open ① ③ ② ④ ⑤ [How To Open] Viewing a backup video with the Backup Viewer is briefly explained here. ① Click Open button in the Backup Viewer ② Select the directory where the IVA backup files are stored. ③...
  • Page 148 Standalone Client Capture Still cut ① ② ③ ④ [How To Capture] After playback of the backup video, capture and save the screen. ① Click on a channel to select it. (The name of the selected channel will change to red) ②...
  • Page 149 Standalone Client Print ① ② ③ ④ [How To Print] ① Click Print button ② Select a layout of the printing ③ Drag-and-drop an image from the channel list to the preview area to add. Drag-and-drop and image from the preview area to the channel list to remove.
  • Page 150 Standalone Client Watermark ① ③ ② ⑤ ④ [How To Use Watermark] ① Click Watermark menu button. ② Click on Open button and open an image. ③ Click on Detect button to check if the image has been modified. ④ The result when the image was not modified. ⑤...

  • Page 151: M Inimal Spec . Of Pc Required To Operate W Eb C Lient

    WebClient WebClient User Manual WebClient operation environment & Installation Minimal spec. of PC required to operate WebClient Minimal spec. of PC required to operate WebClient P4 3.0 or higher Memory 512 MB or higher Geforce MS 400, Radeon 7500 or higher Geforce 8 series or higher VGA Memory 64MB...
  • Page 152 WebClient Install ActiveX – 1 Stage If connected to Standalone DVR by using IP address or URL, the following log-in dialog box appears. Use the same user name and password as are set in Standalone DVR. Install ActiveX – 2 Stage Select Install Add-in Function.
  • Page 153 WebClient Click “Install” in a dialogue box for Install Add-in Function to progress ActiveX installation. Stage For smooth installation and operation of ActiveX, adjust security level of ActiveX of Internet Explorer as follows.
  • Page 154 WebClient Stage (Win Vista, Win7) If you use Windows 7, turn off “User Account Control”.

  • Page 155: How To Use Webclient

    WebClient How to use WebClient How to use WebClient Live Mode (Live Surveillance) If connecting to WebClient, a live screen is automatically executed as follows.

  • Page 156: Selection Of Channel Split Mode

    WebClient Selection of Channel Split Mode A screen division mode may be selected by using the leftmost button group at the bottom of divided screens, which is denoted by a red- marked rectangular area as follows. For user’s convenience, a screen selected in divided screens prior to pressing the division mode selection button is set to be the first screen of the screen division mode.

  • Page 157: Audio Control

    WebClient Audio Control A function related to bidirectional audio and a function of sound removal can be operated by using right buttons among a middle button group of the bottom of divided screens, which are denoted by a red- marked rectangular area as follows. Add-in Functions Add-in functions can be utilized by using a rightmost button group of the bottom of divided screens, which is denoted by a red-marked...

  • Page 158: Selection Of Replay Time

    WebClient Selection of Replay Time Using a calendar at the bottom of the screen and a slider control, the replay date and time can be selected.

  • Page 159: Replay Control

    WebClient Replay Control Replay control can be performed by using left buttons among the middle button group of the bottom of the divided screen, which are denoted by a red-marked rectangular area. The remaining buttons performs the same functions as those shown in a live screen.

  • Page 160: Recording Setup

    WebClient Recording Setup Setup of recording can be changed.

  • Page 161: Mobile Dvr Viewer Manual

    Mobile DVR Viewer Mobile DVR Viewer Manual Mobile DVR Viewer Manual Overview for Mobile DVR Viewer Mobile DVR-Viewer™ is the state-of-the-art client software for iPhone, which is capable of monitoring up to 4 channels and controlling pan & tilt, by using iPhone. To use Mobile DVR-Viewer™, installation of Mobile DVR- Viewer in iPhone is required.

  • Page 162: I Nstallation By Using I T Unes

    Mobile DVR Viewer Installation by using iTunes ※ Based upon iTunes v9.2.0.61 ① Install iTunes (from www.apple.co.kr) ② Join and log in iTunes Store. ③ Through iTunes, search “Mobile DVR-Viewer”. ④ Click the relevant icon and confirm the information on the application program.
  • Page 163 Mobile DVR Viewer ⑤ Check the information and purchase the application program. ⑥ Download the application program. ⑦ Confirm the downloaded application program and perform application program synchronization.

  • Page 164: D Irect I Nstallation From I P Hone

    Mobile DVR Viewer Direct Installation from iPhone ① Execute App Store. ② Select a search button and type “Mobile DVR viewer” in a search window. ③ Select Mobile DVR-Viewer. ④ Check the description and select a price button. ⑤ Click an installation button to start installation. ⑥...

  • Page 165: U Ninstallation

    Mobile DVR Viewer Uninstallation ① Uncheck the checkbox if uninstallation is to be performed at iPhone. ② For complete uninstallation, click a right button and select Uninstall.
  • Page 166 Mobile DVR Viewer Constitution of Main Screen ① Real-time surveillance videos can be viewed. ② Recorded videos can be viewed. ③ Addition and deletion of a server and a channel can be performed. ④ Language can be chosen.
  • Page 167 Mobile DVR Viewer ADD SERVER ① Select ADD SERVER. ② Enter IP address of a server. ③ Enter a streaming port of the server to be added. ④ Enter ID of the server to be added. ⑤ Enter password of the ID of the server. ⑥...
  • Page 168 Mobile DVR Viewer SETUP CHANNELS ② ③ ① ④ ⑤ ① Select a desired channel. ② Activate a server selecting window by double clicking, and select a server. ③ SELECTED SERVER displays the position of image to be assigned to a view channel. ④...
  • Page 169 Mobile DVR Viewer DELETE CHANNEL ② ① ③ ① Select DELETE CHANNEL. ② Select a channel to be deleted. ③ Press DELETE button to delete the selected channel.
  • Page 170 Mobile DVR Viewer DELETE SERVER LIST ② ① ③ ① Select SERVER LIST. ② Select a server to be deleted. ③ Press DELETE button to delete the selected server.
  • Page 171 Mobile DVR Viewer Constitution of Live Screen ① Return to a main screen. ② Connect to a server to link to a screen. ③ Show full size image (available in 1-division mode) ④ View a screenshot of a live video (available in 1-division mode) ⑤...
  • Page 172 Mobile DVR Viewer Procedure of Performance of Recorded Video ① ③ ② ⑤ ④ ⑥ ① Select CONFIGURATION form a main screen. ② Select a channel to be replayed. ③ Choose the replay date and time. ④ Click SELECT button to move to a replay window. ⑤...
  • Page 173 Product Warranty This product has passed thorough quality management and inspection, and the supplier warrants properly according to this warranty. [Warranty Notice] The supplier executes product warranty as below. Place of purchase appointed at our headquarters or technical support team from our headquarters provides service when request of service.
  • Page 174 ㅁㅁㅁ Within warranty period After warranty period When repair is impossible Customer charge Customer charge Breakdown caused by same Charged product Charged product repair defect up to 3 times 0repair [Charged Product Warranty] - The following cases are handled by charged service even within the warranty period by free of charge.
  • Page 175 Thank You...

This manual is also suitable for:

N8240N1648

Table of Contents
