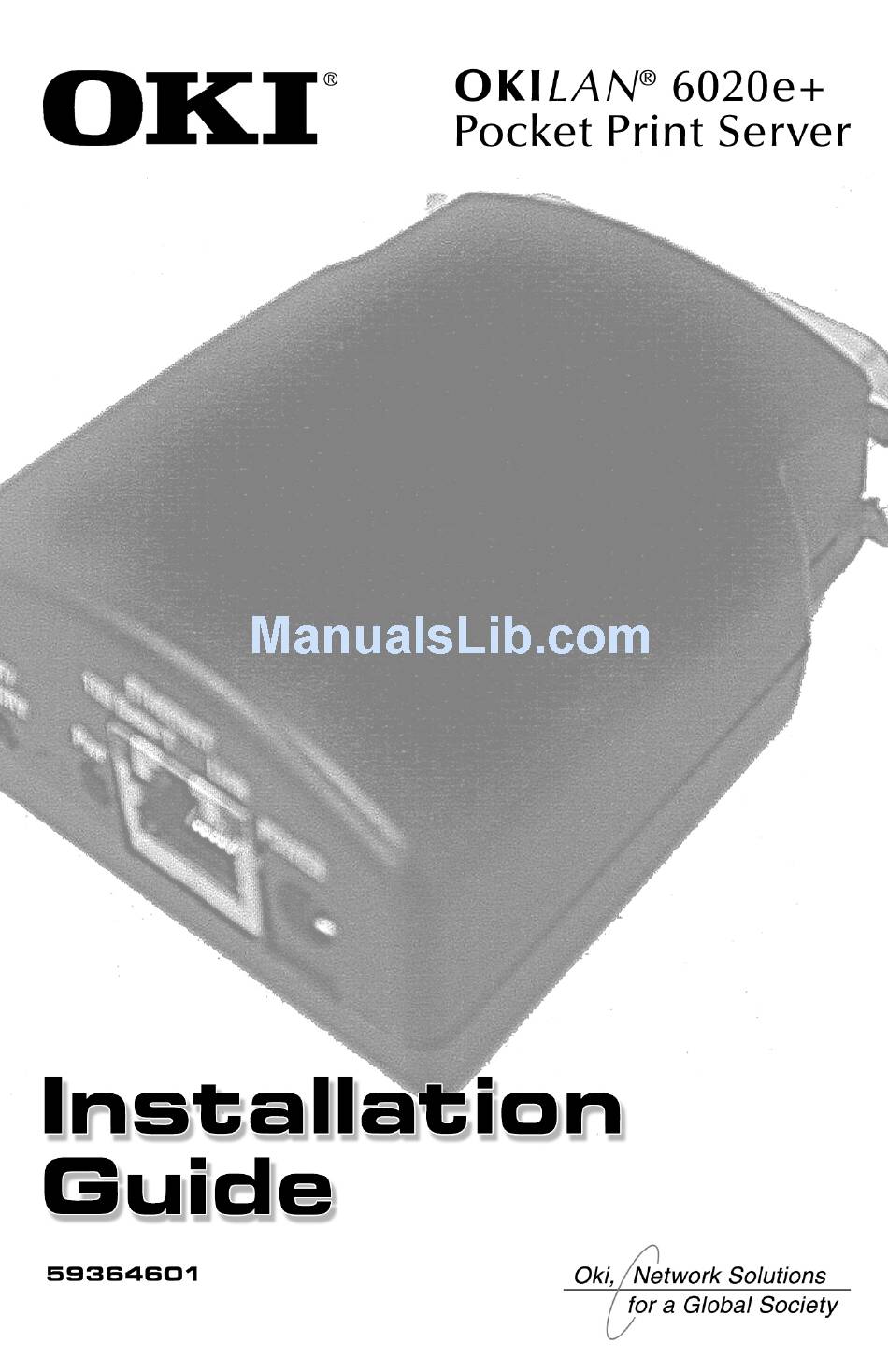

Oki okiLAN 6020e+ Installation Manual

Oki okiLAN 6020e+ Installation Manual

Pocket print server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the okiLAN 6020e+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki okiLAN 6020e+

Summary of Contents for Oki okiLAN 6020e+

  • Page 2 Copyright © 2004. All rights reserved. OKI and OkiLAN are registered trademarks of Oki Electric Industry Co., Ltd. HP, HP/UX, LaserJet, DesignJet, DeskJet, PaintJet, JetDirect, and JetAdmin are trademarks of Hewlett-Packard Company.

  • Page 3: Table Of Contents

    Introduction ....... 1 Installing the Print Server ..... 2 Powering On the Print Server .

  • Page 5: Introduction

    INTRODUCTION NTRODUCTION The OkiLAN 6020e Plus Pocket Print Server enables Ethernet network users to connect to a printer with a bidirectional parallel port. It can be made to work with any Centronics or IEEE-1284 parallel interface printer that includes a resident emulation such as PCL versions 4 through 6, Adobe PostScript®, IBM ProPrinter®...

  • Page 6: Installing The Print Server

    INSTALLING THE PRINT SERVER NSTALLING THE RINT ERVER Turn off printer power. Attach the print server to the parallel connector on your printer (1). Secure the print server with the wire clips on the printer’s conncector. Plug the power adapter cord into the power jack on the print server.

  • Page 7: Powering On The Print Server

    INSTALLING THE PRINT SERVER NOTE Some countries may require a different adapter for local voltages, such as 240 VAC. Attach the 10/100Base-T UTP cable to the receptacle on the back of the print server. Attach the other end of the cable to the network. OWERING N THE RINT...

  • Page 8: Led Indicators

    INSTALLING THE PRINT SERVER light goes out, the yellow Link light (2) on the print server blinks in a random pattern. LED I NDICATORS The back of the print server provides indicator lights for easy monitoring. The table on the next page defines the function of each indicator.

  • Page 9: Hardware Troubleshooting

    HARDWARE TROUBLESHOOTING ARDWARE ROUBLESHOOTING TATUS NDICATOR The back of the print server provides lights for easy monitoring.The following table defines the function of each light. LABEL COLOR STATE STATUS Power Orange The unit is receiving power. The unit is not receiving power. Green The unit is transmitting at 100 Base-T...

  • Page 10: Management Methods

    MANAGEMENT METHODS ANAGEMENT ETHODS There are a variety of ways to configure and monitor the printer server using one or more of the following utilities: XTEND TILITY • Used for advanced configuration of the print server, and allows you to configure for Netware, TCP/IP, AppleTalk settings.

  • Page 11: Webxadmin Utility

    MANAGEMENT METHODS NOTE The XAdmin32 Utility is not required if ExtendView is installed. DMIN TILITY • Allows you to configure the print server with a standard web browser like Netscape Navigator or Microsoft Internet Explorer. • No additional software is needed on the system. •...
  • Page 12 MANAGEMENT METHODS NOTE In all cases, when you are connected, press RETURN or ENTER to get the "#" prompt, enter the password ACCESS (it will not echo) and type anything in response to the "Enter Username>" prompt. When the "Local>" prompt appears, the console is ready to accept commands.

  • Page 13: Microsoft Windows Network Configuration

    MICROSOFT WINDOWS NETWORK CONFIGURATION ICROSOFT INDOWS ETWORK ONFIGURATION The following configuration procedures are designed for Windows 95/98/ME/2000/NT/XP/2003 Server operating systems. Insert the CD supplied with your print server, and then click on Install Software. Select TCP/IP Management Utilities, and then click on Next. Select ExtendView, and then click on Install.
  • Page 14 MICROSOFT WINDOWS NETWORK CONFIGURATION Install. Follow the on-screen instructions to complete this installation. Install the printer driver software according to the documentation for the printer. Click the Windows Start button, select Settings, and then Printers (Start, then Printers and Faxes if you are using Windows XP).

  • Page 15: Appletalk Network Configuration

    APPLETALK NETWORK CONFIGURATION PPLE ETWORK ONFIGURATION The print server supports the AppleTalk protocol running over Ethernet (also known as EtherTalk). This capability allows Macintosh computers to print jobs to a printer simultaneously with jobs from Windows, UNIX, NetWare, and other computers. Print server AppleTalk capabilities allow a printer to appear as a shareable printer node on an AppleTalk Phase 2 network.
  • Page 16 APPLETALK NETWORK CONFIGURATION NOTE The Applications folder can generally be reached by double-clicking on the Macintosh HD icon on the desktop. Turn on Ethernet and AppleTalk by clicking on the Applications folder and clicking on Network. Next to Configure: select Built-in Ethernet (you can leave the Location: setting as Automatic).

  • Page 17: Troubleshooting

    TROUBLESHOOTING ROUBLESHOOTING This section describes procedures for troubleshooting problems you may encounter with the print server, and is divided into the following sections: • Installation Problems • Intermittent Problems • Protocol-Specific Troubleshooting RINTING ROBLEMS If you cannot print to the print server after you install it, check the following: •...
  • Page 18 TROUBLESHOOTING If the self-test prints but you cannot print or you get distorted printouts, make sure that the printer is set for the correct Page Description Language. Also, verify that you have set up the drivers correctly on the workstation. HECKING THE NETWORK CONNECTION AND CABLING If the self-test page prints but you cannot print documents, first check the network connection and cabling.
  • Page 19 TROUBLESHOOTING NTERMITTENT ROBLEMS If the print server and the printer start up, but you intermittently have problems printing, check the following: • Excessive NetWare polling can be a big cause of intermittent problems. Make sure that you have only enabled the NetWare file servers that you need for printing (do a SHOW NETWARE command from the print server console to see the enabled file servers).

  • Page 20: Appletalk Troubleshooting

    TROUBLESHOOTING PPLE ROUBLESHOOTING If you cannot print from an AppleTalk for Macintosh computer, you have checked the hardware and network as described in the previous steps, then check the following: • Make sure that you are running Phase 2 AppleTalk and that you have selected the correct network interface from the Network Control Panel on the Macintosh.

  • Page 21: Safety And Regulatory Notices

    SAFETY AND REGULATORY NOTICES AFETY AND EGULATORY OTICES FCC R ADIO REQUENCY NTERFERENCE TATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 22: Industry Canada Radio Interference Statements

    SAFETY AND REGULATORY NOTICES NDUSTRY ANADA ADIO NTERFERENCE TATEMENTS This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standards (ICES-003). Cet appereil numerique do la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur NMB-003 du Canada.

  • Page 23: Declaration Of Conformity (Eu)

    SAFETY AND REGULATORY NOTICES (FCC) ECLARATION OF ONFORMITY Per CFR, Title 47, Part 2: Oki Data Americas, Inc. Located at: 2000 Bishops Gate Boulevard Mt. Laurel, New Jersey 08054 declare under sole responsibility that the product: Trade Name: Type of Product: Print Server...
  • Page 24 Oki Data Americas, Inc., 2000 Bishops Gate Blvd., Mt. Laurel, NJ 08054-4620 Tel: (856) 235-2600 FAX: (856) 222-5320 http://www.okidata.com...
