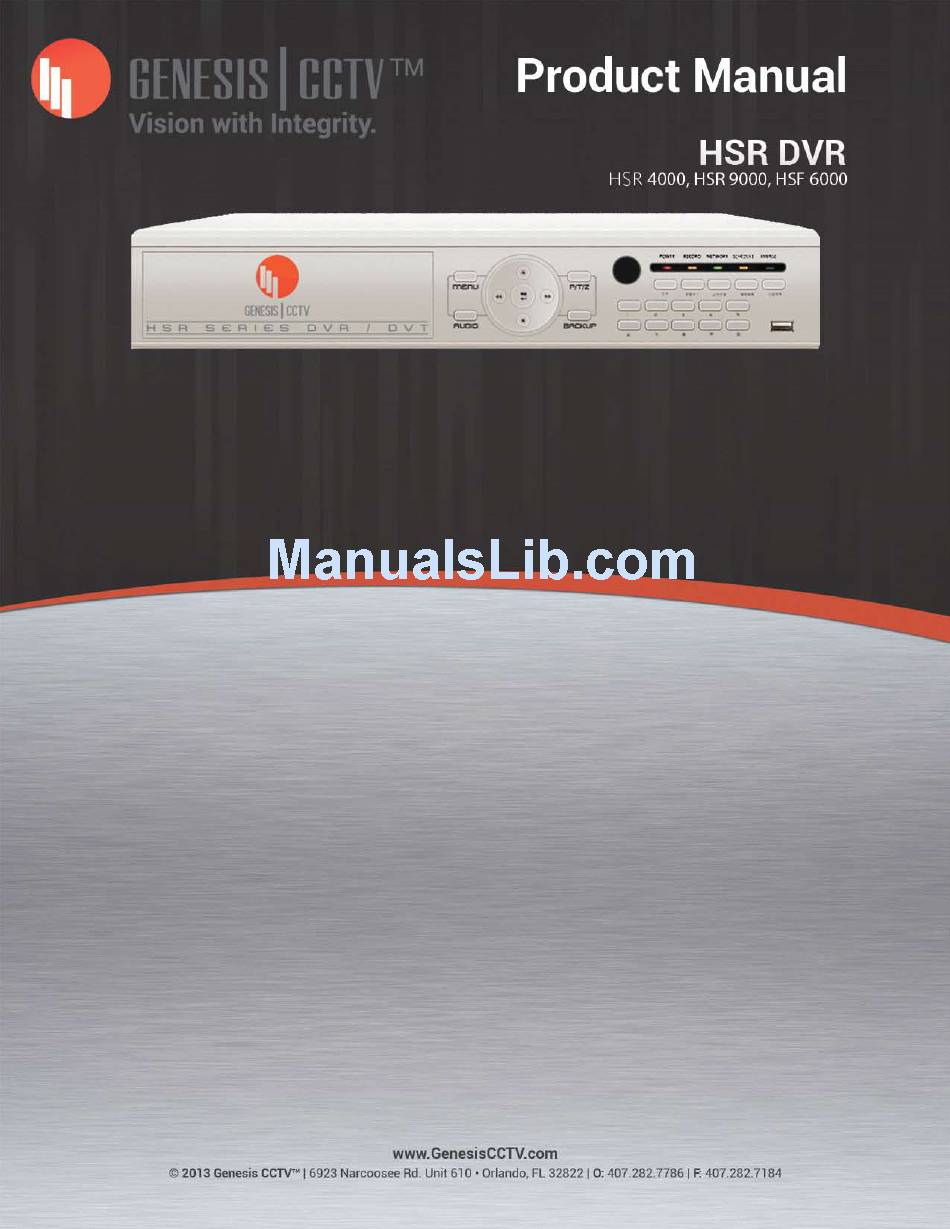

Genesis CCTV HSR 4000 Product Manual

Hsr dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSR 4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Genesis CCTV HSR 4000

Summary of Contents for Genesis CCTV HSR 4000

  • Page 3 DIGITAL VIDEO RECORDER MANUAL Preface The user guide is about how to install and use DVR. In addition to first-time users, the users who’ve got accustomed to the device of similar kind also must read the user guide and carefully treat the device by complying with a caution of notice. In particular, safety points are intended to prevent any property loss through proper use of the device.
  • Page 4 DIGITAL VIDEO RECORDER MANUAL Note of Caution Warning Check if the power is switched off before Check if the power is switched off before installation. Don’t plug in at the same time. installation or additional repair. Never plug in Otherwise it may be set on fire or put you at while the device is in operation.
  • Page 5 DIGITAL VIDEO RECORDER MANUAL When strange noise or smell is sensed, Do not install device in humid place filled with immediately plug out and send inquiry to dust. It might be the cause of electrocution and service center or seller. fire.
  • Page 6 DIGITAL VIDEO RECORDER MANUAL When HDD saving data gets old enough, video When abnormal sign detected, data to be saved may suffer so much damage immediately contact seller or service center. that it may be irreparable. If screen appears broken while regenerating data saved in HDD, means won’t work...

  • Page 7: Remote Controller Description

    DIGITAL VIDEO RECORDER MANUAL Check Components screw battery Program CD main body Remote Battery adapter controller cable Component Description Main body Stand alone Digital Video Recorder battery Two remote controlling 1.5V (AAA) batteries Screw Hard disc Program CD Manual and remote-controlling program Adapter DC Power supply 12V 5A Power cable...

  • Page 8: Table Of Contents

    DIGITAL VIDEO RECORDER MANUAL - Contents - Chapter 1. Product features and components 1-1 Features………………………………………………………………………………..…………………………………..……….9 1-2 Component names &Features on frontal part……………………………………..………..……………………10 1-3 Component names and features on rear part…………11 1-4 remote controller description…………..12 Chapter 2. Camera connection and setting 2-1 camera connection……………………..……………………………………………………………..………………………………..13 2-2 camera setting……………..13 2-3 Camera title………..……………………..…………………………………….………………….………………..………..14...
  • Page 9 DIGITAL VIDEO RECORDER MANUAL Chapter 7. Feature 7-1 status signal………………………………..……………………………………..….…………………….…………………….…….35 7-2 password..………………..……..…………………………………………….….………….…….……………………..…….………….37 7-3 how to set remote controller ID……40 7-4 QUAD(screen split) feature..………………..……..………………………………………...…….……………….………….…..41 7-5 SEQ(automatic channel failover)…..……..………………………………………………… ………………….…...43 7-6 emergency recording……….44 7-7 back-up feature……………….44 7-8 backup viewer feature………..48 7-9 Voice …………………………………………………………………………………….………………………………….50 Chapter 8-system setting 8-1 Information……..51 8-2 Time &...
  • Page 10 DIGITAL VIDEO RECORDER MANUAL 13-1 event pop-up…….……….…………………………………………………………………………………….....….…..75 13-2 sense movement………………………………………………………………………………………………………………..…..76 13-3 internal buzzer………………………………………………………………….…………………………………………..…………..77 13-4 output SPOT………………………………………………………………..………………………………………………………78 Chapter 14 remote access-built-in viewer 14-1 access method….……….………………………………………………………..………..........….…..76 14-2 name and usage……………………………………………………..……………………….…………………………..80 Chapter 15 remote access-iPhone……………………………………………………………83 Chapter 16 remote access-window mobile phone……………………..91 Chapter 17 remote access-Android phone………………………….100 Chapter 18 Specifications…………………………………………………………………………….…………………..………………………..110 DIGITAL VIDEO RECODER MANUAL...

  • Page 11: Chapter 1. Product Features And Components

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 1. Product features & components ▒ 1-1. Features The highly advanced and high-performance video recorder is designed to make it easier to install and use with unmatched safety. Main feature ㆍAble to control pan-tilt by using mouse like joystick ㆍFrontal USB terminal for easy backup ㆍAble to back up ODD (optional) ㆍAble to transmit GIGA network...

  • Page 12: Component Names &Features On Frontal Part

    DIGITAL VIDEO RECORDER MANUAL 1-2. Component names and features on frontal part ( 4/9/16 channel, frontal part) button/feature description Use Control button on Set Menu Direction/renew buttons Control speed and stop, pause button Menu Retrieve menu and move to menu on upper side , cancel Pan-tilt Retrieve pan-tilt menu voice...
  • Page 13 DIGITAL VIDEO RECORDER MANUAL 1-3. Component names and features on rear side (channel 4, rear side) (channel 9, rear side) (channel 16, rear side) DIGITAL VIDEO RECODER MANUAL...

  • Page 14: Remote Controller Description

    DIGITAL VIDEO RECORDER MANUAL Button/feature description Power connector Adaptor power input switch power ON/OFF switch Output connector for VGA monitor Audio output Audio output connector S-VIDEO S-VIDEO output connector Audio input Audio input connector Video output Output connector for CCTV monitor SPOT output SPOT output connector Video input...

  • Page 15: Chapter 2. Camera Connection And Setting

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 2. Camera connection & setting ▒ 2-1. camera connection Connect camera output to camera input on DVR’s rear side. 2-2 camera setting This is about ways of hiding camera and screen quality. How to set menu : retrieve menu -> camera -> set camera ▶...

  • Page 16: Camera Title

    DIGITAL VIDEO RECORDER MANUAL ▶ Brightness: control screen contrast ▶ contrast : control black white ▶ color : display darkness of color 2-3 Cameral Title This is about inputting camera title. Title appears by cahnnel. How to set menu : retrieve menu -> camera -> camera title Select channel to enter and enter thru virtual keyboard.

  • Page 17: Connect Cctv Monitor

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 3. Video output connection & setting ▒ 3-1. Connect CCTV monitor Connect monitor output on rear side of DVR to monitor’s Video In. 3-2. Connect VGA monitor Connect VGA output on rear side of DVR to monitor’s VGA IN. DIGITAL VIDEO RECODER MANUAL...

  • Page 18: Control Screen

    DIGITAL VIDEO RECORDER MANUAL 3-3 Control screen This is about optimizing output conditions for VGA monitor (video output device) or CRT monitor. How to set menu : retrieve menu -> DISPLAY -> TV ADJUSMENT ▶ VGA : Check and set VGA monitor’s resolution to output optimal screen quality. (Select one among 800 X 600 , 1024 X 768, 1280 X 1024 ) ▶...

  • Page 19: Chapter 4. Connect And Set Sensor/Alarm

    DIGITAL VIDEO RECORDER MANUAL ▒Chapter 4. Connect & Set Sensor/Alarm ▒ 4-1. Input sensor Sensor input is G(-) Ground and may be connected to S1 thru S4. 4-2. Output Alarm Alarm output may be used through connection with NO, C. DIGITAL VIDEO RECODER MANUAL...

  • Page 20: Set Sensor

    DIGITAL VIDEO RECORDER MANUAL 4-3 Set sensor The system supports up to four sensor inputs. ☞ OPTION : Able to use up to 16 alarms and sensors when using separate “extended alarm sensor box”. How to set menu : retrieve menu -> EVENT -> SENSOR ▶...

  • Page 21: Set Alarm

    DIGITAL VIDEO RECORDER MANUAL 4-4 Set alarm Set alarm output. The feature is designed to set off alarm during specified period when video loss occurs or when any motion is sensed or when sensor is in operation. ☞ OPTION : Able to operate up to 16 alarms and sensors when using separate “extended alarm sensor box”.

  • Page 22: Extend Alarm Sensor Box

    DIGITAL VIDEO RECORDER MANUAL 4-5 Extended alarm sensor box (option) Once extended box is connected, up to 16 sensor inputs and alarm outputs may be usable. ▶ Connectivity diagram Connect “SERIAL” port to “RS-232” port on rear side of the system. Connect to extended BOX power and then turn power SW on.
  • Page 23 DIGITAL VIDEO RECORDER MANUAL ▶ Set menu Able to use only after connecting to extended BOX and setting menu. [1] Set “Use” thru Retrieve menu -> EVENT -> EXTENDED. [2] Set RS-232 as described below thru menu -> CAMERA -> SERIAL PORT SETTING. (transmission speed : 9600Bps, parity: none, stop bit: 1 ) DIGITAL VIDEO RECODER MANUAL...
  • Page 24 DIGITAL VIDEO RECORDER MANUAL [3] Each time when sensor button is selected thru menu -> EVENT -> SENSOR, No. 1 to 16 is changed. [4] Each time when “alarm (number) is selected thru menu -> event -> alarm, No. 1 to 16 is always changed.

  • Page 25: Chapter 5. Connect And Set Pan-Tilt

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 5. Connect and set pan-tilt ▒ 5-1. Connect pan-tilt and keyboard Connect to Tx(+) and Rx(-) before connecting to pan-tilt and keyboard. 5-2 Set serial port Set transmission speed, parity and stop bit for RS-485 communication. How to set menu : Retrieve menu ->...
  • Page 26 DIGITAL VIDEO RECORDER MANUAL Set pan-tilt camera model name and ID installed in channel involved. ID should be set as “0.” When more than one is installed, set ID differently and change ID for pan-tilt camera. Refer to pan-tilt camera manual for change in ID. ▶...
  • Page 27 DIGITAL VIDEO RECORDER MANUAL • Reverse Control : moves reversely when pan-tilt moves. The feature is usable when camera is used in an opposite way from how it supposedly should be used. (ie: when installing camera designed for ceiling on the ground) •...
  • Page 28 DIGITAL VIDEO RECORDER MANUAL ▶How to operate pan-tilt Select channel and “PTZ” button to change into pan-tilt mode. [When using frontal direction button (or remote controller)] • Use direction button to move camera. • Whenever pressing check, the feature changes in the order of Pan/Tilt, Zoom and Focus.
  • Page 29 DIGITAL VIDEO RECORDER MANUAL • Whenever rolling mouse scroll button. The feature changes in the order of Pan/Tilt, Zoom and Focus. Use the button on right and left side to move. [Pan-tilt feature menu] Select “PIZ” from pan-tilt mode again and feature menu appears. When pan-tilt camera is in operation, you may use needed feature.
  • Page 30 DIGITAL VIDEO RECORDER MANUAL Adjust IRIS Change channel exit DIGITAL VIDEO RECODER MANUAL...

  • Page 31: Chapter 6. Connect And Set Hard Disc

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 6. Connect and Set Hard Disk ▒ The model may feature up to two hard disks, one ODD and one hard disk. The model may be used to back up saved video, which may be linked to USB or external hard drives.

  • Page 32: How To Install Odd

    DIGITAL VIDEO RECORDER MANUAL 6-2 How to install ODD When assembling ODD, separate front part from main body and then remove ODD cover from front to assemble again. When separating front from main board, be careful not to touch cables linked to main board.
  • Page 33 DIGITAL VIDEO RECORDER MANUAL 6-3 Control disk Start setting in connection with HARD DISK and ODD embedded into the system. This part is related to recording. When setting goes wrong, error may occur to system or recording. Please check before setting. How to set menu : Retrieve menu ->...
  • Page 34 DIGITAL VIDEO RECORDER MANUAL ▶Disk 2 Set the second hard disk connected to “HDD2”. • Specify Main Disk or Mirror Disk. (When not used, specify “None”) • Format : format hard disk. • volume : used volume /HD volume (ie : 0 / 238080 MB ) ☞...

  • Page 35: Auto Delete

    DIGITAL VIDEO RECORDER MANUAL ▶ Auto Delete Able to maintain data during specified period while automatically deleting data saved previously. (range : Not use, able to set up to 120 days) ▶ Error List When errors occur to hard disk, including read, write, connection status and recognize hard, the date will be left.

  • Page 36: Chapter 7. Feature

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 7. Features ▒ 7-1. Status signal This provides description of icons displayed thru live screen. By providing various events, period and record signals, it displays diverse types of icons. Daylight savings: available when summer time is in effect Emergency record : available when emergency record is in operation Record schedule: available when recording is processed as scheduled LOCK : available when screen points to Lock...
  • Page 37 DIGITAL VIDEO RECORDER MANUAL ☞ Reference What’s The Interface? It is a symptom only seen in D1-level record (720X480) mode. The feature is designed to prevent GHOST phenomenon by removing unmatched odd and even numbers while renewing video after recording. The demerit is that the renewed screen may look to have poorer quality than the original one.

  • Page 38: Password

    DIGITAL VIDEO RECORDER MANUAL 7-2. Log-in The product’s administrative account and password are originally set as “admin” and “11111111”. You can use as many as seven user IDs, excluding admin, each of which may be given authority. You can change setting thru Menu-> SYSTEM ->INFORMATION-> Password. ▶...
  • Page 39 DIGITAL VIDEO RECORDER MANUAL • ID : Displays ID selected thru list. If you want to change, select and enter through virtual keyboard. You can enter as many as eight English letters, numbers and Hangul. • Group : Certain authority is given to each group so that you can more easily specify authority. Select one and the group may receive authority.
  • Page 40 DIGITAL VIDEO RECORDER MANUAL • All : Give all authority. • Configuration : allows you to set DVR. • Search : allows you to search. • Backup : allows you to back up saved video. • Hard Disk : allows you to use control rights to hard disk, including Erase and Overwrite •...
  • Page 41 DIGITAL VIDEO RECORDER MANUAL 7-3. How to Set Remocon ID The remote controller is designed to control more than two DVRs through ID. Each DVD should have pre-set ID. The remote controller matches IDs for control. The product has basically ID called “00”. When multiple controls are needed, set different ID for menu->...

  • Page 42: Quad(Screen Split) Feature

    DIGITAL VIDEO RECORDER MANUAL 7-4 QUAD(Split Screen) Feature This enables monitoring by splitting live screen into multiple ones. ▶ Action Press “QUAD” to change into split screen. ▶ Change into various types of split screen When Up button is pressed, various split screens appear. ( Split screen looks different by product.
  • Page 43 DIGITAL VIDEO RECORDER MANUAL (13 split) (16 split) ▶ Set split screen channel The feature is used to change channel in split mode. Set in menu -> DISPLAY -> SPLIT/SEQUENCE. Select channel to change as described above and press Check. After that, press button on right and left sides to change channel.

  • Page 44: Seq(Automatic Channel Failover)

    DIGITAL VIDEO RECORDER MANUAL 7-5 SEQ (Automatic Channel Switch) Feature Automatic channel switch feature is designed to switch screen in a specified order. Press “SEQ” to display icon described below. (signals SEQUENCE in operation.) Able to set in MENU -> DISPLAY -> SPLIT/SEQUENCE. ▶...

  • Page 45: Backup Feature

    DIGITAL VIDEO RECORDER MANUAL 7-6 Emergency Record Emergency record, once selected, is designed to operate record function regardless of record schedule. When “emergency record” is selected, the icon below appears in status window. ☞ Note When emergency record is in Lock, it does not work. If emergency record is in operation even after the work is finished, it may unnecessarily consume hard disk or overwrite existing data.

  • Page 46: Select Date

    DIGITAL VIDEO RECORDER MANUAL ▶ Select camera Select camera to backup. (Not select) (Select) ▶ Select date Select date to back up. ▶Select disk to save Select disk to back up. • Main disk: Process backup thru disk used as main disk •...
  • Page 47 DIGITAL VIDEO RECORDER MANUAL ▶ Select minute Select “minute” for backup. ▶ Register backup start time Once Select Backup Time is completed, select “start Time” on the left low side of menu to register. ▶ Select Backup Completion Time Select Minute to select backup completion time and then select “completion time” on the right side to register.
  • Page 48 DIGITAL VIDEO RECORDER MANUAL ☞ Note This provides description about backup in the same time zone. When it is in different time zone, register “Start Time” and then select date or “time” and “minute” before selecting completion time.” ▶ Select Backup Option Select various options for backup.

  • Page 49: Backup Viewer Feature

    DIGITAL VIDEO RECORDER MANUAL ▶ Backup password The feature is designed to save password for backup. ▶ Backup process Display backup progress. ▶ Display backup completed Once “backup completed” appears, you can detach storage device from USB port. 7-8 Backup viewer Once backup is completed, icon “BKV”...
  • Page 50 DIGITAL VIDEO RECORDER MANUAL (Backup viewer program) Icon Description Open file Fast backward Backward Backward by frame Stop forward Fast forward Display fil1e list Switch into four split mode Switch into nine split mode Switch into 16 split mode Image capture audio &...
  • Page 51 DIGITAL VIDEO RECORDER MANUAL ▶ AVI conversion The feature is designed to convert backed-up video into AVI. Click Start to enter start time. Click End to register “end” time. Click “AVI” to start converting into AVI. 7-9 Audio When processing record in DVR with mike, you can hear audio live or in renewal. ▶...

  • Page 52: Information

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 8. Set Menu & System ▒ 8-1 Information Information consists of Firmware version, language, remote controller ID and mouse snesitivity. ▶ Language The feature supports multiple languages and is capable of changing language. At the time of delivery from plant, the language was set at mother tongue of the country involved.

  • Page 53: Time & Date

    DIGITAL VIDEO RECORDER MANUAL ▶ Hardware address As network MAC address equipped with the product, it represents number under control at a time of product delivery from plant and does not require user. ▶ Video input method Video standards by country consist of NTSC and PAL. Select one to use. (Some products may not be changed depending on Firmware.) 8-2 Time &...
  • Page 54 DIGITAL VIDEO RECORDER MANUAL The message above shows that time may not consistently be displayed if search follows change in time while existing recorded data still remain. (For example) • when time change from 3 to 4.: Video is displayed for four •...

  • Page 55: System Control

    DIGITAL VIDEO RECORDER MANUAL • Enter time server : enter time server URL and IP • Time-linked cycle : select time • GMT : sepcify the country’s standard time zone • Test : check server status 8-3 System control When there is a need to upgrade firmware following addition of system features, you can easily upgrade on your own.

  • Page 56: Set Button

    DIGITAL VIDEO RECORDER MANUAL It may take a minute or one minue and 30 seconds depending on firmware. Please wait unitl reboot is finished. Do not plug out or take out USB memory stick during upgrade. Otherwise, it may cause trouble. 8-4 Set button This is about automatic lock of manual buttons (front button, mouse button, remote control button) and button sound.

  • Page 57: Initialize

    DIGITAL VIDEO RECORDER MANUAL ▶ Emergency Record Lock The feature is designed to deactivate “emergency record”. When users select emergency record by mistake, the record will keep on operating and may unnecessarily consume hard disk and overwrite existing data. ( V : emergency record available, Ø : emergency record not available ) 8-5 Initialize Available when you initialize default setting or factory setting ▶...
  • Page 58 DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 9 Set Menu –Record ▒ 9-1 Set record You can set resolution, frame, event and other conditions necessary for record. Preliminary record ▶ When event occurs, the video record starts a second to five seconds earlier. Preliminary record hours may change depending on resolution and frame specified.

  • Page 59: Scheduled Record

    DIGITAL VIDEO RECORDER MANUAL ① Select camera use Y/N (Not use) (Use) ② Select voice record Y/N. ( Use voice record) (Not use voice record) ③ Resolution : record image size. ( Select one among 360x240, 720x240, 720x480.) ④ Frame :Select the number of images to save per second ( Select one among 1, 2, 3, 5, 6, 7.5, 10, 15, 30fps.
  • Page 60 DIGITAL VIDEO RECORDER MANUAL Able to set thru Menu -> Record -> Set schedule. ▶ Select channel Select channel to apply schedule to. ▶ Apply schedule Whenever selecting “Check” for the day or time involved, event color changes sequentially. When selecting different time zone and pressing Check, different colored event signal appears. Motion: record when motion occurs Sensor: record when sensor is in operation Motion or sensor : record when either of motion or sensor occurs...

  • Page 61: Set Holidays

    DIGITAL VIDEO RECORDER MANUAL ▶ Copy channel Applicable to the other cahnnels as well as channel in current use. (Not use) (Use) Select multiple channels to copy and press “Copy” 9-3 Set holidays Set record for customized holidays in addition to pre-specified holidays. You can set through menu->...
  • Page 62 DIGITAL VIDEO RECORDER MANUAL ▶ Apply schedule Whenever pressing “Check” for the marked period, event color changes sequentially. When selecting different time and pressing Check, different color appears. ▶ Copy channel Applicable to the other channels as well as channel in current use. Select multiple channels to copy and press “Copy”.

  • Page 63: Chapter 10 Set Menu - Network

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 10 Set menu – Network ▒ Set network in the system to keep the system controlled or monitored remotely. 10-1 IP Address ▶ Use DHCP feature In general, DHPC-supported internet network is most widely used. DHCP may automatically be assigned IP.
  • Page 64 DIGITAL VIDEO RECORDER MANUAL ☞ Note What is port-forwarding? When router is in use, you will find router is connected to devices (such as PC, DVR). When you receive request from outsider, you may not know what device you should use to send request. Because a single IP alone may recognize data transmitted externally, you may not access each of the devices.
  • Page 65 DIGITAL VIDEO RECORDER MANUAL ▶ DDNS Address This is designed to receive remote service and represents default value “61.250.157.14” whether you’re changeable IP user or fixed IP user. Please use the default value as it is. ▶ Bandwidth This is designed to transmit using searately specified transmission speed at a time of remote control.

  • Page 66: E-Mail

    DIGITAL VIDEO RECORDER MANUAL 10-2 Network transmission frame When you use “bandwidth” feature in setting network, it is transmitted to specified frame. ’ The resolution is identical with “Set Record”. Screen quality and frame alone are transmitted 10-3 Set E-MAIL When event occurs, send text mail to registered E-Mail address.
  • Page 67 DIGITAL VIDEO RECORDER MANUAL ▶ Port In general, No. 25 is used for mail server. If you find it hard to send mail, contact mail server and enter port number again. . ▶ Server password Check and enter ID/Password. ▶ Mail address Enter e-mail address usable for the system.

  • Page 68: Ddns Option

    DIGITAL VIDEO RECORDER MANUAL 10-4 Types of alarms Specify types of alarm to decide when to send alarm E-Mail. ▶ Mail title : enter e-mail title. ▶ Notification interval : The feature is designed to forestall massive arrivals of emails for ferquent events.
  • Page 69 DIGITAL VIDEO RECORDER MANUAL [1] Visti http://www.dyndns.com. [2] Enter sub domain name (ie: dvr-sample) on the low side of main screen and select main domain name to be used for free. Select one at your disposal and then click “ADD.” [3] Enter user informatin, such as name, password and email address and then click “Create Account”.
  • Page 70 DIGITAL VIDEO RECORDER MANUAL [4] When you receive email containing certificate, check enail. [5] After checking certificate, click the linked address, the underlying part, below for automatic certification. DIGITAL VIDEO RECODER MANUAL...
  • Page 71 DIGITAL VIDEO RECORDER MANUAL [6] Once certification is completed, you will be connected to web site belwo. [7] After logging in, click “My Zones/Domains” in “My Service.” [8] Click “Dynamic DNS Hosts” on left menu. DIGITAL VIDEO RECODER MANUAL...
  • Page 72 DIGITAL VIDEO RECORDER MANUAL [9] Click (dvr-sample.dyndns-ip.com) registered at first. [10] Enter router’s external IP in “IP Address.” Access router setting to be informed of external IP. Once input is finished, click “Save Changes.” [11] Click “Checkout to Activate” to activate registered domain. DIGITAL VIDEO RECODER MANUAL...
  • Page 73 DIGITAL VIDEO RECORDER MANUAL [12] Click “Proceed to checkout” on the low side. [13] Click “Activate Services” on the low side. [14] Activate selected domain’s IP. [15] Enter ID/PW and domain in DVR setting. When IP changes, the feature is designed to update regularly.

  • Page 74: Chapter 11. Set Menu-Camera

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 11. Set Menu – Camera ▒ 11-1 Controller The feature is desigend to connect keyboard for controlling or operating system and use joystick to control pan-tilt. ▶ Model: Select keyboard model name connected to system. Identify model compatible with the system before purchase, ▶...

  • Page 75: Chapter 12 Set Menu-Display

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 12 Set menu – display ▒ 12-1 OSD OSD is designed to decide whether to display status bar, title and split screen. ▶ All : displays camera title, status bar and split screen. ▶ Camera title : displays camera title by channel. ▶...

  • Page 76: Chapter 13. Set Menu-Event

    DIGITAL VIDEO RECORDER MANUAL ▶split screen : display split between channels. ▒ Chapter 13 Set menu – Event ▒ 13-1 Sense motion The feature is designed to specify area where motion may be sensed. The feature specifies area and sensitivity so that when motion is sensed, event record may be started. ▶...
  • Page 77 DIGITAL VIDEO RECORDER MANUAL ▶ Sensitivity: Select sensitivity for motion. • The higher the specified value is, the higher the sensitivity is(1~10). • By selecting sensitivity as schedule”, you can activate time icon and set sensitivity by hour. ▶ Range : Specify area where motion may be sensed. Specify using arrow keya and click “check”...

  • Page 78: Internal Buzzer

    DIGITAL VIDEO RECORDER MANUAL 13-2 Internal Buzzer When event occurs, internal buzzer sound is set off during selected hours. range : one to 30 seconds ( “-------“ Not use ) ( sense motion) (sensor) (video loss) 13-4 Output SPOT The feature is designed to sequentially display certain channels and events through separate monitor.

  • Page 79: Chapter 14 Remote Access-Built-In Viewer

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 14. Remote access-Built-in viewer ▒ Built-in viewer is designed to enable monitoring by accessing web browser using web server mounted to the system. 14-1 Access method This represents the way to monitor thru access via web browser. This chapter provides explanation on condition that network setting and router port-forwarding should be installed.
  • Page 80 DIGITAL VIDEO RECORDER MANUAL For first connection, click pop up screen on the upper side of web browser with right button of your mouse and download “ActivX” to install. Once installed, it means that DVR IP, DVR PORT is set as default value. Enter USER ID and USER PW and click “CONNECT” for connection. 14-2 Each Name and Method (1) This represents video area.
  • Page 81 DIGITAL VIDEO RECORDER MANUAL (4) DVR PORT : Network port value set in system is automatically displayed. (5) USER ID : Enter user log-in account. (system log-in account) (6) USER PW : Enter password. ( Note : Password automatically is entered when you access again. ) (7) CONNECT / DISCONNECT : access or cancel.
  • Page 82 DIGITAL VIDEO RECORDER MANUAL (14) CHANNEL : selects pan-tilt channel. (15) ZOOM : represents pan-tilt camera ZOOM feature. (16) FOCUS : controls pan-tilt camera focus. (17) IRIS : controls pan-tilt IRIS feature. (18) TOURING : keeps pan-tilt touring feature on/off. (19) SPEED : controls speed of pan-tilt speed.

  • Page 83: Chapter 15 Remote Access-Iphone

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 15 Remote Access-iPhone ▒ 15-1 Install program Access APP STORE to search “MPRMS” and to download profram for installation. 15-2 Execute program Once program installation in iPhone is finished, icons below are displayed. Select icon to execute. 15-3 Register product information Enter network information to display product you hold thru iPhone.
  • Page 84 DIGITAL VIDEO RECORDER MANUAL [1] Register Execute program in iPhone and click “New” for new registration. [2] Enter Reg Name. Enter name at your disposal. DIGITAL VIDEO RECODER MANUAL...
  • Page 85 DIGITAL VIDEO RECORDER MANUAL [3] Select model name ◎ MODEL :Select “DVR” for DVR. [4] Enter log-in (DVR ID) info. ◎ DVR ID : Enter User ID for accessing DVR, ◎ PASSWORD : Enter password registered in DVR main body. (Note: “User ID”...
  • Page 86 DIGITAL VIDEO RECORDER MANUAL [5] Enter DVR IP (Enter only fixed IP user) Enter fixed IP user instead of changeable IP user. (Note) As for fixed ip data, enter PI address registered in DVR. [6] Set DDNS IP (Enter only changeable IP user) ◎...
  • Page 87 DIGITAL VIDEO RECORDER MANUAL [7] Set DDNS IP (Enter only changeable IP user) Once input is finished, press “ADD” to save. 15-4 See Live [1] Click registered “DVR Name”. DIGITAL VIDEO RECODER MANUAL...
  • Page 88 DIGITAL VIDEO RECORDER MANUAL [2] Connect remote access When channel is in motion, click “CH SELECT” to select number. PTZ : select when controlling pan-tilt The screen displays only video excluding time, resolution and the name of channel. The feature is designed to transmit still photo in certain intervals when video streaming is interrupted due to network load.
  • Page 89 DIGITAL VIDEO RECORDER MANUAL 15-5 Search Touch “search” displayed on the low side of screen. [1] Select date/time After selecting date, touch “SEARCH” on the low side. [2] Way of operating search DIGITAL VIDEO RECODER MANUAL...

  • Page 90: Relay Out

    DIGITAL VIDEO RECORDER MANUAL Go backward Stop Renew Switch to Live 15-6 Relay out Relay can be controlled remotely.. Time selection : Alarm output time selection. OFF : Alarm off Infinity : Unlimited alarm output DIGITAL VIDEO RECODER MANUAL...
  • Page 91 DIGITAL VIDEO RECORDER MANUAL 15-7 Operate PTZ(Pan-tilt) PTZ is operable thru iPhone. The way of operating it thru CMS or main body is identical. Separate explanation is not provided. (1) Select (2) Cancel (3) Camera’s automatic focus button (4) Pan-tilt’s internal menu retrieval button (5) Arrow button (6) + (Increase) and –...

  • Page 92: Chapter 16 Remote Access-Window Mobile Phone

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 16 Remote access-Window Mobile Phone ▒ 16-1 Install program Download window mobile program and save in mobile phone. 16-2 Execute program Copy file downloaded to mobile phone in temporary folder or folder selected by user and exeute it to install.
  • Page 93 DIGITAL VIDEO RECORDER MANUAL Once installed in mobile phone, icon appears. 16-3 Register Product Info. Enter network info. to monitor product you hold thru mobile phone. Install network in DVR’s main body before motion. Refer to user manual for main body to install network. [1] Register Execute program and click “ADD DVR”...
  • Page 94 DIGITAL VIDEO RECORDER MANUAL Enter info. as described above. • NAME : Enter temporary user name. • ID : Enter user ID using login info. during access. • PASS : enter password using DVR log-in password. • MODEL : Select “H.264” for H.264. [3] Enter DDNS info.
  • Page 95 DIGITAL VIDEO RECORDER MANUAL • POR : Keep port intact given that port automatically changes depending on model. • SAVE : Save info. [4] Fixed IP User ( excluding changeable IP user) • Use STATIC : Check changeable IP internet user. •...
  • Page 96 DIGITAL VIDEO RECORDER MANUAL well, the feature is designed to successively transmit still image on regular basis. [2] Disconnect • Disconnect : If you want to disconnect, just click. [3] Change channel ㆍCH : Select channel to monitor during access. [4] Change access DVR If you want to change access model to access other DVR, select registered model name from DVR menu to connect.
  • Page 97 DIGITAL VIDEO RECORDER MANUAL 16-5 Search If you want to search, select “Serarch” and click “Rec Info Req” to get record info. to activate date and time. Select date and time to search and click “START” to renew. (Note: It may take long to get the process from search to renewal depending on network load.) 16-6 How to Use PTZ While pan-tilt is in operation, click “Arrow”...
  • Page 98 DIGITAL VIDEO RECORDER MANUAL 16-7 Zoom /Focus Feature Control pan-tilt’s zoom and focus. Zoom feature is designed to enlarge or reduce camera image, while focus is designed to adjust camera focus. • ZOOM IN/OUT : designed to enlarge/reduce camera image •...
  • Page 99 DIGITAL VIDEO RECORDER MANUAL • P1~P16 : Number to save. • MOVE / SET : Feature varies depending on what you select. ◎ MOVE : Select one among P1~P16 and select “MOVE.” Click “SEND” to move to the location saved. ◎...

  • Page 100: Chapter 17 Remote Access-Android Phone

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 17. Remote Access-ANDROID Phone ▒ 17-1 Install program Execute “market” program to install in mobile phone and search “MPRMS” to download program for installation. Once installation is finished, “MPRMS” icon appears on wallpaper. 17-2 Execute program Select “MPRMS”...
  • Page 101 DIGITAL VIDEO RECORDER MANUAL 17-3 Register Product Info. Enter product info. to monitor product you hold thru Android phone for use. [1] Register Select “Add” on the right upper side of screen to register. [2] Enter registration info. (1) Enter Name and product ID(User) and Password. Name : enter temporary name at your disposal.
  • Page 102 DIGITAL VIDEO RECORDER MANUAL Password : Enter password registered DVR’s main body. (Note:“menu” -> “system” ->password “user ID” and “password”) IP : Enter fixed IP user and do not enter changeable IP user. (2) Check “DDNS Use” on the low side to open space for “DDNS ID” (Note: Fixed IP user does not need to check) (3) In order to check DDNS ID, turn on DVR and go to menu ->...

  • Page 103: Remote Access

    DIGITAL VIDEO RECORDER MANUAL 17-5 Remote access Select registered list for access. Once selected, the picture below appears to display brief registered info. If you select red-colored wallpaper, “detailed info.” appears. Click “OK” to execute monitoring program. (Select list) (Detailed info.) 17-6 Live Live displays video described below real time.

  • Page 104: Main Menu

    DIGITAL VIDEO RECORDER MANUAL 17-7 Main menu Main menu icon is displayed on the low side of monitoring program. Select one to change monitoring feature. Go backward or end monitoring program Switch into Live mode (change channel, I Frame, OSD) Switch into pan-tilt Switch into pan-tilt pre-set Switch into search mode...
  • Page 105 DIGITAL VIDEO RECORDER MANUAL 17-8 Pan-tilt feature The feature is designed to control pan-tilt remotely. (Select pan-tilt mode) (Pan-tilt mode screen) (1) How to switch into Pan-tilt mode Select channel linked to pan-tilt and click Pan-tilt Mode on the low side. (2) How to control pan-tilt Switch into pan-tilt thru arrow button.
  • Page 106 DIGITAL VIDEO RECORDER MANUAL This is designed to retrieve pan-tilt menu. This is automatic focus feature. This is used as Check (Select) button in pan-tilt menu. This is used as button to cancel Select or move to upper menu in pan-tilt menu.
  • Page 107 DIGITAL VIDEO RECORDER MANUAL 17-10 Search This is designed to search remotely. ( 1. Select search mode) ( 2. Select time search) ( 3. Select date/time) (1) Select search mode : select search mode. (2) Select Time Search : Select Time Search to enter search conditions. (Note: Select “To Live”...
  • Page 108 DIGITAL VIDEO RECORDER MANUAL 17-11 Output alarm This is designed to control alarm output remotely at your disposal. (1) Relay : Select Use Y/N ( on / off ) (2) Number : Select alarm output No. (3) Time : Select alarm output time. (4) Execute : Start alarm output as set in No.
  • Page 109 DIGITAL VIDEO RECORDER MANUAL [Display info] The information below represents examples. • IP : 61.250.157.37 : 2000 Via DDNS <-IP info. accessed. • MODEL : 16CH <- channel 16 • WebCode : H6F6057200001394 <- product ID(webcode). • F/W : 84, N/W:21 <- firmware version and network version. •...

  • Page 110: Specifications

    DIGITAL VIDEO RECORDER MANUAL ▒ Chapter 18. Specifications ▒ Classification 16CH Operating system Embedded Linux Codec algorithm H.264 Audio algorithm G723.1 Video method NTSC / PAL (선택) Video input 16Ch Video Video Loop Out (4/9/16 ), Composite (1), Spot(1), S-VHS(1) VGA(1) output input/output Output...
  • Page 111 DIGITAL VIDEO RECORDER MANUAL device External Local Backup by USB Memory Stick and Network Backup by CMS ( 2 x SATA HDD) or ( 1 x SATA HDD & 1 x SATA ODD ) System Operation Front button, USB mouse, IR remote controller, keyboard (Option) Support multiple languages Able to enter Hangul for camera name others...
