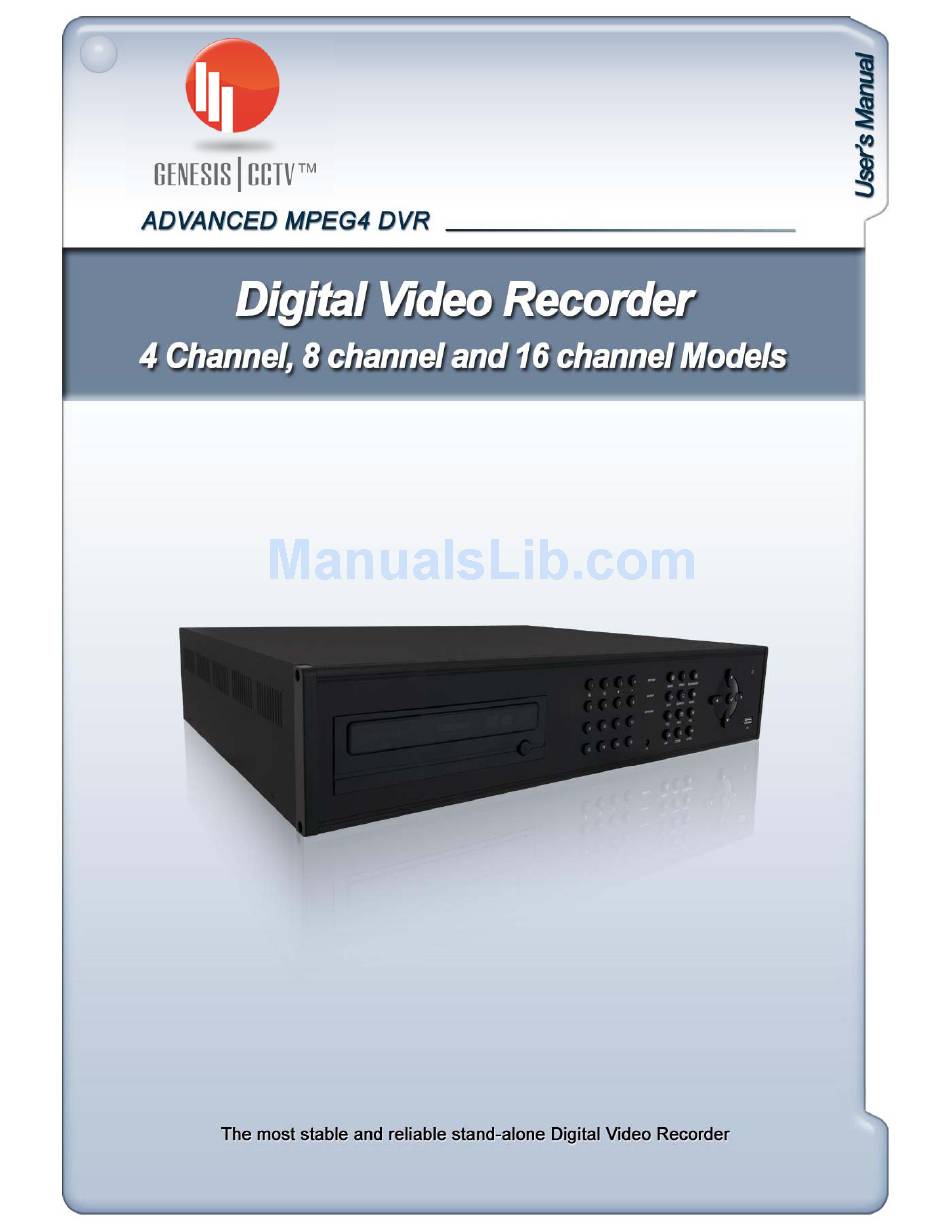

Genesis CCTV 4 Channel User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3715 Sarasota Ct. Orlando, FL 32812
Ph: 407.282.7786
Fx: 407.282.7184
www.genesiscctv.com
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 Channel and is the answer not in the manual?

Questions and answers

Related Manuals for Genesis CCTV 4 Channel

Summary of Contents for Genesis CCTV 4 Channel

  • Page 1: Chap

    3715 Sarasota Ct. Orlando, FL 32812 Ph: 407.282.7786 Fx: 407.282.7184 www.genesiscctv.com VER 1.1...
  • Page 2 INSTALLATION & SAFEGUARDS All the safety and operating instructions should be read before operation. Environment Condition for Installation 1. To prevent electric shock or other hazard, do not expose this unit to rain, moisture, or dust. 2. Place this unit in a well-ventilated place and do not place heat-generating objects on this unit.

  • Page 3: Table Of Contents

    Table of Contents Features and Package CHAP. 1 ------------------------------------------------------------ Contents Contents 1-1. Features ------------------------------------------------------------ Package Contents & 1-2. ------------------------------------------------------------ Description CHAP. 2 Function of Buttons ------------------------------------------------------------ 2-1. Front Panel ------------------------------------------------------------ 2-2. Rear Panel ------------------------------------------------------------ 2-3. Connector Pin ------------------------------------------------------------ CHAP. 3 Installation ------------------------------------------------------------ 3-1.
  • Page 4 CHAP 7 CHAP. 7 DVR Operation DVR Operation ------------------------------------------------------------ 7-1. Live Monitoring ------------------------------------------------------------ 7-2. Event Monitoring ------------------------------------------------------------ 7-3. Mouse Operation ------------------------------------------------------------ 7-4. Record ------------------------------------------------------------ 7-5. Audio ------------------------------------------------------------ 7-6. Search ------------------------------------------------------------ 7-7. Playback ------------------------------------------------------------ 7-8. Network Setup ------------------------------------------------------------ CHAP. 8 Integrated Remote Station ------------------------------------------------------------ 8-1.

  • Page 5: Features And Package Contents

    CHAPTER 1. Features and Package Contents 1-1. Features Live Display PIP (Picture in picture), Freeze, Zoom, Sequence, PTZ function 1/4/6/8/9/13/16 Split display Record Image quality setup in 4 steps Schedule recording / Holiday setup Event record by alarm and motion detection Panic recording Video Loss detection BOOKMARK function...

  • Page 6: Package Contents & Description

    1-2. Package contents & Description 2 Rem te C ntr l 2. Remote Control 1. DVR Main Unit RECORD MENU PANIC BOOKMARK BACKUP EXIT SEARCH MODE NETWORK ZOOM AUDIO 6. Software CD 5. User’s Manual 3. Power Cable 4. Power Adapter 11.

  • Page 7: Chap

    CHAPTER 2. FUNCTION BUTTONS 2-1. Front Panel [4 Channel Front] [8 Channel Front] [16 Channel Front]...
  • Page 8 <Note> This manual covers the 4 channel, 8 channel and 16 channel digital video recorders. For simplicity, the illustrations and descriptions in this manual refer to the 16 channel model. Name Function Indicating operation status PANIC Emergency recording Function Key EXIT Stop for panic recording &...

  • Page 9: Rear Panel

    2-2. Rear Panel [4 Channel Rear] [8 Channel Rear] [16 Channel Rear]...
  • Page 10 <Note> You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and a NTSC monitor. You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and a NTSC monitor. Name Function RS485 Connection with PTZ Camera or other external devices using RS485...

  • Page 11: Connector Pin

    2-3. Connector Pin [1] RS232 Connection with PC to view and control DVR. Details Details N/C (Normal Close) N/C (Normal Close) RxD (Data Transmission) N/C (Normal Close) TxD (Data Transmission) N/C (Normal Close) N/C (Normal Close) N/C (Normal Close) GND (Ground) [2] VGA VGA monitor output port to view screen via PC.
  • Page 12 AIN1 ~ AIN 4: Audio Input CH1 ~ CH4 MIC: Microphone Input MIC: Microphone Input AOUT: Audio Output [6] External Device Connection : Connection with PTZ camera, sensor, relay output. [4 Channel] [4 Channel] Details Details Details Details RS485 D-...

  • Page 13: Installation

    CHAPTER 3. INSTALLATION 3 1 C 3-1. Configuration [Typical DVR Installation] l DVR I ll i...

  • Page 14: Detailed Configuration

    3-2. Detailed Configuration 1) Rack mount RECORD MENU PANIC BOOKMARK BACKUP EXIT SEARCH MODE NETWORK ZOOM AUDIO 1. Remove all 4 bolts on side caps. 2. Attach Rack mount bracket to DVR. 3. Attach DVR with rack mount bracket to 19” Rack.
  • Page 15 [4 Channel] HDD Cable Connection MAIN BOARD HDD Fix HDD2 HDD1 CD- RW MASTER [8 Channel] [8 Channel] HDD Cable Connection HDD 2 HDD 1 MAIN BOARD HDD2 HDD1 CD- RW MASTER [16 Channel] HDD Cable Connection MAIN BOARD HDD2...
  • Page 16 [3] Camera LEVEL VIDEO VIDEO LENS AC24V/DC12 Rear view of CAMERA Connect cameras to the camera input on rear panel of DVR marked CAMERA IN. [4] Monitor VIDEO A VIDEO B VIDEO C Connect the video output marked MONITOR to VIDEO-IN of Main Monitor.
  • Page 17 [6] SPOT Connect with the spot monitor as needed. [7] OTHERS [4 Channel] SPEAKER MONITOR TILT PAN/ CAMERA CAMERA SENSOR SIREN [8 Channel] SPEAKER MONITOR TILT PAN/ CAMERA CAMERA SENSOR SIREN...
  • Page 18 [16 Channel] SPEAKER MONITOR SENSOR SENSOR TILT TILT PAN/ PAN/ CAMERA CAMERA SIREN RS232C : Control DVR through RS232C port by using PC. RS485 : Control external device such as PTZ Cameras. (Pin No.1 ~ 2 at Terminal Block). RELAY Output : (Pin No.3 ~8 at Terminal Block).

  • Page 19: Display Configuration

    CHAPTER 4. Display Configuration Date/Time, HDD, Playback Current Status Display status icons Displa Stat s Display Status Monitoring popup menu in live mode Playback popup menu in playback mode Popup Menu PTZ control popup menu in PTZ mode Playback toolbar, PTZ toolbar Toolbar...

  • Page 20: Current Status

    4-1. Current Status [1] Date/Time Live mode : show current date & time Playback mode : show recorded date & time of the playback image [2] HDD Live mode : HDD recorded space is marked red on the percentage bar. Available remaining days/time at current record mode is shown.

  • Page 21: Popup Menu

    4-3. Popup Menu By clicking right button of mouse, Monitoring popup menu appears in live mode, Playback popup menu appears in playback mode, PTZ control popup menu appears in PTZ p p p mode. 1) MONITORING POPUP MENU While in LIVE display, click right button of mouse, and MONITORING popup appears. In full screen mode: All sub-menus are activated.
  • Page 22 3) Previous Page In full screen mode, clicking Previous Page menu will switch screen to lower number channel. After channel 1, it rotates to channel 16. In split screen mode, clicking Previous Page menu will switch screen to lower number channel groups.
  • Page 23 7) Zoom : On / Off In full screen mode, Zoom icon activates, and Live screen zooms in x2. Move selected frame by mouse control or arrow keys. In split screen mode select channel button to activate zoom icon and live screen zooms in x2 In split screen mode, select channel button to activate zoom icon, and live screen zooms in x2.
  • Page 24 11) Search Only Admin and Manager have authority to access this Menu. It is to search recorded data easily and playback. Search by Time/Date, Event list and Bookmark is available. 12) Setup Menu Only Admin and Manager have authority to access and change all settings on all Sub-Menus. [2] PTZ CONTROL Popup While in PTZ mode, click right button of mouse, and PTZ popup appears.

  • Page 25: Toolbar

    4-4. Toolbar [1] PLAYBACK Toolbar Button Function Go to the first image Go to the first image Move to the beginning of playback Move to the beginning of playback Decrease speed Playback speed decreases in forward playback (Playback speed increases in backward playback) Backward playback Playback in reverse direction Previous image...

  • Page 26: Dvr Setup

    CHAPTER 5. DVR SETUP 5-1. Operation 1) Main Menu Setup Group Details Display Display, Camera, Audio, Remote Control Record Setup, Schedule, Pre-event, Backup Event Alarm, Motion, Video Loss, Alarm-out, Buzzer Network LAN, Notification System Information, Date/Time, Storage, User, Logout...
  • Page 27 [1] Map of Screens Setup Menu Display Display Display Main Spot Camera Camera Audio Audio Remote Control RS232 REMOTE CONTROL Record Setup Channel Event Panic Schedule Schedule Schedule Schedule Pre-event Pre-Event Backup CDRW Backup USB Backup Event Alarm Alarm-In Setup Setup Action Action...
  • Page 28 [2] Initialization INITIALIZE DVR SYSTEM… When powered on, messages displays in order. BOARD/PERI DEVICE.. System will check for connected INITIALIZE DVR SYSTEM… HDDs. If no HDD is connected, it will move to the next message To will move to the next message. To CHECK INTERNAL HDD1..
  • Page 29 [3] System Login MONITORING GOTO CHANNEL GOTO CHANNEL SPLITTER 1) Press right button of mouse or press [MENU] button, and MONITORING popup appears. PTZCONTROL FREEZE ZOOM SEQUENCE AUDIO PANIC PANIC PLAYBACK SEARCH SETUP MENU 2) Click Setup Menu, and Login window pops up. 3) Click User and You can select user grade from the scroll box.

  • Page 30: Display

    5-2. Display [1] Display 1) OSD OSD window allows you to select what information will be displayed in Live and Playback screen. - Date/Time : Check checkbox to display Date/Time on Live screen. - Percentage Bar : Check checkbox to display Percentage Bar : Check checkbox to display recorded percentage on HDD on Live screen.
  • Page 31 Main If Event Popup Off, you can set DVR to sequence cameras. If Event Popup on event channel screen pops up If Event Popup on, event channel screen pops up. MAIN SPOT SEQUENCE MODE SEQUENCE MODE FULL 1 Ch FULL 1 Ch SEQUENCE INTERVAL SECOND EVENT POPUP...
  • Page 32 3) Spot - Spot Monitor : Set Spot monitor On or Off. - Spot Event Type : Select Event type among Motion, Alarm and both. - Spot Dwell : Set dwell time among 1, 2, 3, 4, 5, 10, 15, 20, 30 seconds. g , , , , , - Spot Channel : Click Spot Channel button to popup Spot Channel Selection window.
  • Page 33 [2] Camera 1) Camera Set title, color, hue, contrast of cameras. - No.: Click to popup Copy Setting box. - Title : Change the Title of each camera using the virtual keyboard (Maximum 12 letters) - Covert : Select ON channel will not be displayed on Live View screen. - Adjustment : Adjust display brightness, contrast, saturation, hue, horizontal position of each camera.
  • Page 34 2) PTZ BAUDRATE NEXT - Protocol : Click Protocol column and select camera from the list. - PTZ ID : Assign IDs to each camera from 0 to 255. - Speed : Set PTZ control speed from 1 to 7 level. - Baud rate : Set RS485 communication speed.
  • Page 35 [3] Audio - Record : Check checkbox to record with audio. Otherwise, audio will not be recorded. - Playback : Check checkbox to playback with audio sound. - Audio Out : Check checkbox to turn audio on in Live mode.
  • Page 36 [4] Remote Control 1) RS232 REMOTE CONTROL 115200 - Baud rate : Set value among 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200. - Data bite : Set value from 5 to 8. - Stop bite : Set value between 1 and 2. - Parity : Set value among None, Odd and Even.

  • Page 37: Record

    5-3 Record [1] Setup Channel : Set recording for Continuous recording Event : Set recording for Alarm and Motion detection Panic : Set recording for panic recording 1) Channel Set continuous recording quality for each channel. - No.: Click to popup Copy Setting box. - Resolution : Set resolution among CIF, H-D1 &...
  • Page 38 2) Event Set event recording quality for each channel. 3) Panic Set panic recording quality for each channel.
  • Page 39 < Note > Below is the 500GH HDD calculation for Estimated Size/Day and Estimated Day/HDD according to Resolution and Quality Quality: Low Quality: Normal Quality: High Quality: Very High 1fps 16GBx27day 19GBx23day 23GBx19day 27GBx16day 2fps 19GBx23day 20GBx21day 26GBx17day 31GBx14day 3fps 20GBx21day 23GBx19day 27GBx16day...
  • Page 40 [2] Schedule S t Ti Set Time and Type of Schedule recording for each channel. f S h d l - Record Type : Time : CONTINUOUS ALARM-IN : Sensor In MOTION MOTION : Motion Detection M ti Channel button : Click to popup Copy Setting box. In normal cases (Unless you press Panic button), DVR records based on the schedule established in the Schedule.
  • Page 41 [3] Pre-Event Set Quality and recording time for Pre-Event, which save recorded data before event occurs. - Channel checkbox : Check checkbox to turn each camera on for pre-event recording. - Set each camera on or off for pre-event recording. - Quality : Set recording quality among Low, Normal, High &...
  • Page 42 [4] Backup 1) CD-RW Backup CHECK BACKUP SIZE Recorded image Information - From : Start time of recorded data on HDD. -To : End time of recorded data on HDD. Backup Information - Media : Size of the inserted media (CD/DVD). - From : Start time of data to backup on CD-RW.
  • Page 43 [4] USB Backup CHECK BACKUP SIZE CHECK BACKUP SIZE Recorded image Information - From : Start time of recorded data on HDD. -To : End time of recorded data on HDD. Backup Information - Media : Size of the inserted media (CD/DVD). - From : Start time of data to backup on CD-RW.

  • Page 44: Event

    5-4. Event [1] Alarm [1] Alarm 1) Alarm-In Set sensor On / Off and Dwell time for each channel in case external sensor activates. NEXT NEXT - No.: Click to popup Copy Setting box. - Type : Set external sensor input NO/NC/Off for each camera. - Beep : Set beeping sound On / Off.
  • Page 45 [2] Motion 1) S t 1) Setup Set Motion Detection for each channel. - No.: Click to popup Copy Setting box. - Type : Set motion mask On/Off for each channel. - Beep : Set beeping sound On / Off in case preset event occurs. - Sensitivity : Set sensitivity among Very High, High, Standard, Low &...
  • Page 46 Motion Mask Zone setup window Motion Mask Zone setup window Deactivates Motion Detection Activates Motion Detection - Cell Setup Click left button of mouse to set Motion Mask Zone by selecting or clearing blocks. - Block Setup Click selected cell and drag it to desired position All cells within the block will be selected Click selected cell and drag it to desired position.
  • Page 47 2) Action Set Alarm-Out On / Off for each channel in case motion is detected. SETUP ACTION ALARM-OUT DURATION SECOND SECOND SECOND SECOND EVENT REFRESH TIME SECOND Ch-01 ~ Ch-04 PREVIOUS NEXT SAVE DEFAULT CANCEL - No.: Click to popup Copy Setting box. - Alarm-Out : Set On / Off for sending alarm signal to relay output terminal.
  • Page 48 [4] Alarm-Out 1) Setting SETTING SETTING SCHEDULE SCHEDULE DURATION DURATION SECOND SECOND SAVE SAVE DEFAULT DEFAULT CANCEL CANCEL - Duration : Output dwell time for Alarm-Out set from Alarm/Motion/Loss from 1 to 99 seconds. 2) Schedule START TIME END TIME - Day : Select day of a week for output among All, Monday ~ Sunday, Weekday, and Weekend.
  • Page 49 [5] Buzzer Select Buzzer On/Off Select Buzzer On/Off. ALARM-IN - Key Beep : Set On/Off in case mouse or keyboard panel is pressed. - Video Loss : Set On/Off in case of Camera Loss. - Alarm-In : Set On/Off in case external sensor input is detected. - Motion Detect : Set On/Off in case motion is detected.

  • Page 50: Network

    5-5. Network 1] LAN 1) Ethernet Setup to enable viewing live screen or searching/backup recorded data on HDD remotely over the network. DDNS DDNS ETHERNET ETHERNET TRANSMISSION TRANSMISSION MAC ADDRESS 00 - 0A - A2 - 0B - 08 - 83 IP TYPE DYNAMIC DHCP...
  • Page 51 2) DDNS Set DDNS Server Connection. - DDNS On/Off : Select On to enable, Off to disable. - DDNS Server : Input server domain name address. Input server domain name, or select Static IP to input IP address manually. - PORT : In case of firewall, contact your network administrator. Port setup is from 10 to 65000.
  • Page 52 [2] Notification 1) Setting Set notification for both e-mail and event server. See Chapter 7-9 [4] for details - Retry Count : Number of times of retrial (Set from 1~30) - Send Interval : Send information either when set time expires or when number of event reaches set number.
  • Page 53 3) Event DVR can be set to send events to CMS (Central Management Software) program. DVR can be set to send events to CMS (Central Management Software) program. See Chapter 7-9 [5] Event for more details. - Active : Check checkbox to activate. - IP address : Shows IP address of the PC, in which event server program runs.

  • Page 54: System

    5-6. System [1] Information - Language : Set language of System Menu among English, French, Spanish, Italian, Portuguese, Dutch, Russian, German, Turkish and Polish. - Version : Current firmware version Version : Current firmware version. - Upgrade SW : Update current firmware. - Import Setup : Bring setup values saved from USB storage.
  • Page 55 Click Upgrade SW button, and pop-up box appears. CHECKING - Storage Status : Shows firmware update progress Storage Status : Shows firmware update progress. (See chapter 11 for warning and error messages). - Upgrade File : Name of file to upgrade. -Information : Shows error code in case of error.
  • Page 56 [2] Date / Time 1) Date / Time Set Date/Time of system. HOLIDAY TIME SYNC DATE/TIME DATE 2007 TIME DATE FORMAT 2007/12/10 MONTH FORMAT TIME FORMAT TIME ZONE TIME ZONE (GMT+09:00) Seoul (GMT+09:00) Seoul USE DST SAVE DEFAULT CANCEL - Date : Set Year, Month, Day. Year can be set from 2008 to 2099. - Time : Set Hour, Minute, Second.
  • Page 57 2) Holiday Set national holidays or holidays on calendar to record as setting for Sunday in Schedule Record l h lid h lid i S h d l R Setup. DATE/TIME HOLIDAY TIME SYNC MONTH 01/01 DELETE SELECT DAY OF WEEK SUNDAY SAVE DEFAULT...
  • Page 58 3) Time Sync - Automatic Sync : Choose between On/Off. Automatic Sync : Choose between On/Off - Time Server : Input sync server IP address (SNTP). - Retry Count : Select from 1 to 30 retries. - Interval : Automatic Sync Interval (0.5, 1, 2, 3, 4, 5, 6, 12, 24 hours) - Last Sync Time : Shows time of Last Sync.
  • Page 59 FORMAT When format button is pressed, new window pops up to confirm. Press Format button again to begin clear HDD. [4] User [4] User Set password for each user grade or check Auto Login checkbox for auto Login. - User : Choose from admin, manager, user 1 ~ user 8. - Password : Set password for each user grade.
  • Page 60 If you click Password, Change Password message box pops up. Click Current Password, Current Password message box pops up. Password is from 1 digit to 8 digit number. CURRENT Click Authority button and Authority Setup window pops up. Set authority to access for each user grade. Check checkbox of contents for Manager &...
  • Page 61 [5] Logout 1) Warning message box 1) Warning message box When Logout is selected from [Menu] [System] [Logout], warning message box pops up as below. - If you press Logout button from the message box, the device will not remember current user ID, and in order to Login to system menu again, system login window will pop up again.

  • Page 62: Search

    CHAPTER 6. Search It is to search data recorded in various modes (Schedule, Event, Continuous) easily and playback. Search by Calendar, Event list and Bookmark is available. Pressing right button of mouse will popup MONITORING popup window, and click Search. Or press [SEARCH] button to enter into Search menu.
  • Page 63 Days with recorded data display on the calendar with white numbers. Click the number, and information of selected date and time appears as below. - If dots are white, it means it contains recorded data. If dots are black, there’s no recorded data. - Select white dot, or input time in ‘Goto’...

  • Page 64: Event Search

    6-2. Event Search Recorded data for Event (Motion, Alarm, Loss, Panic) displays in Event Search. - << Shows previous month. - >> Shows next month. First : Date/Time of the first event recorded. Last : Date/Time of the last event recorded. - Exit : Exit search menu.
  • Page 65 Click Time of event you wish to see and click PREVIEW or PLAYBACK. - All Type : Event selection among All Type, Motion, Alarm, Loss, and Panic. List of selected event will be shown. - Channel : Channel selection among All, 1ch~16ch. List of selected channel will be shown.

  • Page 66: Bookmark Search

    6-3. Bookmark Search The Bookmark search screen displays a list of the video associated with bookmark in the playback mode. - Time : Shows time of the bookmarked list. - Login : Shows user grade who bookmarked the list. S o s use g ade o boo a ed t e st - Delete Checkbox : Check box of the list to delete.

  • Page 67: Dvr Operation

    CHAPTER 7. DVR OPERATION 7-1 Live Monitoring Once DVR completes its initialization, live screen displays on connected monitor with live audio it i iti li ith li through connected speaker. Default mode is displaying all connected camera channels at once. Pressing a certain camera channel button will switch display to full screen mode of the camera channel.
  • Page 68 3] FRZ Press [FRZ] button to freeze image. Press the button again or switch to other display format to exit freeze mode exit freeze mode. While in FRZ mode, PIP, Zoom, Sequence, PTZ Control will not function 4] Sequence Whil i f ll While in full screen mode, press [SEQ] button to cause channel of connected cameras [S Q] b to display sequentially according to the preset dwell time.

  • Page 69: Button Function

    5] PTZ User with PTZ Control Authority can control PTZ cameras. (Access [Menu]-[System]-[User]-Authority and check checkbox for user authority for PTZ control) Access [Menu]-[Display]-[Camera]-[PTZ] to setup PTZ model, PTZ ID, and Baud rate. MONITORING MONITORING GOTO CHANNEL GOTO CHANNEL SPLITTER SPLITTER PTZCONTROL PTZCONTROL...
  • Page 70 Set preset position for PTZ cameras. Press [SET PRESET] button or click Set Preset from PTZ Control popup menu or click Set Preset from PTZ Control popup menu. SET PRESET By setting the position of cameras, user can view the area of preset position of cameras easily.

  • Page 71: Event Monitoring

    Easy PTZ control with mouse operation: With virtual joystick, user can control PAN left/right, TILT up, down with mouse operation. Button Button Function Function Zoom in TELE Zoom out WIDE Focus near NEAR Focus far Iris open OPEN Iris close CLOSE Exit PTZ control EXIT...

  • Page 72: Mouse Operation

    7-3. Mouse Operation For easy operation while live monitoring, user can use mouse instead of key buttons. In split screen mode, double clicking a certain channel screen will switch the channel into a full screen mode. Double clicking the screen again will return to previous split display mode. Click right button of mouse while live monitoring and popup menu appears as below: MONITORING MONITORING...

  • Page 73: Record

    7-4. Record [Record Setup] (1) F (1) For Record, user must have authority for Record. th it f (Access [Menu]-[System]-[User]-[Authority] and check Record) (2) For Continuous record: Access [Menu]-[Record]-[Setup]-[Channel]-[Resolution] and set record quality settings. For event record: Access [Menu]-[Record]-[Setup]-[Event]-[Resolution] and set record quality settings.
  • Page 74 [1] Calendar Search Days with recorded data will be highlighted in white color. Click a day to see the recorded data in details by time and minute. Channel : If channel ALL is selected, the dots will show if it contains recorded data or not, but if a certain channel number is selected, dots will show in 4 colors showing its...
  • Page 75 [2] Event search Every time Alarm-Input port is activated, new event list will be created. Days with recorded data will be highlighted in white color. Click a day to see the recorded data lists. Click a day to see the event list of the day. -Select type of events to be listed among All Type, Motion, Alarm, Loss and Panic.

  • Page 76: Playback

    [3] Bookmark search Admin or Manager can create bookmark list upto 24 lists each. While in Playback mode, every time Admin or Manager presses the BOOKMARK button, new time While in Playback mode, every time Admin or Manager presses the BOOKMARK button, new time data will be created on the list.
  • Page 77 SEARCH / STOP Pressing STOP button from Playback mode will switch screen to Live mode. Pressing SEARCH button from Live mode will switch screen to Search mode. SEARCH b tt it h CHANNEL BUTTON Press camera channel button, and the associated camera screen will display in full screen mode.

  • Page 78: Network Setup

    7-8. Network Setup [1] DVR Network Setup Check Network 1) Click Windows START button. 2) Click RUN and input “cmd”. 3) Input “ipconfig” from COMMAND AND PROMPT. 4) Check IP address, Subnet Mask and Gateway. 5) Type “Ping xxx.xxx.xxx.xxx (IP address)”. If you see “Request timed out”...
  • Page 79 [2] Static IP Input IP address assigned from Internet Service Provider in IP SETUP. 1) Verify if IP address is OK with your PC before connecting DVR. 2) Connect static IP LAN cable to DVR after verification: Router connection Router ISP Company Remote PC Direct connection...
  • Page 80 3) Access [Menu]-[Network]-[LAN]-[Ethernet] in DVR. 4) Set IP TYPE to STATIC. 5) IP address popup button 5) IP address popup button In case of router connection As in PC setup, assign internal IP address to DVR. (Ex: 192.168.0.105) Assigned IP address should only be used for DVR internally. In case of direct connection As in PC setup, assign static IP address to DVR.
  • Page 81 12) Click IRS Setup and click Add button. 13) Address / Port / User ID / Password Box : In case of Router connection Internal connection Address : Input assigned IP address to DVR. (Access [Menu]-[Network]-[LAN]-[Ethernet] to see assigned IP address) Port: Input Port number.
  • Page 82 [3] Dynamic IP Select DYNAMIC IP from DVR’s TCP/IP SETUP and IP address will be assigned from ISP’s DHCP server. 1) Verify if IP address is OK with your PC before connecting DVR. 2) Connect dynamic IP LAN cable to DVR after verification. Router connection Router ISP Company...
  • Page 83 3) Turn off Modem provided by ISP company, and turn on again. (This process is to reset client’s MAC from ISP company. Wait for 30 seconds after turning on.) 4) If modem works good, turn DVR off and turn on again. 5) Access [Menu]-[Network]-[LAN]-[Ethernet] in DVR.
  • Page 84 11) Click IRS Setup and click Add button. 12) Address / Port / User ID / Password Box : In case of Router connection Internal connection Address : Input assigned IP address to DVR. (Access [Menu]-[Network]-[LAN]-[Ethernet] to see assigned IP address) Port: Input Port number.
  • Page 85 [4] e-mail setup 1) Send Server IP address setup In Send Server IP box, input SMTP server IP address received from System Manager. In case users don’t know SMTP server IP address, ask to server administrator. server administrator. Check send server IP for Outlook Express : Open Outlook Express, and click TOOLS(T) –...
  • Page 86 Click SERVERS tap, and you can check SMTP address. Click Windows START button, and click RUN and input “cmd”. Input “ping xxxxx.xxx(SMTP address)” and you can check IP address. Set this IP address in Send Server IP popup button.
  • Page 87 2) Send Port Setup Input 25 for mail port number in DVR. (In case of no activation, ask to SNTP server administrator. 3) Send Server ID / Send Server PW Setup Input ACCOUNT NAME(C) to Send Server ID on your DVR. Input PASSWORD(P) to Send Server PW on your DVR.
  • Page 88 Received e-mail will show details as below:...

  • Page 89: Integrated Remote Station

    CHAPTER 8. Integrated Remote Station 8-1. IRS Setup 1) See PC specification below for IRS operation. Contents Min. Spec. Recommended Spec. Intel Pentium 4 3.0GHZ Intel Pentium 4 Core2Duo 1.8 or higher Main memory 512MB 1GB or higher Video memory 128MB 512MB or higher 80GB...
  • Page 90 4) If you want to review or change any of installation settings, click [BACK], or if you want to proceed, click [NEXT]. 5) When you click [NEXT] button, you will see installation process, and when installation is done, S-IRS icon will be created on windows background.

  • Page 91: Irs Operation

    8-2. IRS Operation [1] IRS (I t [1] IRS (Integrated Remote Station) Display t d R t St ti ) Di - CLIENT SETUP: Setup for network connection. - REMOTE SETUP: Change DVR setup remotely over network. - REMOTE VIEWER: View live display of DVR. - SEARCH: Search recorded data on DVR HDD.
  • Page 92 [2] Client Setup - ADDRESS : Input same IP address set on DVR. - PORT : Input same Port number set on DVR. - USER ID: Input same ID as in DVR. -Password: Input same Password as in DVR. <N t > <Note>...
  • Page 93 - ADD : Register IP Setup Value of IP SETUP box to SITE SETUP box. - UPDATE : Edit IP Setup Value registered on SITE SETUP box. - DELETE : Delete IP Setup Value registered on SITE SETUP box. - SAVE : Save IP Setup Value registered on SITE SETUP box. SAVE : Save IP Setup Value registered on SITE SETUP box - OK : Click OK to popup login window.

  • Page 94: Remote Viewer

    8-3. Remote Viewer [1] Remote Viewer 1) DVR connection setup: Input IP address, Port number, ID, Password for network connection to DVR. 2) System Information: Displays DVR connection and progress status. 3) PTZ Control: Control PTZ cameras connected to DVR. (PTZ setting in DVR should be completed before use.) 4) Connect : Connect to DVR via network to view live image.

  • Page 95: Search

    8-4. Search [1] Search [1] Search 1) DVR connection setup : Input IP address, Port number, ID, Password for network connection. 2) System information : Displays connection status and system operation information. 3) Start / End : Displays start time and end time of total recorded data. 4) Connect : Connect to DVR via network.
  • Page 96 <Buttons from left to right> Goto the first image Fast backward playback Backward playback Freeze Playback Fast playback Goto the last image 11) Audio channel : Select audio channel to turn on. 12) Time : Current playback time. 13) Exit : Exit program [2] Percent / Date search Click EVENT button from main Search page.
  • Page 97 [3] Event list search Click date on calendar, and Event List of the day will be displayed. Select event and click OK to Select event and click OK to playback, or just double click the event. Left / Right button : Displays Previous / Next 100 lists.

  • Page 98: Backup

    8-5. Backup 1) To run BACKUP, input IP Address and Port, and click Connect Test button. 2) Click Connect Test button, and when network connection is successful, “Success Connect Test!“ message will appear in the message box.
  • Page 99 3) Click Lock button, and receives information of recorded start time / end time from DVR. It will automatically update information every 10 seconds, or click Update button for immediate update. 4) Click Set Backup Time button and set Start Time, End Time, Save File Path, File Size, and click Apply button.
  • Page 100 - Recorded Start Time : Start time of recorded data on HDD at the time of clicking LOCK button. - Recorded End Time : End time of recorded data on HDD at the time of clicking LOCK button. - Save File Path : Set path to save backup file on PC. - Maximum Save File Size : Split file size into 10MB,50MB,100MB,150MB, 200MB ~ 700MB.

  • Page 101: Player

    8-6. Player [1] Player [1] Player 1) TIME : Displays start time, end time, current playback time. 2) SPEED / SLOW MOTION : Control playback speed. SPEED: Set fast playback speed : 2x, 4x, 8x, 16x 32x SLOWMOTION: Set slow playback speed : 1x, 1/2x, 1/4x, 1/8x, 1/16x, 1/32x 3) Open : Playback backup file on PC.
  • Page 102 [2] Player – Edit Panel < IMAGE EDIT > < IMAGE EDIT > 1) CONTRAST: Set contrast in full screen mode. : Make bright part brighter and dark part darker. : To reduce light and shade, lower contrast. 2) BRIGHT: Set brightness in full screen m de 2) BRIGHT: Set brightness in full screen mode.
  • Page 103 [3] Player – AVI Save Panel < AVI SAVE > < AVI SAVE > 7) AVI Save Option: Set frame rate, size of file to be saved in AVI format. CHANNEL : Select channel of image to save. FRAMERATE : Select FPS of image to save. SIZE : Select file size of the image to save.

  • Page 104: Appendix A Frequently Asked Questions

    Appendix A. Frequently Asked Questions Q. Turned power switch to ON, but DVR doesn’t turn on. A. Check if power cord is well connected to DC 12V power jack. Q. After turning on DVR, Power LED on front panel lights, but no video output on monitor. A.

  • Page 105: Appendix B Factory Default Value

    Appendix B. Factory Default Value When you press Default All button on [Menu]-[System]-[Information] all values will be defaulted as When you press Default All button on [Menu] [System] [Information] all values will be defaulted as ex-factory setting values. See below for detailed factory default values. <...
  • Page 106 < Network Menu > MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Ethernet MAC Address 00-0A-A2-08-08-68 IP TYPE Dynamic Port 50000 DDNS DDNS On/Off DDNS Server DDNS Server Static IP Static IP 211.062.253.088 0000 DVR ID SDVR 16CH Update Interval Last Update Last Update ----/--/-- --.--.-- Transmission...
  • Page 107 < Device Menu > MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Camera Camera Copy Settings CH1: Checked, CH2~CH16: Not checked Title CAM01 ~ CAM16 Covert Adjustment Brightness Contrast Saturation Position -> +7 Copy Settings CH1 Ch k d CH1: Checked, CH2~CH16: Not checked CH2 CH16 N h k d Protocol...
  • Page 108 MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE OSD Margin Left Right + 15 Bottom Main Sequence Mode Full 1 Ch Sequence Interval Event Popup Popup Event Type Alarm Popup Dwell Spot Spot Monitor Spot Event Type Spot Dwell Spot Channel CH1 ~ CH16 All Checked VGA Resolution 800 x 600 / 75 Hz...
  • Page 109 < Record Menu > MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Setup Setup Channel Channel Copy Settings Copy Settings CH1: Checked CH1: Checked, CH2~CH16: Not checked CH2~CH16: Not checked Resolution Quality High Overwrite Not checked Event Copy Settings CH1: Checked, CH2~CH16: Not checked Resolution Quality High...
  • Page 110 < Event Menu > MENU SUBMEN MENU TITLE FACTORY DEFAULT VALUE Alarm Alarm-In Copy Settings CH1: Checked, CH2~CH16: Not checked Type Beep Alarm-Out 1 Not checked Alarm-Out 2 Not checked Duration Event Refresh Time Alarm- Start Hour 00, 00 End Hour 23, 59 Mode Event...
  • Page 111 MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Action Copy Settings CH1: Checked, CH2~CH16: Not checked Alarm-Out 1 Not checked Alarm-Out 2 Not checked Duration Event Refresh Time Event Refresh Time Video Loss Video Loss Copy Settings CH1: Checked, CH2~CH16: Not checked Beep Alarm-Out 1 Not checked...

  • Page 112: Appendix C Specification & Dimension

    • Password Protection BACKUP EXIT SEARCH MODE NETWORK • Remote Control • User-Friendly Mouse control ZOOM AUDIO Contents 4 Channel 8 Channel 16 Channel Compression Algorithm MPEG4 ASP Audio G.723 General Feature Signal Format NTSC or PAL (Auto Detect) 16CH...
  • Page 113 Contents 4 Channel 8 Channel 16 Channel Recording & Playback Quadplex Multi-tasking (Live, Playback, Recording, Network) Multi Channel Playback Available Event Log information Available Pre-Alarm Available Alarm / Relay Video Loss Alarm Available Available Motion detection Alarm Network Remote S/W Integrated Remote Station : Monitoring, Search &...

  • Page 114: Appendix D Remote Control

    Appendix D. Remote Control PTZ CONTOL PTZ On/Off SET PRESET Search Menu SEARCH CLEAR PRESET CLEAR Menu MENU GOTO PRESET GOTO AUTO PAN <No functions> AUTO <No functions> <No functions> Select Ch / Input Number <No functions> Indicates 2 digits ‘0’+‘0’...
  • Page 115 3715 Sarasota Ct. Orlando, FL 32812 Ph: 407.282.7786 Fx: 407.282.7184 www.genesiscctv.com...
