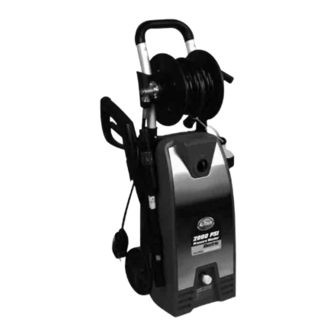

Summary of Contents for All-Power APW5022
-
Page 2: Table Of Contents
2000 PSI Pressure Washer Table Of Contents Topic Page Imporant Safety Tips, Precautions, Warnings, 2- 5 and Usage Instructions Assembly Instructions 6- 8 Operating Instructions 9- 12 Detergents 12-13 Clean-up and Storage 14-15 Cleaning Tips Technical Date Troubleshooting Tips Exploded View Part Listing 20 21 Limited Warranty... - Page 3 2000 PSI Pressure Washer GROUND FAULT CIRCUIT INTERRUPTER (GFCI) This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
- Page 4 2000 PSI Pressure Washer IMPORTANT SAFETY PRECAUTIONS WARNING: When using this product, basic precautions should always be followed, including the following: Read all instructions before using the product. Save all safety instructions. Do not operate the pressure washer when fatigued or under the influence of alcohol or drugs.
- Page 5 2000 PSI Pressure Washer Read all instructions included with the mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors. Before starting the pressure washer in cold weather, check all of the parts of the equipment and be sure that ice has not formed.
- Page 6 2000 PSI Pressure Washer electrical rating not less than the rating of the product. Examine extension cord before use. Do not use damaged extension cords! Do not pull on cord to disconnect from receptacle, always disconnect by pulling on plug. Keep cord away from heat and sharp edges.
-
Page 7: Assembly Instructions
2000PSI Pressure Washer ASSEMBLY INSTRUCTIONS Unpacking The Carton After opening the carton, please remove all parts and check them against the following list of components that are included: A. High Pressure Washer E. Two-way Connector B. Gun F. Water Intake Filter (Pre-Installed) C. - Page 8 2000PSI Pressure Washer Step 1 Insert the adjustable spray nozzle into the gun. Push and turn the adjustable nozzle clockwise onto the gun until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle.
- Page 9 2000PSI Pressure Washer Step 3 Fasten the high pressure hose(C) tightly onto the gun assembly(B) and tighten to avoid leakage. Step 4 Attach the hose connector to pressure washer. Before attaching the connector to the male fitting, remove the plastic cap, which is inserted onto the male fitting on the pressure washer before shipping.
-
Page 10: Operating Instructions
2000 PSI Pressure Washer OPERATING INSTRUCTIONS THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE WASHER! Starting Up After connecting the pressure washer to your cold water supply, proceed as follows: Make sure that the on/off switch is in the off position. -
Page 11: Adjustable Spray Nozzle
2000 PSI Pressure Washer Automatic On / Off The pressure washer is equipped with an automatic on/off switch.The pressure washer will only run when the power switch is in the ON position and the trigger on the gun is squeezed. When you release the trigger to stop spraying water through the gun, the motor on the pressure washer will automatically shut off. -
Page 12: Detergents
2000 PSI Pressure Washer Diagram 2 Diagram 1 Dispensing Detergent The built-in detergent dispenser will allow you to apply many forms of liquid detergent onto the work surface. Detergent application happens at low-pressure only. Insert the adjustable nozzle onto the gun, and turn it to end of “ - ” so that the pressure washer is in low-pressure mode (see Figure A below). -
Page 13: Total Stop System
2000PSI Pressure Washer ADJUSTING THE PRESSURE To adjust the pressure,proceed as follows: Low Pressure Setting 1. Hold the shaft of the lance in one hand. 2. Turn the grey part of the nozzle clockwise (to “+” end) to obtain the high pressure. 3. - Page 14 2000PSI Pressure Washer Step 3 Turn the adjustable nozzle to end of “ - ”, put the pressure washer into low-pressure mode. Low Pressure Setting Step 4 To apply the detergent cleanser to your working area, turn the pressure washer switch to the ON position.
-
Page 15: Clean-Up And Storage
2000PSI Pressure Washer CLEAN-UP AND STORAGE Shutting Down the Pressure Washer WHEN FINISHED USING THE PRESSURE WASHER,FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: Turn the pressure washer to the OFF position. Turn off the water supply. Before disconnecting high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water. - Page 16 2000PSI Pressure Washer Winterizing and Long-Term Storage FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,ADDING THE FOLLOWING STEPS…. After disconnecting the water supply, and before disconnecting the • high-pressure hose, turn the pressure washer on for 2-3 seconds, until any remaining water in the pump exits. Turn unit off immediately. CONTINUED USE OF THE PRESSURE WASHER WITHOUT WATER SUPPLY ATTACHED WILL CAUSE SEVERE DAMAGE TO THE UNIT!
-
Page 17: Cleaning Tips
2000PSI Pressure Washer CLEANING TIPS WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE YOU SPRAYAT THE INTENDED CLEANING SURFACE. Wood and Vinyl Decks Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure. -
Page 18: Technical Data
2000PSI Pressure Washer Maintain a further distance from the cleaning area when using a direct spray. Wipe surface dry for a polished finish. Barbecue Grills, Power Equipment, and Garden Tools Rinse cleaning and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure. -
Page 19: Troubleshooting Tips
2000PSI Pressure Washer TROUBLESHOOTING TIPS WHEN THE SWITCH IS IN THE “I” POSITION THE MACHINE WILL NOT START PROBABLE CAUSE SOLUTION Electrical socket is faulty Check plug, socket, and fuses Voltage is inadequate Check that the voltage is adequate GFCI trips Reset / Try another outlet Power cord is not plugged in Plug in power cord... -
Page 20: Exploded View
2000PSI Pressure Washer EXPLODED VIEW... - Page 21 2000PSI Pressure Washer PARTS LISTING APA Part No. Description Part No. APW5022-01 Motor Cover B APW5022-02 Support Ring APW5022-03 Motor Cover A APW5022-04 Mesh APW5022-05 Case B APW5022-06 Bush APW5022-07 Jacket APW5022-08 Clip Cover APW5022-09 Screw ST4X14 APW5022-10 GQX-43 Pump...
- Page 22 2000PSI Pressure Washer PARTS LISTING APA Part No. Description Part No. APW5022-29 Detergent Bottle Shaft APW5022-30 GFCI APW5022-31 Electric Wire APW5022-32 Gun Grip (10# Gun A) APW5022-33 Wand (10# Gun A) APW5022-34 Bolt M5X42 APW5022-35 Nut M5 APW5022-36 Fix Plate A APW5022-37 Screw ST3.9X15...
-
Page 23: Limited Warranty
Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts. All decisions of All-Power America with regard to this limited warranty shall be final. - Page 24 • Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a resonable period of use. • Merchandise sold by All-Power America which has been manufactured by and identified as the product of another company, such as gasonline engines. The product manufacturer’s warranty, if any, will apply.
