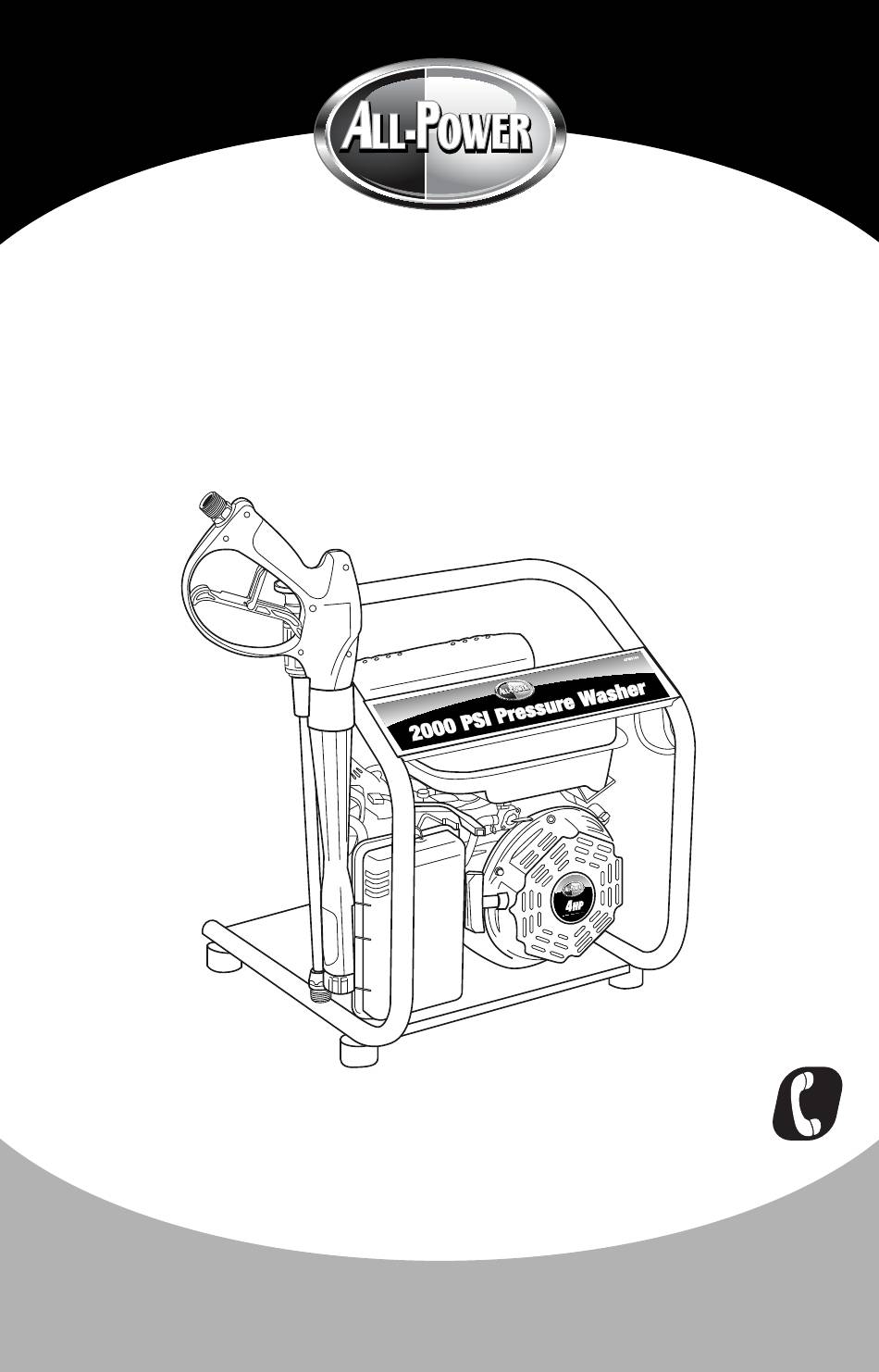

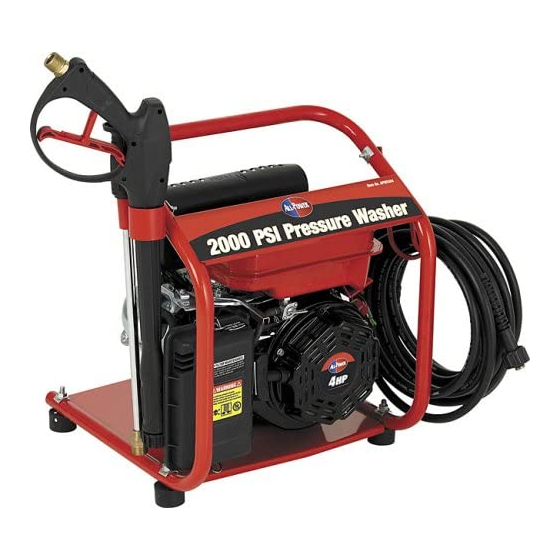

- Page 1 APW5106 Owner’s Manual 2000 PSI 4 HP Pressure Washer HAVE QUESTIONS OR NEED SERVICE DO NOT RETURN TO STORE! 888-896-6881 Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual. www.allpoweramerica.com...
-
Page 2: Assembly
Owner’s Manual Assembly Note before you start assembly make sure this box contains all pieces: BOLTS AND NUTS COMPONENTS Hose Wand ENGINE Garden Hose Quick-Connect Hose bracket Detergent Hose Engine Oil Adapter Wand bracket BRACKET ASSEMBLY... -
Page 3: Table Of Contents
Pressure Washer Table of Contents Pa ge Topic Assembly Safety Guidelines-Definitions General Precautions Safety Features Connections and Start Up Operating Instructions Using Detergent/Connnection Maintenance Storage Specifications Trouble Shooting Warranty Parts Break Down... -
Page 4: Safety Guidelines-Definitions
This Manual Before Operating. Failure To Comply With Instructions In This Manual Could Result In Personal Injury, Property Damage, And / Or Voiding Of Your Warranty. All-Power Will Not Be Liable For Any Damage Because Of Failure To Follow These Instructions. Safety Symbols The following symbols are used throughout this manual. -
Page 5: General Precautions
Owner’s Manual General Precautions The following safety precautions apply whenever using, storing, or servicing your pressure washer to reduce the possibility of personal injury. Overlooking or ignoring these precautions can lead to personal injury or product damage. • Read this manual carefully. Know your equipment. Consider applications, potential hazards and limitations for your unit. - Page 6 Owner’s Manual General Precautions (cont’d) • Keep the pressure washer clean and free of oil, mud and other foreign matter. • Do not wear loose clothing, jewelry, or anything that may be caught in the engine. • Never direct spray at people or animals. •...
-
Page 7: Safety Features
Owner’s Manual General Precautions (cont’d) • Do not touch hot muffler. • Service, operate and refuel under the following conditions: a. Good ventilation b. Refuel the pressure washer in a well lit area. c. Avoid fuel spills and never refuel while the pressure washer is running. d. -
Page 8: Connections And Start Up
Owner’s Manual Before Operation NOTE: The engine and pump on your pressure washer will often have improved performance after a break-in period of several hours. PRE-START PREPARATION Before starting the pressure washer, check for loose or missing parts and for any damage which may have occurred during shipping. - Page 9 Owner’s Manual Connections HIGH PRESSURE HOSE • Attach the high pressure hose to the pressure washer by pulling back on the collar of the quick-connect coupling on the hose and pushing it over the coupling half on the pressure washer outlet. NOTE: Do not use pressure hose from another manufacturer.
-
Page 10: Operating Instructions
Owner’s Manual Operating Instructions Start-up Procedure 1. Make sure water supply is connected and turned on. 2. Release gun safety if locked. 3. To allow air to escape from the hose, squeeze trigger on the gun until there is a steady flow of water coming out from the nozzle. -
Page 11: Using Detergent/Connnection
Owner’s Manual CAUTION This pressure washer is intended for use only with liquid car wash detergents, developed specifically for pressure washers and with mild soaps. Only use chemicals compatible with the aluminum and brass parts. Powdered soaps may clog the injection system. Always use chemicals according to the manufacturers directions. -
Page 12: Maintenance
Owner’s Manual Using Detergents Avoid working on hot surfaces or in direct sunlight to minimize the chances of the chemical damaging painted surfaces. Damage may occur to painted surfaces if the chemical is allowed to dry on the surface. Hold the nozzle far enough away from surface to prevent damage to the surface. -
Page 13: Storage
Owner’s Manual Maintenance 2. Clear the nozzle with a small rigid piece of wire such as a paper clip. 3. Flush the nozzle backwards with water. 4. Reconnect the wand to the gun. Restart the pressure washer and depress the trigger on the spray gun. If the nozzle is still plugged or partially plugged, repeat above instructions 1-4. -
Page 14: Specifications
Owner’s Manual Storage Another method of reducing risks of freeze damage is to drain your pressure washer as follows: 1. Stop the pressure washer and detach supply hose and high pressure hose. Squeeze the trigger of the discharge gun to drain all water from the wand and hose. 2. -
Page 15: Trouble Shooting
Owner’s Manual Trouble Shooting • Engine will not start or stops while operating. Low-oil shutdown: Fill engine with oil Engine switch not in “ON” position: Turn switch “ON”S Pressure built up in hose: Squeeze trigger while starting • Engine is overloaded Nozzle partially blocked Clean Nozzle Excessive pressure... - Page 16 Owner’s Manual Trouble Shooting • Water in crankcase High humidity Change oil more frequently Worn seals Change the oil seals • Noisy operation Worn bearings Change the bearings Air mixed with water Check inlet lines for restrictions and / or proper sizing •...
-
Page 17: Warranty
Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts. All decisions of All-Power America with regard to this limited warranty shall be final. -
Page 18: Parts Break Down
Owner’s Manual(s) supplied with the product, improper maintenance, the use of accessories or attachments not recommended by All-Power America, or unauthorized repair or alterations. • Repair and transportation costs of merchandise determine not to be defective.
