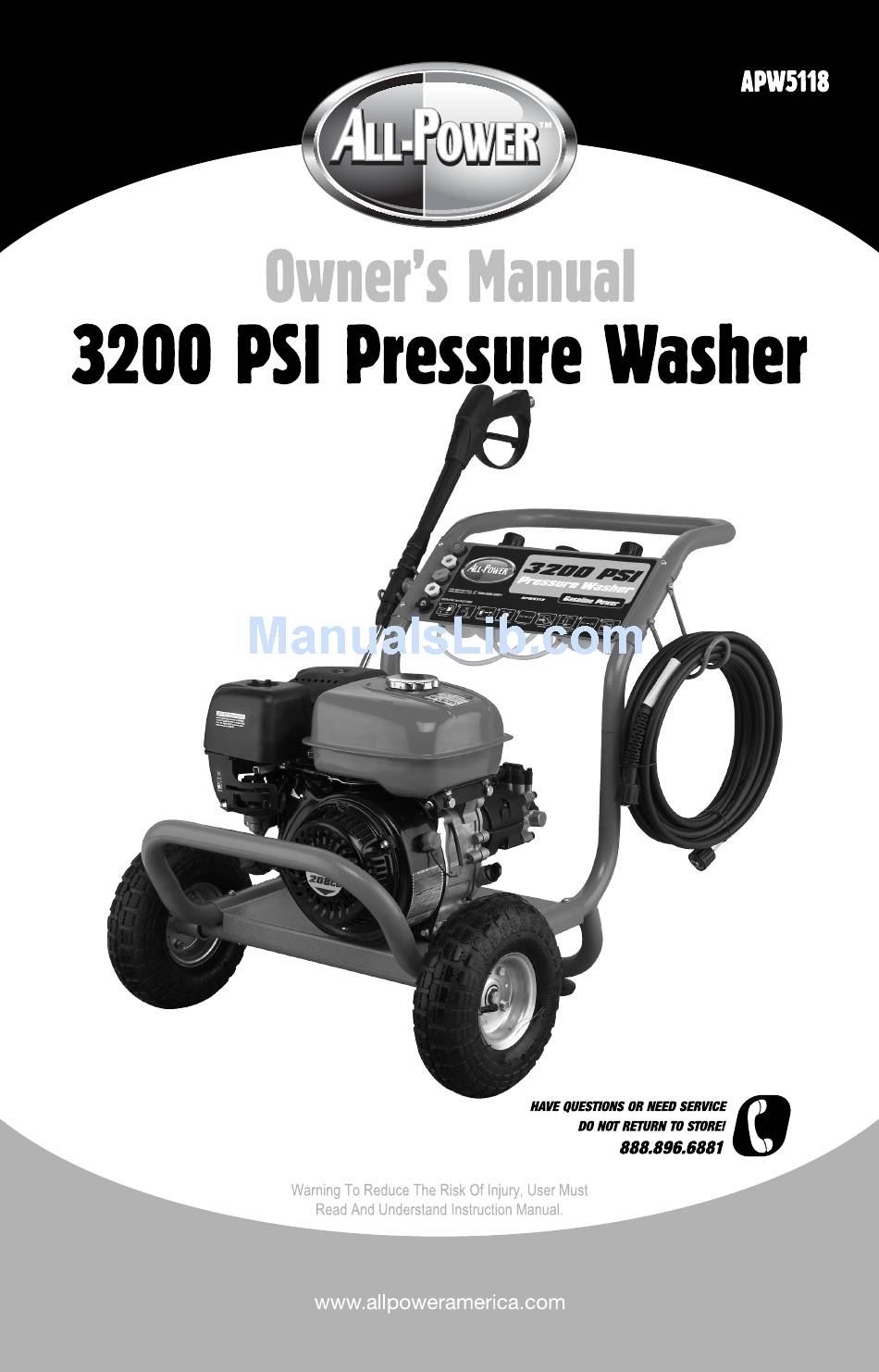

All-Power APW5118 Owner's Manual

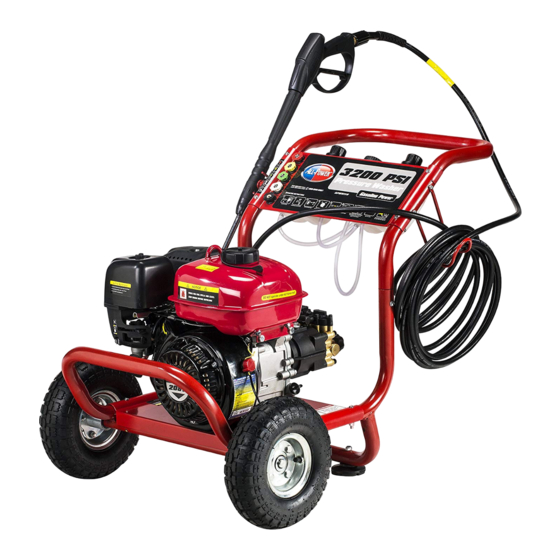

3200 psi pressure washer
Hide thumbs Also See for APW5118:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APW5118 and is the answer not in the manual?

Questions and answers

Cirilo Germosen
April 29, 2025

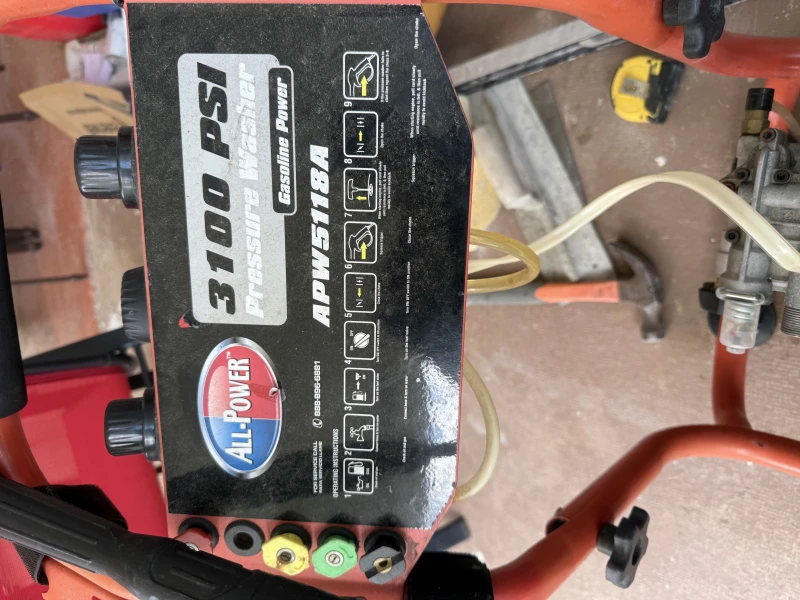

Hola nesecito saber que manguera debo comprar para mi apw5118

User image 681162305153f
0
1 comments:
Mr. Anderson
May 15, 2025

The All-Power APW5118 uses a drain hose listed as part APW5118-P-26. This is the hose specified in the parts list for this pressure washer.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for All-Power APW5118

Summary of Contents for All-Power APW5118

  • Page 2: Pressure Washer

    Pressure Washer Important Safety Instructions WARNING – When using this product basic precautions should always be followed, including the following: 1. Read all the instructions before using the product. 2. To reduce the risk of injury, close supervision is necessary when a product is used near children.

  • Page 3: Table Of Contents

    Pressure Washer Table of Contents Pa ge Topic Safety Guidelines-Definitions General Precautions Assembly/Start-up Maintenance Trouble Shooting Warranty Parts List...

  • Page 4: Safety Symbols

    Owner’s Manual Warning! Read And Understand All Safety Precautions In This Manual Before Operating. Failure To Comply With Instructions In This Manual Could Result In Personal Injury, Property Damage, And / Or Voiding Of Your Warranty. All Power America Will Not Be Liable For Any Damage Because Of Failure To Follow These Instruc- tions.
  • Page 5 Owner’s Manual Pressure Washer The following safety precautions apply whenever using, storing, or servicing your pressure washer to reduce the possibility of personal injury. Overlooking or ignoring these precautions can lead to personal injury or product damage. • Read this manual carefully. Know your equipment. Consider applications, potential hazards and limitations for your unit.

  • Page 6: General Precautions

    Owner’s Manual General Precautions (cont’d) • Keep the pressure washer clean and free of oil, mud and other foreign matter. • Do not wear loose clothing, jewelry, or anything that may be caught in the engine. • Never direct spray at people or animals. •...

  • Page 7: Safety Features

    Owner’s Manual General Precautions (cont’d) • Do not touch hot muffler. • Service, operate and refuel under the following conditions: a. Good ventilation b. Refuel the pressure washer in a well lit area. c. Avoid fuel spills and never refuel while the pressure washer is running. d.

  • Page 8: Before Operation

    Owner’s Manual Before Operation NOTE: The engine and pump on your pressure washer will often have improved performance after a break-in period of several hours. PRE-START PREPERATION Before starting the pressure washer, check for loose or missing parts and for any damage which may have occured during shipping.

  • Page 9: Operating Connections

    Owner’s Manual Operating Connections HIGH PRESSURE HOSE • Attach the high pressure hose to the pressure washer by pulling back on the collar of the quick-connect coupling on the hose and pushing it over the coupling half on the pressure washer outlet. NOTE: Do not use pressure hose from another manufacturer.

  • Page 10: Operating Instructions

    Owner’s Manual Operating Instructions Start-up Procedure 1. Make sure water supply is connected and turned on. 2. Release gun safety if locked. 3. To allow air to escape from the hose, squeeze trigger on the gun until there is a steady flow of water coming out from the nozzle.
  • Page 11 Owner’s Manual CAUTION This pressure washer is intended for use only with liquid car wash detergents, developed specifically for pressure washers and with mild soaps. Only use chemicals compatible with the aluminum and brass parts. Powdered soaps may clog the injection system.
  • Page 12 Owner’s Manual Operation Avoid working on hot surfaces or in direct sunlight to minimize the chances of the chemical damaging painted surfaces. Damage may occur to painted surfaces if the chemical is allowed to dry on the surface. Hold the nozzle far enough away from surface to prevent damage to the surface.

  • Page 13: Maintenance

    Owner’s Manual Maintenance 2. Clear the nozzle with a small rigid piece of wire such as a paper clip. 3. Flush the nozzle backwards with water. 4. Reconnect the wand to the gun. Restart the pressure washer and depress the trigger on the spray gun. If the nozzle is still plugged or partially plugged, repeat above instructions 1-4.

  • Page 14: Engine Storage

    Owner’s Manual Maintenance Another method of reducing risks of freeze damage is to drain your pressure washer as follows: 1. Stop the pressure washer and detach supply hose and high pressure hose. Squeeze the trigger of the discharge gun to drain all water from the wand and hose. 2.

  • Page 15: Trouble Shooting

    Owner’s Manual Trouble Shooting • Engine wil not start or stops while operating. Low-oil shutdown: Fill engine with oil Engine switch not in “ON” position: Turn switch “ON”S Pressure built up in hose: Squeeze trigger while starting • Engine is overloaded Nozzle partially blocked Clean Nozzle Excessive pressure...

  • Page 16: Trouble Shooting

    Owner’s Manual Trouble Shooting • Water in crankcase High humidity Change oil more frequently Worn seals Change the oil seals • Noisy operation Worn bearings Change the bearings Air mixed with water Check inlet lines for restrictions and / or proper sizing •...

  • Page 17: Limited Warranty

    Owner’s Manual Limited Warranty All-Power America warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.

  • Page 18: Warranty

    Owner’s Manual(s) supplied with the product, improper maintenance, the use of accessories or attachments not recommended by All-Power America, or unauthorized repair or alterations. • Repair and transportation costs of merchandise determine not to be defective.

  • Page 19: Parts List

    Owner’s Manual PARTS and PARTS LIST...
  • Page 20 Owner’s Manual APW5118-YG-01 Detergent bottle switch APW5118-YG-02 Spring Lock APW5118-YG-03 Detergent bottle cap APW5118-YG-04 Detergent bottle gasket APW5118-YG-05 Upper frame Assy. APW5118-YG-06 Crosshead bolt M5*45 APW5118-YG-07 Gasket φ5 APW5118-YG-08 Hose hook APW5118-YG-09 High pressure hose APW5118-YG-10 Detergent bottle APW5118-YG-11 Crosshead bolt M5*12...
  • Page 21 Owner’s Manual PUMP ( G-37 )
  • Page 22 Owner’s Manual APA Parts No. DESCRIPTION APW5118-P-01 Overflow valve APW5118-P-02 Nut M5 APW5118-P-03 Adjusting pressure nut APW5118-P-04 adjusting pressure spring APW5118-P-05 adjusting pressure gasket APW5118-P-06 valve cover APW5118-P-07 O ring 14*1.8 APW5118-P-08 O ring 12.4*1.8 APW5118-P-09 valve rod assy. APW5118-P-10...
  • Page 23 Owner’s Manual APA Parts No. DESCRIPTION APW5118-P-37 non-returnedvalve spring APW5118-P-38 copper cover APW5118-P-39 venturi tube APW5118-P-40 O ring 9.3*1.8 APW5118-P-41 O ring 8*2 APW5118-P-42 outlet cover APW5118-P-43 copper outlet water connector APW5118-P-44 inner hexagonal screw M8*50 APW5118-P-45 Inlet water connector...
