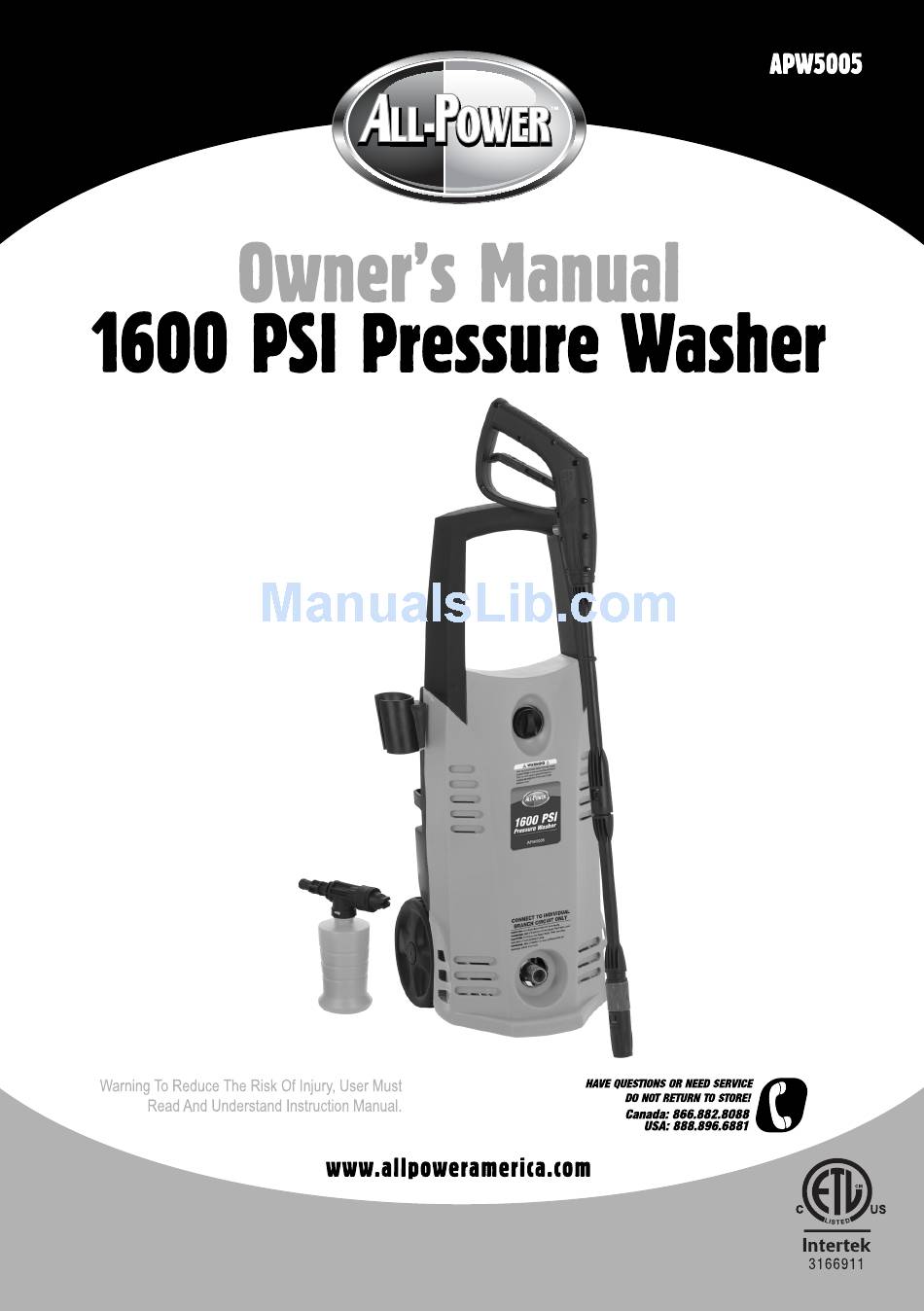

All-Power APW5005 Owner's Manual

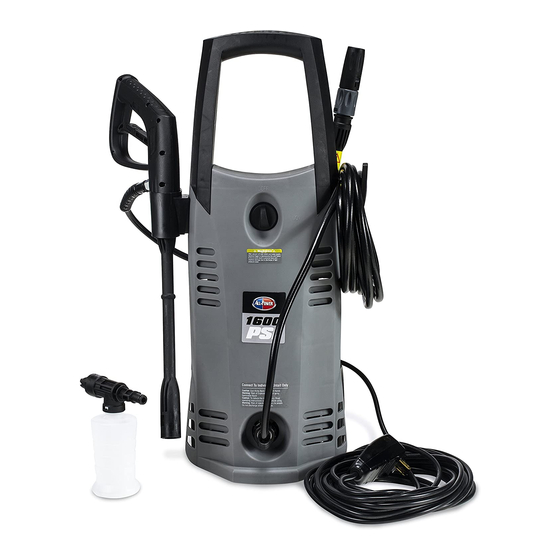

1600 psi pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APW5005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APW5005

Summary of Contents for All-Power APW5005

  • Page 2: Table Of Contents

    1600 PSI Pressure Washer Table Of Contents Topic Page # Important Safety Tips, Precautions, Warnings, and Usage Instructions Assembly Instructions Operating Instructions 9-12 Detergents 12-13 Clean-up and Storage 14-15 Cleaning Tips Technical Data Troubleshooting Tips Limited Warranty 19~20 Parts 21~22...
  • Page 3 1600 PSI Pressure Washer GROUND FAULT CIRCUIT INTERRUPTER (GFCI) This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
  • Page 4 1600 PSI Pressure Washer IMPORTANT SAFETY PRECAUTIONS WARNING: When using this product, basic precautions should always be followed, including the following: Read all instructions before using the product. Save all safety instructions. Do not operate the pressure washer when fatigued or under the influence of alcohol or drugs.
  • Page 5 1600 PSI Pressure Washer Read all instructions included with the mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors. Before starting the pressure washer in cold weather, check all of the parts of the equipment and be sure that ice has not formed.
  • Page 6 1600 PSI Pressure Washer electrical rating not less than the rating of the product. Examine extension cord before use. Do not use damaged extension cords! Do not pull on cord to disconnect from receptacle, always disconnect by pulling on plug. Keep cord away from heat and sharp edges.

  • Page 7: Assembly Instructions

    1600 PSI Pressure Washer ASSEMBLY INSTRUCTIONS Unpacking The Carton After opening the carton, please remove all parts and check them against the following list of components that are included: A. High Pressure Washer D. Adjustable Nozzle B. Gun E. Water Intake Filter (Pre-Installed) C.
  • Page 8 1600 PSI Pressure Washer Step 1 Attach the high pressure hose to the gun. Use a wrench to tighten the fitting. Step 2 Insert the adjustable spray nozzle into the gun. Push and turn the adjustable nozzle clockwise onto the gun until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle.
  • Page 9 1600 PSI Pressure Washer Step 3 Attach the high-pressure hose to the male fitting on the front of the pressure washer. Before attaching the high-pressure hose to the male fitting, remove the plastic cap, which is inserted onto the fitting before shipping. This plastic cap can be discarded once removed.

  • Page 10: Operating Instructions

    1600 PSI Pressure Washer OPERATING INSTRUCTIONS THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE WASHER! Starting Up After connecting the pressure washer to your cold water supply, proceed as follows: Make sure that the on/off switch is in the off position.

  • Page 11: Adjustable Spray Nozzle

    1600 PSI Pressure Washer Automatic On / Off The pressure washer is equipped with an automatic on/off switch.The pressure washer will only run when the power switch is in the ON position and the trigger on the gun is squeezed. When you release the trigger to stop spraying water through the gun, the motor on the pressure washer will automatically shut off.
  • Page 12 1600 PSI Pressure Washer Diagram 2 Diagram 1 Detergent Nozzle The detergent nozzle will allow you to apply many forms of liquid detergent onto the work surface.Detergent application happens at low pressure only. Fill the container with detergent only.Do not put any water into the container.The pressure washer will mix water and detergent automatically.

  • Page 13: Detergents

    1600 PSI Pressure Washer ADJUSTING THE PRESSURE To adjust the pressure,proceed as follows: Low Pressure Setting 1. Hold the shaft of the lance in one hand. 2. Turn the grey part of the nozzle clockwise (to “+” end) to obtain the high pressure. 3.
  • Page 14 1600 PSI Pressure Washer Step 3 Offloading the Front-gun, and install the detergent nozzle with the bottle. Back-gun Detergent nozzle Front-gun Detergent bottle Step 4 To apply the detergent cleanser to your working area, turn the pressure washer switch to the ON position. Pull the trigger to operate the unit. The pressure washer will mix the detergent with water.

  • Page 15: Clean-Up And Storage

    1600 PSI Pressure Washer CLEAN-UP AND STORAGE Shutting Down the Pressure Washer WHEN FINISHED USING THE PRESSURE WASHER,FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: • Turn the pressure washer to the OFF position. • Turn off the water supply. •...
  • Page 16 1600 PSI Pressure Washer Winterizing and Long-Term Storage FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,ADDING THE FOLLOWING STEPS…. • After disconnecting the water supply, and before disconnecting the high-pressure hose, turn the pressure washer on for 2-3 seconds, until any remaining water in the pump exits.

  • Page 17: Cleaning Tips

    1600 PSI Pressure Washer CLEANING TIPS WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE YOU SPRAYAT THE INTENDED CLEANING SURFACE. Wood and Vinyl Decks Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure.

  • Page 18: Technical Data

    1600 PSI Pressure Washer Maintain a further distance from the cleaning area when using a direct spray. Wipe surface dry for a polished finish. Barbecue Grills, Power Equipment, and Garden Tools Rinse cleaning and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure.

  • Page 19: Troubleshooting Tips

    1600 PSI Pressure Washer TROUBLESHOOTING TIPS WHEN THE SWITCH IS IN THE “I” POSITION THE MACHINE WILL NOT START PROBABLE CAUSE SOLUTION Electrical socket is faulty Check plug, socket, and fuses Voltage is inadequate Check that the voltage is adequate GFCI trips Reset / Try another outlet Power cord is not plugged in...

  • Page 20: Limited Warranty

    Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts. All decisions of All-Power America with regard to this limited warranty shall be final This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
  • Page 21 • Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use. • Merchandise sold by All-Power America which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply.

  • Page 22: Parts 21~22

    1600PSI PRESSURE WASHER EXPLODED VIEW...
  • Page 23 1600PSI PRESSURE WASHER PARTS LISTING APA Part No. Description Part No. APW5005-01-MT Handle APW5005-02-MT Screws(ST3.9X25) APW5005-03-MT Baffle(left) APW5005-04-MT Case(rear) APW5005-05-MT Baffle(right) APW5005-06-MT Hook APW5005-07-MT Plug and Power Cable APW5005-08-MT Wheels APW5005-09-MT Motor and Pump APW5005-10-MT Rubber Bands APW5005-11-MT Switch Knob...
