CamTron VRCD-5371 Instruction Manual

Wdr vandal resistant color dome camera

Advertisement

Quick Links

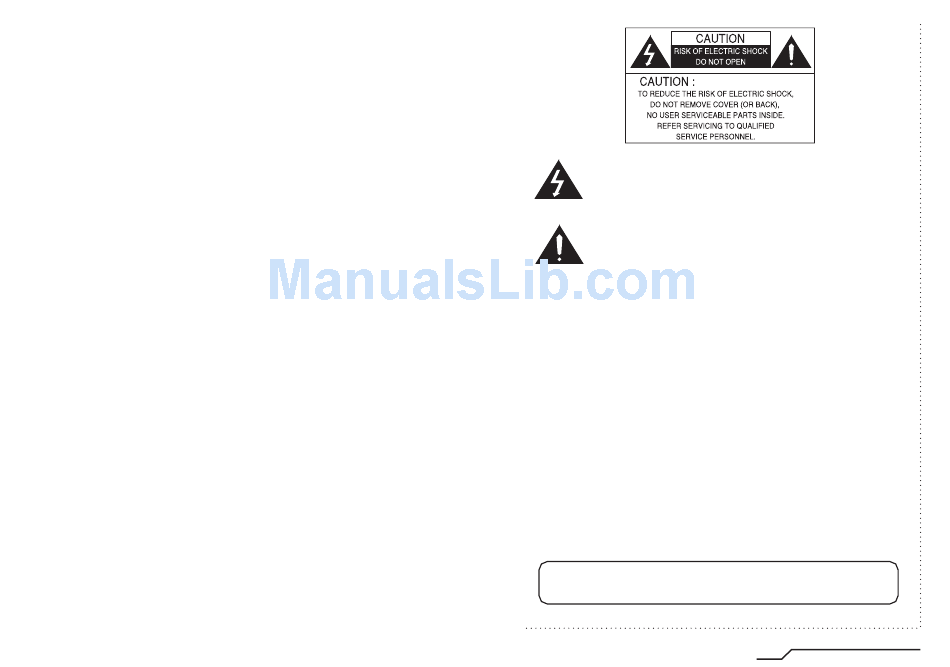

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
◆ Do NOT use power sources other than those specified.
◆ Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
1
Vandal Color Dome Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRCD-5371 and is the answer not in the manual?

Questions and answers

Summary of Contents for CamTron VRCD-5371

  • Page 1 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 2: Features

    ■ Features Warning ■ The camera requires periodic inspection. High Resolution color for crisp, Controlled by OSD Menu clear video Contact an authorised technician to carry out the inspection. ㆍThe camera can be controlled by selecting ㆍProgressive image capture text displayed on the monitor screen. ㆍ540 HTVL equivalent Stop using your camera when you find it malfunctioning.
  • Page 3: Table Of Contents

    ■ Contents Menu Flow Features ■ Setup Page Menu ㆍ LENS Warnings and Precautions ㆍ WDR ㆍ WHITE BALANCE Components & Cable Connection ㆍ AGC (Auto Gain Control) ■ Components ㆍ DNR (Digital Noise Reduction) ■ Cable Connection ㆍ SENS-UP ■...
  • Page 4 ■ Precautions Do not install the camera in Do not install or use the camera in an Do not drop the camera or protect Never keep the camera pointed extreme temperature conditions. environment where the humidity is high. it from physical shocks. directly at strong light.
  • Page 5: Components & Cable Connection

    ■ Components & Cable Connection Names and Functions of Parts ■ Components Names and Functions of Parts 1. COLOR DOME CAMERA 2. SCREWS 3. WRENCH ① LENS : Vari-Focal Auto Iris Lens (2.9mm~10.0mm / F1.2) 4. MANUAL ② OSD PCB ㆍSETUP button : Used for the menu display.
  • Page 6: Installation & Dimension

    ■ Installation & Dimension Menu Flow ■ Installation Setup Page Menu RUBBER BOTOTOM SETUP LENS BASE BOLT HOUSING VIDEO MOUNT MANUAL AUTO HIGH USER.. Level(DynamicRangeLimit : 0~36) No. 8-32 WHITE BAL. ATW DECORATION ATWDes RING MANUAL R Gain, B Gain MIDDLE M4*10 HIGH...
  • Page 7 ■ Menu Flow Menu Flow ■ Special Page Menu Advanced Page Menu SPECIAL ADVANCED MENU CAMERA ID VIDEO STANDARD ID, Position NTSC DAY&NIGHT AUTO RESOLUTION NORMAL HIGH COLOR BACKLIGHT MIRROR SYNC DZOOM MOTION SHARPNESS -8 --------------------- 8 APERTURE -8 --------------------- 8 ADVANCED MENU RETURN RESET...
  • Page 8: ㆍLens

    ■ Setup Page Menu Setup Page Menu ■ LENS WHITE BALANCE White Balance is a function which compensates different colors of light being SETUP emitted from different light sources. Users can select the above levels as they desire according to the environment. ㆍLens LENS ㆍATW (Auto Tracking White Balance) The ATW mode continuously monitors...
  • Page 9 ■ Setup Page Menu Setup Page Menu ■ SENS-UP Sens-up helps maintain a bright, clear screen image by automatically detecting SETUP changes in the level of light in low light level conditions. ㆍAUTO LENS The Sensitivity increases automa- AUTO SETUP tically when the light is low.
  • Page 10: Special Page Menu

    ■ Special Page Menu Special Page Menu ■ CAMERA ID DAY & NIGHT User can enter a unique name for the respective camera. This camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions. The COLOR mode operates in daytime conditions The maximum length of the ID is ten characters.
  • Page 11: Advanced Page Menu

    ■ Special Page Menu Advanced Page Menu ■ DZOOM VIDEO STANDARD Digital P/T/Z are used to create a zoom lens effect. Zoom Factor (1X to 4X) Choose video system between PAL and NTSC by moving the selector. Pan(±100%, center of image can be moved to left and right edges of screen) Tilt(±100%, center of image can be moved to top and bottom edges of screen) ADVANCED MENU SPECIAL...
  • Page 12 ■ Advanced Page Menu Advanced Page Menu ■ BACKLIGHT SHARPNESS Backlight is feature of a Camera which compensates when there is a large The outline of the video image becomes cleaner and more distinctive as the level amount of background light. of SHARPNESS increases.
  • Page 13: Specification

    ■ Specifications ITEM NTSC Image Sensor 1/3'' C-MOS Sync System INT / LL Selectable Scanning System 525 Lines, Interlaced 625 Lines, Interlaced Electronic Shutter 1/60~1/100,000 1/50~1/100,000 Main Video Output 1.0 Vp-p Composite, 75 ohm Service Monitor Output 1.0 Vp-p Composite, 75 ohm Horizontal Resolution 480 TV Lines (Color), 530 TV Lines (B/W) Min.
  • Page 14 WDR Vandal Resistant Color Dome Camera Instruction Guide WDR Vandal Resistant Color Dome Camera Printed in KOREA...
