Page 1: Operating Instructions

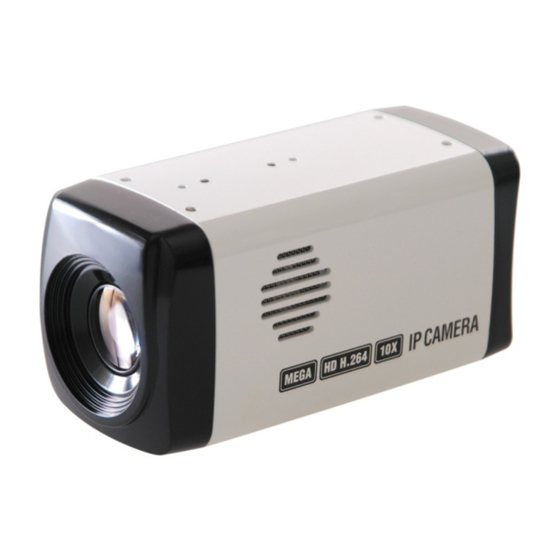

IP Network A/V Camera, “Cywatch HD(High Definition) Megapixel IP camera” Operating Instructions CamTron Industrial Inc. Cywatch HD Megapixel IP camera Operating Instructions (Ver 1.0_CT0901130) - Page 2 To record Event in FTP server installed in remote place. To search / delete / down-load / replay the recorded video. To support PoE (optional) for easy and convenient installation. For more information or inquiry, please contact us to the followings; Home Page : www.camtron.co.kr e-mail : camtron@camtron.co.kr Telephone...
- Page 3 Do not open the top cover of the product. It may cause a failure or electric shock on the components. To prevent from overheating, make sure to keep the distance at least 10cm from the ventilation hole. Check for proper voltage before connecting the power. CamTron Industrial Inc.
-
Page 4: Table Of Contents
IP camera Configuration ..................11 3.2.1 System Configuration..................11 Video Configuration ..................13 3.2.2 Audio Configuration ..................16 3.2.3 Network Configuration .................17 3.2.4 Serial Port Configuration ................20 3.2.5 Event Configuration ..................22 3.2.6 Preset Configuration ..................25 3.2.7 3.2.8 User Configuration..................26 3.2.9 Camera Configuration...................28 CamTron Industrial Inc. -
Page 5: Introduction
- Automatic transmit rate control according to network condition Serial Data - One serial ports (RS-485) - Data pass-through mode: Serial data communication between Cywatch HD Megapixel IP camera – Decoder Sensor and Alarm - Connections to external sensor and alarm devices - Event Alarm CamTron Industrial Inc. -
Page 6: System Connections
PC or a decoder is installed at a center location to receive and view the video images on analog monitor. Audio and serial data are transferred in either direction. CamTron Industrial Inc. - Page 7 Central Monitoring System Local Site Remote Center HD IP camera Cymanager Local Site Remote Center HD Decoder HD IP camera Cymanager CamTron Industrial Inc.
- Page 8 Cymanager is a Windows based remote monitoring program to access multiple Cywatch HD Megapixel IP camera for real-time monitoring or control of the encoders and connected cameras. Please refer to Cymanager User Manual for more information on Cymanager. CamTron Industrial Inc.
-
Page 9: System Operation
If a system’s IP address is entered on the Internet Explorer, the system will ask for confirmation to install Active-X Control. Once authorized, the Internet Explorer will start to display video images from IP camera as shown below. http://192.168.10.100 CamTron Industrial Inc. -
Page 10: Initialization Of Ip Address
Once the system has been rebooted, IP address will be set to the following. - IP mode: Fixed IP - IP address: 192.168.10.100 - Subnet mask: 255.255.255.0 - Gateway : 192.168.10.1 - Base port : 2222 - Http port : 80 CamTron Industrial Inc. -
Page 11: Remote Configuration
The configurations are grouped into 9 categories: System, Video, Audio, Network, Serial, Event, Preset, User and Camera. Any configuration changes are not applied until Apply is pressed. Leaving the page without pressing Apply button, changes in the page will be discarded. CamTron Industrial Inc. -
Page 12: Ip Camera Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) IP camera Configuration 3.2.1 System Configuration CamTron Industrial Inc. - Page 13 Pressing Reboot Server button will cause the system to reboot. Do not press the Reboot button unless the server needs a reboot. Factory Reset Set all settings to the factory default values. System log and user registrations are also cleared. CamTron Industrial Inc.
-
Page 14: Video Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.2 Video Configuration CamTron Industrial Inc. - Page 15 Select editing Mode. Set is for including cells to motion detection region and Erase is for excluding. Select cells using the right button of the mouse. Multiple cells can be selected conveniently by press and dragging. Press Apply Edited Area to save the editing. CamTron Industrial Inc.
- Page 16 Controls input video brightness by selecting values between 0 and 100. Contrast Controls input video contrast by selecting values between 0 and 100. Controls input video Hue by selecting values between 0 and 100. Saturation Controls input video saturation by selecting values between 0 and 100. CamTron Industrial Inc.
-
Page 17: Audio Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.3 Audio Configuration Mode Select audio operation mode. Mode Action No operation Tx-Only Transmit only Rx-Only Receive only Tx & Rx Transmit and Receive Input Gain Set audio input gain. CamTron Industrial Inc. -
Page 18: Network Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.4 Network Configuration CamTron Industrial Inc. - Page 19 The multicast IP address selection range is between 224.0.1.0 and 238.255.255.255. The selection can be used only when media protocol is set to Multicast. The multicast address must be the same for the system to be connected using multicast protocol. CamTron Industrial Inc.
- Page 20 In case the IP camera is registered with DDNS server, the registered domain name is displayed. MAC Address Display the MAC address of the IP camera. In case the IP camera is registered with DDNS server, the MAC address is used in DDNS registration. CamTron Industrial Inc.
-
Page 21: Serial Port Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.5 Serial Port Configuration In case for the user who use IP cameras or IP servers, there might be very seldom case to use this Serial port. CamTron Industrial Inc. - Page 22 Sensor activity can be controlled using the schedule table. For each sensor port it is possible to turn on or off sensor activity for hourly unit of a week. The example below disables the sensor 1 during office hour (AM9:00 ~ PM6:00) from Monday to Friday. CamTron Industrial Inc.
-
Page 23: Event Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.6 Event Configuration CamTron Industrial Inc. - Page 24 Alarm activation duration Set the duration of alarm activation in case of an event. If it is set to continuous, it will be in active state until an operator reset it manually. CamTron Industrial Inc.
- Page 25 Event Recording Specify how a video clip is to be generated for E-mail sending or FTP uploading. Pre-event Time specifies the duration of recording before an event happens. Post-event Time specifies the duration after the event is cleared. CamTron Industrial Inc.
-
Page 26: Preset Configuration
Press Set button. Once all the presets are set, press Save List button. Move to Preset Position Select a preset from the Preset and press Go To button, then, the camera will move to the selected preset position. CamTron Industrial Inc. -
Page 27: User Configuration
Page for adding a user comes on pressing Add button. User ID and password need to be entered and privilege level need to be selected. User ID and password consist of alphanumeric string of max 15 characters. CamTron Industrial Inc. - Page 28 Skip Login is provided for convenient access to the server when authentication is not required. When Skip Login is set to Enable, login step is skipped. The privilege level after login in this way is determined by the setting of Privilege Level After Login Skipped. CamTron Industrial Inc.
-
Page 29: Camera Configuration
Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0) 3.2.9 Camera Configuration CamTron Industrial Inc. - Page 30 The following setups are available. Mode Action Camera automatically decides the three elements in line with the Auto program diagram. Aperture priority Users set the aperture at first and then camera adjusts shutter speed CamTron Industrial Inc.
- Page 31 DNR can be set High, Middle, Low, Off. Croma Chroma can be set independently for red tone (cr) and blue tone (Cb). Hue can be set for red tone (Cr) and blue tone (Cb), each in 5 steps from -2 to +2. CamTron Industrial Inc.
