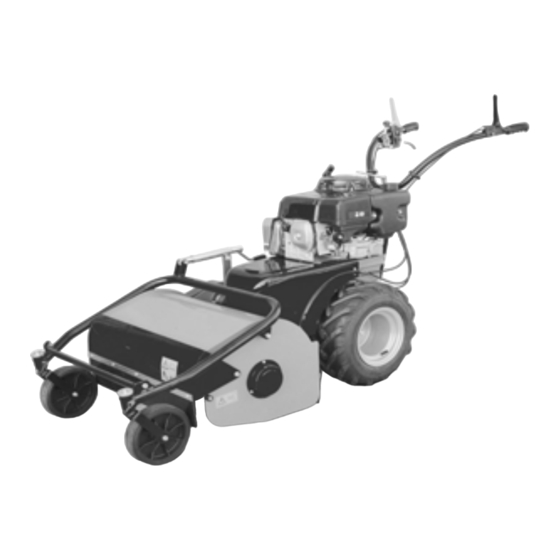

Meccanica Benassi TR 50 User Manual

Flail mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

GB
READ THIS MANUAL CAREFULLY
All right reserved
This manual cannot be either reproduced or released without the
manufacturer's prior written consent.
PRINTED IN ITALY
1 - FOREWORD
This symbol is used to highlight an important safety information. If
this information is ignored, people are in danger either of possible
injures – even serious ones – or death.
IMPORTANT
This term highlights special precautions to be taken in order not to
damage the machine.
The machine serial number is printed on the drive box.
Always mention the machine serial number when calling our technical service or when ordering spare parts.
The CE mark is on the engine support right side.
FLAIL MOWER
USER'S MANUAL
TR 50 – TR 60 – TR 80
2 – IDENTIFICATION AND MARKING
1.
FOREWORD
2.
IDENTIFICATION AND MARKING
3.
CONDITIONS AND USE
4.
WARRANTY
5.
MACHINE STARTING
6.
PACKAGE OPENING
7.
WARNING SIGNS
8.
CONTROL SIGNS
9.
SAFETY WARNINGS
10. CAUTIONS BEFORE STARTING
11. ENGINE START UP-SPEEDS LEVERS
12. ADJUSTMENTS
13. MAINTENANCE
14. ASSEMBLY AND DISASSEMBLY
15. 16. TRANSPORT – TECHNICAL FEATURES
17. SPECIFICATIONS
18. AIRY NOISE –DECL.OF CONFORMITY
ENGINE :Use and maintenance instructions of the engine
are mentioned in the relevant manual, copy of which is
always supplied with every machine.
IMPORTANT NOTE
MARKING
Marking example.
USER'S MANUAL
01/06
Pag. 0
Pag. 0
Pag. 1
Pag. 1
Pag. 2
Pag. 2
Pag. 2
Pag .3
Pag. 3-4
Pag.5
Pag. 6-7
Pag. 8-9
Pag. 10
Pag. 11
Pag. 11
Pag. 12
Pag. 13

Advertisement

Table of Contents
loading

Related Manuals for Meccanica Benassi TR 50

Summary of Contents for Meccanica Benassi TR 50

  • Page 1 01/06 FLAIL MOWER USER’S MANUAL TR 50 – TR 60 – TR 80 USER’S MANUAL FOREWORD Pag. 0 IDENTIFICATION AND MARKING Pag. 0 CONDITIONS AND USE Pag. 1 WARRANTY Pag. 1 READ THIS MANUAL CAREFULLY MACHINE STARTING Pag. 2 PACKAGE OPENING Pag.

  • Page 2: Warranty

    Manufacturer. These are Descriptions, figures and technical features mentioned reserves the right to make any change at any time mentioned as mere information. The Manufacturer Copyright of MECCANICA BENASSI S.P.A.” without being bound to update this publication. - 1 -...

  • Page 3: Machine Starting

    5 – MACHINE STARTING READ CAREFULLY THE WHOLE MANUAL BEFORE STARTING THE FLAIL MOWER. NOTES: The manufacturer aims at ever improving both design and quality of his products. As a consequence, even though this manual includes latest and most up-dated information available when printed, there might be small differences between your machine and the information of this manual.

  • Page 4: Safety Warnings

    8 – CONTROL SIGNS WORKING ACCESSORY FITTING TRANSMISSION FITTING SPEEDS SELECTOR THROTTLE LEVER ONLY TR 60-TR80 TRANSMISSION RELEASE 9- SAFETY WARNINGS Before the machine is operating, read the Use and Maintenance manual thoroughly, so that you are fully aware of all the operating controls and safety aspects of the machine. Before starting the engine , be sure that speeds selector is in position “F”...
  • Page 5 17) Do not run the machine in a confined area as toxic exhaust gas can kill. 18) Plan your work before commencing. 19) Do not use the machine when you are tired. 20) Engage the clutch gradually; sudden engagement could cause the machine to rear up. 21) The area next to the engine exhaust will most likely reach temperatures above 80°.
  • Page 6 10 – CAUTIONS BEFORE STARTING 1. Check the engine oil level; engine with no oil enough can be seriously damaged (please, read the manufacturer’s instruction-booklet to get more informations ). 2. Check that the handlebar is tightened enough, and is adjustable in height and sideways with the possibility to block it in the wished position;...

  • Page 7: Engine Start-Up

    Pic. 5 Pic. 6 TR50 TR50 TR60 TR80 Pic. 7 Pic. 8 TR60 TR80 TR50 TR60 TR80 11 – ENGINE START-UP IMPORTANT! Follow the instructions contained in the engine’s use and maintenance booklet.. Before starting the engine up, always check the Pic.
  • Page 8 TR50-TR60: To unlock wheels pull lever B placed on the right side of handlebar (Pic. 4 ). TR80: To unlock left wheel, pull lever D (Pic. 5); To unlock right wheel, pull lever B (Pic. 4). In a standard use, when lever A is free (Pic.5 Pag. 6) and lever B (Pic.6 Pag.

  • Page 9: Cutting Height Adjustment

    12 - ADJUSTMENTS CUTTING HEIGHT ADJUSTMENT IMPORTANT! Adjust the cutting height by the lever “A” see the picture. Rotating it in clockwise, the cutting height lowers , in counter clockwise the cutting height goes up. HANDLEBARS ADJUSTMENT IMPORTANT! Handlebars are adjustable in height and on the side ways, with the possibility to block them in the wished position;...

  • Page 10: Belt Adjustment

    BELT ADJUSTMENT It is possible to adjust the tension of wheels transmission belt (Part. “A” pic. 2) and of blade shaft (Part. “B” pic. 2). To do this, act on the adjuster “A” on the lever (pic. 3 pag. 5 and part. A- pic.6 pag.6). If this is not enough, keep the hood away (Part.

  • Page 11: Maintenance

    13 - MAINTENANCE IMPORTANT! Always refuel the machine of oil or gasoline with engine OFF and without candle. Do the same during its maintenance and cleaning. When the machine is left with no-one, stop it always on plain with engine OFF. LUBRICATION TYPE OF LUBRICANT For the transmission use AGIP ROTRA MP/S SAE 85 W/90 oil.

  • Page 12: Technical Features

    14 – BLADES ASSEMBLY AND DISASSEMBLY Blades are easily removed unscrewing nut and screw (Part. A) see the picture. To reassemble it, clean well and tighten screws and nuts until they are fully secured, verifying that blades can be moved freely. Fixing nuts are self- blocking type, so that is necessary replace them with new ones after its disassembling .

  • Page 13: Specifications

    17 - SPECIFICATIONS 2045 TR 50 4 STROKE ENGINE Recoil Starter – One forward speed with gears in oil bath and wheels disengagement manually controlled - Handlebar adjustable in any position - Dry Air Filter - Mowing set with 26 blades Y type with brake - 50 cm.
  • Page 14 CE – DECLARATION OF CONFORMITY In compliance with CEE 89/392 regulations and subsequent changes - CERTIFICATE OF ORIGIN - MECCANICA BENASSI S.p.A , I-44040 DOSSO (FE) via Statale, 325 DECLARES, under is own responsability, that the item called FLAIL MOWER TR50...
  • Page 15 Le descrizioni, le illustrazioni e le caratteristiche tecniche qui riportate, non sono vincolanti per la Casa Costruttrice che le comunica a semplice titolo illustrativo, riservandosi la facoltà di modifiche in qualsiasi momento allo scopo di migliorare costantemente i propri prodotti, senza l’obbligo di aggiornarle in questa pubblicazione. Proprietà letteraria e artistica della Meccanica Benassi SpA.
