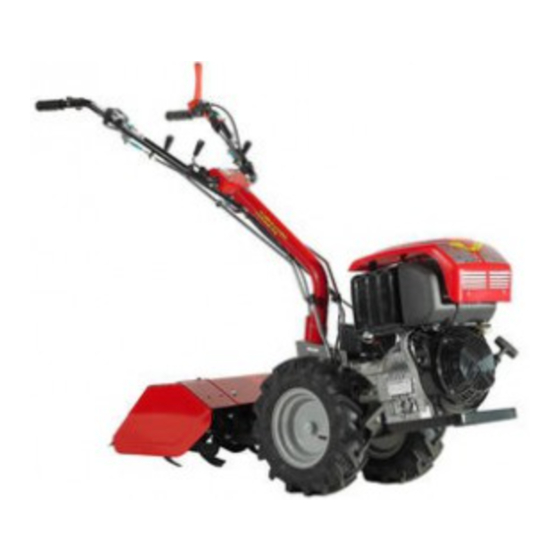

Motor cultivator mf 223 reversible
Hide thumbs

Advertisement

Table of Contents

GB
MOTOR CULTIVATOR MF 223 REVERSIBLE
READ THIS MANUAL
CAREFULLY
All right reserved
This manual cannot be
either reproduced or
released without
the manufacturer's
prior written consent.
PRINTED IN ITALY
2 - MACHINE IDENTIFICATION AND MARKING
The machine serial number is printed on the drive box.
Always mention the machine serial number when calling
our technical service or when ordering spare parts.
MARKING
The CE mark is on the handle support as this example
USER'S MANUAL
1 - FOREWORD
This symbol is used to highlight
an important safety information.
If this information is ignored,
people are in danger either of
possible injures – even serious
ones – or death.
IMPORTANT
This term highlights special
precautions to be taken in
order not to damage the
machine.
IMPORTANT NOTE
INDEX
1.
FOREWORD – IDENTIFIC. AND MARKING PAG. 1
2.
CONDITIONS-USE - WARRANTY
3.
SAFETY WARNINGS
4.
START – WARNING/DRIVING SIGNS
5.
DIMENSIONS – PACKAGE - TRANSPORT
6.
CONTROLS – START-UP
7.
SAFETY DEVICE–PRESSURE–CONTROLS
8.
HANDLEBAR ADJUSTM.- OIL REPLACEM. PAG. 9
9.
LUBRICATION – IMPLEMENTS
10. ROTARY HOES – MOWER BAR APPLIC.
11. ADJUSTMENTS – ASSEM./DISASSEMBLY
12. USE OF MOTOR CULTIVATOR
13. MAINTENANCE AND USE
14. NOISE AND VIBRATIONS
15. DECLARATION
Marking example.
03/05
PAG. 2
PAG. 3-4
PAG. 5
PAG. 6
PAG. 7
PAG. 8
PAG. 10
PAG. 11
PAG. 12
PAG. 13
PAG. 14
PAG. 15
PAG. 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF 223 and is the answer not in the manual?

Questions and answers

Related Manuals for Meccanica Benassi MF 223

Summary of Contents for Meccanica Benassi MF 223

  • Page 1 03/05 MOTOR CULTIVATOR MF 223 REVERSIBLE USER’S MANUAL INDEX 1 - FOREWORD FOREWORD – IDENTIFIC. AND MARKING PAG. 1 CONDITIONS-USE - WARRANTY PAG. 2 SAFETY WARNINGS PAG. 3-4 START – WARNING/DRIVING SIGNS PAG. 5 DIMENSIONS – PACKAGE - TRANSPORT PAG. 6 This symbol is used to highlight CONTROLS –...

  • Page 2: Warranty

    3 - CONDITIONS AND USE 4 - WARRANTY This manual gives you general information on how this If in doubt on causes and possible solutions for a certain machine should be used and maintained. For any trouble, please, call our authorized dealer. technical problem, please, call Your confidential dealer.

  • Page 3: Safety Warnings

    5 - SAFETY WARNINGS 1) This machine has been designed and manufactured for being used by one operator only, and is driven by means of the appropriate handlebars. Any other use is not permitted.! 2) Before operating the machine, read the Use and Maintenance manual thoroughly, so that you are fully aware of all the operating controls and safety aspects of the machine.
  • Page 4 23) Make regular checks that all bolts and nuts are well tightened. 24) Keep the area of work clear and clean. 25) Only use the machine in clear visibility. 26) Avoid working with blunt cutting blades. . 27) Pay maximum attention and use good sense when operating the machine. 28) If you hit any objects during work, stop the machine and check for any damage immediately.

  • Page 5: Machine Start

    6 - MACHINE START READ CAREFULLY THE WHOLE MANUAL BEFORE STARTING THIS MACHINE. NOTE: The manufacturer aims at ever improving both design and quality of his products. As a consequence, even though this manual includes latest and most up-dated information available when printed, there might be small differences between your machine and the information of this manual.

  • Page 6: Overall Dimensions

    9 - OVERALL DIMENSIONS MOTOCULTIVATOR VERSION 1225 1735 410-1240 400-500-600 MOWER VERSION 1760 410-1240 1070-1170 10 – PACKAGE OPENING CRUSHING DANGER NB: WEIGHT OF THE MACHINE 93 KGS. Open the carton in its upper side. –Remove the bare machine and wheels to be assembled to the same.

  • Page 7: Engine Start-Up

    12 - CONTROLS IMPORTANT ! 1. Engine stop lever 2. Clutch control lever 3. Handlebar vertical lock lever 4. Steering column horizontal lock lever 5. Forward and reverse gear control lever 6. Throttle control lever 7. P.T.O. control lever 8. Gear control lever 9.

  • Page 8: Tyre Pressure

    15 – ENGINE STOP SAFETY DEVICE Main function of lever “1” is the engine to be stopped when handlebars are left away. Do not tie the engine stop lever “1” to the handlebar handle.. Each time the engine is started, check that the safety clutch “3”...
  • Page 9 18 - HANDLEBARS Adjustment in height (vertical sense) allows 5 positions, obtained with lever 9. Side adjustment (horizontal sense) allows 6 positions (3 with handlebars in normal positions + 3 with handlebars reversed by 180°) which are obtained with lever 10. 19 - ROTATION OF HANDLEBAR In order to turn handlebars and to utilize the machine as motor mower , please follow the below instructions:...
  • Page 10 21 - LUBRICATION TYPE OF LUBRICANT IMPORTANT ! Engine: see engine manual. Motor cultivator: Oil replacement: AGIP ROTRA MP 80W/90 Clutch oil: AGIP ROTRA MULTI THT 1. ENGINE Each day: check level and top up if necessary. Oil replacement: to be carried out according to intervals and methods set out by the engine manufacturer.
  • Page 11 23 - ROTARY HOES TECHNICAL CHARACTERISTICS: Hood width: 40 – 50 – 60 cm. Hoe diameter: 260 mm. N°blades:24 Working depth adjustment: in order to vary the working depth, adjust the central hoe’s inclination by removing fixing screw (2) and shifting the perforated rod (3) until it meets a new hole. When working with hard terrain, to prevent the machine from bounding forwards, adjust the central knife by moving it downwards into the last hole.

  • Page 12: Cutting Height Adjustment

    25 - FRONTAL ROTATING MOWER SET CONNECTION TO THE MOTOCULTIVATOR The rotating mower set is attached to the motor cultivator by means of the Quick Fit connection. 26 - CUTTING HEIGHT ADJUSTMENT Cutting height is easily adjusted by tightening or loosening the lever “15”.
  • Page 13 28 - USE OF THE MOTORCULTIVATOR RUNNING-IN During the first 80 hours of operation the following standards must be observed: • After every start from cold, run the engine slowly for some minutes without load. • Do not operate the engine at low speed for a long time. •...
  • Page 14 29 - MAINTENANCE OF THE MOTOR CULTIVATOR ATTENTION!: Effect the maintenance operations when the motor cultivator is stopped and the engine shut-down. GENERAL STANDARDS • To ensure constant efficiency of the motor cultivator and increase its life, carefully comply with the maintenance operations described in this instructions manual.

  • Page 15: Noise And Vibrations

    Descriptions, figures and technical features mentioned herein are non-binding for the Manufacturer. These are mentioned as mere information. The Manufacturer reserves the right to make any change at any time without being bound to update this publication. Copyright of MECCANICA BENASSI S.P.A. - 15 -...
  • Page 16 CE – DECLARATION OF CONFORMITY In compliance with CEE 89/392 regulations and subsequent changes - CERTIFICATE OF ORIGIN - MECCANICA BENASSI S.p.A , I-44040 DOSSO (FE) via Statale , 325 DECLARES ,under is own responsibility, that the item called MOTOR CULTIVATOR Model: From series-no.*:...
