SmartPool CLIMBER NC52S Operation Manual page 6

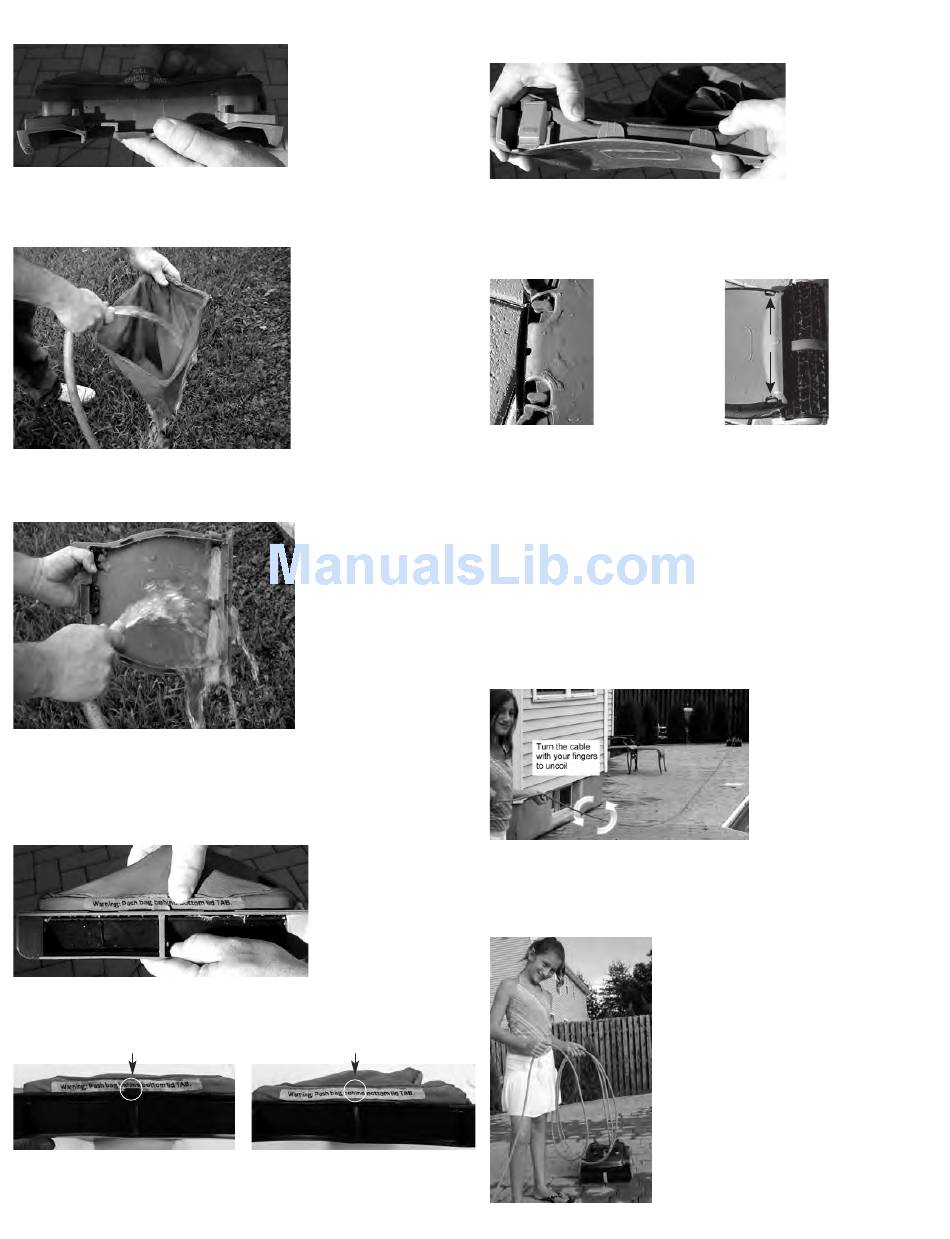

• Hold the bottom lid as shown in Fig 4 and pull the tab marked "PULL TO REMOVE BAG"
FIGURE 4
• Turn the filter bag inside out and hose off all debris as shown in Fig 5. If very dirty it may be washed in
your washing machine, inside out, with cold water, mild detergent, and by itself. Do not put in dryer.
FIGURE 5
• Hose all debris off the bottom lid being sure to get all dirt out of the fine filters on the intake doors
as shown in Fig 6.
FIGURE 6
• To reattach the filter to the bottom lid, turn the filter bag right-side-out. Start at the back where the
filter bag says "Warning: Push bag behind bottom lid TAB" and insert the filter frame into the
channel, so that the tabs are holding the bag in near the label with the word "Warning: Push bag
behind bottom lid TAB", as shown in Fig 7.
FIGURE 7
CORRECT INSTALLATION
FIGURE 7A
INCORRECT INSTALLATION
FIGURE 7B
• Press the filter frame down all the way around the perimeter making sure that it is
completely seated and behind all the tabs as shown in Fig 8.
FIGURE 8
• Pick up the bottom lid and turn it over so the bag hangs below it. Place the bottom lid back into the
cleaner being careful to feed the filter bag into the body of the cleaner. MAKE SURE ALL FILTER
MATERIAL IS INSIDE THE CLEANER OTHERWISE THE LID WILL NOT CLOSE AND LATCH PROPERLY.
• Once the bottom lid
is properly seated, turn
the red locking clips in
the opposite direction
of the arrows embossed
on the bottom lid until
it locks between the two
raised locks.
FIGURE 9
CABLE MAINTENANCE
UNCOILING THE CABLE
In the event that the cable does coil on itself, it can easily be straightened by following the below instructions.
• Turn the power supply to the off position
• Remove the cleaner from the pool and place it on the far end of the pool deck/yard (away from the
power supply)
• Unscrew the blue cable from the power supply
• Hold the black collar at the plug end and gently lift the cable off the ground (FIGURE 11)
• Gently pull on the cable to straighten
• The swivel will rotate as tension is applied, eliminating the coils in the cable
• Return to normal cleaner use
FIGURE 11
STORING THE CABLE
• Loosely loop the cable as shown in Figure 12.
• Hold the cord close to the cleaner.
FIGURE 12
6
• Press the rear
CLICK
FIGURE 10
• Make a roughly two foot loop with the cord as shown.
• When making loop, roll the cable slightly in a counter-
clockwise manner to maintain form. DO NOT WRAP THE
CORD TIGHTLY AROUND OBJECTS.
STORAGE
WINTER
If temperatures will regularly be below 45 degrees Fahrenheit or
5 degrees Celsius, the cleaner and power supply should be stored
indoors.
SUMMER
The unit should be stored in an area that will afford some
protection from the elements to insure that it retains its finish. Do
not store near open chemicals.
section of the bottom
lid into the cleaner while
pushing the locking
clips towards the edge
of the cleaner until an
audible click is heard
as shown in Fig 10.
