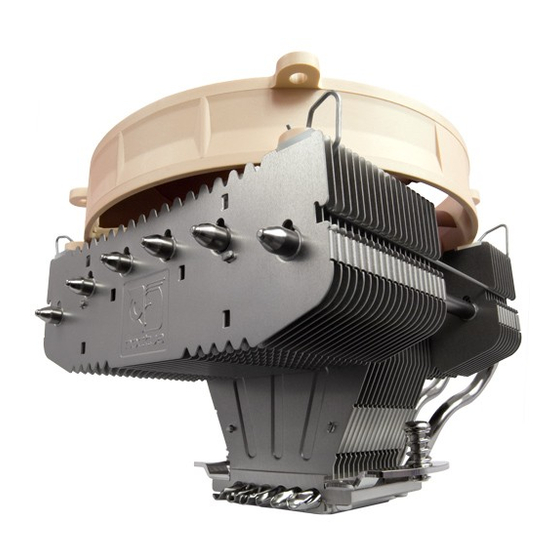

Noctua NH-C12P SE14
INTEL
Installation Manual
Thank you very much for choosing a Noctua cooler. This
manual will guide you through the installation process of
the SecuFirm2
mounting system step by step.
tm
Prior to installing the cooler, please consult the compat-
ibility list on our website and verify that the cooler is fully
compatible with your motherboard. Should you encounter
any difficulties, please check the FAQs on our website and
don't hesitate to contact our support team at support@
noctua.at.
Noctua cannot be held responsible for any damage or losses
caused by compatibility issues.
Multilingual versions of this manual are available on our
website: www.noctua.at
Required mounting parts:
1x 3-in-1 Intel backplate
1x LGA775 rubber inlay
4x bolts for backplate
2x mounting bars
4x plastic spacers
4x thumbscrews
Step 1:

Removing the mainboard

In case you want to use the cooler on an assembled system,
you first have to remove the mainboard from the case in order
to be able to install the supplied backplate.
Caution: On LGA1366 and LGA1156/1155, the supplied back-
plate will install over the mainboard's stock backplate, so the
mainboard's stock backplate must not be taken off.
NH-C12P SE14 | Installation Manual

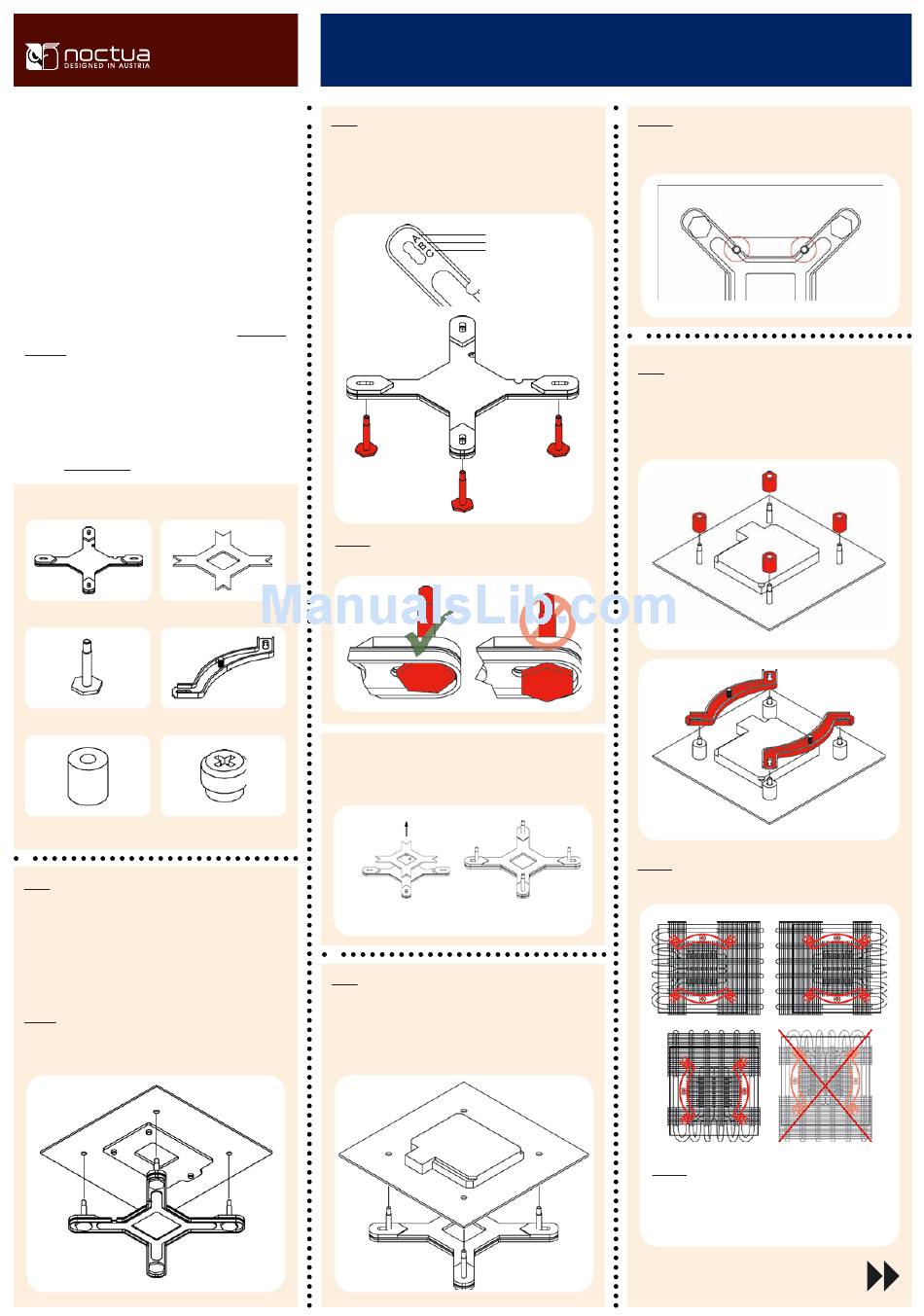

Step 2:

Setting up the backplate

First put the four bolts into the holes appropriate for your
mainboard's CPU socket.
LGA1366 (80mm)
LGA1156/1155 (75mm)
LGA775 (72mm)
Caution: Please verify that all four bolts are put into the ap-
propriate holes fully pushed in.
For use on LGA1366 and LGA1156/1155 mainboards, please
remove the rubber inlay. Make sure that the rubber inlay is
in place for LGA775.
LGA1366 & LGA1156/1155
LGA775
Step 3:

Attaching the backplate

Place the backplate on the rear side of the mainboard so that
the bolts stick through the mounting holes.
Caution: On LGA1156/1155, please make sure that the two
cuts in the supplied backplate align with the screws of the
mainboard's stock backplate.
Step 4:

Installing the mounting bars

First put the plastic spacers onto the bolts, then add the mount-
ing bars.
Caution: Choose the alignment of the mounting bars according
to the desired final orientation of the cooler:
Caution: In tower style cases, please avoid installing the
NH-C12P SE14 with the bends of the heatpipes pointing
upwards as this may result in reduced cooling perform-
ance.
INTEL
