Noctua NH-D15S Installation Manual

Dear customer,

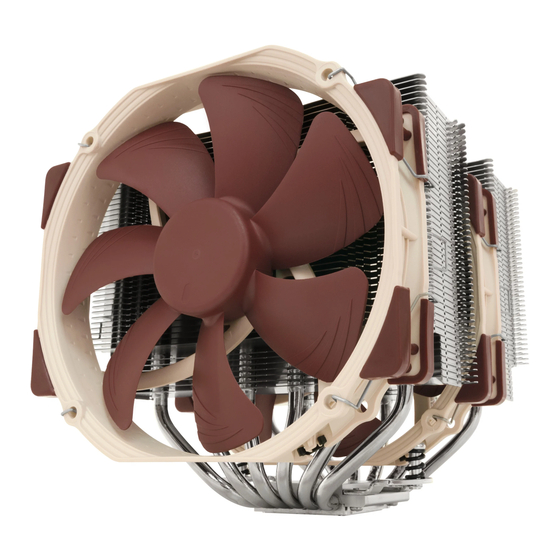

Congratulations on choosing the Noctua NH-D15S. Tailored to
provide superior RAM and PCIe compatibility, the NH-D15S is
an asymmetrical single fan version of Noctua's award-winning
flagship model NH-D15. I'm confident that you will be able to
sense some of the research, attention and care we've put into
making this cooler.
Enjoy your NH-D15S!
Yours sincerely,
Roland Mossig, Noctua CEO

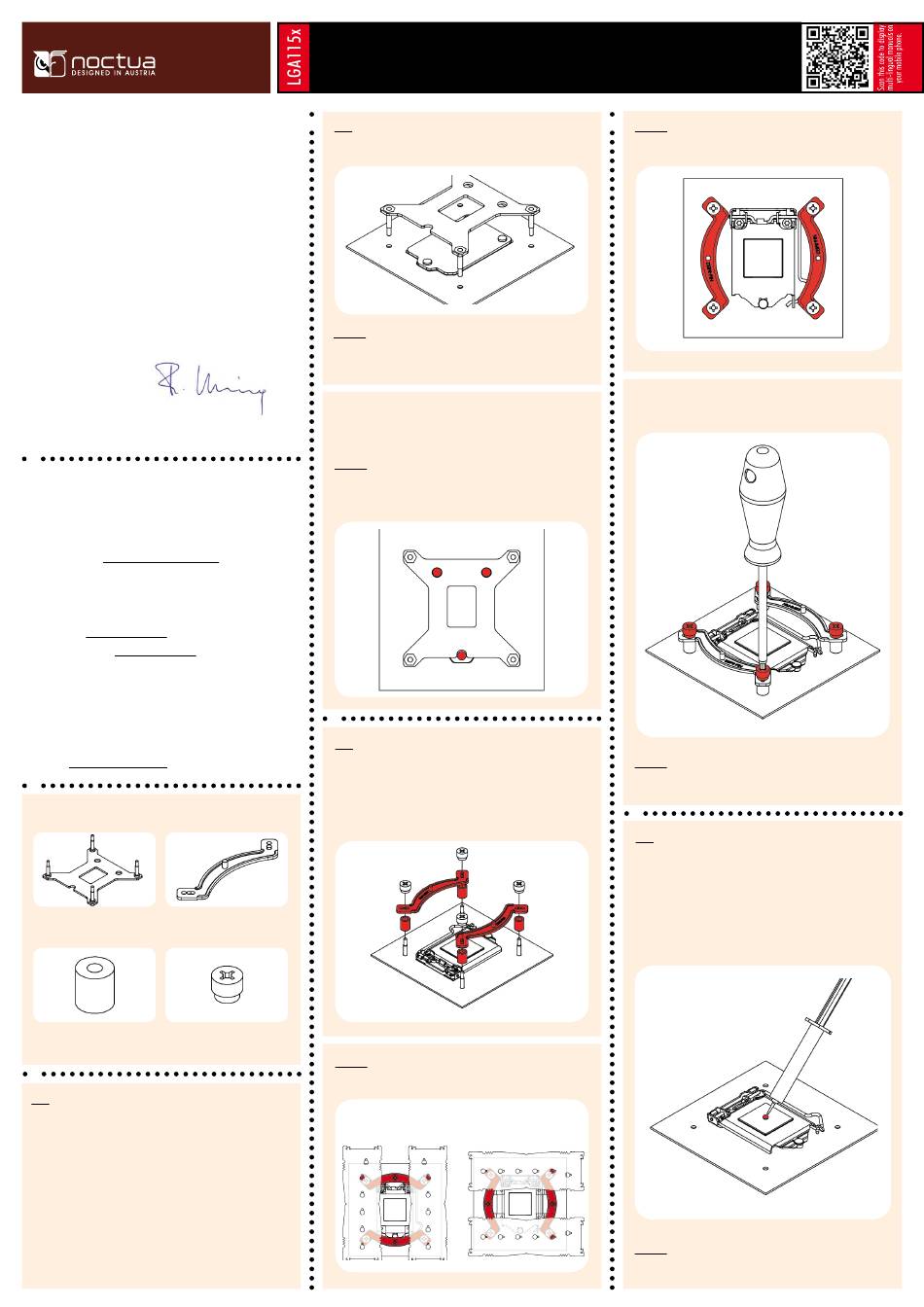

This manual will guide you through the installation process of the
SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility list
on our website (www.noctua.at/compatibility) and verify that
the cooler is fully compatible with your motherboard.
Should you encounter any difficulties, please check the FAQs on
our website (www.noctua.at/faqs) and don't hesitate to contact
our support team at support@noctua.at.
Noctua cannot be held responsible for any damage or losses
caused by compatibility issues.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals

Required mounting parts:

1x NM-IBP2 Backplate 2x NM-IMB2 Mounting Bars
4x NM-IPS1 Spacers 4x NM-ITS1 Thumbscrews
Step 1

Removing the mainboard

In case you want to use the cooler on an assembled system and
your case doesn't have a cut-out at the rear side of the mainboard
tray, you first have to remove the mainboard from the case in
order to be able to install the supplied backplate.
Noctua NH-D15S | Installation Manual | LGA115x
Step 2

Attaching the backplate

Caution: The supplied backplate will install over the mainboard's
stock backplate, so the mainboard's stock backplate must not be
taken off.
Place the backplate on the rear side of the mainboard so that the
bolts stick through the mounting holes.
Caution: Please make sure that the three cut-outs in the
supplied backplate align with the screws of the mainboard's stock
backplate.
Step 3

Installing the mounting bars

First put the plastic spacers onto the bolts of the backplate, then
add the mounting bars.
Caution: Choose the alignment of the mounting bars according to
the desired final orientation of the cooler:
Orientation A Orientation B
Caution: Make sure that the curved sides of the mounting bars are
pointing outwards.
Fix the mounting bars using the 4 thumb screws.
Caution: Gently tighten the screws until they stop, but don't use
excessive force.
Step 4

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on
your CPU, please clean them off first. Then press a small drop
(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
