Cost Effective Voice Logging Recorder
TeleCorder is used with the supplied UpCorder software to turn your PC into a digital audio recorder
that can simultaneously record and play from phone lines or other audio sources. Recordings start and stop
automatically using either phone line voltage sensing or audio activation. Recordings are stored on the hard
drive of a PC (Win98/2000/ME/XP) using the included USB cable and software. The PC is also used to set
up the TeleCorder, play back recordings, and copy recordings for archival purposes.
TeleCorders # UC-02B and # UC-04B are used with UpCorder software and your PC. They do not
have internal storage. Recordings are uploaded to your PC in real time using the supplied USB cable and
are powered by your PC through the same USB cable. To record, your TeleCorder must be connected to a
PC running the UpCorder software.
TeleCorders are also available with built-in computers and hard drives. TeleCorder models TC-02F
and TC-04F store recorded conversations to an internal hard drive. They can also be connected to a PC for
control and back-up archiving via plug-and-play USB cable. A PC is not required for set-up, recording, and
playback of conversations. Contact your TeleCorder sales representative for additional information.
I. TeleCorder Configurations
Model Type
Supplied Accessories
(phone line cables)
Supplied Accessories
(other)
If you purchased optional items such as cables and/or adapters for installation to audio sources that
do not terminate in standard RJ11 phone jacks, see the instructions that were provided with the optional
accessories for additional installation and operation procedures.
II. Cable Connections and Testing

1. Identify the Front Panel LEDs and Rear Panel Connections

Unpack and check the contents of the TeleCorder package.

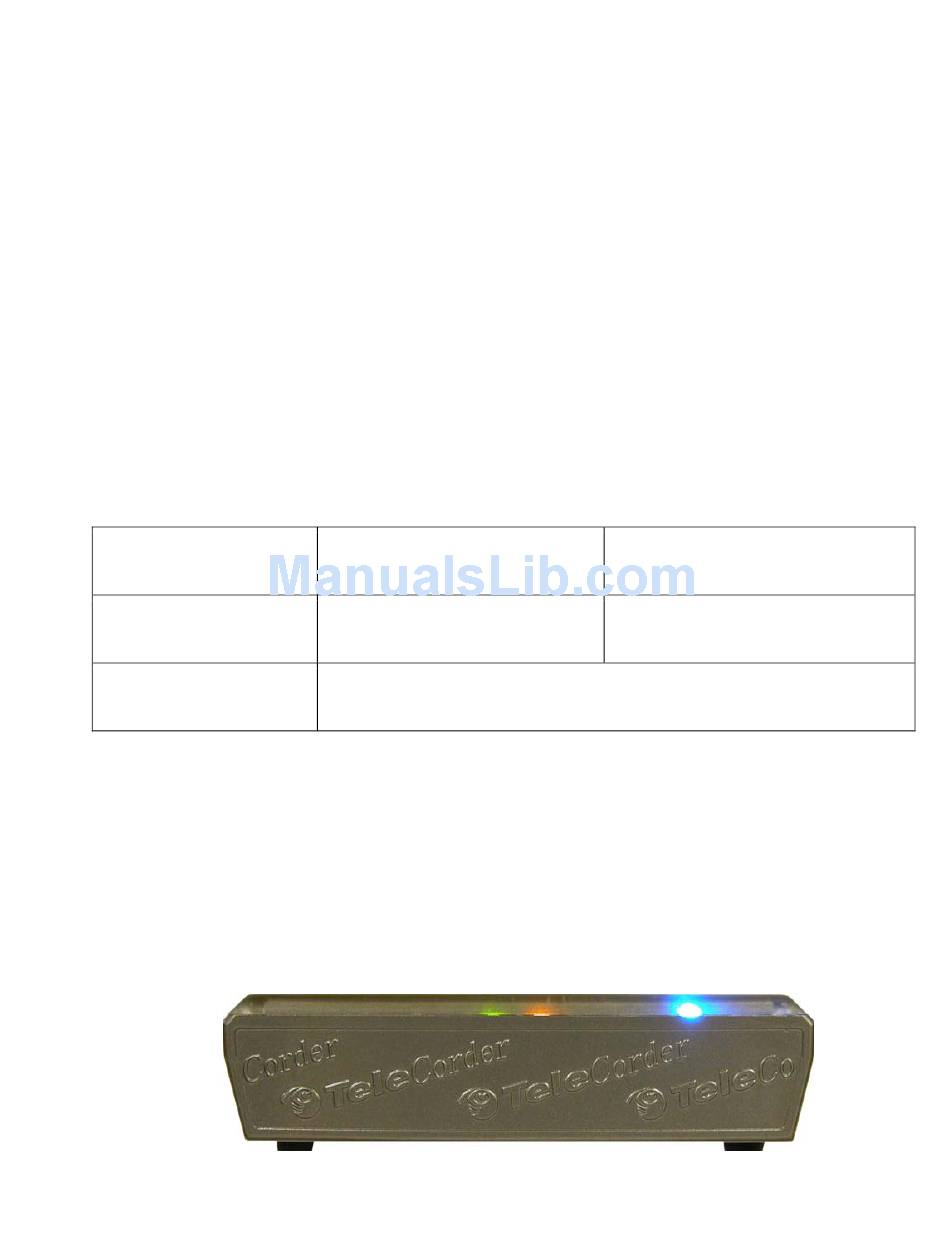

Front view of TeleCorder # UC-02B and # UC-04B with LEDs for channel activity and power.
Tele Corder
2 Channel
UC-02B
2 each # T-18 (18' phone cable
with "T" adapter)
USB cable to connect the recorder to your PC, CD with UpCorder
software for use in a PC (for Win98/2000/ME/XP), and this manual.
User Manual — TeleCorder with UpCorder Software — V 2.17-B-US
4 Channel
UC-04B
2 each # MTJ-S2 (line splitter)
4 each # T-18 (18' phone cable)
