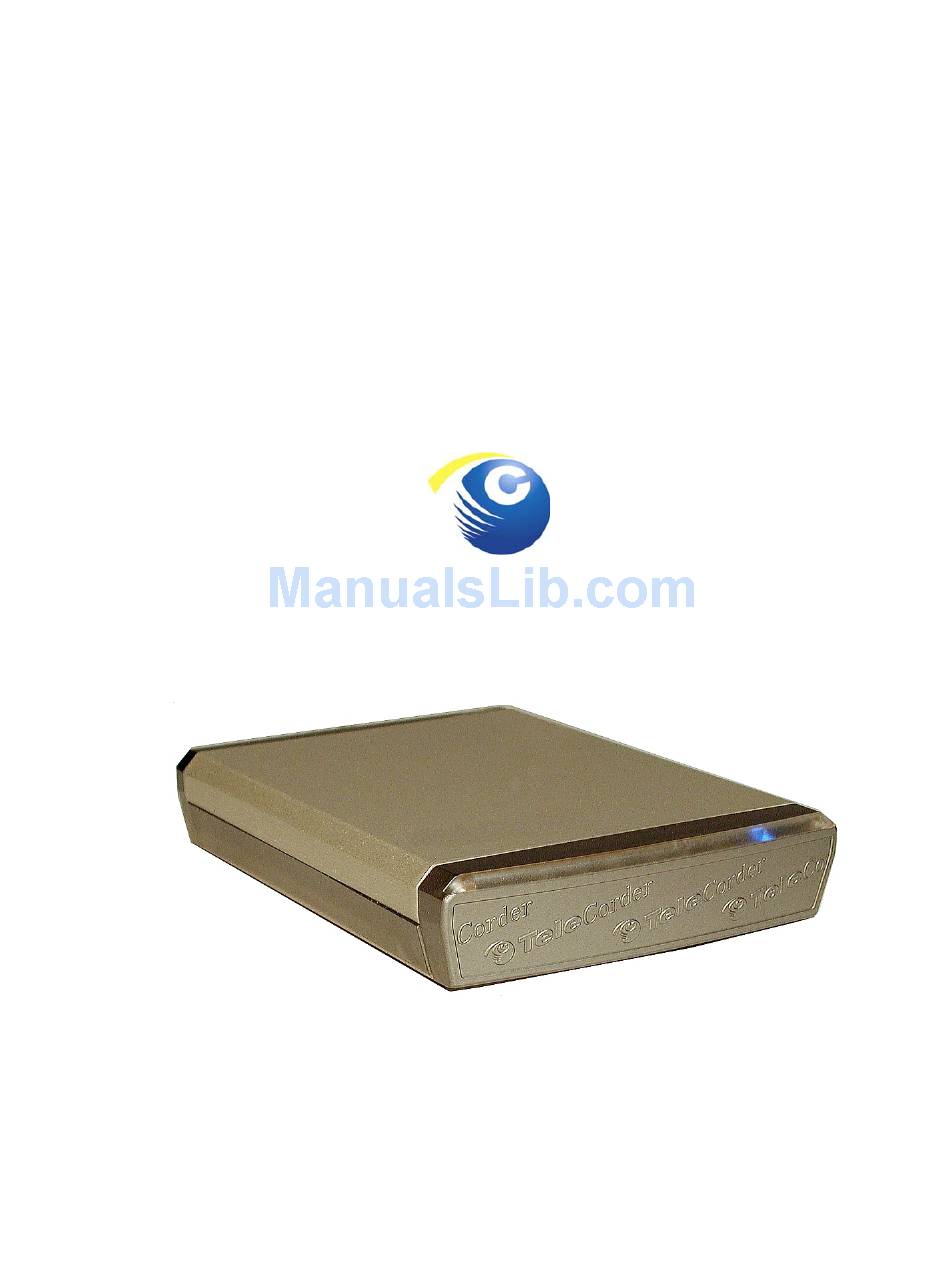

Tele Corder TCwL-B4 Voice Logging Recorder Tele Corder Four Channels — Internal Hard Drive stores the most recent 11,000 Conversation Hours — Access recordings via USB & LAN User Manual Version 2.41-B-US... - Page 2 Setting for Phone Line or Voice Activated Recording......6 VAR Settings (Voice Activated Recording) ........6 Setting Channels for Operation in VAR Mode ........6 Configuring TeleCorder using a PC............ 6 3.6.1 Hardware Information............7 3.6.2 Date/Time Setting ..............7 3.6.3 Channel/Port Setup ..............
- Page 3 6.1.6.8 Recording Mode (Recording Quality) ......17 6.1.6.9 Limitation for Recordings Displayed in the Listing ..17 6.1.6.10 Caller ID Detection Settings ........... 17 6.1.6.11 About TeleCorder PC Software........17 6.1.6.12 Quit Setup Window............17 6.1.7 Security (Password – Lock/Unlock) ..........18 6.1.7.1 Modify Password ............
- Page 4 While the TCwL-B4 records as a stand alone unit, connection to a PC using the supplied USB cable and software (Win-98/XP/Vista-32) is required for initial set-up. Recordings are accessed via a PC using a USB or LAN connection to the recorder for playback.
-
Page 5: Identify The Front And Rear Panel Connections
1. Identify the Front and Rear Panel Connections Unpack and check the contents of the TeleCorder package. Locate the master password page and keep it in a secure place. Front view — top bar has LED’s that light to indicate power, HDD, and channel status. -
Page 6: Connect Power Supply And Usb Cable
Files Needed”, type the path to the folder where the driver was previously installed (such as: C:\Program Files\ TeleCorder\ TeleCorder\ TeleCorder .exe), or the path to the driver folder on the CD supplied with your TeleCorder (such as: E:\Driver, where E is the CD drive on your PC containing the TeleCorder CD). -
Page 7: Setting For Phone Line Or Voice Activated Recording
DC voltage changes that are required to initiate a recording in this mode. If you connect any of the TeleCorder inputs to audio sources that do not have standard on-hook/off- hook voltages, these channels must be set for audio or voice activated recording (VAR). -
Page 8: Hardware Information
After making changes, click the button labeled to confirm any changes. You may be Write Hardware asked to quit the program and try again. You may also need to un-plug and re-connect the TeleCorder power or USB cable to successfully change the TeleCorder operating parameters. 3.6.5... -
Page 9: Limitation For List Displaying
After any of the above settings are changed, they will not take effect until the recorder is restarted by turning off or disconnecting AC power to the TeleCorder, waiting a minimum of ten seconds, and powering the TeleCorder back on. Any changes made in software should now be locked into the recorder’s internal memory. -
Page 10: Connecting To Phone Lines And Other Audio Sources
(analog or digital phones, using direct connection to earpiece audio or optional TSA-3LM or TSA-SLM adapters), etc. The TeleCorder connects in parallel to your audio sources. There are two modular phone jacks on the back labeled . -
Page 11: Reflash Utility Application To Find Or Change Ip Address
LAN, the IP addresses must be different. Select . It will display the factory set Find the Device Over the LAN IP address on the screen when it is found by the Reflash Utility application. TeleCorder V 2.41-B-US... -
Page 12: Reflash Utility Application Notes
Reflash Utility Reflash Utility device, you are ready to run the TeleCorder software and access the recorder via the LAN connection. When the V1.3 is open and the device is found over the LAN, port settings can be... -
Page 13: Using The Tele Corder
The PC does not have to be ON or connected to the TeleCorder for it to function. Connecting the TeleCorder USB or a LAN cable to your PC and/or turning the PC power on or off will not stop the recorder from functioning. - Page 14 These buttons provide the following functions: 6.1.2 Refresh: Refresh the list to display the latest recordings in the TeleCorder at any time. 6.1.3 Re-Order: User can select one of the following ordering rules to re-order the list. 1. Recorded – provides a list based on the time recordings ended.
- Page 15 Since the TeleCorder uses a unique format for saving the recordings in digital form, digitally converting them is a better way to exchange information with other systems that do not have TeleCorder software. You can use your PC to send audio recordings via e-mails or make backup CDs without worrying that others may not be able to play them.
-
Page 16: Volume Balance Setting (Dava)
Browse button. After the files have been converted and saved to your PC the list of calls on the TeleCorder Recording List will show only those files and need to be refreshed to show all calls. Each file refers to a unique record. The name of each file contains date and time of the call, caller or dialed number such as File P2 10-26-08 09=11=10 DIAL TO 18609280377.WAV (recording made on... -
Page 17: Hardware Information
After making changes, click the button labeled Write Hardware to confirm any changes. You may be asked to quit the program and try again. You may also need to un-plug and re-connect the TeleCorder power or USB cable to successfully change the TeleCorder operating parameters. 6.1.6.5... -
Page 18: Caller Id Detection Settings
Forced FSK Between Rings: If your caller ID signaling is FSK and sent between the rings, you must turn this feature on. This is the normal setting for North America. 6.1.6.11 About TeleCorder PC Software: From this sub-button, you can view information TCwL-B4 about the software supplied with the recorder. -
Page 19: Modify Password
This password is written on a sheet that comes with the recorder and will be an effective password forever (keep this password in a secure place). The TeleCorder also allows you to set a second password that can be easier to remember. Use the Modify button to set a second password of 1-8 digits (0 to 99999999). -
Page 20: Play Recordings From List
NOTE: The TCwL-B4 Reflash Utility application should not be in a location that can be accessed by users. This application should be stored in an administrative folder. ANYONE HAVING ACCESS TO THE REFLASH UTILITY has complete access to the call data,... -
Page 21: Guarantee & Liability
TeleCorder. Suppliers and the manufacturer are not a source of official interpretation of laws and shall not be construed as a source for making decisions. -
Page 22: Contact Information For Support And Service
(keep this password in a secure place). If you lose the master password, your TeleCorder may have to be returned to a factory authorized service facility to determine what the password is from its internal hardware. -
Page 23: Popular Accessories
