Page 1: User Manual

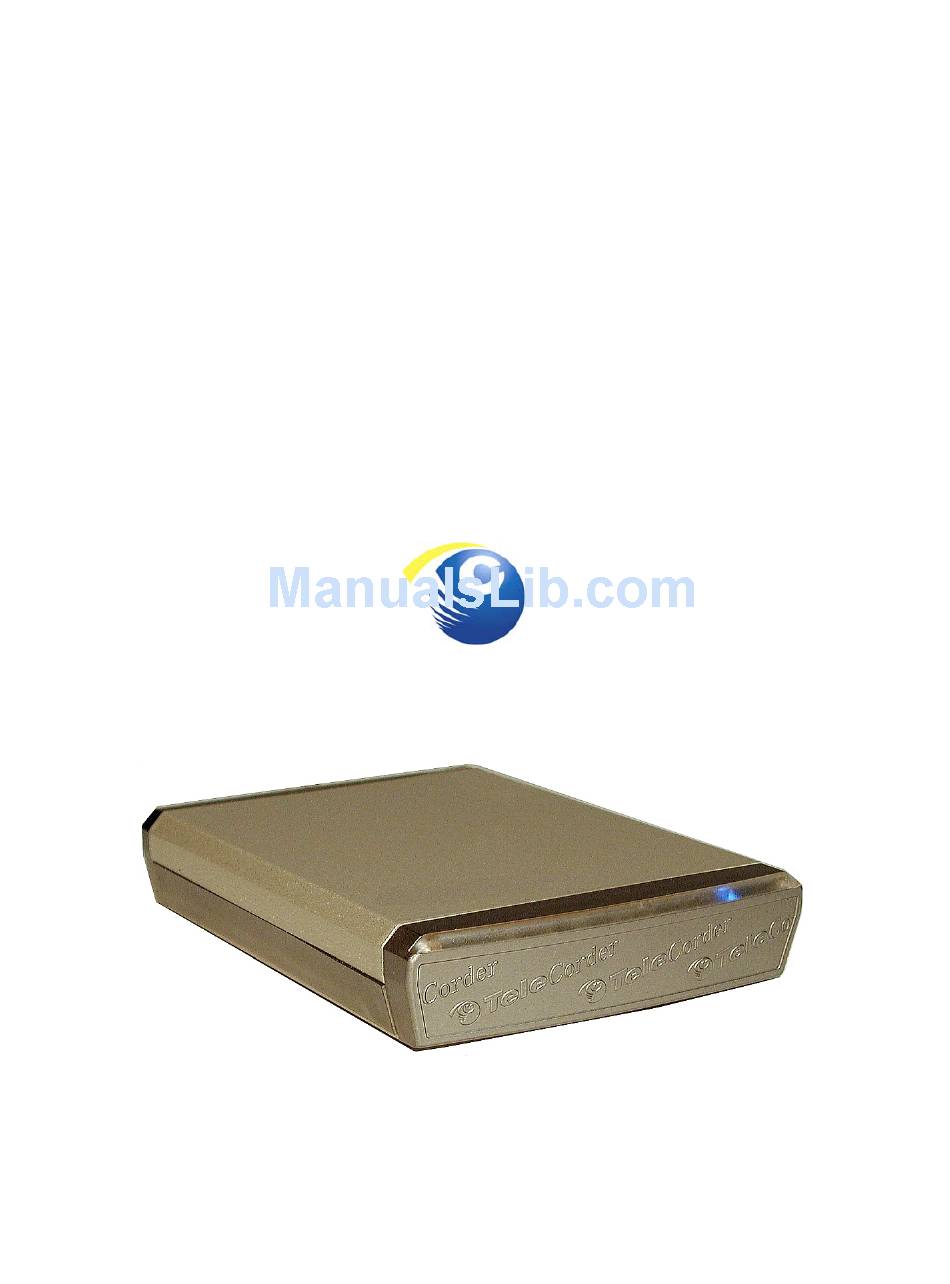

Tele Corder Voice Logging Recorder UC-02B UC-04B UpCorder with Software Tele Corder User Manual Version 2.17-B-US, Rev. 5... -
Page 2: Table Of Contents
DAVA Settings (Digital Automatic Volume Adjustment) ..13 d. Location of Folder with Recordings — “ULogFolder” ....13 e. Index File Setting “HTML” ............13 f. Save Calls Less Than 8 Seconds ..........14 User Manual — TeleCorder with UpCorder Software — V 2.17-B-US... - Page 3 Batch Conversion to WAVE Files .......... 15 e. Delete One or All Files .............15 f. Batch Delete a Range of Files ...........16 Using Two, Three, or Four UC-02B or UC-04B with a Single PC .... 16 IV. Recording Privacy ................18 Guarantee & Liability.................18 VI.
-
Page 4: Telecorder Configurations
Recordings are uploaded to your PC in real time using the supplied USB cable and are powered by your PC through the same USB cable. To record, your TeleCorder must be connected to a PC running the UpCorder software. -
Page 5: Connecting To Phone Lines And Other Audio Sources
Connecting Audio Sources to the 4 Channel TeleCorder Model UC-04B Each modular phone jack on the back of the TeleCorder UC-04B has connections for two phone lines or other audio sources. When looking at the back panel, the jack on the left is for Ports 1 and 2, the jack on the right is for Ports 3 and 4. -
Page 6: Powered By Usb Connection To Pc
Connect audio sources for channels one and two using the left jack, as with instructions for the two channel TeleCorder (see page 4 “a”), and channels three and four to the right jack in a similar manner. The UC-04B is supplied with two of the MTJ-S2 splitters to provide individual jacks for each input and four T-18 cable sets for connecting to phone lines. -
Page 7: Using Telecorder
After launching the UpCorder software, the Port Activity window will be displayed. If the TeleCorder is not connected to your PC, the software will run in the off-line mode as shown below. Using this mode you can browse, search and play back the UpCorder recording files as well as convert them to WAVE files. -
Page 8: List Of Recorded Calls And Upplayer Windows
UpCorder format (.up), you can also save the recordings to standard Windows WAVE files for sharing with users that do not have TeleCorder software. Click the button with two vertical lines to pause playback. Click again to resume. -
Page 9: Setting Hardware And Software
Hardware window. From this window, you can view or change UpCorder software options that are used by your PC and hardware settings that are set in the recorder (UC-02B or UC-04B). Click on the H/W Settings tab to view or change hardware settings (hardware setting screen image is on page 10). -
Page 10: Recording Process
Setting for Phone Line or Voice Activated Recording (VAR) When you first connect a new TeleCorder, default settings for all channels will be for Voice Activated Recording (VAR). Channels connected to phone lines should have their start/stop mode changed to the voltage sensing start/stop mode. -
Page 11: Configuring Hardware Settings
Write Hardware button to confirm any changes. With 2 channel UC-02B, disregard Port 3 and Port 4 settings. VAR Voltage Threshold: Set the threshold level to match the audio level on your audio source. -
Page 12: Var Timeout
If this is the case, you will see a message to restart the recorder hardware (unplug the USB cable from the TeleCorder, wait 10 seconds, and re-connect). Any changes made that are stored in the TeleCorder should now be locked into the recorder’s internal memory. -
Page 13: Notes
1． Notes Settings to the TeleCorder hardware should only be made when there are no active recordings. To avoid interruption of active recordings, it is recommended that you configure operating parameters while the recorder is idle. If channels are active when you need to make... -
Page 14: Auto Refresh Recording List
You will be able to play recordings and convert individual files to WAVE files, but will not have access to UpCorder File Manager functions such as Search, Batch Conversion, and Text Editing. User Manual — TeleCorder with UpCorder Software — V 2.17-B-US... -
Page 15: Save Calls Less Than 8 Seconds
File Manager button. Refer to the following image. You can only select one function at a time. If you click the Help button, the following help window will pop up. User Manual — TeleCorder with UpCorder Software — V 2.17-B-US... -
Page 16: Search
Delete One or All Files: You can use the Delete Item button to delete a single recording listed in the Item # box, or the Batch Delete All button to delete all recordings. Deleted recordings cannot be recovered. User Manual — TeleCorder with UpCorder Software — V 2.17-B-US... -
Page 17: Batch Delete A Range Of Files
TeleCorders have a Device ID that is stored in their internal memory and unique to each unit. This Device ID is an aid to keeping track of what sources of conversations are connected to which TeleCorder and will be displayed when you view the Configure Software and/or Hardware window and click on a particular unit. - Page 18 To check or change hardware settings for Unit 1, click on the tab labeled H/W Settings (Unit 1), refer to the following screen image and Section III. Using TeleCorder in this manual. If more than one unit is connected to the PC, you will have a tab to check or change hardware settings for each TeleCorder.
-
Page 19: Recording Privacy
The TeleCorder supplier and manufacturer cannot and will not accept any liability for loss of information or other damages due to the use or misuse of the TeleCorder. Suppliers and the manufacturer are not a source of official interpretation of laws and shall not be construed as a source for making decisions. -
Page 20: Recorder Accessories
TeleCorders come with cables that are suitable for installations where the audio sources are terminated with modular phone jacks. If the supplied cables are not appropriate for your installation, contact your TeleCorder representative for assistance in selecting accessory cables or adapters to match your application. TSA-3LM — Telephone Handset Supervisory Adapter... -
Page 21: Mod-Sc Converts Modular Phone Plug To 3.5Mm Mini-Plug
This adapter/cable assembly splits a 2-line RJ-14 circuit/jack into two RJ-11 jacks (Line-1 on left and Line-2 on right). It is typically used with the two line jacks on the TeleCorder and other Voice Logging Recorders that have two inputs on a single modular jack (RJ-14, 6P4C). -
Page 22: Notes
IX. Notes: 1. Avoid shaking the TeleCorder, and keep it in an environment with moderate temperature and humidity that is suitable for electronic equipment. Do not expose to rain or moisture. 2. There are no user-serviceable parts inside of the TeleCorder. Refer servicing to qualified service personnel. - Page 23 TeleCorder Voice Logging Recorders are distributed in the U.S.A. by: 581 LIBERTY HIGHWAY P.O. BOX 623 PUTNAM, CT 06260 (860) 928-0377 FAX (860) 928-6477 support@omnicronelectronics.com www.omnicronelectronics.com...
