HARDWARE CONNECTIONS

The LK7000 can be connected to an IBM101 PC, XT, AT or clone
computer, PS/2 computer, or computer terminal. The following diagram
shows how the keyboard connects to the computer and standard
keyboard or other keyboard peripheral (magnetic stripe reader, scanner,
etc.).
NOTE: Before making any connections it is always advisable to
turn off the computer.
A. Connecting the LK7000 to an IBM101 PC, XT, AT, or clone
computer's keyboard port:
1. Use the computer interface cable. Plug the AT or PS/2 Male
connector plug into the compter. Connect the RJ11 connector into
the "To Computer" connector on the LK7000.
2. Connect the keyboard interface cable to the standard keyboard. The
PS/2 Female connector plugs into the PS/2 connector on the rear
panel of the LK7000. The RJ11 connector plugs into the "To
Peripheral" connector on the back of the LK7000.

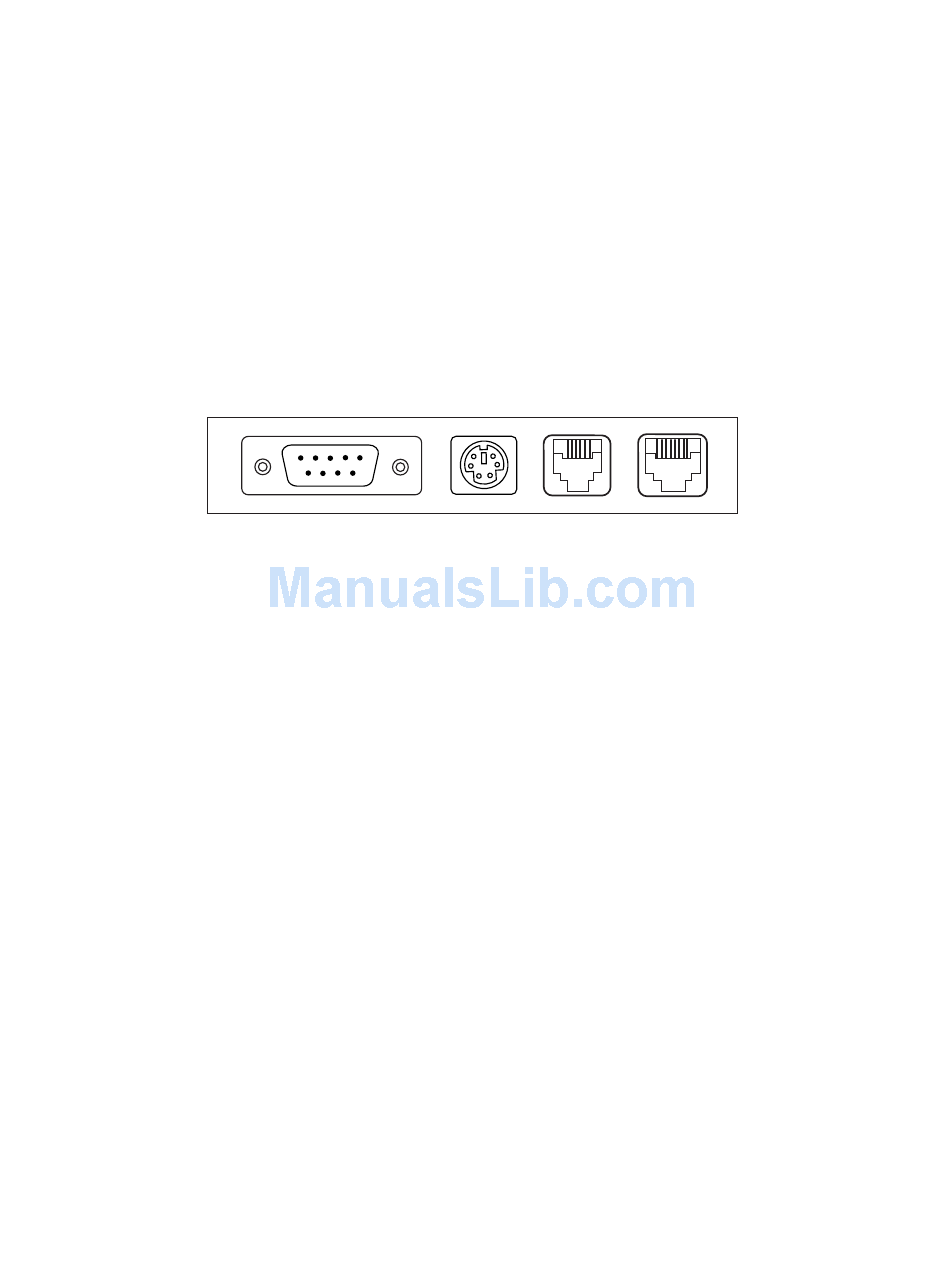

To
To
Computer
Peripheral
3
Reserved
for optional
MSR
