Logic Controls KB5000 Configuration

ATTENTION
NEW KB5000 Programmable POS Keyboard Programming Utility
The new KB5000 programmable POS keyboard has been upgraded to make the MSR
parameters programmable. The MSR must be programmed before it can be work
properly. The programming is done with the keyboard programming utility by
configuring the MSR properties.
Old keyboard template files that do not have MSR properties can still be used but they
must be first loaded into the new KB5000 programming utility and have the MSR
configured correctly before writing into the KB5000.

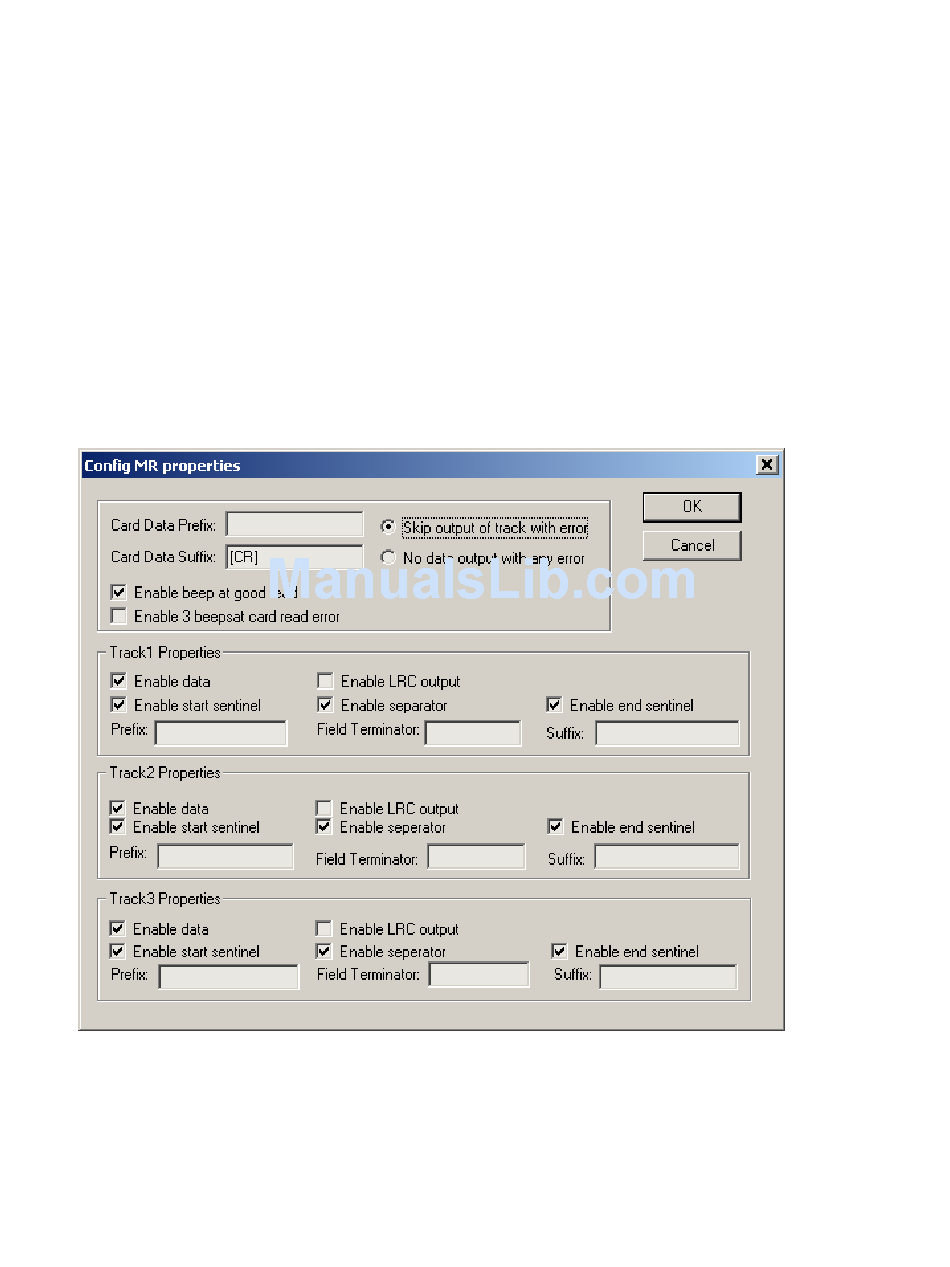

Configuration of the MSR to match the old keyboard MSR operations is as follows:
11/08/2006
LOGIC CONTROLS, INC.
www.logiccontrols.com
