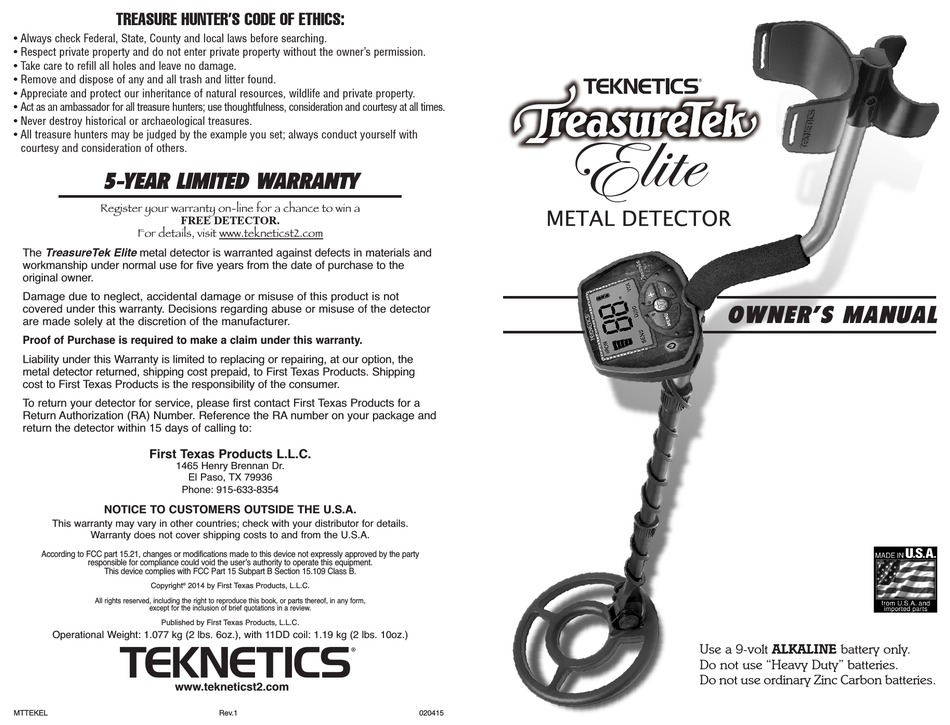

TRE SURE HUNTER'S CODE OF ETHICS:
• lways check Federal, State, County and local laws before searching.
• Respect private property and do not enter private property without the owner's permission.
• Take care to refill all holes and leave no damage.
• Remove and dispose of any and all trash and litter found.
• ppreciate and protect our inheritance of natural resources, wildlife and private property.
• ct as an ambassador for all treasure hunters; use thoughtfulness, consideration and courtesy at all times.
• Never destroy historical or archaeological treasures.
• ll treasure hunters may be judged by the example you set; always conduct yourself with
courtesy and consideration of others.
5-YEAR LIMITED WARRANTY
Register your warranty on-line for a chance to win a
For details, visit www.tekneticst2.com
FREE DETECTOR.
The TreasureTek Elite metal detector is warranted against defects in materials and
workmanship under normal use for five years from the date of purchase to the
original owner.
Damage due to neglect, accidental damage or misuse of this product is not
covered under this warranty. Decisions regarding abuse or misuse of the detector
are made solely at the discretion of the manufacturer.
Proof of Purchase is required to make a claim under this warranty.
Liability under this Warranty is limited to replacing or repairing, at our option, the
metal detector returned, shipping cost prepaid, to First Texas Products. Shipping
cost to First Texas Products is the responsibility of the consumer.
To return your detector for service, please first contact First Texas Products for a
Return Authorization (RA) Number. Reference the RA number on your package and
return the detector within 15 days of calling to:
First Texas Products L.L.C.
1465 Henry Brennan Dr.
El Paso, TX 79936
Phone: 915-633-8354
NOTICE TO CUSTOMERS OUTSIDE THE U.S.A.
This warranty may vary in other countries; check with your distributor for details.
Warranty does not cover shipping costs to and from the U.S.A.
According to FCC part 15.21, changes or modifications made to this device not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with FCC Part 15 Subpart B Section 15.109 Class B.
Copyright
2014 by First Texas Products, L.L.C.
©
All rights reserved, including the right to reproduce this book, or parts thereof, in any form,
except for the inclusion of brief quotations in a review.
Published by First Texas Products, L.L.C.
Operational Weight: 1.077 kg (2 lbs. 6oz.), with 11DD coil: 1.19 kg (2 lbs. 10oz.)
www.tekneticst2.com
MTTEKEL
®
Rev.1
020415
OWNER'S MANUAL
Use a 9-volt ALKALINE battery only.
Do not use "Heavy Duty" batteries.
Do not use ordinary Zinc Carbon batteries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TreasureTek Elite and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknetics TreasureTek Elite

  • Page 1 Register your warranty on-line for a chance to win a For details, visit www.tekneticst2.com FREE DETECTOR. The TreasureTek Elite metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner.
  • Page 2: Table Of Contents

    Congratulations! Congratulations on your purchase of the new TreasureTek Elite Metal Detector. Eurotek is the ACCESSORIES result of years of research and development to bring you a detector designed specifically for European Treasure Hunting conditions. Treasure Hunting enthusiasts from around the world were involved in the development of this revolutionary new detector.
  • Page 3: Terminology

    TROUBLESHOOTING TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION Reference to a metal being "eliminated" means that the detector will not Detector chatters • Using detector • Use detector ELIMIN TION emit a tone, nor display a Target-ID, when a metal object passes through or beeps erratically...
  • Page 4: Assembly

    ASSEMBLY OTHER FEATURES Adjusting the Armrest Overload Warning If a metal object or highly magnetic soil are too close to the searchcoil, the The armrest may be moved forward or backwards by removing the single screw detector will “overload.” and nut, and then repositioning the 2-piece armrest. Users with shorter arms “...
  • Page 5 An easier way is to use a handheld pinpointer. It is a probe-like device which is poked into the ground, making close up pinpointing a snap, reducing digging time, and minimizing the size of the holes you will dig. Teknetics offers a robust and inexpensive pinpointer designed for this purpose.
  • Page 6: Batteries

    IRON IDENTIFIC TION Do not use “Heavy Duty” batteries. The TreasureTek Elite allows the user not only to discriminate iron targets, but classifies them by size and signal strength. Ferrous objects will have a Target- Rechargeable batteries can also be used.
  • Page 7: Quick-Start Demo

    QUICK-START DEMONSTRATION DEPTH INDICATOR I. Supplies Needed In Discrimination Mode, each time an object is detected, a Bar Graph • a Nail • a Gold Ring (try several different size gold rings) • a Large Silver Coin illuminates in addition to the Target-ID. II.
  • Page 8: Ground Minerals

    All soils differ, and can differ DISC = 0 greatly, in the type and amount of ground minerals present. The DISC setting TreasureTek Elite has a preset ground elimination setting. No user adjustments are required. HIGH V.C.O.
  • Page 9: Electromagnetic Interference

    DISCRIMINATION SYSTEM THE BASICS OF METAL DETECTING The discrimination system in the TreasureTek Elite is unlike systems in other 3-Tone System continued) The searchcoil produces a magnetic field and then detects changes in that metal detectors. 5. EMI (Electromagnetic Interference) magnetic field caused by the presence of metal objects.
  • Page 10: Operation And Controls

    DISCRIMINATION SYSTEM OPERATION and CONTROLS As a general reference, targets fall into the following ranges: Target-ID continued) POWERING UP Press 1 - 39: iron The detector powers on. 42 - 48: foil and small gold nuggets A “ ” appears momentarily, indicating that the detector is in the 54 - 57: gold nuggets, gold rings or targets containing mostly gold Discrimination Mode of operation.
  • Page 11: Menu Selections

    The 2-digit number indicates the Target-ID of the last object detected. The TreasureTek Elite has a very fast target response and is able to detect different objects in very close proximity. Therefore, the Target-ID displayed may change rapidly as you sweep the searchcoil.
  • Page 12: Volume

    MENU SELECTIONS MENU SELECTIONS 3. VOL (Volume) The TreasureTek Elite Metal Detector will detect a coin-sized object to a Press to illuminate the VOL menu icon. HOW DEEP WILL IT GO? The default volume setting is 7. distance of about 24 cm (9.5”) from the searchcoil at maximum sensitivity.
