Summary of Contents for Infinite Play Next Z7000

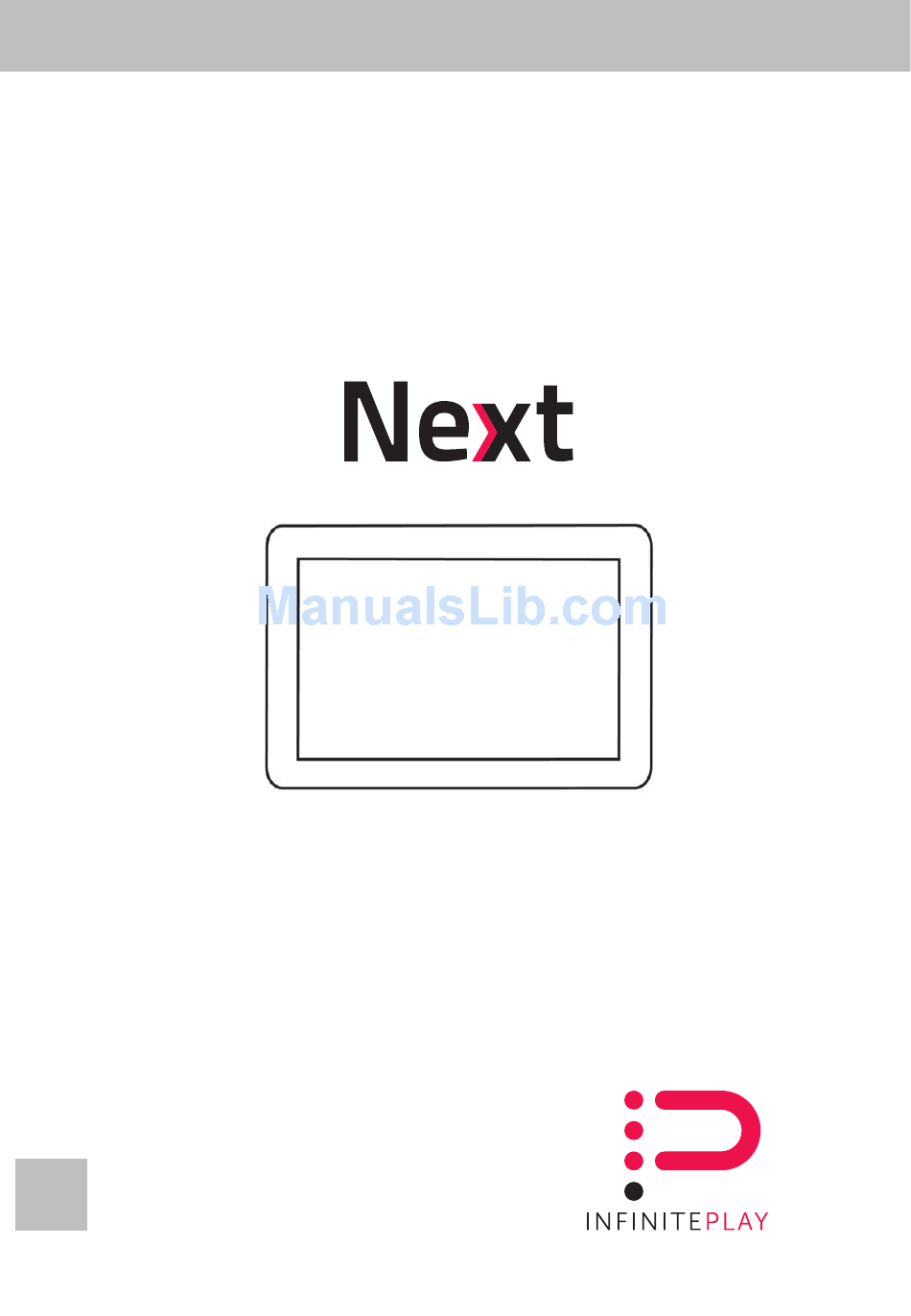

- Page 1 Installation and operation manual Z7000-Z7100...
- Page 2 next VIDEO DOOR PHONE INSTALLATION ART. Z7000 - Z7100 Installing from semi-surface mounted: Install the monitor away from sources light and heat. Install the flush-mounted back box type: Vimar V71303 - V71318 ELVOX 6149 Bticino 503E (horizontal - vertical) – 506E on the wall at a height of approximately 1.45 m from the floor to the lower edge, as indicated in the figure.
-
Page 3: Material Needed
next MATERIAL NEEDED: 1 skein of CAT5 Ethernet cable Connectors RJ45 plug 1 scissor 1 crimping tool 8-pin Recommended a tester for checking LAN cables MAKE A STRAIGHT CABLE PIN$ Code$color$T568B$ 1" White"orange" 2" Orange" 3" White"green" 4" Blue" 5" White"blue"... -
Page 4: System Programming
next SYSTEM PROGRAMMING There are two types of configurations: 1) Using an internal video door when you first start is recommended for small building 2) For systems of higher dimensions can be a system configuration from a PC by software To be connected PC to any RJ45 port of InfinitePlay system by patch cords. - Page 5 next 3. POWER SUPPLY A video door phone INFINITEPLAY system can contain only one server SIP Z6001 and several distributors Z60DT IDENTIFICATION NUMBER = 0000000000 DEVICE NAME: es: Z6001 Main elettrical panel OUTPUT FUNCTION: To be assign one of the following functions that appear in the video intercom.
- Page 6 next 4. VIDEO DOOR PHONE At the first installation is requested the physical position of the device: PROGRAMMING ID IDENTIFICATION CODE Building 01 Floor 103 Apartment 050 Internal device 04 In the INFINITELAY kits the monitor ID CODE : 01 000 001 00 USER NAME: (ex.
- Page 7 next 5. MAPPING ENTRANCE PANEL ENTRANCE PANEL SETUP Select the entrance panel to set their parameters ( touch push button or display) ENTRANCE PANEL TOUCH BUTTONS Z1001-Z2001 If in the presence of a outdoor unit touch buttons must be set: TOUCH BUTTONS 1 call the indoor unit 01000001000 - Famili Briyan ENTRANCE PANEL TOUCH DISPLAY Z100D-Z200D If in the presence of a outdoor unit display must be set:...
- Page 8 next OPERANTING ISTRUCTIONS 1. FUNCTION BAR ( BUTTONS ON THE RIGHT) HOME RETURN SETUP SEARCH 2. VIDEO DOOR PHONE WIDGET LOCK LIGHT STAIR GATE 3. DATA AND TIME 4. METEO (with internet connection) 5. VIDEO DOOR PHONE FUNCTION Available to the call (green symbol) Do not disturbe (red symbol, choose how long) ANSWERING A CALL 1. ...
-
Page 9: Operation
next OPERATION: Important: For the monitor operation, the ID must have already been pro- grammed. To check this, in all devices Operating times The answer and the conversation times depend on the configuration of the corresponding entrance panel parameters. - Answer time (for entrance panel call): Default value 30 s - ... - Page 10 next SINGLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL HOME INTERNET Video door phone Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V CAT5 RJ45 Entrance panel RJ45 CAT5 Lock return...
- Page 11 next DOUBLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V Video door phone 2 RJ45 Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button...
- Page 12 next DOUBLE RESIDENCE SYSTEM WITH 1 VIDEO DOOR PHONE, 2 VIDEO DOOR PHONES WITH INTERNET CONNECTION AND ONE AUDIO-VIDEO ENTRANCE PANEL WITH TWO PUSH BUTTONS HOME INTERNET CAT5 Video door phone 2 with internet connection CAT5 Video door phone 1 Entrance panel CAT5 RJ45...
- Page 13 next MULTIPLE RESIDENCE SYSTEM WITH ONE AUDIO-VIDEO ENTRANCE PANEL, POWER SUPPLY, DISTRIBUTOR AND 12 VIDEO DOOR PHONES Video door phone Video door phone CAT5 Video door phone CAT5 Video door phone Entrance panel CAT5 RJ45 Internet of building Conductor section Terminals Up to 100mt 1,2,3,4,5...
- Page 14 next BUILDING COMPLEX SYSTEM WITH TWO AUDIO-VIDEO ENTRANCE PANELS, POWER SUPPLY, CONCIERGE STATION AND DISTRIBUTOR Video door phone Video door phone CAT5 Entrance panel 12Vcc 1A Lock INTERNET of building CONCIERGE CAT5 12Vcc 1A Lock Power Supply Z6001 Conductor section Terminals Up to 100mt 1,2,3,4,5...
-
Page 15: Connection Variants
next CONNECTION VARIANTS: Additional chime C.A. Power supply WIRING DIAGRAM ADDITIONAL ELECTRONIC CHIME 12 Vdc Power supply Relè additional chime 230Vac Relè Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V RJ45 Video door phone Additional chime C.C. - Page 16 next CONNECTION VARIANTS: WIRING DIAGRAM DOOR RELESE CONTROL Lock return 12Vcc 1A Lock PORTE RJ45 Mains 90-260Vac Power Supply Z6001 50-60Hz GND GND AUX1 AUX2 AUX3 AUX15$Stair$light$ 2A@24Vdc$$ STAIRS LIGHT CONTOL WIRING DIAGRAM DOOR RELESE CONTROL wire 1,5mm2 PORTE RJ45 Mains 90-260Vac Power Supply...
-
Page 17: Installation Note
next INSTALLATION NOTE :... - Page 18 next INSTALLATION NOTE :...
-
Page 19: Safety Instructions For Installers
next Directive 2012/19/UE (WEEE) SAFETY INSTRUCTIONS FOR INSTALLERS The crossed-out wheelie bin symbol marked on the product indicates that This equipment is used in video door entry and home & building the product must be assigned to a differentiated collection centre for automation systems. - Page 20 Via Monte Grappa, 25 31020 Villorba (TV) ITALY Tel. 0422 350680 Fax. 0422 446958 ENG www.infiniteplay.com 18901004 – RL00 01 14 ZEALABS - ITALY...
