Summary of Contents for Infinite Play Small
- Page 1 Installation and operation manual Z1101-Z1102 Z2101-Z2102...
-
Page 2: Entrance Panel Installation
V71303 - Bticino 503) or round of 60mm diameter, in vertical position at a height of 160 cm from the floor to the top edge, as Position the Small Entrance Panel license tarting from the top and shown in the figure. - Page 3 SMALL Place the frame from the top and turning down. Unscrew slightly the M3 Torx screw at the bottom of the frame. PLEASE NOTE: The equipment must be directly and permanently mounted on a non combustible surface such as concrete and metal. Supports or materials with poor self- extinguishing requirements must be excluded.

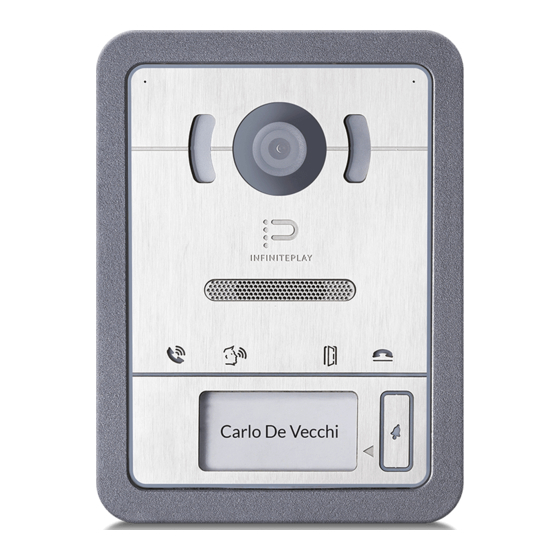

- Page 4 SMALL Z2101 / Z2102 Small flush-mount audio-video entrance panel for INFINITEPLAY video door entry systems. ENTRANCE PANEL INSTALLATION ART. Z2101 – Z2102 Flush-mount installation Secure the pick springs to the back box using the 2 nuts M3, Install back box Art. Z9091 or Art. Z9091.C in vertical position at a keeping them aligned plumb with the finish of the exterior wall.
- Page 5 SMALL PLEASE NOTE: The equipment must be directly and permanently mounted on a non- combustible surface such as concrete and metal. Supports or materials with poor self- extinguishing requirements must be excluded. Terminal Blocks • Line entrance panel with RJ45 connector •...
-
Page 6: Material Needed
SMALL MATERIAL NEEDED: 1 skein of CAT5 Ethernet cable UL certified Connectors RJ45 plug UL certified 1 scissor 1 crimping tool 8-pin Recommended a tester for checking LAN cables MAKE A STRAIGHT CABLE Code color T568B White orange Orange White green... - Page 7 SYSTEM PROGRAMMING There are two types of configurations: 1) Using an internal video door when you first start is recommended for small building 2) For systems of higher dimensions can be a system configuration from a PC by software To be connected PC to any RJ45 port of InfinitePlay system by patch cords.
- Page 8 SMALL 3. POWER SUPPLY A video door phone INFINITEPLAY system can contain only one server SIP Z6001 and several distributors Z60DT IDENTIFICATION NUMBER = 0000000000 DEVICE NAME: es: Z6001 Main elettrical panel OUTPUT FUNCTION: To be assign one of the following functions that appear in the video intercom.
- Page 9 SMALL 4. VIDEO DOOR PHONE At the first installation is requested the physical position of the device: PROGRAMMING ID IDENTIFICATION CODE Building 01 Floor 103 Apartment 050 Internal device 04 In the INFINITELAY kits the monitor ID CODE : 01 000 001 00 USER NAME: (ex.
- Page 10 SMALL 5. MAPPING ENTRANCE PANEL ENTRANCE PANEL SETUP Select the entrance panel to set their parameters ( touch push button or display) ENTRANCE PANEL TOUCH BUTTONS Z1001-Z2001 – Z1101/2 – Z2101/2 If in the presence of a outdoor unit touch buttons must be set:...
- Page 11 SMALL OPERANTING ISTRUCTIONS 1. FUNCTION BAR ( BUTTONS ON THE RIGHT) HOME RETURN SETUP SEARCH 2. VIDEO DOOR PHONE WIDGET LOCK LIGHT STAIR GATE 3. DATA AND TIME 4. METEO (with internet connection) 5. VIDEO DOOR PHONE FUNCTION Available to the call (green symbol)
-
Page 12: Operation
SMALL OPERATION: Important: For the monitor operation, the ID must have already been pro- grammed. To check this, in all devices Operating times The answer and the conversation times depend on the configuration of the corresponding entrance panel parameters. Answer time (for entrance panel call): Default value 30 s... - Page 13 SMALL SINGLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL HOME INTERNET Video door phone Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V CAT5 RJ45 Entrance panel...
- Page 14 SMALL DOUBLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V Video door phone 2 RJ45 Relè additional chime Relè additional chime...
- Page 15 SMALL DOUBLE RESIDENCE SYSTEM WITH 1 VIDEO DOOR PHONE, 2 VIDEO DOOR PHONES WITH INTERNET CONNECTION AND ONE AUDIO- VIDEO ENTRANCE PANEL WITH TWO PUSH BUTTONS HOME INTERNET CAT5 Video door phone 2 with internet connection Video door phone 1...
- Page 16 SMALL MULTIPLE RESIDENCE SYSTEM WITH ONE AUDIO-VIDEO ENTRANCE PANEL, POWER SUPPLY, DISTRIBUTOR AND 12 VIDEO DOOR PHONES Video door phone Video door phone CAT5 Video door phone CAT5 Video door phone CAT5 RJ45 Entrance panel Internet of building Conductor section...
- Page 17 SMALL BUILDING COMPLEX SYSTEM WITH TWO AUDIO-VIDEO ENTRANCE PANELS, POWER SUPPLY, CONCIERGE STATION AND DISTRIBUTOR Video door phone Video door phone CAT5 Entrance panel 12Vcc 1A Lock INTERNET of building CONCIERGE CAT5 12Vcc 1A Lock Power Supply Z6001 Conductor section...
-
Page 18: Connection Variants
SMALL CONNECTION VARIANTS: Additional chime C.A. Power supply WIRING DIAGRAM ADDITIONAL ELECTRONIC CHIME 12 Vdc Power supply Relè additional chime 230Vac Relè Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V RJ45 Video door phone Additional chime C.C. - Page 19 SMALL CONNECTION VARIANTS: WIRING DIAGRAM DOOR RELESE CONTROL Lock return 12Vcc 1A Lock PORTE RJ45 Mains 90-260Vac Power Supply 50-60Hz Z6001 AUX1 AUX2 AUX3 GND GND AUX1- Stair light STAIRS LIGHT CONTOL 2A@24Vdc WIRING DIAGRAM DOOR RELESE CONTROL wire 1,5mm2...
-
Page 20: Installation Note
SMALL INSTALLATION NOTE :... - Page 21 SMALL INSTALLATION NOTE :...
- Page 22 SMALL INSTALLATION NOTE :...
-
Page 23: Safety Instructions For Installers
SMALL Directive 2012/19/UE (WEEE) SAFETY INSTRUCTIONS FOR INSTALLERS The crossed-out wheelie bin symbol marked on the product indicates This equipment is used in video door entry and home & building that the product must be assigned to a differentiated collection centre automation systems. - Page 24 InfinitePlay S.r.l. Via Monte Grappa, 25 31020 Villorba (TV) ITALY Tel. 0422 350680 Fax. 0422 446958 www.infiniteplay.com 18901070 – RL01 10 16 INFINITEPLAY - ITALY...
