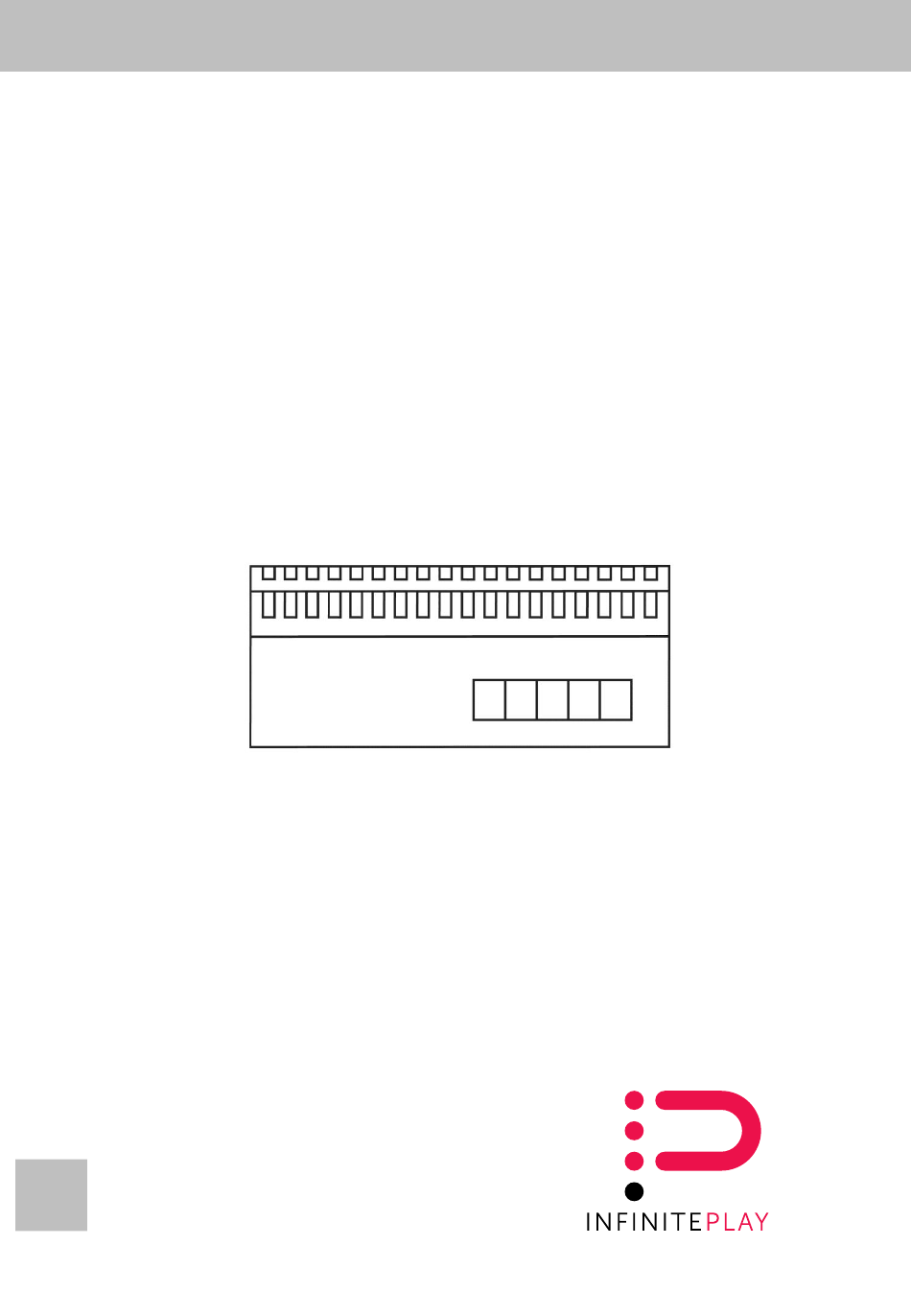

  • Page 1 Installation and operation manual Z6001...

  • Page 2: Technical Characteristics

    - Inputs: Open Collector (Internal Pull-Up) - Lock Output: 12V @ 1A - PoE Outputs: IEEE 802.3af Max 12W per port MANDATORY INSTALLATION REQUIREMENTS ART. Z6001 - Equipment intended for installation in Restricted Access Location performed by specialist technical staff only.

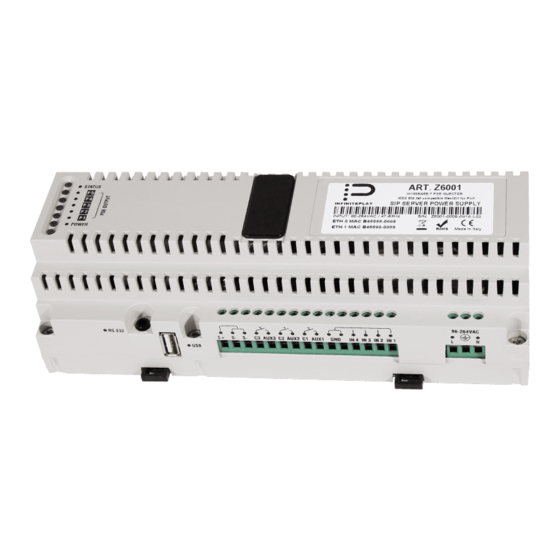

  • Page 3 INFINITE PLAY RJ45 PORTS DESCRIPTION FOR VIDEO DOOR ENTRY SYSTEM CONNECTION Z6001 Z6001 MAIN POWER SUPPLY ART. Power supply unit PoE for villa or building video door entry system RJ45 ports: P1-P2-P3-P4 Dedicated to connecting ENTRANCE PANEL or VIDEO DOOR PHONE...

  • Page 4: Material Needed

    INFINITE PLAY MATERIAL NEEDED: 1 skein of CAT5 Ethernet cable Connectors RJ45 plug 1 scissor 1 crimping tool 8-pin Recommended a tester for checking LAN cables MAKE A STRAIGHT CABLE Code color T568B White orange Orange White green Blue White blue...

  • Page 5: System Programming

    INFINITE PLAY SYSTEM PROGRAMMING There are two types of configurations: 1) Using an internal video door when you first start is recommended for small building 2) For systems of higher dimensions can be a system configuration from a PC by software To be connected PC to any RJ45 port of InfinitePlay system by patch cords.
  • Page 6 Indirect opening can be associated with different entrance panels. For example: LOCK type Z6001 (1) with LOCK type Z60DT (2). When you press lock push button, will operate both entrance panel at same time by their respective power supplies.
  • Page 7 INFINITE PLAY 4. VIDEO DOOR PHONE At the first installation is requested the physical position of the device: PROGRAMMING ID IDENTIFICATION CODE Building 01 Floor 103 Apartment 050 Internal device 04 In the INFINITELAY kits the monitor ID CODE : 01 000 001 00 USER NAME: (ex.
  • Page 8 INFINITE PLAY 5. MAPPING ENTRANCE PANEL ENTRANCE PANEL SETUP Select the entrance panel to set their parameters ( touch push button or display) ENTRANCE PANEL TOUCH BUTTONS Z1001-Z2001 If in the presence of a outdoor unit touch buttons must be set:...
  • Page 9 INFINITE PLAY OPERANTING ISTRUCTIONS 1. FUNCTION BAR ( BUTTONS ON THE RIGHT) HOME RETURN SETUP SEARCH 2. VIDEO DOOR PHONE WIDGET LOCK LIGHT STAIR GATE 3. DATA AND TIME 4. METEO (with internet connection) 5. VIDEO DOOR PHONE FUNCTION Available to the call (green symbol)

  • Page 10: Operation

    INFINITE PLAY OPERATION: Important: For the monitor operation, the ID must have already been pro- grammed. To check this, in all devices Operating times The answer and the conversation times depend on the configuration of the corresponding entrance panel parameters.

  • Page 11: Alarm Input

    INFINITE PLAY SINGLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL HOME INTERNET Video door phone Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V CAT5 RJ45 Entrance panel...
  • Page 12 INFINITE PLAY DOUBLE RESIDENCE SYSTEM WITH 7” VIDEO DOOR PHONE AND ONE AUDIO-VIDEO ENTRANCE PANEL Relè additional chime Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V Video door phone 2 RJ45 Relè additional chime Relè...
  • Page 13 INFINITE PLAY DOUBLE RESIDENCE SYSTEM WITH 1 VIDEO DOOR PHONE, 2 VIDEO DOOR PHONES WITH INTERNET CONNECTION AND ONE AUDIO- VIDEO ENTRANCE PANEL WITH TWO PUSH BUTTONS HOME INTERNET CAT5 Video door phone 2 with internet connection CAT5 Video door phone 1...
  • Page 14 INFINITE PLAY MULTIPLE RESIDENCE SYSTEM WITH ONE AUDIO-VIDEO ENTRANCE PANEL, POWER SUPPLY, DISTRIBUTOR AND 12 VIDEO DOOR PHONES Video door phone Video door phone CAT5 Video door phone CAT5 Video door phone Entrance panel CAT5 RJ45 Internet of building Conductor section...
  • Page 15 INFINITE PLAY BUILDING COMPLEX SYSTEM WITH TWO AUDIO-VIDEO ENTRANCE PANELS, POWER SUPPLY, CONCIERGE STATION AND DISTRIBUTOR Video door phone Video door phone CAT5 Entrance panel 12Vcc 1A Lock INTERNET of building CONCIERGE CAT5 12Vcc 1A Lock Power Supply Z6001 Conductor section...

  • Page 16: Connection Variants

    INFINITE PLAY CONNECTION VARIANTS: Additional chime C.A. Power supply WIRING DIAGRAM ADDITIONAL ELECTRONIC CHIME 12 Vdc Power supply Relè additional chime 230Vac Relè Relè additional chime Alarm INPUT Outdoor call button Panic Button Power - Power +12V RJ45 Video door phone Additional chime C.C.
  • Page 17 INFINITE PLAY CONNECTION VARIANTS: WIRING DIAGRAM DOOR RELESE CONTROL Lock return 12Vcc 1A Lock PORTE RJ45 Mains 90-260Vac Power Supply 50-60Hz Z6001 GND GND AUX1 AUX2 AUX3 AUX1- Stair light 2A@24Vdc STAIRS LIGHT CONTOL WIRING DIAGRAM DOOR RELESE CONTROL wire 1,5mm2...

  • Page 18: Installation Note

    INFINITE PLAY INSTALLATION NOTE :...

  • Page 19: Safety Instructions For Installers

    INFINITE PLAY Directive 2012/19/UE (WEEE) SAFETY INSTRUCTIONS FOR INSTALLERS The crossed-out wheelie bin symbol marked on the product indicates This equipment is used in video door entry and home & building that the product must be assigned to a differentiated collection centre automation systems.
  • Page 20 InfinitePlay S.r.l. Via Antonio Ferrero, 9a 35133 Padova (PD) ITALY Tel. +39 049 706344 www.infiniteplay.com 18901083 INFINITEPLAY - ITALY...
