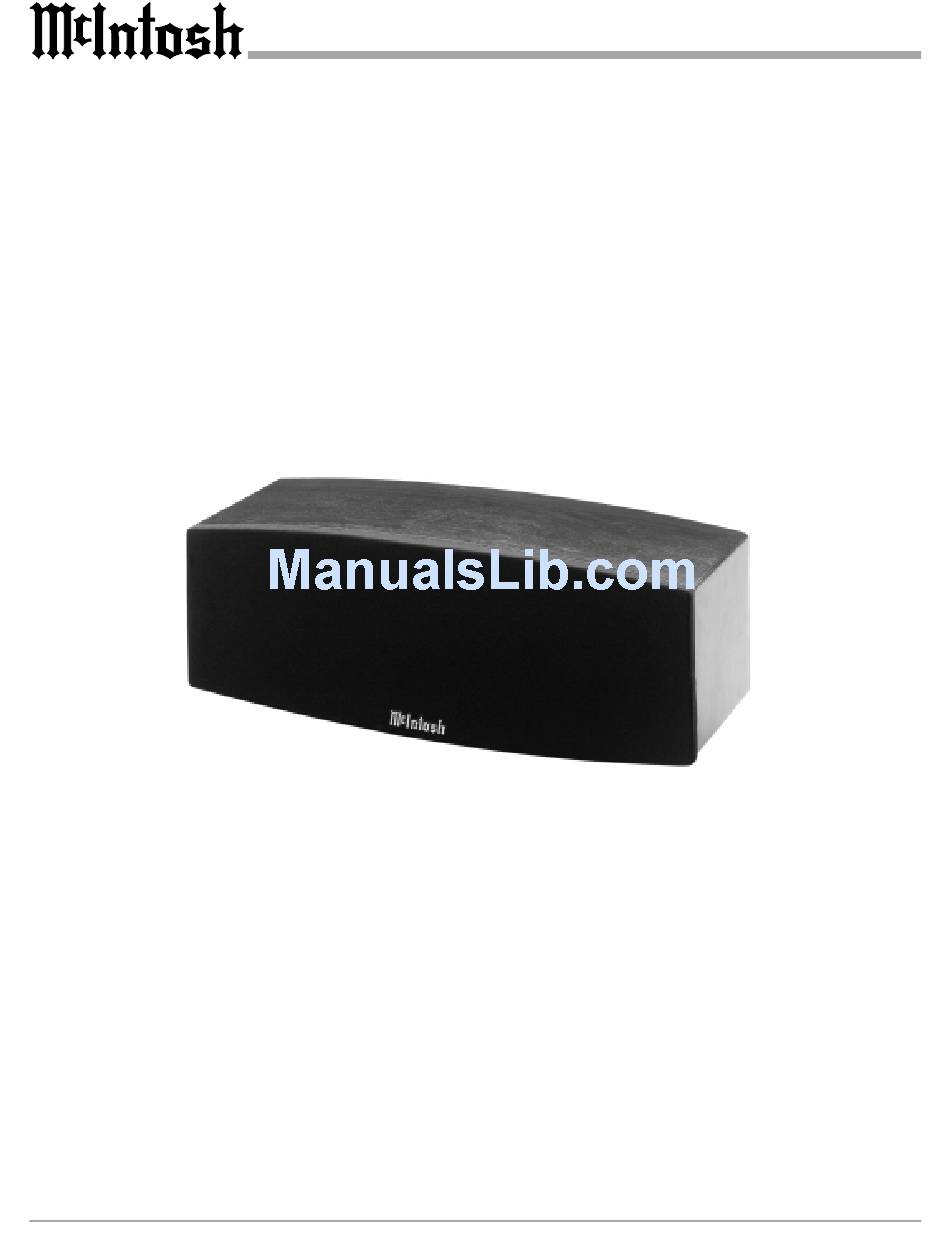

- Page 1 Owner’s Manual CS350 Loudspeaker System CS350 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Safety Instructions
7. Install in accordance with the manufacturer’s instruc- vice technician has used replacement parts specified by tions. McIntosh or have the same characteristics as the origi- 8. Do not install near any heat sources such as radiators, nal part. Unauthorized substitutions may result in fire, heat registers, stoves, or other equipment (including electric shock, or other hazards. -
Page 3: Table Of Contents
McIntosh products at: manual(s) for any component(s) connected to the CS350 Loudspeaker. McIntosh Laboratory, Inc. 3. The CS350 has built-in speaker protection in the form of three 2 Chambers Street automatic resetting solid-state devices as part of the Binghamton, New York 13903 crossover network. -
Page 4: Introduction
LD/HP midrange and five 1 inch dome tweeters. The greatly increased power handling at high frequencies. CS350 comes with a stabilizer bar that attaches to the back of the cabinet. This bar prevents the speaker from rocking • Patented LD/HP Technology when it is placed on its side. -
Page 5: Dimensions
Dimensions CS350 Dimensions The following dimensions can assist in determining the best location for your CS350 Loudspeaker System. There is additional information on the next page pertaining to in- stalling the CS350 into cabinets. Front View of CS350 with Grille Removed... - Page 6 Dimensions Side View of CS350 with Grille Side View of CS350 with Grille Removed...
-
Page 7: Installation
Locating your Loudspeakers tween the two loudspeakers should not exceed the distance The CS350 is designed to work primarily as a Center Chan- between the listener and either loudspeaker. If the speakers nel Loudspeaker in a Home Theater System, but will func- are too far apart relative to the listener, some imaging can tion as a Left or Right (Main), or Surround Loudspeaker. -
Page 8: How To Connect
How to Connect How to Connect Speaker Connections The McIntosh CS350 Loudspeaker System utilizes binding posts for speaker wire connections. Refer to figure 3. 1. Connect a loudspeaker cable from the black (negative - ) loudspeaker binding post to the negative or common Center Channel Output Terminal of the amplifier. -
Page 9: Front And Rear Views
Front and Rear Views Five 1 inch Tweeter Array 6-1/2 inch 4 inch LD/HP 6-1/2 inch LD/HP Woofer Midrange LD/HP Woofer Stabilizer Bar Connecting Terminals... -
Page 10: Specifications
Specifications Specifications Driver Complement Two 6-1/2 inch Woofers 4 inch Midrange Five 1 inch Dome Tweeters Impedance 4 ohms Nominal Frequency Response 80Hz - 20kHz + 2dB (Anechoic Response) Sensitivity 86dB (2.8V/1m) Crossover Frequencies 1.5kHz 250Hz Power Handling 350 Watts Maximum Dimensions 9 inches (22.5cm) Height, 25-1/2 inches (56.25cm) Width, 8-1/2 inches (21.5cm) Depth (including Grille) -
Page 11: Packing Instruction
Use the original shipping carton and interior parts only if they are all in good serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labo- ratory. - Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 McIntosh Part No. 040756...
