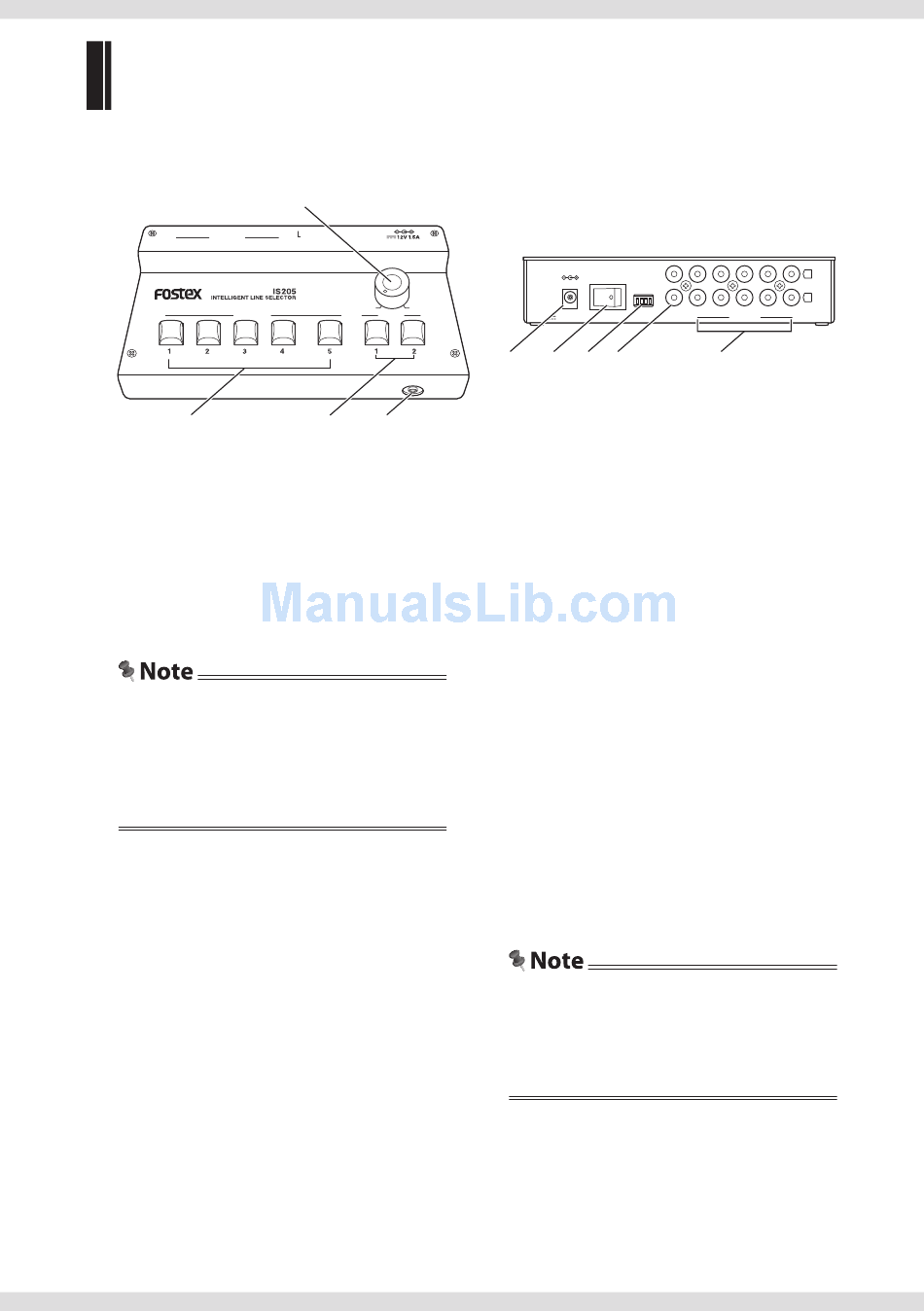

Part names and functions

Top panel

1 2
O U T P U T
①
① [OUTPUT] switches 1 - 5
Use to switch between outputs.
The color of the switches indicates their status.
Unlit: the switch is disabled (page 5)
Lights in green: the switch is enabled
Lights in yellow: the switch is selected
• You can select only one switch from
[OUTPUT1] to [OUTPUT4].
• The [OUTPUT5] switch can be turned on and
off independently. It is for subwoofers.
• If you press the selected switch again, the
output turns off (not selected).
② [INPUT] switches
Use to switch between input signals. The
selected switch lights in red.
③ [INPUT VOLUME] knob
Use to adjust the output level of the unit.
④ [INPUT2] terminal
Connect to a portable audio player or similar
using a stereo mini cable.
4
③
3 4 5
ON OFF
I N P U T 1 P O W E R
INPUT
VOLUME
MIN
O U T P U T INPUT
② ④

Rear panel

DC IN
MAX
12V 1.5A
⑤ ⑥ ⑦ ⑧
INPUT2
⑤ [DC IN] terminal
Connect to an outlet using the supplied AC
adaptor.
⑥ [POWER] switch
Turn the unit on/off.
⑦ DIP switches for setting configuration
([MODE] switch)
Use to configure various settings.
⑧ [INPUT1] terminal
Connect to an audio player such as a CD player
using an RCA pin cable.
⑨ [OUTPUT] terminal (1-5)
Connect to an active speaker or similar using an
RCA pin cable.
• Connect the line output of the audio player
to the [INPUT1]/ [INPUT2] terminal.
• Connecting to speaker outputs of power
amplifiers or similar is dangerous. Do not do
this under any circumstances.
