Fostex HP-A8 Firmware Update Manual

This document explains about the procedures of updating the HP-A8 firmware. Please read thoroughly for correct firm-
ware update.

• Formatting SD Card

1. If there is an SD card slot on your PC / Macintosh,
insert the SD card. If there is no such slot, prepare a
USB card reader with the SD card slot and connect
it to your PC / Macintosh USB port. Then, insert the
SD card into the SD card slot in the card reader. The

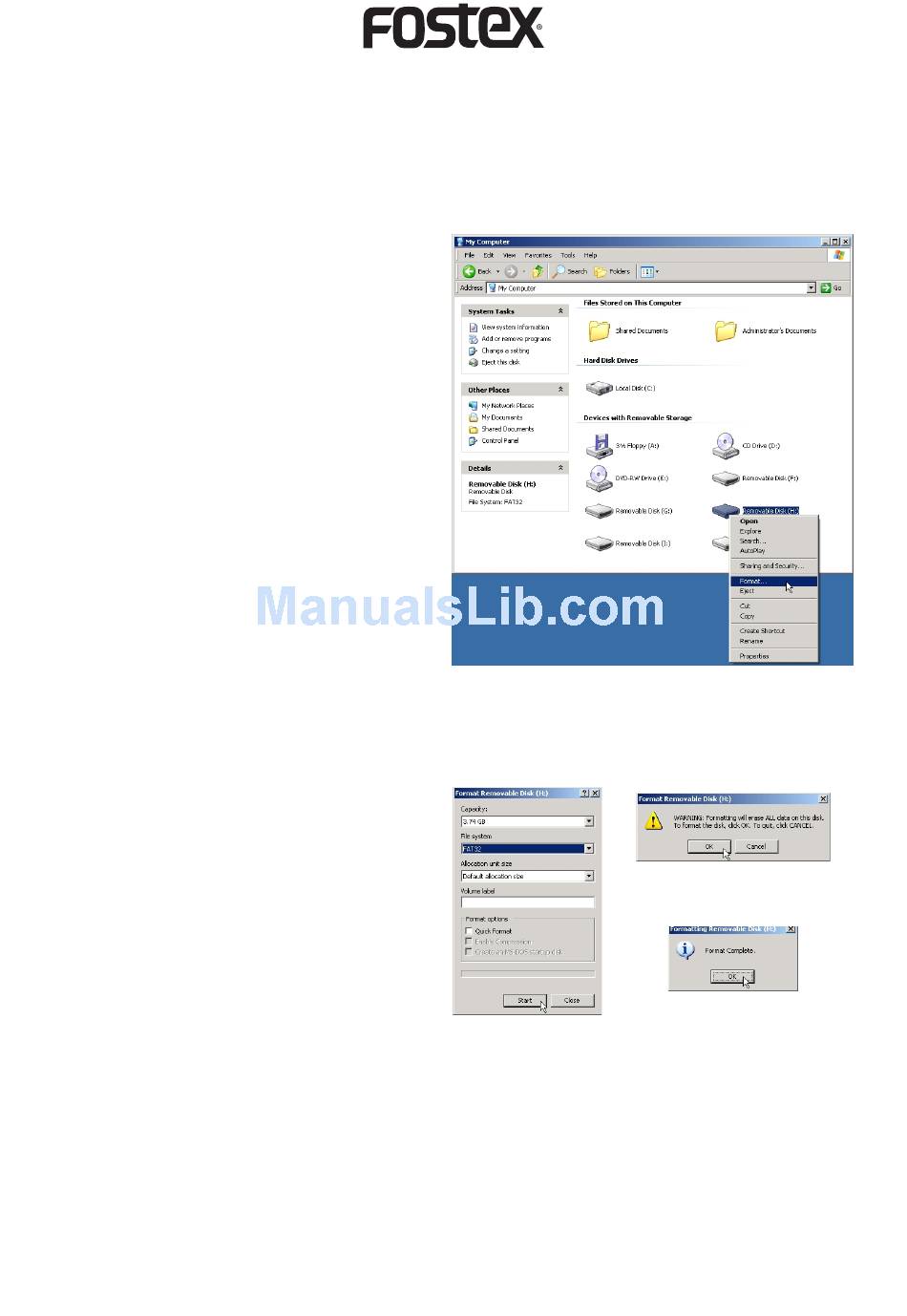

example on the right is the "My Computer" window
which indicates that a card reader is connected to
Windows XP PC. The SD card is recognized as "Re-
movable Disk (H:)".
NOTE: An SD card that you can use on HP-A8 is
the SD and SDHC card (up to 32GB capac-
ity). Please remember that you cannot use a
SDXC card with 64GB or more capacity for
the firmware update purpose.
2. Right-click the SD card (Removable Disk (H:)) icon and select the "Format..." menu.
3. The "Format Removable Disk (H:) windows will
appear. Select the "FAT32" file system and click the
"Start" button to start formatting the SD card. If you
do so, the WARNING window saying that "Format-
ting will erase ALL data on this disk. To format the
disk, click OK. To quit, click CANCEL." will appear.
Upon confirmation, click the OK button. If format-
ting is successfully completed, the window saying
that "Format Complete." will appear. Click the OK
button.
HP-A8 Firmware Update Procedures
How to update HP-A8 firmware
P-1
