- Page 1 USER MANUAL Universal Dual Headphone ® Bluetooth Wireless Audio Transmitter Model: AF-T1...
-
Page 2: Package Contents
PACKAGE CONTENTS Universal Dual Headphone Bluetooth Wireless Audio Transmitter ® Micro-USB charging Bluetooth cable Transmitter 3.5mm 3.5mm to audio cable RCA adapter TOSLINK Quick digital optical start S/PDIF audio guide cable... -
Page 3: Product Overview

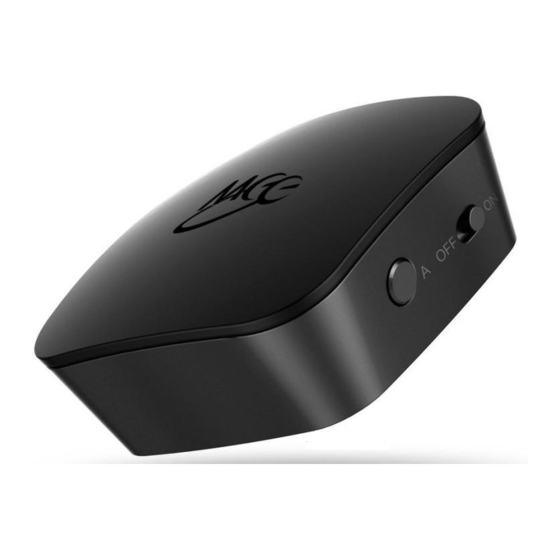

PRODUCT OVERVIEW Universal Dual Headphone Bluetooth Wireless Audio Transmitter ® Pairing button “B” Analog audio input (3.5mm) Indicator light “B” Digital audio input (TOSLINK optical S/PDIF) Indicator light “A” Power/charging indicator light Pairing button “A” Micro-USB power/charging port On/Off switch... - Page 4 COMPATIBILITY The Connect is compatible with any device that has one of the following audio outputs: 1. 3.5mm (1/8”) headphone jack 2. RCA audio jacks (red and white connectors) 3. TOSLINK digital optical (S/PDIF) connector The Connect can stream music to any Bluetooth audio receiver that supports the A2DP Bluetooth profile, such as a Bluetooth headphone, Bluetooth speaker, or dedicated A2DP receiver.
- Page 5 CHARGING To charge the Connect, plug the included Micro-USB charging cable into any powered USB port** and the charging port on the rear of the unit. Charge time is approximately 90 minutes. The green charging indicator light will pulse slowly while the Connect is charging. Note: If you use the Connect while plugged in to USB power, it is not necessary to charge the unit before using it, or to turn it off after each use.
- Page 6 SETUP: CONNECTING TO TV OR OTHER AUDIO DEVICE The Connect includes three connection options. Consult the user manual for your television or other device to find the appropriate connector to use for audio output (Audio Out). Option 1: Digital optical audio out (TOSLINK) Newer TVs are usually outfitted with a TOSLINK digital optical (SPDIF) connector.
- Page 7 SETUP (Continued): CONNECTING TO TV OR OTHER AUDIO DEVICE Option 2: RCA audio out (red and white connectors) Older TVs usually have analog audio output with RCA (red and white) connectors. To use the RCA output, attach the included RCA adapter to the 3.5mm stereo audio cable.
- Page 8 SETUP (Continued): CONNECTING TO TV OR OTHER AUDIO DEVICE Option 3: 3.5mm (1/8”) headphone jack Some TVs and most standalone receivers have a headphone jack on the front or side. To use the Connect with the headphone jack, plug the included 3.5mm stereo audio cable into the headphone jack on the TV and the 3.5mm input on the rear of the transmitter.
- Page 9 SETUP: PAIRING WITH BLUETOOTH HEADPHONES Before use, the Connect must be paired with at least one Bluetooth headphone or other Bluetooth audio receiver. Make sure your Bluetooth headphone or other device is turned off and within 1 meter (3 feet) of Connect and put it in pairing mode. With most headphones this is done by pressing and holding the Power/Multifunction button until the status indicator lights (typically red and blue) flash in an alternating pattern.
- Page 10 SETUP (Continued): PAIRING WITH BLUETOOTH HEADPHONES Optional: Pairing a 2nd Headphone The Connect can stream audio to two Bluetooth headphones simultaneously. A second headphone can be paired after one headphone is already connected (as indicated by a solid blue light on top of the unit). To pair the second headphone, put it in pairing mode and then press pairing button “B”...
- Page 11 SETUP (Continued): PAIRING WITH BLUETOOTH HEADPHONES Optional: Replace Paired Headphone Once the maximum of two connected headphones has been reached (as indicated by two solid blue lights on top of the Connect), additional headphones or other Bluetooth receivers can be paired in place of either of the connected headphones.
-
Page 12: Adjusting The Volume
ADJUSTING THE VOLUME Volume can be individually adjusted on each set of headphones paired with the Connect using the built-in volume controls on the headphone. With some TVs and connection options, TV volume may be further raised or lowered to change the volume of all headphones paired with the Connect. In this case, volume should be maximized on the TV and then adjusted via headphones for best audio quality. -
Page 13: Factory Reset / Clear Memory
FACTORY RESET / CLEAR MEMORY The Connect can be reset by holding pairing button “A” on the right side of the unit for approximately 5 seconds until the blue indicator light begins to blink. The unit will enter pairing mode and previously paired devices will be cleared from memory. -
Page 14: Troubleshooting
TROUBLESHOOTING Issue: Connect will not turn on; Green power light doesn’t turn on or turns on and then off Make sure the Connect transmitter is plugged into a powered USB port or the internal battery has been charged. The green power indicator light on the rear of the unit will light up when the unit is turned on. - Page 15 TROUBLESHOOTING (Continued) Issue: I cannot connect to my phone, tablet, or other device via Bluetooth The Connect is a Bluetooth transmitter. It cannot be connected with another transmitter such as a phone or tablet. It can only be connected with a Bluetooth receiver such as a Bluetooth headphone, speaker, sound bar, etc.
-
Page 16: Safety And Care
MEE audio and its logo are registered trademarks of S2E, Inc. All rights reserved. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MEE audio is under license. Other trademarks and trade names are those of their respective owners. - Page 17 www.MEEaudio.com support@meelec.com...
