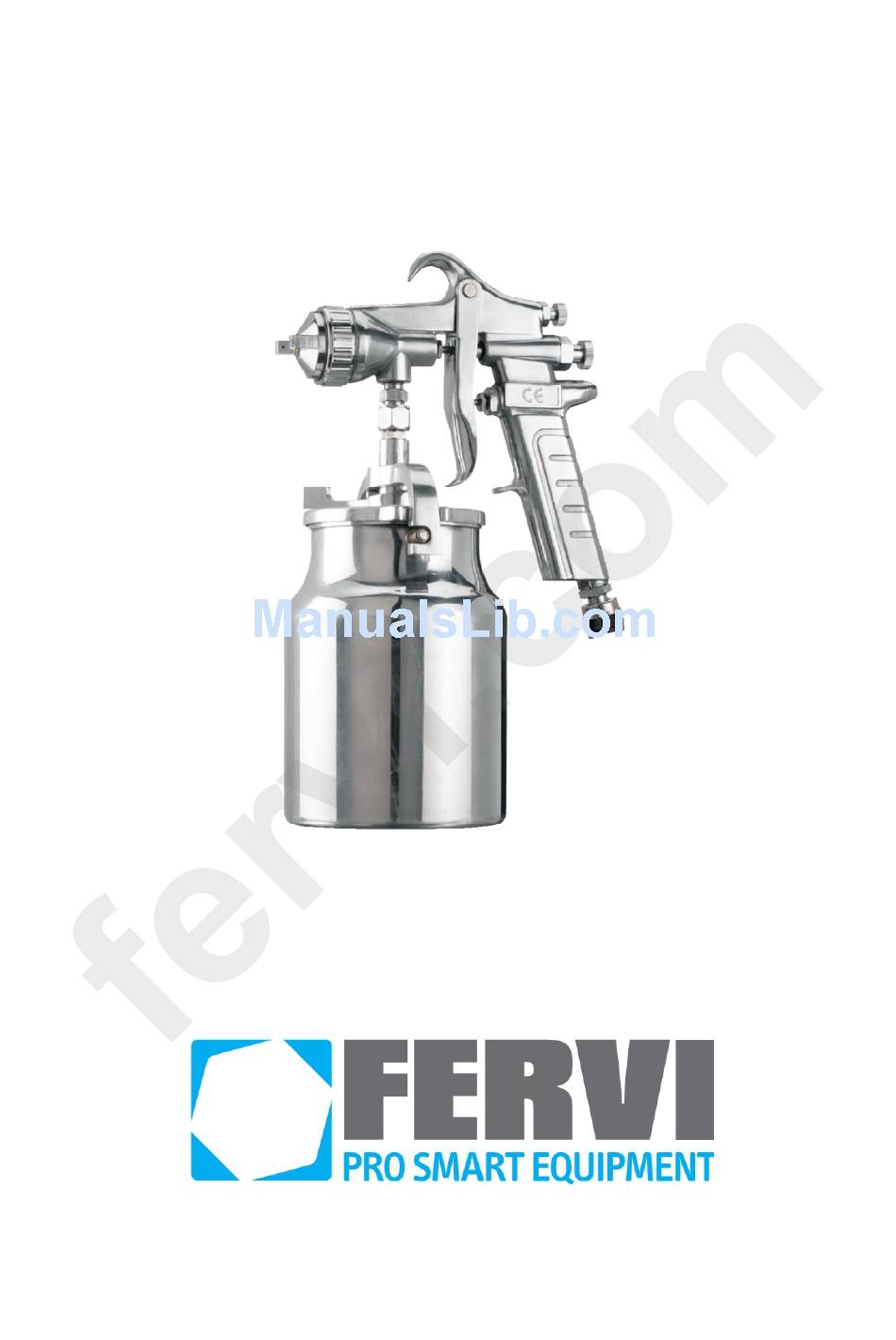

- Page 1 USE AND MAINTENANCE MANUAL Spray gun with fluid cup provided with bayonet lock Art. A162DS TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2...
-
Page 3: General Safety Instructions
HARDWARE 1 GENERAL SAFETY INSTRUCTIONS 1.1 Commissioning Before using this airbrush, some simple assembly is required. To properly assemble the airbrush, proceed as follows: 1. Screw on the compressed air connection and tighten it firmly using a wrench for hex nuts. Figure 1 - Quick coupling 2. - Page 4 HARDWARE 1.2 How to Use the Airbrush The minimum operating pressure is 0.2 – 0.3 Mpa. Adjust the amount of paint and air released from the nozzle using the adjustment screws. Figure 4 – Air outlet adjustments To begin painting, simply aim the airbrush at the element to be painted, keeping it at a distance of 150 - 200 mm from the surface and press the trigger.
-
Page 5: Technical Specifications
Paint adjustment screw Paint/air output nozzle Air connector Operating trigger Cup locking lever Air adjustment screw 2.1 Technical Specifications Model Art. A162DS Mass (g) 1014 Operating pressure (MPa) 4 ÷ 8 Accessories Maintenance kit gun nozzles (mm) Capacity (cm... -
Page 6: Maintenance And Cleaning
HARDWARE 2.2 Identification The following identification plate is located on the airbrush: Figure 7 – Identification plate 3 IMPROPER USE AND CONTRAINDICATIONS IT IS STRICTLY FORBIDDEN! To use the airbrush for purposes other than those for which it was intended. ...
