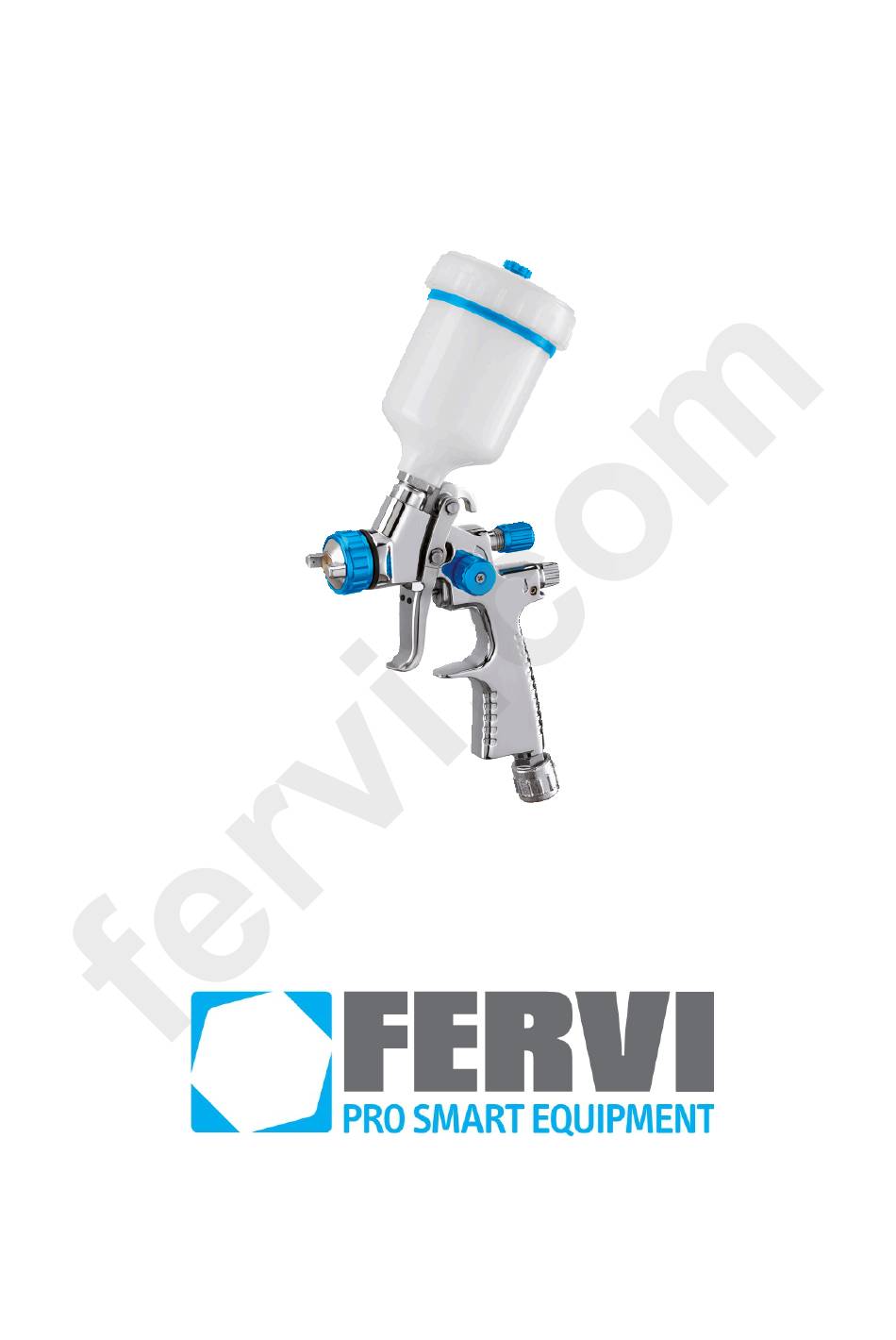

- Page 1 OPERATION AND MAINTENANCE MANUAL LVMP spray gun Art. A902A TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the product may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2...
-
Page 3: Table Of Contents
HARDWARE CONTENTS GENERAL SAFETY INSTRUCTIONS............. 4 Commissioning......................4 How to Use the Spray Gun ....................4 Personal Protective Equipment ..................5 Technical Assistance .....................5 DESCRIPTION AND INTENDED USE............6 Technical specifications ....................6 Identification ........................7 IMPROPER USES AND PRECAUTIONS ............8 MAINTENANCE AND CLEANING ..............8 Disposal ........................8 EXPLODED VIEW AND SPARE PARTS............ -
Page 4: General Safety Instructions
HARDWARE 1 GENERAL SAFETY INSTRUCTIONS 1.1 Commissioning Before using this spray gun, some simple assembly is required. To properly assemble the spray gun, proceed as follows: 1. Screw on the compressed air coupling and tighten it firmly using a hexagonal wrench. Figure 1 - Air inlet 2. -
Page 5: Personal Protective Equipment
HARDWARE To begin painting, simply aim the spray gun at the element to be painted, keeping it at a distance of 150 – 200 mm from the surface and press the trigger. While painting, move the spray gun from side to side to distribute the paint as evenly as possible. Do not point the spray at people or animals. -
Page 6: Description And Intended Use
HARDWARE 2 DESCRIPTION AND INTENDED USE The spray gun Art. A902A is a tool that uses compressed air to spray various types of paints. It is used for precision work, producing very thin lines, creating smooth surfaces with uniform colour, and blended tones. -
Page 7: Identification
HARDWARE 2.2 Identification The following identification plate is located on the spray gun, Art. A902A: Figure 6 – Nameplate PLATE IN ITALIAN PLATE IN ENGLISH Art. A902A Art. A902A Aerografo LVMP LVMP spray gun Pressione di esercizio 1.5 – 2.5 bar Operating pressure 1.5 –... -
Page 8: Improper Uses And Precautions
Contact the Dealer's Customer Service Centre where you purchased the items to order spare parts. 4.1 Disposal The spray gun Art. A902A is made of aluminium and the paint tank is made of plastic. Divide the materials for recycling. Respect the Environment! -
Page 9: Exploded View And Spare Parts
HARDWARE 5 EXPLODED VIEW AND SPARE PARTS Page 9 of 10... - Page 10 HARDWARE Ref. Description Ref. Description A902A/01 Gun body A902A/25 Nail A902A/02 Nozzle locking spring A902A/26 Air valve seal A902A/03 Spring seal A902A/27 Air valve A902A/04 Rubber sleeve A902A/28 Valve piston rod A902A/05 Sealing screw A902A/29 Valve spring A902A/06 Air flow ring...
