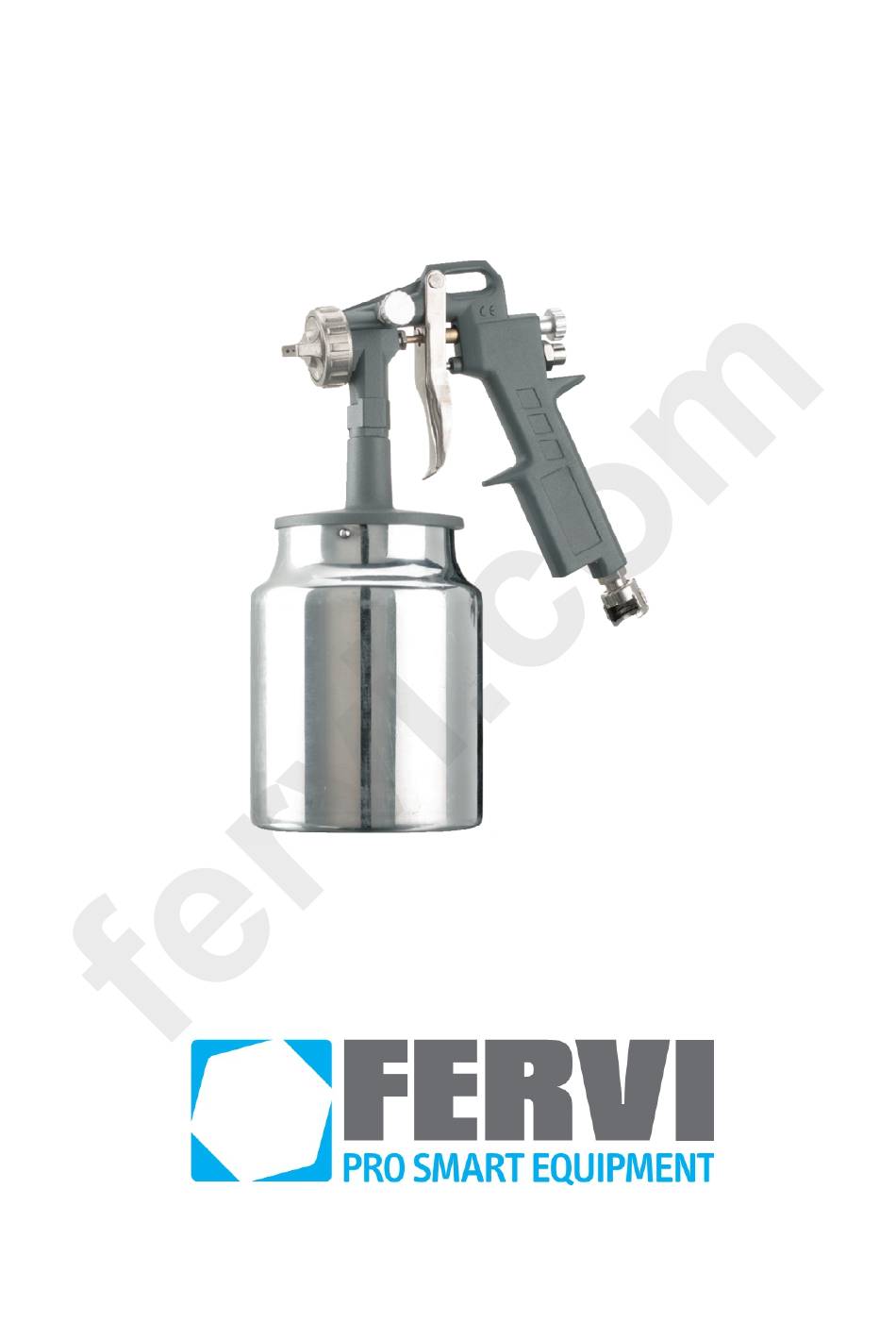

- Page 1 OPERATION AND MAINTENANCE MANUAL Spray gun with fluid cup provided with rapid lock Art. A162C TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the product may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2...
- Page 3 HARDWARE CONTENTS GENERAL INFORMATION................4 Commissioning......................4 How to Use the Spray Gun ....................4 Personal Protective Equipment ..................5 Technical Assistance .....................5 DESCRIPTION AND INTENDED USE............6 Technical specifications ....................7 Identification plate .......................7 IMPROPER USES AND PRECAUTIONS ............8 MAINTENANCE AND CLEANING ..............8 Page 3 of 8...
- Page 4 HARDWARE 1 GENERAL INFORMATION 1.1 Commissioning Before using this spray gun, some simple assembly is required. To properly assemble the spray gun, proceed as follows: 1. Screw on the compressed air coupling and tighten it firmly using a hexagonal wrench. Figure 1 –...
- Page 5 HARDWARE Risk of Fire or Explosion The solvents and paints can be highly flammable. Use the spray gun in well ventilated areas. Do not smoke or use an open flame when using the spray gun. Do not use solvents that may cause a chemical reaction with the aluminium and zinc which the gun is constructed of and trigger an explosion.
- Page 6 HARDWARE 2 DESCRIPTION AND INTENDED USE The spray gun is a tool that uses compressed air to spray various types of paints. It is used for precision work, producing very thin lines, creating smooth surfaces with uniform colour, and blended tones. Figure 4 –...
- Page 7 HARDWARE 2.1 Technical specifications Model Art. A162C Mass (g) Operating pressure (bar) 4 ÷ 8 Accessories Maintenance kit gun nozzles (mm) Capacity (cm 1000 Air consumption (l/min) 100- 200 2.2 Identification plate The following identification plate is located on the spray gun: Figure 5 –...
- Page 8 HARDWARE 3 IMPROPER USES AND PRECAUTIONS IT IS STRICTLY FORBIDDEN! To use the spray gun for purposes other than those for which it was designed. To use the spray gun in areas that carry a risk of fire or explosion. ...
