PARTS AND SERVICE DEPARTMENT
Nashville, Tennessee
615-889-8900 • Fax: 615-547-1000
www.Lochinvar.com
Replacement Parts List
Commercial Pool Heaters
32
33
38
41
39
40
19
®
Copper-Fin
2
CP 501 - 751
34
31
3
20
35
1
2
CP-RP-04
36
37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Copper-Fin2 CP 501 - 751 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lochinvar Copper-Fin2 CP 501 - 751

Summary of Contents for Lochinvar Copper-Fin2 CP 501 - 751

  • Page 1: Replacement Parts List

    PARTS AND SERVICE DEPARTMENT Nashville, Tennessee 615-889-8900 • Fax: 615-547-1000 www.Lochinvar.com Replacement Parts List Copper-Fin Commercial Pool Heaters CP 501 - 751 CP-RP-04 ®...

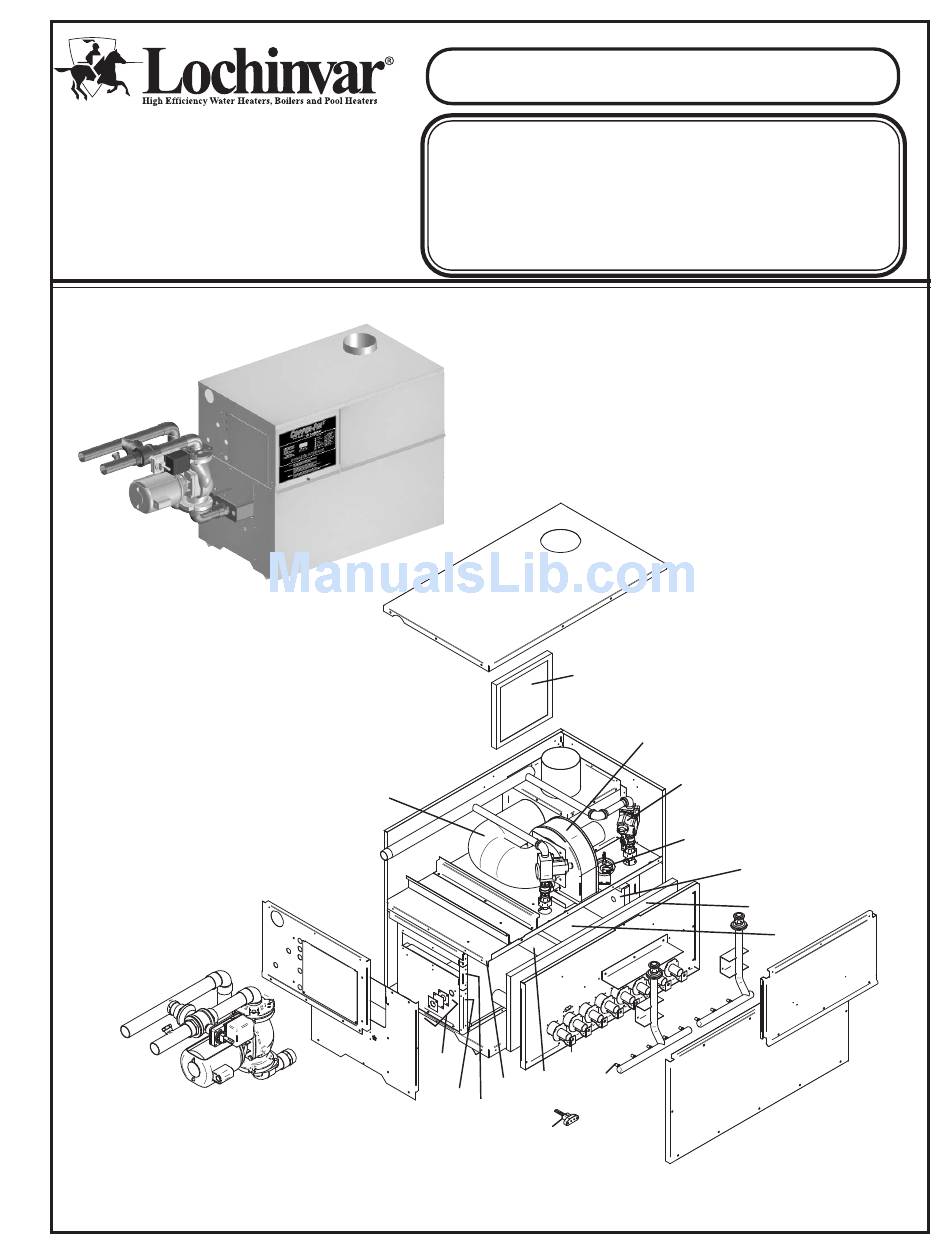

  • Page 2 CONTROL PANEL HEAT EXCHANGER ASSEMBLY ASSEMBLY SUPPLY MANIFOLD CP-RP-04 2 of 4...
