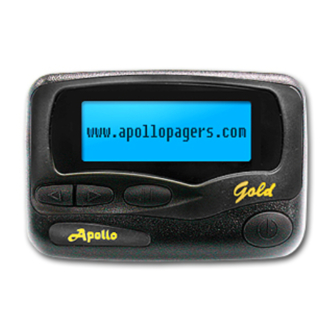

Apollo AL-A25e User Manual

Alpha-numeric display pager
Hide thumbs Also See for AL-A25e:
Table of Contents

Advertisement

Quick Links

Download this manual
* GL1 2 0 1 A2 5 *

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-A25e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Apollo AL-A25e

Summary of Contents for Apollo AL-A25e

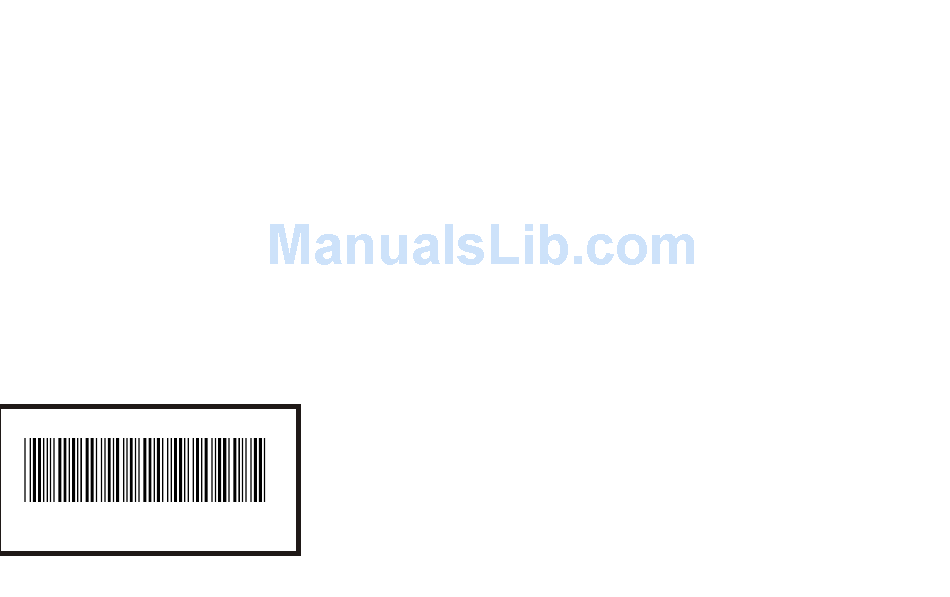

  • Page 1 * GL1 2 0 1 A2 5 *...
  • Page 2 Alpha-Numeric Display Pager Alpha-Numeric Display Pager Alpha-Numeric Display Pager Alpha-Numeric Display Pager MODEL : AL-A25e / AL-929 FP-A25e...

  • Page 6: Table Of Contents

    Control Buttons ........1 Features and Functions ......2-3 LCD Display ..........4 Function Operation........5-20 Reading a Message ......... Locking Message ..........Unlocking Message .......... Deleting Message ..........Deleting All Message ......... Move to Message Memo ........Setting Alert ............Pager On / Off ..........

  • Page 7: Control Buttons

    Control Buttons MODEL:AL-A25/929 MODEL:AL-A25/929 Function Button Select Button Read Button Select Button Read Button Function Button - to move the cursor - to read message - to display the function - to preview message by - to turn on back-light menu cycles - to turn on power...

  • Page 8: Set Mail Drop Alert

    Set Mail Drop Alert To move the cursor to the Mail Drop. Press , to display the function menu. Press , to move the cursor to set mail drop alert ( Press , to activate the function .Or press , to exit the function .

  • Page 9: Battery Gauge

    Error Message If it is received the error message. symbol is shown in the top left-hand corner of the display , indicates the message status as a Error message. Battery Gauge The battery indicator is located on the status screen and keeps you informed of battery energy level.

  • Page 10: Features And Functions

    Features and Functions 4-Line , 84 English Alpha Character Memory Easy-To-Read Back-Lit Display Up To Memory Capacity 28,627 Characters. 16 Memory Slots + Message Full 10 sets Personal Message Memory : 10 sets Mail Drop Available Show Time Of Day And Date User Selectable 12 / 24 Hour Clock Message Date And Time Stamping Incomplete Massage-In Indication...
  • Page 11 Low Battery Alert , Low Battery Indicator Zoom The Display - To Enlarge Message For Easy Read Ability Message Full Indication , Message Full Auto Storage Message Preview For A Quick Look At Each Message Message Move to Memo ( User selectable ) Service Area Indication 5 Built-In Alarm Clock 4 Beep Alerts / Silent Vibration / Silent then Beep / 8...

  • Page 12: Duplicate Message

    Backlighting You can manually activate the back-lit at any time by pressing and holding for three seconds . If no other buttons are pressed, the back-lit automatically turns off when the pager returns to the standby mode . Duplicate Message The pager automatically covers by the latest messages if it is received the same message.

  • Page 13: Reading Full Message

    Reading Full Message Press , to move the flashing icon to the symbol. Press , to read message. When the symbol is shown in the top left-hand corner of the display , indicates the message status as a full message.

  • Page 14: Lcd Display

    LCD Display Function Menu Symbols Message Status Symbols Pager Status Symbols POWER ON INDICATOR UP OR ESCAPE MESSAGE IN MEMORY MUSIC ALERT MESSAGE SELECTING SET ALERT BEEP ALERT PAGER OFF MESSAGE LOCK IN MEMORY AUTO SLEEP INDICATOR MESSAGE LOCK SELECTING SET AUTO SLEEP ALARM INDICATOR SET ALARM...
  • Page 15 Receiving And Reading Your Message A flashing symbol indicates you have a message has not been read.(The symbol of mail drop shows on screen by flashing). Press or , to preview the message. Press , to display your message.,Press again, to view the next screen.

  • Page 16: Reading Personal Message

    Reading Personal Message Press , to move the flashing icon to the symbol. Press , to read message. When the symbol is shown in the top left-hand corner of the display , indicates the message status as a personal message.
  • Page 17 Moving the Cursor Press to move cursor to the icon flashes, indicating the present position of the message you are going to read. Press , the screen shows " UP OR ESCAPE ". Press once, the flashing icon can be move to the top row or the second row.,such like "MAIL DROP AREA"or"MESSAGE AREA".

  • Page 18: Locking Message

    Locking Messages Press , to move the cursor to the desired flashing symbol Press , press to select the desired message to lock. Press , to lock the message. . The symbol is displayed , indicating the status of the message in memory.

  • Page 19: Unlocking Message

    Unlocking Messages Press , to move the cursor to select the message to unlock. Press , then , press or , to " MESSAGE UNLOCK " Mode. Press , to unlock the message.

  • Page 20: Reading Mail Drop

    Reading Mail Drop Press twice , to move the flashing icon in the second row. Press , to read message or press , to move the icon to the desired Mail drop. j The features allows 14 sets Mail Drop...
  • Page 21 Setting Zoom In / Zoom Out Press ,then press , to "ZOOM IN".(symble ), Then, press to confirm.. The letters on screen enlarge and become two lines to read. Or press to move the cursor again to " ZOOM OUT " (symble and press to complete.

  • Page 22: Deleting Message

    Deleting Messages Press , to move the cursor to select the message you desire. Press to read the message. Press , press , to display " MESSAGE DELETE " Mode. When " MESSAGE DELETE ? " is displayed on the screen , press to delete the message.

  • Page 23: Deleting All Message

    Deleting All Messages ( All unlocked and read messages ) Press , press , to " DELETE ALL " Mode . When " DELETE ALL ? " is displayed , Press ,all unlocked and read messages are deleted.

  • Page 24: Setting Scroll

    Setting Scroll Press to activate the function. When the Auto scroll is set, the symbol is displayed on screen.
  • Page 25 Setting Scroll Press , then , press , to " SET SCROLL " Mode . Press , to enable scroll automatically. Press , to select the scroll speed. -- slow. -- normal. -- rapid. -- off...
  • Page 26 Move Message To Memo Press , to move the cursor to the desired storing message. Press to read the message. Press , and press once, to move to " MOVE TO MEMO " Press , to move the flashing icon message automatically into your memo mail .

  • Page 27: Setting Alert

    Setting Alert Press , then , press once to display " SET ALERT " Mode . Press , to enable "SET ALERT". Press , to move the cursor to the desired alarm mode .( Alert / Musical / Vibration Sleep are optional ) Press or , to move to the...

  • Page 28: Setting Time And Date

    Setting Time And Date Press , then , press once until "SET TIME " Mode is displayed. Press , to enable set time. . Press , to move the cursor to the hour / minute digit .Then press to adjust each set of digits : AM/ PM/24 hr / month / day.
  • Page 29 Setting Alarm ( 5 alarms ) Press , then , press "SET ALARM "Mode. Press , to enable. Press , tomove the cursor. Press , to set the alarm status either alarm enabled , alarm disabled or set time. Press setting the alarm is completed.
  • Page 30 Setting Alert symbol is displayed if the message receiver is in the audible or musical mode . symbol won't display on screen if the receiver is in the silent mode or sleep mode.

  • Page 31: Turning Your Pager Off

    Turning Your Pager Off Press , then , press to " PAGER OFF " mode. Press , till " PAGER OFF ? " appears on the screen. Press , to turn the pager off . After turning your pager off , the screen is empty.

  • Page 32: Setting Auto Sleep

    Setting Auto Sleep Press , then, press display " Auto Sleep " mode. Press , to enable " Auto Sleep Set " Mode. Press , to select "open" or "close" (symbol ) and adjust the digits, press for moving the cursor.
