Page 1: Installation Manual

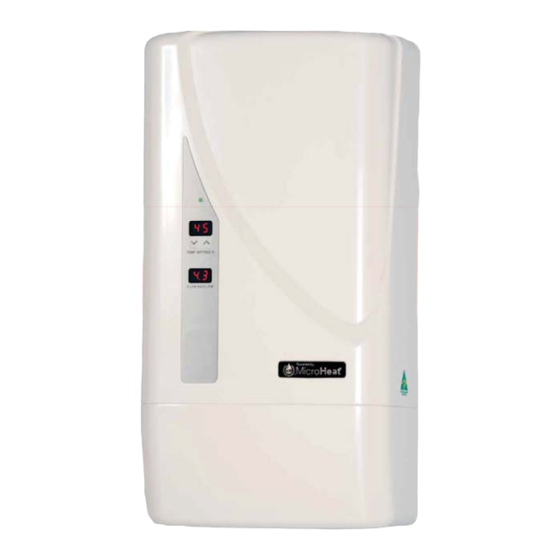

Hot water just got smarter Continuous Flow Electric Water Heater INSTALLATION MANUAL CFEWH SERIES 1-10 Single Phase CFEWH Series 1-10 Premium Model. Extension pipe cover sold separately. www.microheat.com.au... -
Page 2: Table Of Contents
All Rights Reserved. MicroHeat and its associated logo are Registered Trademarks of MicroHeat Technologies Pty Ltd. MicroHeat products are manufactured under one or more Patents, which are in force. The Product is Patent Cooperation Treaty (PCT) Protected, and Trademarks Protected... -
Page 3: Introduction
Output Water RED/GREEN indicator LED. Temperature and Flow Rate IMPORTANT Please ensure you read through the Installation Checklist on page 6 before commencing installing any unit. CFEWH SERIES 1 - 10 INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 4: About This Product
About This Product Hot water just got smarter... - Page 5 9.6kW – however, if it’s The MicroHeat difference a pleasantly warm 25°C, it will only use 7kW. That’s 20% MicroHeat designed and developed a method of heating less energy consumption – making a further contribution water using electrode technology that is completely towards lowering power bills.
-
Page 6: Pre-Installation
MicroHeat nor its Distributors will be liable for any damages due to failure to comply with the installation and operating instructions outlined in this manual or through improper use. -
Page 7: Installation Locations - Options
Hot Water OUT Pre-set Temperature NOTE This appliance can also be fitted as a Tandem Hot Water Service. Please refer to the Tandem Hot Water Service Guide for full information. CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 8: Component Guide
Pre-installation Component Guide This is an at-a-view guide to the 12 steps required to install the unit. It will allow you to become familiar with the component parts of the unit and will assist you during the installation process. Full details for wall mounting, electrical and plumbing installation are provided in the following sections. -
Page 9: Installation
LED (16) on the Exterior Cover (10). of the ORANGE LED). If there is no power supplied to the unit, the LED will not be illuminated. CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 10: Exterior Cover Removal And Replacement
Installation Exterior Cover Removal and Replacement The procedure for removing the Exterior Cover requires the following steps: Step 1 Find a clean flat surface and place the unit on its back. Using both your thumbs and forefingers, grip the Exterior Cover (10) firmly along the bottom of the unit, and push the cover slowly up to separate it from the Body of the unit. -
Page 11: Mounting To The Wall
Body must NOT be drilled, note: "NO DRILL" symbols located on Flange LQ PP LQ PP LQ PP LQ PP Mounting Screw LQ PP LQ Hole Locations PP CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... - Page 12 Installation Mounting to the Wall (cont.) IMPORTANT When mounting the unit to a wall, it is very important that no holes are drilled within the area shown below in RED. The Cable Gland Fitting hole (15) must not be opened out. Holes drilled within this area, or opening out the Cable Gland Fitting hole, will make the unit inoperable and irreparable.
-
Page 13: Connection To Plumbing
(6). outlet to be connected to the hot water faucet/valve. Ensure the Inlet Filter (13) is installed as shown. HOT WATER COLD WATER OUTLET INLET INLET FILTER CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... - Page 14 A NON-RETURN TYPE VALVE IMPORTANT MicroHeat nor its Distributors will be liable for any damages through failure to comply with the installation and operating instructions outlined in this manual – specifically in this instance where the specified water pressure limiting valve and shutoff valve type, as indicated, must be...
- Page 15 0HWDO RU SODVWLF ROLYH Braided Hose with seal ƒ Straight Copper Tube PLQ WR PLQ ƒ 0HWDO RU SODVWLF ROLYH CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd...
-
Page 16: Connection To Power
Installation Connection to Power The unit must be connected to LIVE-NEUTRAL/GROUND (LNG) Electrical Mains Supply. The appliance must be connected to the mains supply with fixed wiring. The appropriate mains isolation switch must be incorporated in-line with the fixed wiring electrical supply. IMPORTANT This unit is classified as a Class I Bare Element Water Heater. - Page 17 Assembly (PCBA) Display PCB PCBA Reset Terminal Button Block The earth bracket wire provided must ALSO be connected to the Terminal Block, together with the electric mains earth connection. CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd...
-
Page 18: Preparation For Use
Installation Preparation for Use After installation, this two step procedure must be followed. The unit must be primed – this is required only once – nominally at installation. (Priming is only required when the electricity supply to the unit has been turned off/removed from the unit – for example, after a power failure or an isolation switch OFF condition). -
Page 19: Reference Section
Section 1.9.2 (a). Standards Water Contamination WaterMark AS/NZS 4020 & AS/NZS 3498 Electrical Safety AS/NZS 60335.2.35 & IEC 60335.2.35 IP Rating IP44 CE/C-Tick CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 20: Flow Rates And Output Water Temperature
Reference Flow Rates and Output Water Temperature Flow rate in (ltr/min), related to output water temperature (°C) and optimised electrical energy usage (kW). The incoming water temperature will vary during Summer and Winter. The following tables show the hot water output temperatures attainable at various flow rates, for each of the CFEWH SERIES 1 Models available. -
Page 21: Dimensions
Reference Dimensions Outside Cover Outside Cover Extension PP PP CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 22: Diagnositics And Error Descriptions
Reference Diagnositics and Error Descriptions Error Description (Cause) Error Code Error Type LED Display Not powered No error No colour Normal operation standby No error Slow Flashing GREEN Normal operation – heating No error Fast Flashing GREEN Water conductivity too low No error ORANGE In Priming Mode... -
Page 23: Manual Intervention
There are NO user serviceable parts inside the housing, so no further action can be taken. • Call for a qualified Service Technician/Installer to attend. 3. Reconnect the Connecting Cable (19) and replace the Exterior Cover. CFEWH SERIES 1-10 | INSTALLATION Manual ©2014 | MicroHeat Technologies Pty ltd... -
Page 24: Maintenance
Reference Maintenance The unit is designed to provide long and reliable service. Actual life expectancy will vary with water quality and use. The unit itself does not require any regular maintenance. The CFEWH SERIES 1 has a projected Mean Time Between Failure (MTBF) of 925 hours/17,500 cycles. However, to ensure consistent water flow, it is recommended to periodically remove scale and dirt that may build up in the Inlet Filter (13), the faucet or in the shower head. -
Page 25: Warranty
HEATER (CFEWH) SERIES. For the MicroHeat Technologies Pty Ltd Continuous Flow Electric Water Heater SERIES (“CFEWH”), MicroHeat will repair or, if necessary, at its sole discretion, replace the CFEWH, which falls within the Warranty Periods and Territory specified below, subject to the warranty conditions and the warranty exclusions. -
Page 26: Notes
Notes... -
Page 27: Contact Details
Contact Details For technical support during or after installation phone 03 9681 7088 MicroHeat Technologies Pty Ltd Unit 6, 38-42 Sabre Drive PORT MELBOURNE VIC 3207 AUSTRALIA www.microheat.com.au Patent Cooperation Treaty (PCT) Patent Protected. AS/NZS 3498 IEC 60335.2.35 AS/NZS 60335.2.35... - Page 28 Hot water just got smarter DISTRIBUTED BY: ISSUE 3 February 2014...
