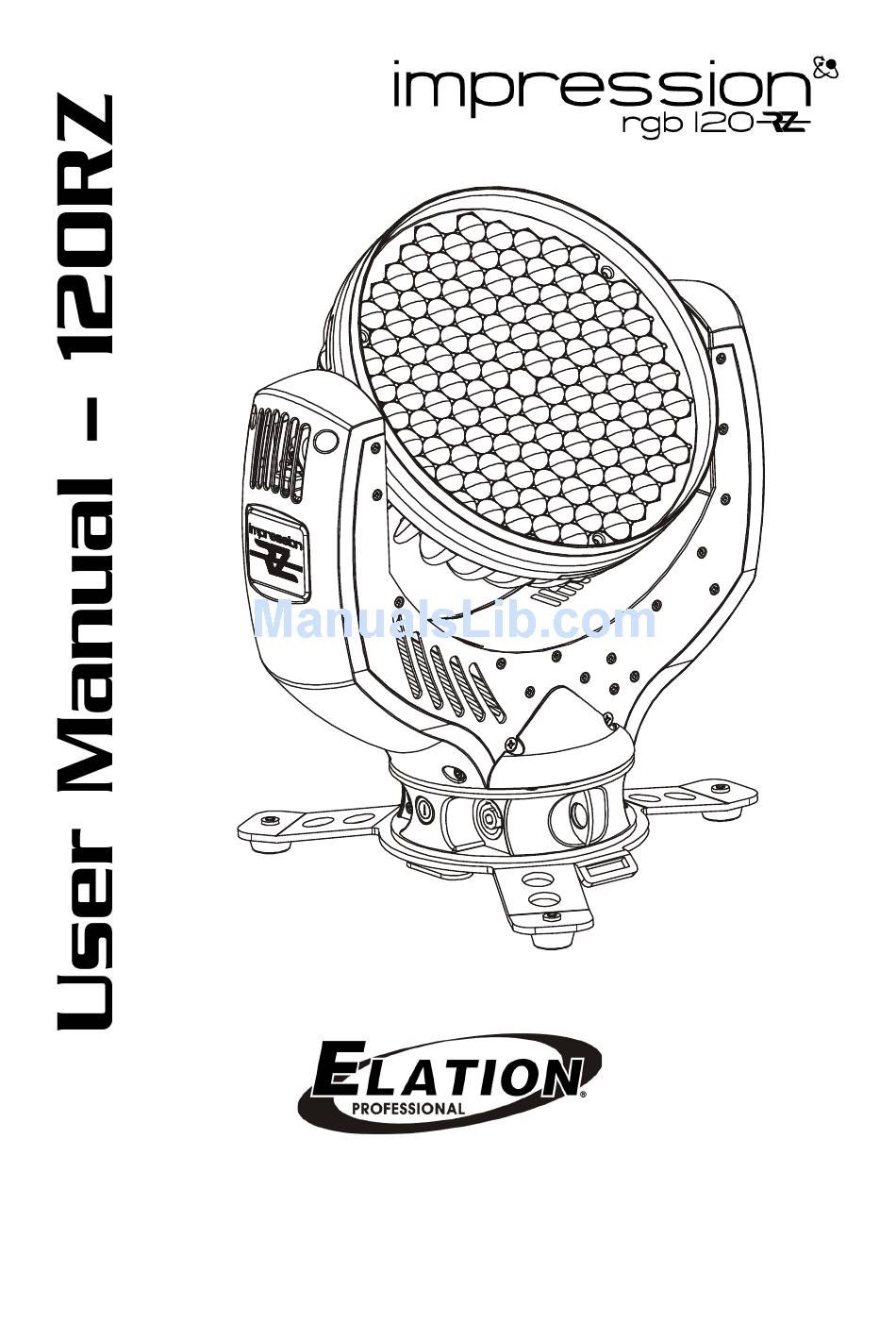

Software version 1.00/01
(DMX manual version 1.0)
Elation Professional™
6122 S. Eastern Ave.
Los Angeles CA. 90040
http://www.ElationLighting.com
R
G
B
R
G
B
R
G
B
1
2
0
1
2
0
1
2
0
R
Z
R
Z
R
Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the impression rgb 120rz and is the answer not in the manual?

Questions and answers

Related Manuals for Elation impression rgb 120rz

Summary of Contents for Elation impression rgb 120rz

  • Page 1 Software version 1.00/01 (DMX manual version 1.0) Elation Professional™ 6122 S. Eastern Ave. Los Angeles CA. 90040 http://www.ElationLighting.com...
  • Page 2 Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 3: Table Of Contents

    3-Pin to 5-Pin Conversion……………………………..………………………………. 17 d. Fixture DMX Addressing.……………..……………………..………………………… 17 Fixture Menu..………………………………………….……………………………..………… 19 DMX Traits…………………………………………………….………………………………… 23 Cleaning and Maintenance……………………………………………….…………………… 28 Technical Specifications……………………………..…………………...………….………… 29 Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 4: General Information

    You may also visit us on the web at www.elationlighting.com for any comments or suggestions. For service related issue please contact Elation Professional®. Service Hours are Monday through Friday 8:00 a.m. to 5:00 p.m. Pacific Standard Time.

  • Page 5: Warranty Registration

    This fixture operates with extremely high voltages. Shock may occur if this fixture is opened during use. All electrical connections must be performed by qualified personal. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 6: Safety Instructions

    7. To allow a secure operation, follow also the Installation guide described in chapter 0. Operating the Impression 120RZ without suitable safety aids like Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 7 Safety cables or clamps/hooks can increase the risk of an accident. 8. Qualified or certified Elation staff should perform all repair, maintenance, and installation work. You need to pay attention to the common rules of technology that are not explicit mentioned in this manual.

  • Page 8: Fixture Overview

    5. Power On/Off 6. DMX- Output (3 pole) 7. DMX- Input (3 pole) 8. Micro-fuse 5x20mm, T5A 9. Mains supply (Powercon) 10. 2x Safety eyes Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 9: Mounting And Installation

    For proper installation see “Mounting and Installation” on page 12. 5. Power Switch – The switch is used to control main power to fixture’s Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 10 In the event of fuse failure, always be sure to replace this fuse with an exact match unless otherwise instructed by an authorized Elation technician. 9. Powercon Connector – This power jack is designed to be used only with the Neutrik Powercon adapter included with your fixture.

  • Page 11: Mounting And Installation

    In addition the front side of the system is marked with (FRONT) as this is important for an even orientation during installation. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 12: Mounting Positions

    (clamp) which is mounted directly to the bottom side of the system. It is fixed centrically with a M10x16 mm thread bolt. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 13 In addition it allows a concentrically position between two truss belts. Never use the clamp mounting procedure detailed in the illustration above for side mounting. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 14: Securing

    3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] The DMX- Addressing starts at the DMX- Address [001]. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 15: Understanding Dmx

    DMX cable rated at 120 ohms, this cable is designed for DMX transmission and may be purchased from your Elation dealer or at most professional lighting retailers. Your cables should be made with a male and female XLR connector on either end of the cable.

  • Page 16: Dmx Connections

    XLR input and output connectors. Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™. DMX-512 connection with DMX terminator A DMX terminator should be used in all DMX lines especially in longer runs.

  • Page 17: 3-Pin To 5-Pin Conversion

    (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease the possibilities of erratic behavior. 5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission in place of 3-pin.
  • Page 18 - The DMX cable or connector is defective. - A DMX terminator has been inserted into the last fixture in your DMX chain. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 19: Fixture Menu

    Confirm and save it with the Enter-key (the display shows OK). Push the Mode-key to cancel the entry and go back to the main menu. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 20 Internal data and function diagnose Int-Err Show the present PFC voltage Voltage Pos Feed Internal data and function diagnose Tilt Delta Temperature Indicates the arm temperature Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 21 Fixture works in "Compressed" mode  see also Compressed section 0 below Fixture works in "Normal" mode  see also section Normal 0 below Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 22 ON/OFF: Adjustments for white-balance are White Mode activated Reverse ON/OFF: Invert Pan movements Reverse Tilt ON/OFF: Invert Tilt movements Reset RESET and new calibration for all functions Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 23: Dmx Traits

    0..15 0..0F 0..5,5 white balance White-Mode White balance used 16..31 10..1F 6..12,5 Fan min. as long as temp. < 90°C 224..229 E0..E5 88..89,5 Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 24 3200K and 7200K. Hence a color correction for others than white is not intended. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 25 251..255 FB..FF 99..100 10) Dimmer Dimmer 0 - 100% 0..255 0..FF 0..100 11) Zoom Spot - Flood 10° - 26° 0…255 00…FF 0…100 Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 26 The Rainbow-effect will run synchronously only if it will be started going out from one of the predefined colors (see also before). Locking and unlocking the Control Panel Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 27 N = Normal Mode / C = Compressed Mode / H = High Res. Mode N = Tilt normal / I = Tilt inverted N = Pan normal / I = Pan inverted Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 28: Cleaning And Maintenance

    • Never let optical parts come into contact with oil or fat. • Before running the fixture wait until all parts are dried up. • Never tough lenses with bare fingers. Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)

  • Page 29: Technical Specifications

    Weights and Measures Width of the base 340 mm Length of the base 145 mm height (head vertical) 370 mm Weight (net) 8.0 kg Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 30 Max. Power-Mode........15 Weights and Measures ......... 20 Menu Field ............ 11 White-Mode..........15 Micro-fuse ............. 10 Mode-key ............ 11 Mounting ............7 Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 31 NOTES: Elation Professional • Los Angeles, CA. Error! Reference source not found. / Error! Reference source not found.)
  • Page 32 Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca. 90040 323-582-3322 Voice / 323-832-9142 Fax www.ElationLighting.com...
