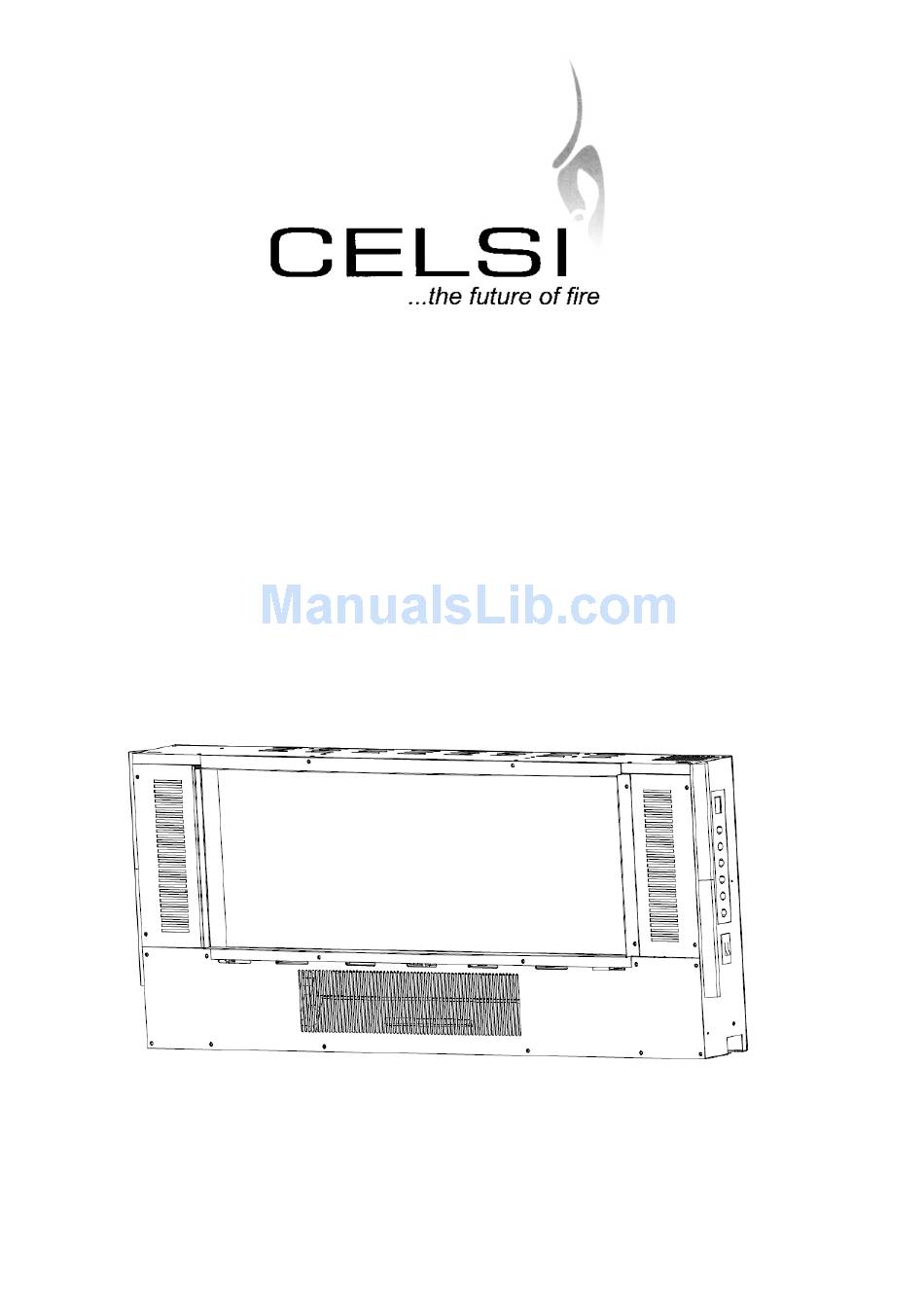

Celsi CFECRORE Instructions & Operating Manual

Wall mounted electric heater with remote control

Advertisement

HOMEOWNERS
INSTRUCTIONS & OPERATING MANUAL
WALL MOUNTED ELECTRIC HEATER WITH REMOTE CONTROL
Model No. CFECRORE & CFECEORE
Article No.MH36BLC/P & MH27BLC/P
(COPANY FULL NAME)
Page 1
Factory No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFECRORE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Celsi CFECRORE

  • Page 1 HOMEOWNERS INSTRUCTIONS & OPERATING MANUAL WALL MOUNTED ELECTRIC HEATER WITH REMOTE CONTROL Model No. CFECRORE & CFECEORE Article No.MH36BLC/P & MH27BLC/P (COPANY FULL NAME) Page 1 Factory No.
  • Page 2: Important Instructions

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER IMPORTANT This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved! Children shall not play with the appliance! Cleaning and user maintenance shall not be made by children without supervision.
  • Page 3 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER RESET unless the obstruction is removed and the appliance cools. If the heater is still not operating after 10 minutes disconnect the appliance and seek expert advice. · If the supply cord is damaged it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
  • Page 4: Installation Preparation

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER DO NOT use this appliance in the immediate surroundings of a bath, shower or swimming pool. Make sure it cannot fall into water. Never touch the appliance with wet hands. DO NOT let bare skin touch any hot surfaces to avoid burns and personal injury. This heater is hot when in use.
  • Page 5 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER TOOLS REQUIRED INSTALLATION PREPARATION WANING! DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT AND TO REPLACE ANY PART OF THE ELECTRICAL SYSTEM IF NECESSARY. ·...
  • Page 6: Installation Instructions

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER WARNING! KEEP DRAPERY AND OTHER FURNISHINGS AT LEAST 3’/0.9M FROM THE FRONT AND SIDES OF THE ELECTRIC HEATER CLEARANCE TO COMBUSTIBLES Sides…………… 4in. (100mm) Floor…………… 15 3/4 in. (400mm) Top…………….. 0 in. (0mm) Back……………...
  • Page 7 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER INSTALLATION INSTRUCTIONS Step 3: Take away the mounting bracket and then drill four 8mm diameter holes on the wall. Insert plastic wall plug into the drilled holes (Figure 3). If installing the appliance on a solid wood wall there is no need to drill the holes in the wood and no need for the plastic wall plug.
  • Page 8 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER Step 5: Hang the appliance on the hooks at the bottom of the bracket and push the top of the appliance into the mounting bracket. Now fix the appliance to the mounting bracket by refitting the two M5×8 screws which were removed in step 1(Figure 5).
  • Page 9: Operating Instructions

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER Step 7: Fit the appliance front fascia as shown below. (Figure 6) Secure the fascia by fasten two M4×6 screws on both side. M4 x 6 Screw Figure 6 OPERATING INSTRUCTIONS CAUTION! THE UNIT’S POWER CORD MUST BE CONNECTED TO A PROPERLY EARTHED AND PROTECTED 240V OUTLET.
  • Page 10 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER Figure 2 ELECTRICAL SPECIFICATIONS Voltage: 230 V AC, 50 Hz Total Watts: 2X900 Watts Figure 3 (686)mm x 110mm x 357mm Dimensions: 916 OPERATING INSTRUCTIONS  The Fireplace/Heater Unit On the top right side plate of the fireplace/heater unit is the control panel. This panel contains the buttons to properly operate the fireplace/heater unit.
  • Page 11 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER The upper segment of the control panel, (1), is the Main Power button. As the name infers, the Main Power button controls the overall power to the fireplace/heater unit. Pressing the button once turns power on to the entire unit, and pressing the button again will turn power off to the entire unit.
  • Page 12: Operation

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER OPERATING INSTRUCTIONS The next segment, (4), H_heat Control , is a high heat button for the heater. Pressing the button once ,the high heat function is on, and pressing the button twice ,the high heat funciton is off. When the Main Power button is on, pressing and holding this H_heat Control button 10 seconds to enter heating function locked mode, the uplights will flicker 6 times.
  • Page 13 ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER 3. The battery has two sides, one with a button feature, and the other is flat. 4. Insert the battery with the button side into the remote control, and make sure the battery is firmly seated into the remote control.
  • Page 14: Maintenance Instructions

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER The remote control mimics the buttons on the front panel of the fireplace/heater. The remote control does not have a display function. The buttons on the remote control work as follows: Main Power Flame Control Sidelight Control H_heat Control...
  • Page 15: Quality Guarantee

    ( LOGO) DESK AND WALL-MOUNTED ELECTRIC FIREPLACE/HEATER · To store away the appliance put it back in to its original packaging and store it in a clean dry place. · In the event of malfunction do not try to repair the heater yourself as this may result in a fire hazard or electric shock.

This manual is also suitable for:

Cfeceore
