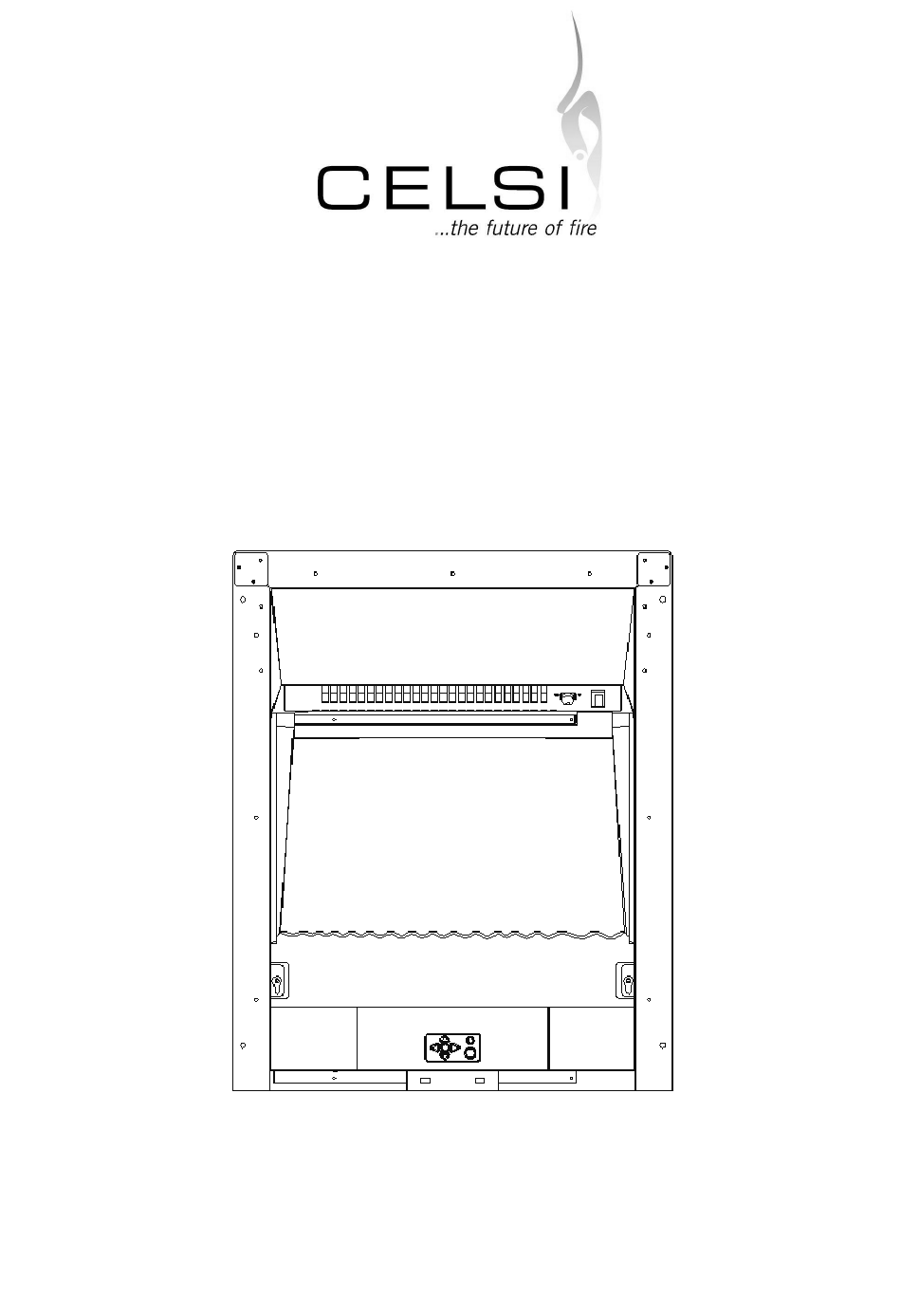

HOMEOWNERS
INSTRUCTIONS & OPERATING MANUAL
HEARTH MOUNTED ELECTRIC HEATER WITH REMOTE CONTROL
Model No. B-127740
Article No. CLCD**RE
** denotes trim and fret variant fitted to product
IMPORTANT
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
AND/OR USE OF THIS ELECTRIC FIRE AND RETAIN FOR FUTURE REFERENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Celsi B-127740
Summary of Contents for Celsi B-127740
- Page 1 HOMEOWNERS INSTRUCTIONS & OPERATING MANUAL HEARTH MOUNTED ELECTRIC HEATER WITH REMOTE CONTROL Model No. B-127740 Article No. CLCD**RE ** denotes trim and fret variant fitted to product IMPORTANT PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND/OR USE OF THIS ELECTRIC FIRE AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page SECTION 1: IMPORTANT INSTRUCTIONS SECTION 2: SPECIFICATIONS................5 SECTION 3: STRUCTURE AND PARTS............... 5 SECTION 4: INSTALLATION 4.1 Tools required ....................5 4.2Unpacking the heater..................5 4.3 Locating your electric heater................6-7 SECTION 5: OPERATING INSTRUCTIONS .. -
Page 3: Important Instructions
SECTION 1: IMPORTANT SAFEGUARDS WHEN USING ELECTRICAL APPLIANCES BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. READ ALL INSTRUCTIONS BEFORE USING HEATER. Regarding installation of the appliance; This appliance is supplied with a rewirable plug fitted with a 13A fuse. - Page 4 Regarding persons operating the appliance; This appliance is not intended for use by persons (including children) with reduced physical, sensory or learning disabilities, or lack of experience and knowledge, unless given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Specifications
SECTION 2: SPECIFICATIONS Voltage ... 220-240 V AC, 50 Hz Total Watts ..2000 Watts Dimensions overall ... 480mm x 595 x 140mm Dimensions inset ....... 405mm x 555 x 80mm SECTION 3: STRUCTURE AND PARTS 1． Enclosure 2． ON/OFF Switch 3．... -
Page 6: Locating Your Electric Heater
4.3 Locating your electric heater NOTE: If installing in an existing fireplace and chimney you should; block the chimney with fiberglass insulation or similar to prevent it sucking air away through the appliance. Failure to do this may cause poor performance and loss of heat or cause the appliance cut out, not install into an existing fireplace that is prone to dampness, thoroughly clean inside the chimney cavity/walls to remove any dust and debris prior... - Page 7 Fit the trim frame to the fire using the magnetic strips provided. Place the fret or front casting in front of the fire (see Figure 2) Figure 2 Position the fret up to the appliance (see Figure 3) WARNING! KEEP DRAPERY AND OTHER FURNISHINGS AT LEAST 3’/0.9M FROM THE FRONT AND SIDES OF THE ELECTRIC HEATER 3.EF.39.Rev.
-
Page 8: Operating Instructions
SECTION 5: OPERATING INSTRUCTIONS CAUTION! THE UNIT’S POWER CORD MUST BE CONNECTED TO A PROPERLY GROUNDED AND PROTECTED 240V OUTLET. ALWAYS USE GROUND FAULT PROTECTION WHERE REQUIRED BY THE ELECTRICAL CODE. This appliance can be operated by both the remote control and the manual keypad. Once the unit has been properly connected to an earthed electrical socket-outlet ensure the manual On/Off switch, located on the right hand side of the appliance (see below), is in the ‘ON’... -
Page 9: Operating The Appliance Using The Manual Keypad
Unlike most remote handsets which require the tip of the handset to be pointed towards the appliance the Celsi handset transmits from the underside as shown below. This prevents the requirement to rotate and point the remote when the buttons are pushed. -
Page 10: Button Description
5.2.1 Button Description The functionality of the buttons described below is the same for both the remote control handset and the manual keypad. ON/STANDBY: This button to used turn the fire ON or OFF. MUTE: This button is used to mute the sound or restore the sound. -
Page 11: How To Use The Thermostat
5.2.3 How to use the thermostat Press the button to put the appliance into thermostat mode. NOTE: When this button is pressed the appliance will fall out of manual heat mode if previously set. When running in thermostat mode the unit will regulate the heat setting automatically between high and off in order to maintain the comfort level selected. -
Page 12: How To Use The Function Settings
5.2.4 How to use the function settings Press the button to enter function mode. The first of the five available functions will now be displayed on screen. The five functions are as follows: Flame Image Flame Speed Volume Brightness Sleep Timer To access each of the functions simply continue to press the ‘FUNC’... -
Page 13: How To Change The Flame Speed
5.2.4.2 How to change the Flame Speed Press the ‘FUNC’ button as described above to display the flame speed icon on the screen. Press the buttons to change the flame speed. There are five flame speeds to choose from and you will see the speed change as you scroll through the selections. -
Page 14: How To Change The Sleep Timer
5.2.4.5 How to change the Sleep Timer Press the ‘FUNC’ button as described above to display the sleep timer icon on the screen. Press the buttons to change the sleep timer. There are 9 sleep timer settings to choose from (including off): 30 mins 1 hour 1 hour 30 mins... -
Page 15: Maintenance
SECTION 6: MAINTENANCE Always remove the plug from the socket-outlet and allow the heater to cool down before cleaning it. Wipe the exterior surface of the appliance occasionally with a soft damp cloth (not dripping wet) and dry the exterior surface before operating the heater. WARNING! Do not immerse the heater in water. - Page 16 Mode l No.: B-127740 3.EF.39.Rev. 1.0...
