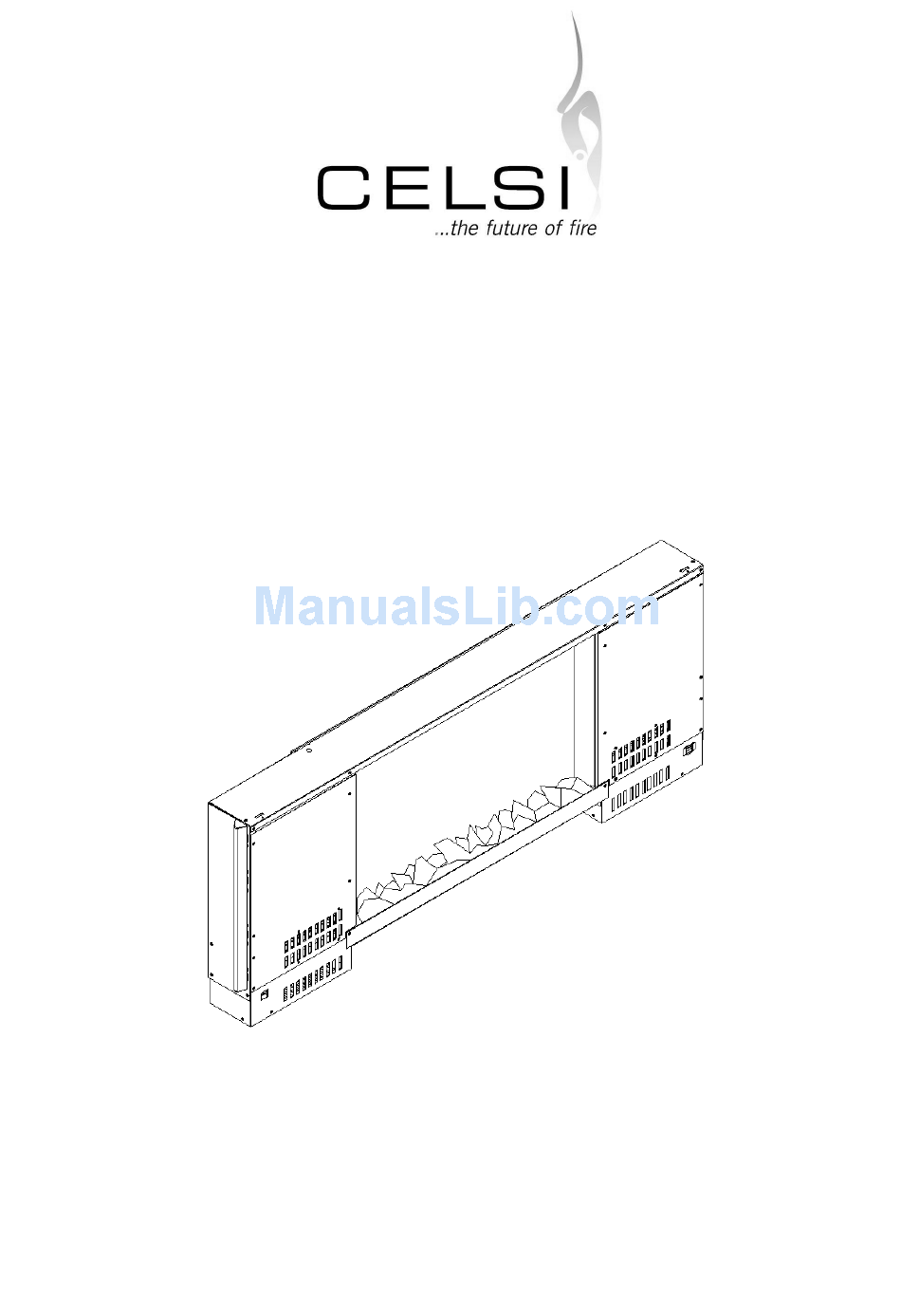

- Page 1 HOMEOWNERS INSTRUCTIONS & OPERATING MANUAL WALL MOUNTED ELECTRIC HEATER WITH REMOTE CONTROL Model No. B-127960 Article No. CLDCDCGRE & CLCDPGRE IMPORTANT PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND/OR USE OF THIS ELECTRIC FIRE AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page SECTION 1: IMPORTANT INSTRUCTIONS SECTION 2: SPECIFICATIONS................5 SECTION 3: STRUCTURE AND PARTS............... 5 SECTION 4: INSTALLATION 4.1 Tools required ....................5 4.2Unpacking the heater..................6 4.2 Locating your electric heater................6-8 SECTION 5: OPERATING INSTRUCTIONS .. -
Page 3: Important Instructions
SECTION 1: IMPORTANT SAFEGUARDS WHEN USING ELECTRICAL APPLIANCES BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. READ ALL INSTRUCTIONS BEFORE USING HEATER. Regarding installation of the appliance; This appliance is supplied with a rewirable plug fitted with a 13A fuse. - Page 4 Regarding persons operating the appliance; This appliance is not intended for use by persons (including children) with reduced physical, sensory or learning disabilities, or lack of experience and knowledge, unless given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Section 2: Specifications
SECTION 2: SPECIFICATIONS Voltage ...220-240 V AC, 50 Hz Total Watts .2000 Watts Dimensions 910mm x 350 (400)mm x 90mm SECTION 3: STRUCTURE AND PARTS 1． Screen 2． Manual Keypad 3． Mood Light LED 4． ON/OFF Switch 5． Power Inlet 6．... -
Page 6: Unpacking The Heater
4.2 Unpacking the appliance WARNING! DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT AND TO REPLACE ANY PART OF THE ELECTRICAL SYSTEM IF NECESSARY Open the packaging carefully and remove the foam. Remove and discard the plastic bag. - Page 7 Clearance to Combustibles Sides 4 in. (100mm) Floor .. 15 3/4 in. (400mm) ..0 in. (0mm) Back .. 0 in. (0mm) INSTALLING THE APPLIANCE Step 1: Using a screwdriver loosen the two screws that secure the wall mounting bracket to the top of the appliance and remove the wall mounting bracket as shown below (Figure 1).
- Page 8 Step 3: Take away the mounting bracket and then drill four 8mm diameter holes on the wall. Insert plastic wall plug into the drilled holes (Figure 3). If installing the appliance on a solid wood wall there is no need to drill the holes in the wood and no need for the plastic wall plug.
-
Page 9: Section 5: Operating Instructions
SECTION 5: OPERATING INSTRUCTIONS CAUTION! THE UNIT’S POWER CORD MUST BE CONNECTED TO A PROPERLY GROUNDED AND PROTECTED 240V OUTLET. ALWAYS USE GROUND FAULT PROTECTION WHERE REQUIRED BY THE ELECTRICAL CODE. This appliance can be operated by both a remote control and a manual keypad. Once the unit has been properly connected to an earthed electrical socket-outlet ensure the manual On/Off switch, located on the right hand side of the appliance (see below), is in the ‘ON’... -
Page 10: Operating The Appliance Using The Manual Keypad
Unlike most remote handsets which require the tip of the handset to be pointed towards the appliance the Celsi handset transmits from the underside as shown below. This prevents the requirement to rotate and point the remote when the buttons are pushed. -
Page 11: Button Description
5.2.1 Button Description The functionality of the buttons described below is the same for both the remote control handset and the manual keypad. ON/STANDBY: This button is used turn the fire ON or OFF. MUTE: This button is used to mute the sound or restore the sound. -
Page 12: How To Use The Thermostat
5.2.3 How to use the thermostat Press the button to put the appliance into thermostat mode. NOTE: When this button is pressed the appliance will fall out of manual heat mode if previously set. When running in thermostat mode the unit will regulate the heat setting automatically between high and off in order to maintain the comfort level selected. -
Page 13: How To Use The Function Settings
5.2.4 How to use the function settings Press the button to enter function mode. The first of the five available functions will now be displayed on screen. The five functions are as follows: Flame Image Flame Speed Volume Mood Lighting Brightness Sleep Timer To access each of the functions simply continue to press the ‘FUNC’... -
Page 14: How To Change The Volume
5.2.4.3 How to change the Volume Press the ‘FUNC’ button as described above to display the volume icon is on the screen. Press the buttons to change the volume. There are 6 volume settings to choose from (including mute) and you will hear the volume change as you scroll through the selections. -
Page 15: 6How To Change The Sleep Timer
5.2.4.5 How to change the Sleep Timer Press the ‘FUNC’ button as described above to display the sleep timer icon on the screen. Press the buttons to change the sleep timer. There are 9 sleep timer settings to choose from (including off): 30 mins 1 hour 1 hour 30 mins... -
Page 16: Section 6: Maintenance
SECTION 6: MAINTENANCE Always remove the plug from the socket-outlet and allow the heater to cool down before cleaning it. Wipe the exterior surface of the appliance occasionally with a soft damp cloth (not dripping wet) and dry the exterior surface before operating the heater. WARNING! Do not immerse the heater in water. - Page 17 Mode l No.: B-127960 3.EF.39.Rev. 1.0...
