ProVisual 412CQH User Manual

Premium dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

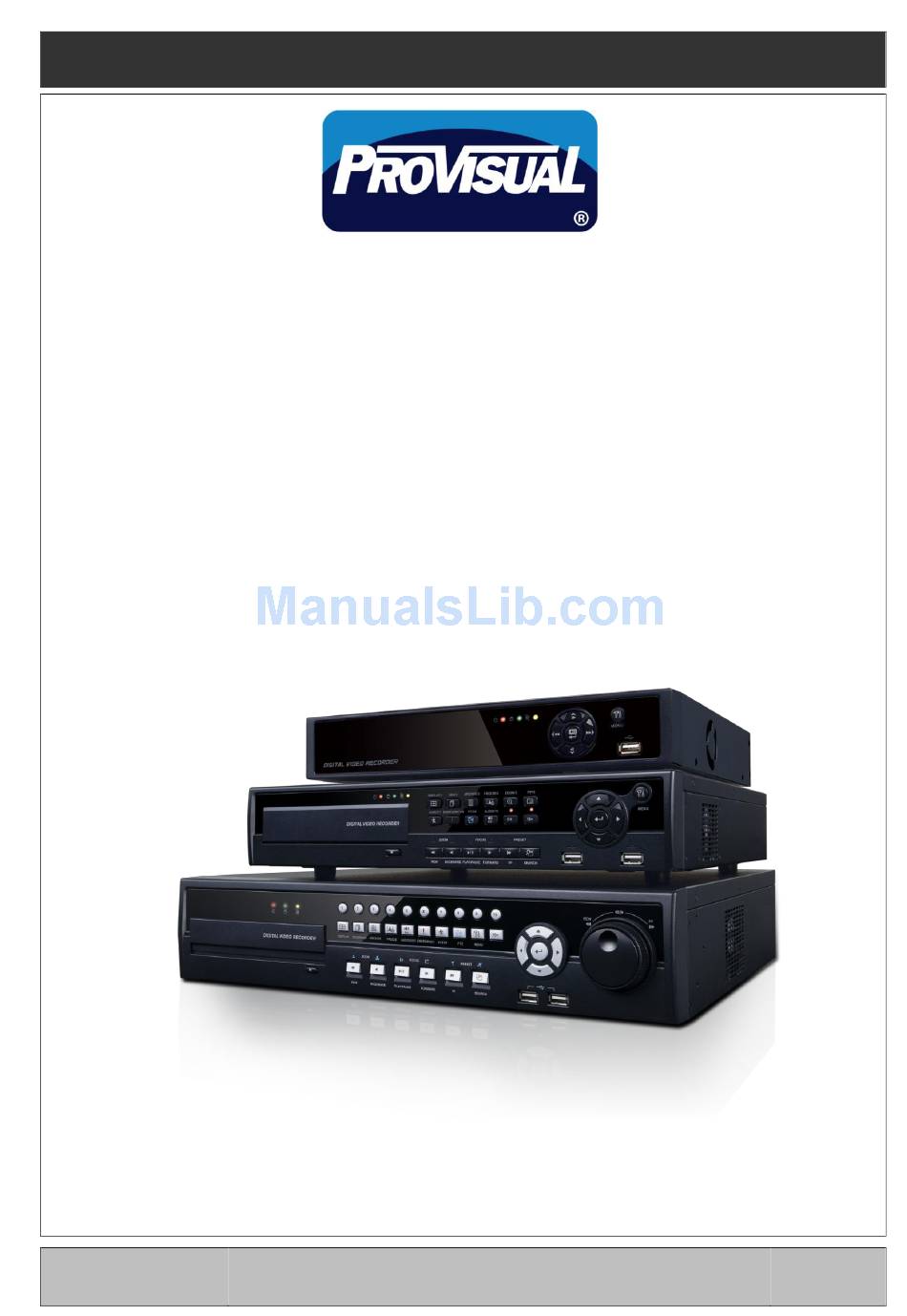

Standalone Digital Video Recorder
Premium DVR
4, 8, 16 & 32 Channel Models
User`s Manual
S Type = (412EH-824EH)
A Type = (1648EH)
E Type = (412CQH)
C Type = (412KH-824KH-1648KH-32960KH)
G Type = (412AQH)
J Type = (8000AQH-16000AQH)
G Type = (824AQH-1648AQH)
MADE IN KOREA
V122014
This document contains preliminary information and is subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 412CQH and is the answer not in the manual?

Questions and answers

Related Manuals for ProVisual 412CQH

Summary of Contents for ProVisual 412CQH

  • Page 1 Premium DVR 4, 8, 16 & 32 Channel Models User`s Manual S Type = (412EH-824EH) A Type = (1648EH) E Type = (412CQH) C Type = (412KH-824KH-1648KH-32960KH) G Type = (412AQH) J Type = (8000AQH-16000AQH) G Type = (824AQH-1648AQH) MADE IN KOREA V122014 This document contains preliminary information and is subject to change without notice.
  • Page 2 FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Cautions  This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.  This product uses a Lithium battery.  To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. ...
  • Page 4 12. Servicing  Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage Requiring Service  Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: ①...
  • Page 5 The List of Configuration DVR Set Manual / CMS CD Remote Controller Quick Guide Screws HDD Brackets Data Cable Power Cable Adapter...
  • Page 6 Mandatory Setup & Operation Precautions  STEP 1. Date / Time Configuration (‘before’ HDD(s) installation)  Plug a network cable, if any.  Turn on the DVR and press ‘OK’ on no HDD(s) detection message.  Go to SETUP>SYSTEM>General>Setup.  Check on ‘NTP Setup’ box, and then select your ‘Time Zone’. ...

  • Page 7: Table Of Contents

    Table of Contents 3.8.7 Text-In........... 42 1. PRODUCT FEATURES ........9 3.9 RECORD ............42 1.1 Unpacking ............9 3.9.1 Record ..........42 1.2 Service .............. 9 3.9.2 Schedule ..........46 3.9.3 Motion........... 47 1.3 System Connection Diagram ......10 2.
  • Page 8 7. CMS WEB CLIENT PRO ......111 5.5.1 Server List ..........79 5.5.2 Remote Device System Log ....80 7.1 System Requirements ......... 111 5.5.3 Remote Device Event Log ....80 7.2 Setup and Login ........... 111 5.5.4 CMS System Log ......... 81 5.5.5 Health Check ........

  • Page 9: Product Features

    - DVR Main body S Type (412EH-824EH) Power Supply Adapter (DC 12V, 3A) and Power Supply Cable A (1648EH), E (412CQH) Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable C (412KH-824KH-1648KH-32960KH), G (412AQH) Type : Power Supply Adapter (DC 12V, 6.67A) and Power...

  • Page 10: System Connection Diagram

    1.3 System Connection Diagram S Type (412EH-824EH) – 4 / 8 CH DVR A Type (1648EH) – 16 CH DVR...
  • Page 11 C Type (412KH-824KH-1648KH) – 4 / 8 / 16 CH DVR C Type (32960KH) – 32 CH DVR...
  • Page 12 E Type (412CQH) – 4 CH HD-SDI DVR G Type (412AQH) – 4 CH HD-SDI DVR...
  • Page 13 G Type (824AQH-1648AQH) – 8 / 16 CH HD-SDI DVR J Type (8000AQH-16000AQH) – 8 / 16 CH True Hybrid DVR...

  • Page 14: Installation

    Installation 2.1 Hard disk and DVD-RW Installation 2.1.1 SATA Port  When installing HDDs, make sure to connect from SATA 1 Port.  S and E (4CH) Type - Main board of this DVR has one SATA port: it is indicated as SATA 1. ...

  • Page 15: Internal Sata Storage

    2.1.2 Internal SATA Storage  C, G and J Type DVRs have 5 internal SATA Ports.  1-4 SATA Port: It is designed to mount HDD. Connect from SATA 1 port when installing HDDs.  5 SATA Port: Please mount a DVD-RW. ...

  • Page 16: Connector Wiring

    2.2 Connector Wiring 2.2.1 Video-In/Loop Out Connections S, A and B Type  Connect Analog camera to ‘VIDEO IN’.  If users wish to link a camera input to another device, use ‘LOOP OUT’.  Assure the ‘VIDEO IN’ (top connector) and ‘LOOP OUT’ (bottom one) connections are connected properly, not opposite way. E and G Type ...

  • Page 17: Hdmi Connections

    2.2.4 HDMI connections  Connect HDMI cable to HD out port of rear panel and HDMI port of HD output device.  Please Click ( ) SETUP> DEVICE > DISPLAY > General and the following screen will display.  Click the box below to select resolution. - Users can select the resolution among ‘1920x1080 (60Hz)’, ‘1920x1080 (50Hz)’, ‘1280x720 (60Hz)’, ‘1280x720 (50Hz)’...

  • Page 18: Alarm Connections (Relay)

    2.2.9 Alarm Connections (Relay)  Connect Alarm Output (buzzer, siren, etc.) to ‘NO and/or NC’ connectors, Power to ‘COM’ connector and Ground to ‘GND’ connector (Dry Contact) (Except S Type) 2.2.10 RS-485/422 Connections  PTZ Camera and Keyboard controller connector. ...

  • Page 19: Connections Guideline

    2.2.16 Connections Guideline  Video out Connector: If only the monitor is connected to VIDEO OUT connector, please set the impedance switch on the rear side of the monitor to 75 ohms to prevent abnormally bright or collapsed images. If wish to connect another device (e.g., a recorder) to the back of the monitor, please set the impedance switch on the rear side of the monitor to HIGH Z (High Impedance) and set the last device to 75 ohms.

  • Page 20: Input Device And Screen Icons

    Input Device and Screen Icons 3.1 Key and LEDs C, G and J Type NAME BUTTON Operating mode Setup mode •Up/Down/Left/Right on ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode screen cursor control • Camera select keys : (4/8/16 channel DVR) 1 ~ 10 / 10+ •...

  • Page 21: Camera Select Keys

    3.2 Camera Select Keys C, G and J (8/16CH) Type  Below shows how to select camera channel for 4 channel DVR - Select Camera No. 1~4: use 1~4 direction key  Below shows how to select camera channel for 8 channel DVR - Select Camera No.

  • Page 22: Using A Remote Controller

    3.4 Using a Remote Controller  Usage of a remote controller is same as the front panel keys.  Follow the procedure below when you use one remote controller for multi DVRs. ① Check System ID (e.g., between 1 and 255) of the DVR that wish to use. - (SETUP>SYSTEM>Status>General or Status window).

  • Page 23: Screen Icon

    3.6 Screen Icon Icon Description Icon Description Continuous recording schedule Continuous + Motion recording schedule Motion recording schedule Motion + Alarm recording schedule Alarm recording schedule Cont. + Motion + Alarm recording schedule Continuous + Alarm recording schedule No Recording schedule Continuous recording mode Motion recording mode Alarm recording mode...

  • Page 24: Login

    Setup 3.7 Login  For security purpose, users have to input the password to enter the setup menu.  Please press from Display Menu Bar to enter the setup menu and the following screen will display.  In order to use all functions and privileges, log in as ID: admin. ...

  • Page 25: Status

    SYSTEM 3.7.1 Status  Entering Setup Menu following screen will display.  System Status show information of the DVR like followings - DVR name - DVR ID - MAC Address - Firmware - Date - Language - IP Address - UPnP - Video Signal - HDD Usage - Camera / Audio Connection...
  • Page 26 Setup DVR Name  Name your DVR on your own.  Please Click ( ) keyboard icon on DVR Name box and the following virtual keyboard will display.  Please Click ( ) desired letters (characters) on the virtual keyboard to input. ①...
  • Page 27 Setup  Import: Copy a DVR configuration file stored in USB memory stick to DVR. Please plug in the memory stick and then Click ( ) - Please choose ‘OK’ to confirm and choose ‘Cancel’ to cancel.  Export: Store the Menu setup of DVR to USB memory stick. Please plug in the memory stick and then Click ( ) ...
  • Page 28  Please Click ( ) Select box next to Check NTP Server in Interval to sync the time regularly by selected interval.  NTP Server: Click ( ) or address in NTP Server box and the virtual keyboard will display. Input IP address of NTP server ...
  • Page 29 Firmware  Users may upgrade DVR when it is required.  Please follow the Upgrade process below. ① Plug USB memory stick which has a proper firmware file. ② Click ( ) Then, software version stored in the USB will display on the left-hand side. ③...

  • Page 30: Event

     Then, lists of User will show as follows.  To Edit the users, select a user from the list and Click ( )  To Delete the users, select a user from the list and Click ( ) NOTE Only ‘Admin user’...
  • Page 31  System Log shows various event logs by User ID(s) like below - System Start - System Reboot - Setup Default/Import/Export - Resolution Change - Video out Change - Time Adjust Before/After - NTP Sync Success/Fail - Firmware Upgrade Success/Failure - Log Delete/Export - Setup Enter/Exit - Playback Start/Exit...

  • Page 32: Device

    3.8 DEVICE 3.8.1 Display  Please Click ( ) DEVICE>Display and the following screen will display. General  Users are able to set its video output resolution between 1024 x 768 ~ 1920 x 1080.  Video In / Out will help users to select its video input and output between NTSC, PAL and AUTO. ...
  • Page 33 Position (OSD)  Position (OSD) menu allows users to adjust the position of Channel OSD on the monitor. Use it when some letters are dropped/invisible/blocked on the monitor.  Adjust Horizontal to change margin between both ends of the monitor on horizontal side and OSD. Margin range is between 0 and 50, with a larger number representing greater margin.

  • Page 34: Spot Monitor

     Check  ‘Cam box’ that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing.  To adjust the location of the cameras for each sequence, Click ( ) each Drop-down list and able to select the channel. ...

  • Page 35: Network

    3.8.2 Network  Please Click ( ) DEVICES>Network and the following screen will show.  Please Click ( ) Network Type. When you click the Drop-down list, users can select to Static (fixed IP) or DHCP (floating IP).  In Static, users must manually set the static IP address for use. - Set IP Address, Subnet Mask, Gateway DNS Server 1 &...
  • Page 36 CAUTION DUE TO THE VARIOUS LOCAL JUNK MAIL POLICIES, EMAILING MAY NOT WORK PROPERLY. SSL EMAIL SERVERS MAY ALSO NOT WORK CORRECTLY. IF SO PLEASE DEACTIVATE THE SSL FEATURE IN THE (YOUR) SERVER SETUP. NOTE THAT SOME SERVER CANNOT DEACTIVATE THIS FEATURE Port ...

  • Page 37: Alarm

    NOTE DDNS service port number 95 is NOT required to be port forwarded at all. CAUTION WHEN DEVICES (PC, Mac, SMART PHONES, etc.) ARE UNDER THE SAME ROUTHER WITH A DVR, THE USER CANNOT USE THE DDNS NAME TO CONNECT. USE THE DVR’S PRIVATE IP ADDRESS FOR THIS CASE. Party DDNS - Check ...

  • Page 38: Storage

    Alarm In  The Alarm In menu will allow users to give title and to select the type of Alarm input.  Click ( ) the keyboard icon on the right-hand side of each box on name column or name column and the virtual keyboard will display.

  • Page 39: Hdd Format

    HDD Format  This page shows information of HDDs installed in the DVR.  When users install full storage device and DVD-RW including one e-SATA storage(C, G and J Type), then following procedures will be listed as below: - 1. Internal SATA 1~4 Ports - 2.
  • Page 40 NOTE When “Attention or Warning” is detected by S.M.A.R.T, notification (Alarm out, Email, Beep and Message) will not activate. Overwrite  Click ( ) Overwrite and the following screen will display. Overwrite Setting  Click ( ) Overwrite box and users may activate the overwrite function. (Overwriting mode is default) - This function makes restart the recording from the beginning when the HDD is full.

  • Page 41: Camera

    3.8.5 Camera  Please Click ( ) DEVICE>CAMERA and the following screen will display.  Click ( ) the each Name box and the virtual keyboard will display. Then, register names of cameras.  If a check box is checked on Use column, a video of the corresponding camera is recorded and displayed on the monitor. However, if users do not check the checkbox, “UNUSE”...

  • Page 42: Audio

    3.8.6 Audio  Please Click ( ) DEVICES>Audio and the following screen will display.  The Audio menu allows users to choose whether to record Audio, if connected  When a check box is marked  on Record column, corresponding audio and video from Linked Camera will be recorded. However, if the check box is not marked, audio will not record.
  • Page 43 Continuous  Please Click ( ) Continuous and the following screen will display.  The Continuous menu allows users to set occasional recording rates and resolution.  Each box on Title column shows camera title registered in DEVICES>Camera. Users cannot change camera titles here. ...
  • Page 44 Alarm  Please Click ( ) Alarm and the following screen will display.  The Alarm menu allows users to set Alarm based recording rates and resolution.  Each box on Title column shows camera title registered in DEVICES>Camera. Users cannot change camera titles here. ...
  • Page 45 Emergency  Please Click ( ) Emergency and the following screen will display.  The Emergency menu allows users to set Emergency based recording rates and resolution, when ‘Emergency button pressed.  Each box on Title column shows camera title registered in DEVICES>Camera. Users may not change camera titles here. ...

  • Page 46: Schedule

    3.9.2 Schedule  Please Click ( ) RECORD>Schedule and the following will display. Setting  The Schedule table displays one week divided by hour and date. Each cell represents one hour. Users may choose appropriate recording conditions by hour. Holidays could be defined by users separately. ...

  • Page 47: Motion

    ② Click ( ) on date needed to be registered as holiday. ③ Click ( ) ADD button and Virtual keyboard will display to input description of holiday ④ Please choose ‘OK’ to confirm the input and the date will be copied to the Holidays table. ⑤...

  • Page 48: Alarm In

    3.10.1 ALARM IN  Select Alarm out, Preset and Notification to use when Alarm In sensor goes off.  Link Notification displays E-mail addresses registered in System>General>Account>User>Email  Please follow the setup procedures below. ① Click ( ) Drop-down list of Alarm In box and select Alarm In 1. ②...

  • Page 49: Emergency

    ⑦ Click ( ) Drop-down list of Duration box to set the duration of recorded data for attached EXE ⑧ Select Local Actions -Beep: When selected Camera detects Motion, it will give the alarm sound -Popup: When selected Camera detects Motion, it will make the popup screen on the main monitor -Message: When selected Camera detects Motion, the Motion message will pop up on the OSD ...

  • Page 50: Text-In

    3.10.4 TEXT-IN  Please Click ( ) RELAY>TEXT-IN and the following screen will display.  Select cameras for Preset, Alarm Out and Notification to use when Text In comes to DVR. (PTZ Preset is frequently used for this case).  Link Notification displays E-mail addresses registered in System>General>Account>User>Email ...
  • Page 51  Link Notification displays E-mail addresses registered in System>General>Account>User>Email  Please follow the setup procedures below. ⑨ Click ( ) Drop-down list of camera box and select Cam 1. ⑩ Select alarm outputs to be worked when video loss is occurred to cam 1. Please check  a check box of use column on Alarm Out box.

  • Page 52: Operation Instruction

    OPERATION INSTRUCTION 4.1 Viewing 4.1.1 First Image  Power on DVR and the attached cameras (if any) will display.  The screen will display date/time and icons below. Icon Description Icon Description Continuous recording schedule Continuous + Motion recording schedule Motion recording schedule Motion + Alarm recording schedule Alarm recording schedule...

  • Page 53: View Format

     On the right bottom side of the screen, disk usage will show by %.  On the left top side of each channel screen icon will show as its operation.  At the normal state, HDD Overwrite mode is on and icon shows.

  • Page 54: Pan / Tilt / Zoom Control

    4.1.5 Pan / Tilt / Zoom Control  Press PTZ key to operate a PTZ camera connected to DVR. PTZ operations are only available in the full screen format.  In Pan/Tilt/Zoom mode, the icon is displayed on the bottom of the screen. ...

  • Page 55: System Log

     Press Menu button to pop-up PTZ camera OSD setup screen and set up Tour and Pattern items. - Since these functions make use of a memory function of the camera itself, users should set them in Camera OSD. - Once users complete the setup, close the Camera OSD menu. - Users can conveniently use Tour and Pattern functions simply by Clicking Tour and Pattern buttons.

  • Page 56: Playback

    4.2 Playback 4.2.1 Search  Press key on the System Menu Bar, or Press Search button on the front of the DVR and the following Search menu will display.  There are four ways to search video; calendar, event, thumbnail and smart search. - Calendar Search: search by calendar.

  • Page 57: Calendar Search

    NOTE Time period on the time indication bar can be adjusted by mouse scroll. It can be adjusted by 1 min to 3 hour time duration blocks. NOTE If you don’t use mouse or front button while the DVR is playing recorded data, the DVR would stop playback in 10 minutes automatically. Calendar Search ...

  • Page 58: Event Search

    Event Search  This Event Search is useful when users set up event recording like Motion, Alarm In (if any), Text In (if any), and Emergency.  Please Click ( ) to do Event Search and the following Search menu will display. ...
  • Page 59 Thumbnail Search  This Thumbnail Search is useful when users search by snapshot of certain period. This is also called as ‘Panorama Search’.  Please Click ( ) to do Thumbnail Search and the following Search menu will display.  Follow the procedure below to search video by Thumbnail. ①...

  • Page 60: Digital Zoom In Playback

    Smart Search  This Smart Search is useful when users search by designating the certain area. If there is any movement in the area, Smart Search will show the video automatically.  Please Click ( ) to do Smart Search and the following Search menu will display. ...

  • Page 61: Menu Bar

    last three minutes. To stop playing back the video, please press key. 4.3 Menu Bar  Menu bar enables users to control all features as front button.  Move mouse cursor to Left and Right side of the screen to access Menu Bar during live monitoring. Display Menu Bar (Left Side) System Menu Bar (Right Side) Icon...

  • Page 62: Bookmark

    4.4 Bookmark  Bookmark allows users to save certain time during both live monitoring and playback mode. And able to go back to the bookmarked time during playback.  Press in both Live and Playback mode and the following popup window will display. ...
  • Page 63 NOTE To archive in jpeg format please use snapshot in Playback mode. NOTE Please do not change the settings by DVR or CMS, while archiving. NOTE Please enter all the necessary information before Click ‘OK’. NOTE If the total archiving file size exceeds 2GB then the new archived file will be produced every 2GB. From the second file it will have Date and time stamp of the starting time after the original file name given by the user.
  • Page 64 Professional Central Monitoring Software CMS Pro Full-featured Enterprise Class Surveillance Solution User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 65: Cms Pro

    CMS Pro 5.1 CMS Pro Features 5.1.1 Introduction  The CMS Pro is a central surveillance system solution that monitors multiple sites with video, audio and event signals from DVRs over networks.  The software supports different windows of live viewer, playback player, interactive map viewer, various search panes and event signal monitoring panes.

  • Page 66: Installation

    5.2 Installation 5.2.1 Software Installation  Please follow the program installation procedures below. ① If an old version of CMS Pro program was installed, it is recommended to completely uninstall or delete the old version. ② Insert the provided CD in a PC. ③...

  • Page 67: Login

    ⑦ When the following screen appears, click “Install.” ⑧ When the following screen appears, click “Finish” to complete the installation. NOTE If the PC has a previously installed CMS Pro, the installer may ask whether to overwrite the existing DB or not. The DB contains setting values on the program.

  • Page 68: Menu

    NOTE Users may change the password in [Setup] – [Change Password] menu. For the detailed information, please refer to the ‘Chapter 6.4.7 Change Password’ page. The CMS Pro saves settings and layouts on the program of the current user when the program is closed. 5.3 Menu ...

  • Page 69: Setup

    5.4 Setup 5.4.1 Local Setup - Device  Please make sure the network setting of DVR has been done properly prior to the remote connection setting. 5.4.1.1 Remote Site Connection Setup  Click Setup – Local Setup – Device to enter the setup and a dialog will pop up as below picture. 5.4.1.2 New Device Register Device ...
  • Page 70 Camera  Choose a camera name between DVR and CMS setting or both. - Device Camera Name: Display camera name of DVR. - CMS Camera Name: Display Camera name of CMS. - Both (Device-CMS) Camera Name: Display both as [DVR name]-[CMS name]. ...

  • Page 71: Device Group Setup

    5.4.1.4 Remove Registered Site  Select a site to delete on local setup window and click “Remove”  The site will be removed on the local setup window. 5.4.2 Device Group Setup  It is possible to make a group of multi-devices for user’s convenience. - Users are able to combine multiple devices as one group of connection for easy control.

  • Page 72: Local Setup - Environment

    5.4.2.3 Remove Group Setting  Select a group to delete on Group Setting window then click “remove”  The group will be removed on the local setup window. 5.4.3 Local Setup - Environment  This enables users to adjust the default setting of CMS Pro software for user’s convenience. 5.4.3.1 System ...
  • Page 73 NOTE If users check “Show covert video” box, this setting will be applied to playback as well. NOTE All changes made above will be applied after program restarts.  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date/Time: show current time.
  • Page 74  Instant Recording Users can customize the storage path of the instant recording file by selecting HDD installed in PC. - Select Drive: Select PC’s HDD where instant recording file should be saved from the drop down menu and click “Add”. It will show Drive type, Free Space and Total Space of selected HDD.
  • Page 75  Setup Import: Copy the Menu setup stored in USB memory stick (or PC HDD) into DVR. Please plug in the memory stick and then click ( ) Import.  Setup Export: Store the Menu setup of DVR in USB memory stick (or PC HDD). Please plug in the memory stick and then click ( ) Export.

  • Page 76: Local Setup - Account

    5.4.4 Local Setup - Account  When more than 2 users need to access CMS Pro, multiple User Accounts and its authorization can be set in this menu.  This setup is only permitted to Admin account holder. 5.4.4.1 Add User Account ...

  • Page 77: Local Setup - E-Map

    5.4.4.4 Login Setting  This function protects any activities of all Manager/User accounts by asking ID and Password prior to the fulfillments. ) and click “Apply” to save.  Select the activities from the list ( 5.4.5 Local Setup – E-map ...

  • Page 78: Remote Device Setup

    ⑤ Drag “Text” icon into E-Map for additional comment. ⑥ Drag “Link” icon into E-Map to link to anther E-Map. ⑦ So as to link between E-Maps, please drag another E-map into the dragged “Link” icon. ⑧ To save setting, please click “Save” icon. ...

  • Page 79: Change Password

    5.4.6.1 System  Refer to 4.2 System for more detail. 5.4.6.2 Device  Refer to 4.3 Device for more detail. 5.4.6.3 Record  Refer to 4.4 Record for more detail. 5.4.6.4 Relay  Refer to 4.5 Relay for more detail. NOTE Some settings cannot be modified remotely.

  • Page 80: Remote Device System Log

     If uncheck “Visible” in the server list menu, then the list will not be shown.  Check “Left” or “Right” to move the list to left or right side of the screen. 5.5.2 Remote Device System Log  User can check the system log of the device in this menu. ...

  • Page 81: Cms System Log

     Double click the detected “Alarm In” or “Motion” event in the remote device event log to check the video of the event.  Click the “Refresh” button to refresh the data.  Click the right mouse button on the registered device to on/off Event Log in the Server List. ...
  • Page 82  HDD Status HDD is not connected and cannot be added. HDD is connected. HDD is not connected currently but can be added. An error occurred in HDD.  Camera Status Camera is in covert mode. Camera is connected. Camera is not connected currently but can be added. Camera is not connected and cannot be added.

  • Page 83: Show All Windows

    5.5.6 Show All Windows  This function will make visible all the invisible window panes. 5.6 Application 5.6.1 Search  There are five different types of search menu; Timebar, Event, POS/ATM, Thumbnail and Smart Search  The detailed information and directions is described in chapter 6.8. 5.6.2 Exit ...

  • Page 84: Live (Live Video Monitoring System)

    5.7 Live (Live Video Monitoring System) 5.7.1 Overview  This program is to display live video from multiple channels in customized screen format.  The program is based on user friendly interface. Users may configure the entire program and open or close the panes and screens in the program.
  • Page 85 5.7.2.3 Instant Playback  Instant playback is available in both Live1 and Live2 pane, but screen capture is available in either live1 or live2.  After right mouse click, move the mouse cursor to “Instant Playback”. Then, play and setup menu will display. - Play: The recorded video of the pre-setup time will be displayed in the playback viewer.
  • Page 86 Zoom in / out function Zoom In Zoom Out Zoom Area: The Screen will revert to x4 digital zoom screen. Zoom Area NOTE Digital Zoom function can be only used when the display is on 1Ch mode. The digital zoom function is able to zoom approximately x32. 5.7.2.5 PTZ Control ...
  • Page 87  Zoom Zoom in Zoom out  Focus Near Focus Far Focus  Iris Iris Open Iris Close  Preset Save Preset Go to Preset - Drop down menu: Select a preset number which is set in the camera. - Preset Name: Save the selected preset name. 5.7.2.6 Screen Capture &...
  • Page 88  Click “Hide Captured Image” to hide the captured images. 5.7.2.7 Audio On/Off  Right click and select Audio On/Off to turn on/off audio from the channel.  Audio On/Off function is applied to only one channel out of all connected channels. 5.7.2.8 MIC On/Off ...
  • Page 89  If users click ‘OK’, it will start recording of that specific channel.  When users want to view the archived file, please choose “Open Folder”  It will open the saved directory of the file.  When users double click the created file, password window will pop –up. ...

  • Page 90: Screen Layout Control

    5.7.2.10 Display Option  Users can set up the display of camera name and time in “Display Option”.  After right mouse click, check the “Show Camera Name” to display the camera name or uncheck the menu to hide it. ...

  • Page 91: Audio Volume Control

    5.7.6 Audio Volume Control  Users can control the audio volume using the bar controller at the bottom of the screen. 5.8 Search 5.8.1 Overview  5 ways of Search are available. (Time Bar Search, Event Search, POS/ATM (keyword) Search, Thumbnail Search, and Smart Search).
  • Page 92  Users can change the speed of rewind and fast forward from x1 to Extreme. The actual speed may be limited by DVR’s network uploading bandwidth.  Users can use Right click to access Audio On/Off, Digital Zoom and Capture and Print Screen. - Audio On/Off: Users can enable audio function.

  • Page 93: Event Search

     Select a start time, end time, file name, the location of the file, password and the cameras to store.  Click “Start EXE Backup” to start archiving. NOTE Archiving function can be initiated only in time bar search. 5.8.3 Event Search ...

  • Page 94: Thumbnail Search

     Display Position – Users are able to select the text display option of the playback. - Text Window: Only text will be displayed in the top right side of the search window during the playback. - Overlay: The text will be overlaid on the playback video. - Both: The text will be overlaid on the video and the text window as well.

  • Page 95: E-Map

    5.9 E-Map 5.9.1 Overview  The ‘Map Viewer’ program is to display event signals over map images so that users may acknowledge event status more easily.  Users may recognize event occurrence with visual notifications on icons over the map image and audible notifications on speaker system of a PC.

  • Page 96: Uninstalling Cms Pro

    5.10 Uninstalling CMS Pro  Please click the “Uninstall” file in the CMS Pro folder in the PC.  Click the uninstall file and the following message box will pop up.  Click “OK” to remove the program and its components. ...
  • Page 97 iCMS iCMS User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 98: Icms Viewer

    iCMS VIEWER 6.1 System Recommendations Recommended Core 2 Duo 2.26GHz or higher 2GB or higher Main Memory Video Memory 512MB or higher Display Resolution 1024ⅹ768 (with 32bit color) or higher 30GB or higher HDD Storage Space 100~1000 Mbps Fast Ethernet Network Mac OS 10.6.0 or higher Operating System...

  • Page 99: Login

     In the virtual driver, users will find iCMS icon. Please move the iCMS icon to ‘Application’ folder (‘Application’ folder is located in the ‘Go’ Menu below). 6.3 Login  After installation of the software, iCMS icon appears in ‘Application’ folder. ...

  • Page 100: Local Setting

    6.4.2 Local Setting  Please Click ‘Setup’ button on the top of the Toolbar and the following screen will display.  There are three types of setup such as Device Manager, Display Setup and Password Change. 6.4.2.1 Display Manager  Please Click ‘Device manager’ and the following screen will display. ...
  • Page 101  If users want to scan the devices instead of typing the information manually, please Click ‘Scan device’. It will automatically detect DVR units currently connected to local networks.  Click “Scan Device”, then following ‘Dialog’ will pop up.  Including IP address, the information of connected DVRs in the network will be listed. ...
  • Page 102 NOTE This option will be applied after program restarts.  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date Format: select the date format among YYYY-MM-DD/MM-DD-YYYY/DD-MM-YYYY. - Time Format: select the time format between 24Hours/ 12 Hours AM/PM.

  • Page 103: Live View

    6.5 Live View 6.5.1 Connection  Please choose one of the registered sites in Server list on the right hand side of the ‘Live Display’ screen and the right Click on the mouse button will pop up the menu with ‘Connect’. ...

  • Page 104: Health Check

    NOTE The selected channel is outlined in blue 6.5.3 Health Check  Please choose one of the registered sites in Server list and the right Click on the mouse button will pop up the menu with ‘Health Check’.  Please choose ‘Health check’ function when users want to check the status of the DVRs. ...

  • Page 105: System Log

    - Zoom In/Out, Focus Near/Far, Iris Close/Open Zoom Out/ In Focus Near / Far Iris Close / Open - Preset Control button  Please choose the number from the drop down list from 1 to 256.  After selecting the number, please type the description on the empty space below the drop down list and Click “Save”. ...

  • Page 106: Event Search

     Please choose one of the devices to playback from the Server List and right Click on the mouse to have popup menu with Connect.  Select Date - In calendar, dates with recorded data are marked in red.  Select the date among the dates marked in red. ...

  • Page 107: Pos/Atm

     Please Click ‘Connect’ to start the event search  Event search has Event Type, Select Camera and Date/Time setting. ① Event Type: it has Emergency, Alarm and Motion. Please choose one event that users want to use. ② Select Camera: Please select the camera that users want to view from Cam1 to Cam 16 for the event (Only 1 camera can be selected).

  • Page 108: Disconnection

     The following screen shows the result of the POS/ATM search.  Double Click on the event to playback of the data. 6.7 Disconnection  When disconnect, please right Click on the connected site and choose ‘Disconnect’  if users Click ‘Disconnect’, the message box below will display...

  • Page 109: Uninstall

    6.8 Uninstall  Please go into the ‘Application’ folder and right Click on the iCMS icon.  Please choose ‘Move to Trash’ to uninstall the iCMS program...
  • Page 110 CMS Web Client Pro CMS Web Client Pro User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 111: Cms Web Client Pro

    CMS WEB CLIENT Pro 7.1 System Requirements  Web Client Pro may not run properly if the PC does not meet minimum requirements. Other programs should not run on the same PC where this is running. Otherwise, Web Client Pro software may not perform as designed. Minimum (Enable Dual Streaming) Recommended (Disable Dual Streaming) Intel Core i5...

  • Page 112: Live Display

    7.3 Live Display  After Login, following screen will display. ① ② ⑤ ④ ③  The screen contains following features: ① Display current live video ② Setting display mode - Search: Opening search mode in new window. - PTZ: Open PTZ control panel. - Capture: Capturing the image of selected channel.

  • Page 113: Search Screen

    7.4 Search Screen  Click then following screen will display on a new window. ① ② ③ ④ ⑦ ⑧ ⑥ ⑤  The screen contains following features: ① Searched playback video displays. ② Setting Date/Time to search. - Click a date in calendar, and then recorded data will be showed up in Time bar. - Start Time: Setting starts time.

  • Page 114: Ptz Control

    7.5 PTZ Control  Click then following screen will display on a new window. ① ① ① ② ③ ④ ⑤ ⑥  The screen contains following features: ① Pan/Tilt Direction button. ② Zoom In / Zoom Out control button. ③...

  • Page 115: Capture

    7.6 Capture  Click then following screen will display on a new window. ① ③ ④ ② ⑤ ⑥  The screen contains following features: ① Captured Image is displayed. ② Color Control - Users can change Brightness, Contrast and Saturation of the captured image. ③...

  • Page 116: Cms Mobile Viewer

    CMS Mobile Viewer CMS Mobile Viewer User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 117: Cms Mobile Viewer

    CMS MOBILE VIEWER 8.1 iPhone / iPad (mViewer Pro) 8.1.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iOS interface. 8.1.2 Installation  Turn on the iPhone or iPad then connect to App Store. ...

  • Page 118: Site Registration

     If users do not have the account, then Tap “ ” and it is registered by free. 8.1.3 Site Registration  Tap “ ” icon on iPhone or iPad then below will show.  Tap “ ” then below will show and tap “ ”...

  • Page 119: Connection

     To edit the saved site, tap “ ” next to site Name, then change the value, and tap “ ”.  To delete the saved site, slide the finger from right to left across Device Name. Then tap” ” to remove the site. NOTE Please tap ‘On’...

  • Page 120: Live View (Portrait View)

    8.1.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend. (16 → 15 → 14 …… 3 → 2 → 1) ...

  • Page 121: Live View (Landscape View)

    8.1.6 Live View (Landscape View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend. (16 → 15 → 14 …… 3 → 2 → 1) ...

  • Page 122: Search

    8.1.8 Search  Users are able to search the recorded data with iPhone or iPad  Tap “ ” on Main menu or “ ” on Live monitoring to use search function.  Choose date that wish to search from Calendar ...

  • Page 123: Snapshot Gallery

    8.1.9 Snapshot gallery  Users are able to save the snapshot taken with mViewer pro while live monitoring and Playback.  Tap “Snapshot gallery” from main menu and select the device.  To see other pictures slide finger across the screen. ...

  • Page 124: Android Phone (Mviewer Pro)

    8.2 Android Phone (mViewer Pro) 8.2.1 System Requirements  This program is designed and applied only for Android OS (version 2.3 or higher) based mobile device.  Display: Min. 3.7 inch screen NOTE mViewer Pro might not work even though Android OS version is high enough. It is due to the hardware specification of Android device. 8.2.2 Installation ...

  • Page 125: Site Registration

    8.2.3 Site Registration  Tap “ ” icon on application menu then below will show.  Tap “ ” on the main menu and tap “ ” on top right corner.  Enter Device Name, IP/Host address.  Enter Cmd/Stream port value. (Default, 5920/5921) ...

  • Page 126: Connection

    8.2.4 Connection  Tap on Device Name to connect the DVR to mobile device. 8.2.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend.
  • Page 127 - Select “Low” for better transmission on Live and Playback mode - Select “High” to see original quality video in 1ch on Live mode.  Tap “ ” to enable PTZ function. Please refer to 9.2.7 PTZ Control for more detail. ...

  • Page 128: Live View (Landscape View)

     Tap on “ ” or “ ”to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, users can double tap on certain channel to change to 1CH display mode.  Tap “ ” to take Snapshot. - Enter file name and press “...

  • Page 129: Ptz Control

     Tap on “ ” to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, users can double tap on certain channel to change to 1CH display mode.  Tap “ ” or “ ” to select video steam. - Select “Low”...

  • Page 130: Alarm Out Control

    8.2.8 Alarm Out Control  Users are able to manually send Alarm out command with the mobile device.  Tap “ ” to enable the Alarm Out control and it will display on lower left corner of Live screen.  Tap the numbers to send out Alarm from the connected DVR to its output source. 8.2.9 Search ...

  • Page 131: Snapshot Gallery

     Tap “ ” or “ ” or “ “to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, user can double tap on certain channel to change to 1CH display mode.  Tap “ ”...

  • Page 132: Setting

    8.2.11 Setting  Tap “ ” to check the information of the application.  Users can read the manual.  Users are able to set Password Lock. - Tap “Password Lock” from the setting menu. - Enter password. (Default password is 1111) - Tap “...
  • Page 133 TEXT-IN (POS) TEXT-IN (POS) User`s Manual...

  • Page 134: Text-In (Pos)

    This document contains preliminary information and is subject to change without notice. TEXT-IN (POS) 9.1 Usage of Serial-In Function  Enables users may use Serial In connections to record/search/display text data from POS/Cash Register’s serial.  Users can choose the data whether to record/display or both. 9.2 Connection Method ...
  • Page 135 NOTE After cables connected and Serial In (DVR menu) values changed, please restart the DVR so that the DVR recognizes attached Serial In connections. Use RS232 null modem cable between POS/Cash Register and USB to RS232 converter. RS232 cross-over connector is useful when users need to switch the Rx/Tx connections.

  • Page 136: Relay

    9.4 Relay 9.4.1 Relay Setup (Optional)  Click “Setup>Relay>TEXT-In” and the following screen will display.  Select cameras for Preset, Alarm Out and Notification while the Text In is operation, if necessary.  Link Notification displays E-mail addresses registered in System>General>Account>User>Email ...

  • Page 137: Schedule Setup (Mandatory)

    9.4.2 Schedule Setup (Mandatory)  Click “Setup>Record>Schedule” then shows as below.  Check the box (□) item related to Alarm. ‘Continuous + Alarm’ is recommended  Click the Time/Date that wishes to activate TEXT-IN function on schedule.  Do the same for additional Text In channel. 9.5 Setup (Mandatory) ...

  • Page 138: Link Cam

    9.5.2 Link Cam  Click and following screen will display.  Link the POS1, 2, 3, 4 to any channel and it is possible to select more than one channel per POS device. 9.5.3 Device Setting  Check the box (□) next to ’Use’ to activate the setting for POS device. Setup ...

  • Page 139: Example

    Discard Pattern  Discard Pattern: Does not show the specified data on OSD screen. Sets up in order to designate dummy data or characters which is not to be displayed. Can be designated up to 33 of discard patterns in total. ...
  • Page 140  Input the pattern of dummy data to Discard Pattern like ‘[3D’ on the picture.  Choose the data which willing to display and enter the Start Pattern and End Pattern.  Check or uncheck the ‘Auto’ box to see the differences. Depending on models of POS/Cash Register machines, it may give a better result or not.

  • Page 141: Search

    9.6 Search  TEXT-IN can be searched by keyword in Playback mode.  Click ( ) in the Playback mode, then Users will see the following screen. to do Event Search and choose ‘POS/ATM Search’ then virtual keypad is display. Type a keyword to ...

This manual is also suitable for:

412kh412aqh412eh824eh1648eh8000aqh ... Show all

Table of Contents
