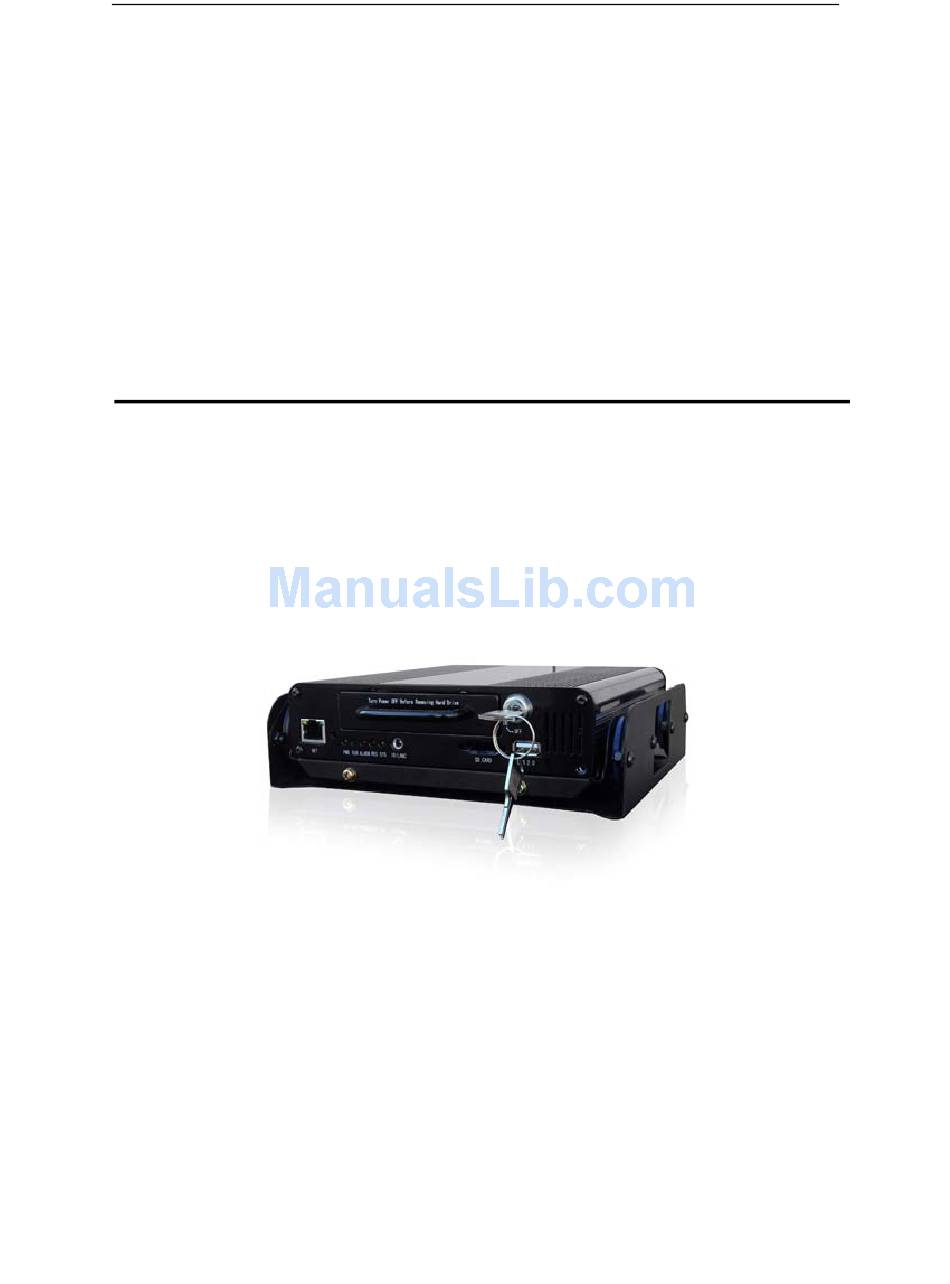

DVRM-5004 User’s Manual Thank you for using our Mobile DVR. This manual is applicable for DVRM-5004. Please read this User’s Manual carefully to ensure that you can use the device correctly and safely. The contents of this manual are subject to be changed without notice.
11. Call for qualified maintenance man to repair when needed. 12. The device can only be installed horizontally. Installed vertically or out of the horizontal could hurt person or damage the device or/and its parts. Provisual Mobile Digital Video Recorder...
4.2 Manage the power ..................20 5.Appendix, cables ..................... 255 5.1 Power supply ..................... 255 5.2 AV cables ....................255 5.3 Signal cables ..................... 277 6. Specification ....................288 7. List of Standard Accessories ................29 Provisual Mobile Digital Video Recorder...
SD card. Multiple players supported You can use the following player to play back the record file. VLC media player(version1.0.0 or above) Provisual Mobile Digital Video Recorder...
Date and time stamp records onto footage. 2.1 Front Panel ①:Power light. ②:Run light. ③:Alarm light. ④:Recording media (SD or Hard Disk) Operation light. ⑤:System light. ⑥:Control panel or remote extension cord。 ⑦:USB 2.0 port. ⑧:Network port. (RJ45) Provisual Mobile Digital Video Recorder...
Page 6
Please press “Stop” on the remote to stop recording if you need remove the SD card. Removing SD card in this status might cause the damage on the record file. Recorder is not in recording mode. You can remove the SD card. Provisual Mobile Digital Video Recorder...
④:AV input 4 (including audio input 1, video input 1 and power for camera 4) ⑤:AV output (including audio output, video output and power) ⑥:1 speed sensor, 3 sensors, 2 RS232 port, 1 RS485 port and one 5V DC output. ⑦:Power for the recorder and ACC input. Provisual Mobile Digital Video Recorder...
(4)Press <VIDEO> to toggle among different video channel. (5)Press <AUDIO> to toggle among different audio channel. (6)To delete character in the edit control, you can press <Left>. (7)Press <POWER> for a while to turn on/off the recorder. Provisual Mobile Digital Video Recorder...
2. Take the S-ATA connector out of the Hard Drive case. 3. Connect the connector with the Hard Drive. 4. Put the Hard Drive back to the Hard Drive case. Please note, the Hard Drive should be Provisual Mobile Digital Video Recorder...
Page 10
6. Install the connector back to the back side of Hard Drive case. Then the S-ATA Hard Drive is installed into the Hard Drive case. Provisual Mobile Digital Video Recorder 10 -...
2. Wide voltage range of 8V-32V for the DVR. The DVR may be damaged if the voltage comes too high. And the DVR may not work if the voltage comes too low. 3. Power of the DVR should be supplied by the car battery. Provisual Mobile Digital Video Recorder 11 -...
Choose “YES” to format the Hard Disk. The format process will take some time and you will see the capacity of the Hard Disk after formatting. Step 5: Choose recording quality Press <MENU> to enter the main menu and select “RECORD SETTINGS” in the “RECORD” sub menu. Provisual Mobile Digital Video Recorder 12 -...
The recorder will record all the channels by default. If you need to record only one channel, use <UP/DOWN/LEFT/RIGHT> or number key “1”,“2”,“3”,“4” to select one channel and press < REC> to recording. Provisual Mobile Digital Video Recorder 13 -...
Page 14
Card are inserted. The Disk 1 can be Hard Drive or SD Card, same as Disk 2. Step 7: Install the mounting bracket 1. Release the screws at the front of DVR and take the DVR out of the mounting bracket. 2. Use screws to install the mounting bracket. Provisual Mobile Digital Video Recorder 14 -...
Page 15
Please note: there is a lock connector at the bottom side of DVR. Please make sure this connector is in position when you put the DVR back to the mounting bracket. 4. Use the screws to install the DVR to the mounting bracket. Provisual Mobile Digital Video Recorder 15 -...
“SEARCH BY TIME” in the “STORAGE” sub menu. Select the time you want to seek and choose <OK>. The recorder will list the record file around the time you set. Then press <PLAY> to play the file. Provisual Mobile Digital Video Recorder 16 -...
Page 17
Provisual Mobile Digital Video Recorder 17 -...
Page 18
2. Enter the menu of DVR by pressing “MENU” on remote controller, choose “RECORD” and press “MENU” or “OK” to go to its sub-directory, choose “RECORD SETTINGS / QUALITY AUDIO” to set the “NET” as “ON” (it is defaulted as “OFF”): Provisual Mobile Digital Video Recorder 18 -...
Page 19
3. Go back to the MENU, and choose “NETWORK” to get the DVR’s IP address: 4. Download the newest VLC Media Player (Version 1.0.0 or above) which is a free software using open source application. 5. Run VLC, press “File”, choose “Open Network Stream”: Provisual Mobile Digital Video Recorder 19 -...
1. Connect the ignition to the yellow wire of the power cable. And connect the red and black wire to the “+” and “-” pole of battery. Ignition Fuse Yellow Black wire wire wire Battery Recorder Provisual Mobile Digital Video Recorder 20 -...
Page 21
1. Connect the DVR to the battery. Please note that you need to connect the yellow wire (ignition wire) to the “+” pole (+12V or +24V) of the battery. Fuse Yellow wire Black wire wire Recorder Battery Provisual Mobile Digital Video Recorder 21 -...
The Mobile DVR can be connected to 4 alarms and 6 sensors. All these alarms and sensors can trigger the alarm recording. They can also turn on the buzzer, trigger the alarm out, Provisual Mobile Digital Video Recorder 22 -...
1. Connect the speed sensor input wire on the DVR to the speed sensor. The speed sensor input wire of the DVR is the Purple wire on the jet marked with “SENSOR”. Speed sensor input wire on DVR: Provisual Mobile Digital Video Recorder 23 -...
Page 24
Label Color Description SENSOR Purple Speed sensor input 2. Connect 1: Speed sensor input 3. Connect 2: Speed sensor input Provisual Mobile Digital Video Recorder 24 -...
Ignition signal. Connect this wire to (+) of power supply if you don’t YELLOW use ignition to control the power. BLACK (-) of power supply 5.2 AV cables Audio and video connection interface (in the DVR back panel) Provisual Mobile Digital Video Recorder 25 -...
Page 26
Power output for camera (+12 VDC, Maximum current 1A) 2) AV output cable Mark Description Yellow (VO) Video out White (AO) Audio out Black (12V) Power output for camera (+12 VDC, Maximum current 0.5A) Provisual Mobile Digital Video Recorder 26 -...
2 RS232 port, 1 RS485 port INTERFACE NETWORK RJ45, 10M/100M Ethernet Support GPS receiver (included), can record GPS information along with video and audio. GPS data format: NEMA0183, Baudrate: 4800bps SOFTWARE PLAYER Specially designed player for the DVR Provisual Mobile Digital Video Recorder 28 -...
2 Amp fuse 2 pcs Screw for Hard Drive installation 4 pcs Hard Drive Case (w/o Hard Drive) 1 pc Power cable 1 pc GPS Receiver 1 pc External USB Hard Drive Reader 1 pc Provisual Mobile Digital Video Recorder 29 -...
