Riello - Slant/Fin INTREPID TRDV-30-0.85 Installation And Operation Instructions Manual

INTREPID TRDV

Riello

Boiler Model Burner
Model
TRDV-30-0.85 BF-5
TRDV-30-1.00 BF-5
TRDV-30-1.10 BF-5

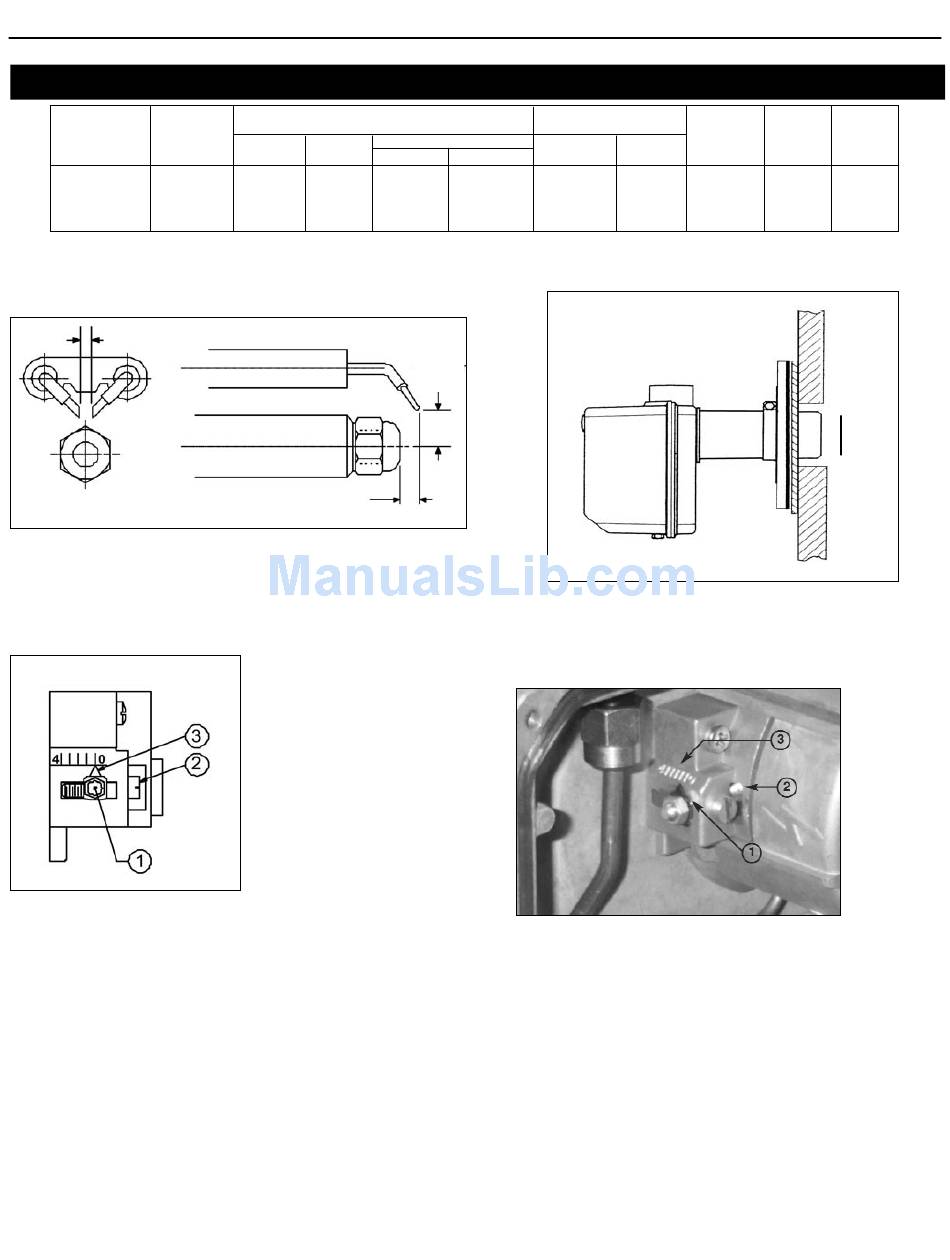

Model BF-5 Electrode Setting
4mm (5/32")
Figure 7
Turbulator Setting
Figure 8
TURBULATOR SETTING
1. Loosen nut, 1, then turn the screw, 2, until the index marker, 3, is aligned with the correct index number.
2. Retighten the retaining nut, 1.
The numbers on the casting are there to denote the high and low end of the scale – For Model BF-5, zero and four are scale
indicators only. From left to right, the first line is 4 and the last line is 0.
The air/oil ratio depends on accurate setting of the turbulator disc and air damper.
Be careful when making this adjustment as an incorrect setting will result in an unsatisfactory operation.
See figure 8 & 9.
RIELLO BURNER DATA — BURNER MODEL BF-5
Firing Rate No. 2 Oil
L/Hr GPH
3.21 0.85
3.78
1.00
4.16
1.10
2 to 2.5mm (5/64" to 7/64")
Size Angle &
L/Hr
(GPH) type
2.46 0.65 70 W
3.22 0.85 70 W
3.22 0.85 70 W
Proper Insertion into Combustion Chamber
5mm
(13/64")
Figure 9
Turbulator location
Picture 1
Nozzles
Oil Pump
Pressure
Mfg. Setting
Delaven 170
Delaven 140
Delaven 170
9
Approx.
"A"
Air Band
Turbulator
Opening
0 3.1
0 4
1 4
6mm
(1/4")
