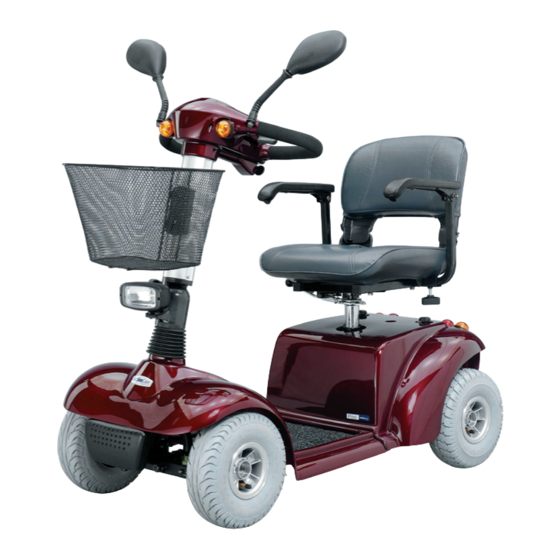

Active Care Medical Pilot 2310 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Active Care Medical Pilot 2310

Summary of Contents for Active Care Medical Pilot 2310

  • Page 2: Table Of Contents

    Labeling of Your Scooter....................4 EMI ......................5 Electromagnetic Interference (EMI) From Radio Wave Sources.......... 5 Powered Scooter Electromagnetic Interference (EMI)............6 Parts....................7 Pilot 2310 ......................... 7 Pilot 2410 ......................... 8 Operation ....................9 Operation Panel ......................9 How to Operate Your Scooter..................9 Speed Dial ........................

  • Page 3: Preface

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 1. Preface Please read this owner’s manual before using the scooter. Improper use of the scooter could result in harm, injury or traffic accidents. This owner’s manual includes operation instructions for every aspect of the scooter, assembly instructions, as well as instructions for how to deal with possible accidents.

  • Page 4: Safety Notices

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 2. SAFETY NOTICES BEFORE THE FIRST USE OF YOUR SCOOTER The user should be familiar with the operation of this scooter before driving. Therefore, keep these safety notices in mind. The same traffic rules for pedestrians apply to the use of this scooter. For your safety, please follow the rules that apply to pedestrians.

  • Page 5: Labeling Of Your Scooter

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Do not use your scooter under any of these circumstances: • The road is muddy or has loose gravel • The road is bumpy, narrow, or snow covered • The road is beside a canal or waterway without fencing or hedges •...

  • Page 6: Emi

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 3. EMI This portion of the manual will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure;...

  • Page 7: Powered Scooter Electromagnetic Interference (Emi)

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis usually have the antenna mounted on the outside of the scooter. Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.

  • Page 8: Parts

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 4. Parts PILOT 2310 Rear Mirror Signal Light Basket Front Headlight Tiller Adjust Bolt Front Bumper Seat Swivel seat lever seat release lever Signal Light 10. Taillight & Hazard Light 11. Anti-tip Wheels 12. Freewheel Mode Lever 13.

  • Page 9: Pilot 2410

    Questions? Call 866.621.4933 or visit www.activecaremed.com. PILOT 2410 Rear Mirror Signal Light Basket Front Headlight Tiller Adjust Bolt Front Bumper Seat Swivel seat lever seat release lever Signal Light 10. Taillight & Hazard Light 11. Anti-tip Wheels 12. Freewheel Mode Lever 13.

  • Page 10: Operation

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 5. OPERATION OPERATION PANEL Headlight/Rear Light Button Speed Dial Hazard Light Button Battery Indicator Horn Button Signal Light Button Speed Control Lever Power Switch HOW TO OPERATE YOUR SCOOTER When you receive the scooter, please try to turn on power switch first. If the battery gauge does not light up, remove the seat and rear cover and assemble the connector for the battery power and rear lamp connector (see illustration).

  • Page 11: Headlight/Taillight Button

    Questions? Call 866.621.4933 or visit www.activecaremed.com. HEADLIGHT/TAILLIGHT BUTTON The headlight button is an independent switch. So, if you drive your scooter with the headlight on, remember to turn off the headlight at the same time you turn off the power switch to save the battery power. MOVING AND BRAKING GOING FORWARD There are two ways to drive the scooter forward.

  • Page 12: Signal Light Switch

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Warning! When going down an incline, NEVER set to the freewheel mode. The electromagnetic brake will not function in freewheel mode. SIGNAL LIGHT SWITCH The light will flash and the buzzer will make a beeping sound when you press the left or right signal lamp button.

  • Page 13: Sleep Mode

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion 1. It is recommended that you charge the battery immediately when the battery gauge is in the red area. 2. After charging or replacing a new battery, drive the scooter for 2-3 minutes to make sure the battery capacity is enough. 3.

  • Page 14: Tiller Adjustment

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Figure 5.1 Figure 5.2 TILLER ADJUSTMENT The tiller can be adjusted by the following steps. Turn the knob counterclockwise until the tiller is loose. (Fig 5.3). Adjust the tiller angel to the desired angle (Fig. 5.4). Turn the knob clockwise to tighten the bolt.

  • Page 15: Stopping

    Questions? Call 866.621.4933 or visit www.activecaremed.com. ◊ Caution 1. Do not push the right hand & left hand throttle levers simultaneously; this might lead to losing control of your scooter. 2. Do not turn the power switch to OFF while driving, as this will lead to a sudden, potentially dangerous stop 3.

  • Page 16: Battery & Charger

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 6. BATTERY & CHARGER CHARGING THE BATTERY Be sure to follow the procedures below accordingly. 1. Turn the scooter key switch to “OFF”. 2. Open the charging socket cap on the scooter’s cover then connect the charger’s plug to the charging socket.

  • Page 17: Cleaning The Battery

    Questions? Call 866.621.4933 or visit www.activecaremed.com. ◊ Caution Please follow the rules below to avoid accidents while charging. 1. Please use the ActiveCare scooter’s charger only and charge the battery completely every time. The battery might be damaged if you use a charger which is not compatible. 2.
  • Page 18 Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion 1. Make sure the terminals are installed properly and the cover back 2. Do not use the battery to charge any other equipment. 3. Battery capability will vary with outside conditions; the driving distances will be shorter in the winter.

  • Page 19: Inspection & Maintenance

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 7. INSPECTION & MAINTENANCE DAILY CHECKING Check the following items before driving. If you find anything abnormal, go to or call your scooter dealer for further inspection before using it. Item What to Look For Handle Bar Is it tight? Can it be turned left or right smoothly?
  • Page 20 Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion Even if you don’t use the scooter for a long time, the scooter should still be maintained regularly. △ －Repair I–Inspection A－Adjustment ×－Replacement T – Tightening C－Cleanse L－Add Oil Item/Period Forward/Reverse of speed lever Operate The function of switches Panel...

  • Page 21: Battery, Fuses, Circuit Breaker And Tires

    Questions? Call 866.621.4933 or visit www.activecaremed.com. BATTERY, FUSES, CIRCUIT BREAKER AND TIRES Battery Refer to Section 6 “CHARGING AND BATTERY”. Fuse There are two fuses on your scooter. One is located inside the operation panel; the other is near the main wire of the controller. If you turn the power switch ON and the battery indicator does not light up, check the fuse.

  • Page 22: Maintenance

    Questions? Call 866.621.4933 or visit www.activecaremed.com. MAINTENANCE 1. You must maintain the scooter frequently if you drive on grass, sand, or gravel roads. 2. Do not use water, oil or other chemical solutions to clean your scooter. Be sure NOT to spray the scooter with water to prevent damaging the electronic components and printed circuit board.
  • Page 23 Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion Please store the scooter in a location where it is out of direct sunlight, rain, or dew. When storing for long periods of time, please charge the battery fully and then disconnect the battery terminal. For further details, inquire with your dealer.

  • Page 24: Troubleshooting

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 8. TROUBLESHOOTING This table is only a guide to aid you in getting your scooter operating, should you have any problems. If you are unable to get your scooter operating, please contact your Authorized Service Center. Table1: Basic Troubleshooting Symptom Possible Cause...
  • Page 25 Questions? Call 866.621.4933 or visit www.activecaremed.com. The diagnostic flash codes for your scooter are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from the Status LED in the event one of the conditions listed below develops. Table 2: Scooter Controller Internal Diagnostics Flash Possible Cause...

  • Page 26: Specifications

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 9. SPECIFICATIONS Model Pilot 2310 Pilot 2410 Max. Weight Capacity 350lbs/160kg 350lbs/160kg Travel Speed / Range Speed 6 mph/10 kph 6 mph/10 kph Estimated Range 22 miles/35 km 22 miles/35 km Maximum Grade/Incline 12°...

  • Page 27: Limited Warranty

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 10. LIMITED WARRANTY This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. ActiveCare warrants this product to be free from defects in materials and workmanship, for the following periods: Three Years...
  • Page 28 Questions? Call 866.621.4933 or visit www.activecaremed.com. REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF ACTIVECARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND ACTIVECARE'S CONTROL, SUCH EVALUATION WILL BE SOLELY DETERMINED BY ACTIVECARE. THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE INSTRUCTIONS.

  • Page 29: Warranty Registration

    Questions? Call 866.621.4933 or visit www.activecaremed.com. WARRANTY REGISTRATION Don’t Forget to Complete Your Warranty Form! Be sure to fill out the form below. After completing the form, please mail it to: ActiveCare Medical 2 Harbison Way Columbia, SC 29212 Please type or print VIN ________________________________ Date Purchased _______________ Owner Name _____________________________________________________ Address _________________________________________________________...

This manual is also suitable for:

Pilot 2410
