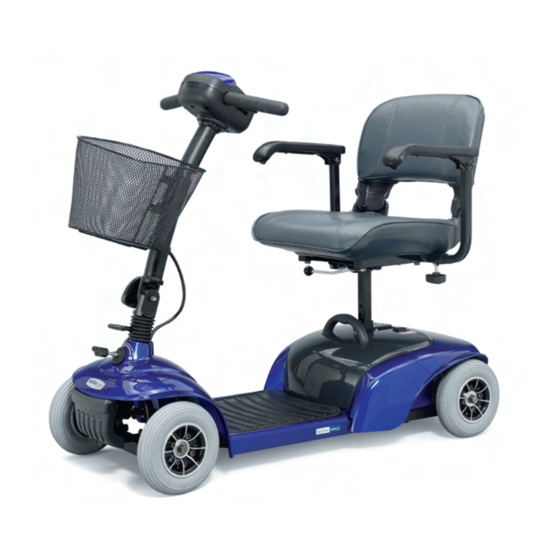

Active Care Medical Spitfire 1310 Owner's Manual

Hide thumbs Also See for Spitfire 1310:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Active Care Medical Spitfire 1310

Summary of Contents for Active Care Medical Spitfire 1310

  • Page 2: Table Of Contents

    Labeling of Your Scooter....................5 EMI ......................6 Electromagnetic Interference (EMI) From Radio Wave Sources.......... 6 Powered Scooter Electromagnetic Interference (EMI)............7 Parts....................8 Spitfire 1310 ......................8 Spitfire 1410 ......................9 Operation ..................10 Power Switch ......................10 Forward & Reverse ....................10 Braking ........................

  • Page 3: Preface

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 1. Preface Please read this owner’s manual before using the scooter. Improper use of the scooter could result in harm, injury or traffic accidents. This owner’s manual includes operation instructions for every aspect of the scooter, assembly instructions, as well as instructions for how to deal with possible accidents.

  • Page 4: Safety Notices

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 2. SAFETY NOTICES BEFORE THE FIRST USE OF YOUR SCOOTER The user should be familiar with the operation of this scooter before driving. Therefore, keep these safety notices in mind. The same traffic rules for pedestrians apply to the use of this scooter. For your safety, please follow the rules that apply to pedestrians.
  • Page 5 Questions? Call 866.621.4933 or visit www.activecaremed.com. Warning! Do not operate the scooter unless the tiller (handlebar column) is up, the teeth in the tiller adjustment bolt fit together, and the bolt is fully tightened. Do not lean against, or pull forward on, the handlebar while mounting or dismounting from the scooter.

  • Page 6: Labeling Of Your Scooter

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Be careful driving on or near ramps and inclines Be careful while driving up a steep incline. Refer to “CLIMBING ANGLE” in Section 9 “SPECIFICATIONS” for details. In order to avoid damage or injury to the scooter the driver should not lean against or pull on the operating lever while going up or down an incline.

  • Page 7: Emi

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 3. EMI This portion of the manual will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure;...

  • Page 8: Powered Scooter Electromagnetic Interference (Emi)

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis usually have the antenna mounted on the outside of the scooter. Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.

  • Page 9: Parts

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 4. Parts SPITFIRE 1310 1. Control Panel 10. Carrying Handle 2. Basket 11. Battery Pack 3. Tiller Adjustment Bolt 12. Key Switch 4. Detachable Swivel Seat with Fold-Down Back 13. Horn Button 5. Removable Flip-Up Arm Rest 14.

  • Page 10: Spitfire 1410

    Questions? Call 866.621.4933 or visit www.activecaremed.com. SPITFIRE 1410 1. Control Panel 10. Carrying Handle 2. Basket 11. Battery Pack 3. Tiller Adjustment Bolt 12. Key Switch 4. Detachable Swivel Seat with Fold-Down Back 13. Horn Button 5. Removable Flip-Up Arm Rest 14.

  • Page 11: Operation

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 5. OPERATION POWER SWITCH Turn the key switch to power ON or OFF [ON] Power is turned on [OFF] Power is turned off FORWARD AND REVERSE Push the throttle lever forward with your right thumb and the scooter will move forward.

  • Page 12: Assembly

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Place the scooter in an area where you have sufficient clearance to move the parts around. You may need assistance to lift some components. See “Specifications” for individual component weights. No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on a level, dry surface with sufficient space for you to work and move around the scooter.

  • Page 13: Disassembly

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Fig 5.1 Fig 5.2 ◊ Caution • Make sure you connect all pieces together properly. • Turn off all power to your scooter and remove key from key switch to prevent accident before disassembly. •...

  • Page 14: Drive Mode

    Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion 1. It is recommended that you charge the battery immediately when the battery gauge is in the red area. 2. After charging or replacing a new battery, drive the scooter for 2-3 minutes to make sure the battery capacity is enough. 3.

  • Page 15: Tiller Adjustment

    Questions? Call 866.621.4933 or visit www.activecaremed.com. TILLER ADJUSTMENT The tiller can be adjusted by the following steps. Turn the knob counter clockwise to unscrew the bolt. (Fig 5.4). Adjust the tiller angel to the desired position; turn the knob clockwise to tighten the bolt.

  • Page 16: Driving Speed

    Questions? Call 866.621.4933 or visit www.activecaremed.com. ◊ Caution 1. Do not push the right hand & left hand throttle levers simultaneously; this might lead to losing control of your scooter. 2. Do not set to the highest speed while driving indoors. 3.

  • Page 17: Battery & Charger

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 6. BATTERY & CHARGER CHARGING THE BATTERY Be sure to follow the procedures below accordingly. 1. Turn the scooter key switch to “OFF”. 2. Open the charging socket cap on the scooter’s cover then connect the charger’s plug to the charging socket.

  • Page 18: Battery Specifications

    Questions? Call 866.621.4933 or visit www.activecaremed.com. ◊ Caution Please follow the rules below to avoid accidents while charging. 1. Please use the ActiveCare scooter’s charger only and charge the battery completely every time. The battery might be damaged if you use a charger that is not compatible. 2.
  • Page 19 Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion 1. Do not use the battery to charge any other equipment. 2. Battery capability will vary with outside conditions; the driving distances will be shorter in the winter. 3. If the scooter is not to be used for a long time, please charge the battery every three months.

  • Page 20: Inspection & Maintenance

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 7. INSPECTION & MAINTENANCE DAILY CHECKING Check the following items before driving. If you find anything abnormal, go to or call your scooter dealer for further inspection before using it. Item What to Look For Handle Bar Is it tight? Can it be turned left or right smoothly?
  • Page 21 Questions? Call 866.621.4933 or visit www.activecaremed.com. Suggestion Even if you don’t use the scooter for a long time, the scooter should still be maintained regularly. △ －Repair I–Inspection A－Adjustment ×－Replacement T – Tightening C－Cleanse L－Add Oil Item/Period Forward/Reverse of speed lever Operate The function of switches Panel...

  • Page 22: Battery, Fuses, Circuit Breaker And Tires

    Questions? Call 866.621.4933 or visit www.activecaremed.com. BATTERY, FUSES, CIRCUIT BREAKER AND TIRES Battery Refer to Section 6 “CHARGING AND BATTERY”. Fuse There are two fuses on your scooter. One is located inside the operation panel; another is in the battery pack. If the key switch is “ON” and the battery gauge does not move, check the fuse.

  • Page 23: Storage

    Questions? Call 866.621.4933 or visit www.activecaremed.com. ◊ Caution When conducting maintenance of your scooter, please turn the key switch “OFF” and remove the charger cord. STORAGE When storing your scooter: • Make sure the seat is set in the “Forward” position •...

  • Page 24: Troubleshooting

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 8. TROUBLESHOOTING This table is only a guide to aid you in getting your scooter operating, should you have any problems. If you are unable to get your scooter operating, please contact our Authorized Service Center. Table 1: Basic Troubleshooting Symptom Possible Cause...
  • Page 25 Questions? Call 866.621.4933 or visit www.activecaremed.com. The diagnostic flash codes for your scooter are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from the diagnostic light in the event one of the conditions listed below develops. Table 2: Scooter Controller Internal Diagnostics Flash Possible Cause...

  • Page 26: Specifications

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 9. SPECIFICATIONS Model Spitfire 1310 Spitfire 1410 Max. Weight Capacity 300lbs/136kg 300 lbs/136kg Travel Speed/Range Speed 4 mph/6 kph 4 mph/6 kph Estimated Range 7.5 miles/12 km 7.5 miles/12 km Maximum Grade/Incline 12° 12°...

  • Page 27: Limited Warranty

    Questions? Call 866.621.4933 or visit www.activecaremed.com. 10. LIMITED WARRANTY This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. ActiveCare warrants this product to be free from defects in materials and workmanship, for the following periods: Three Years...
  • Page 28 Questions? Call 866.621.4933 or visit www.activecaremed.com. REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF ACTIVECARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND ACTIVECARE'S CONTROL, SUCH EVALUATION WILL BE SOLELY DETERMINED BY ACTIVECARE. THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE INSTRUCTIONS.

  • Page 29: Warranty Registration

    Questions? Call 866.621.4933 or visit www.activecaremed.com. WARRANTY REGISTRATION Don’t Forget to Complete Your Warranty Form! Be sure to fill out the form below. After completing the form, please mail it to: ActiveCare Medical 2 Harbison Way Columbia, SC 29212 Please type or print VIN ________________________________ Date Purchased _______________ Owner Name _____________________________________________________ Address _________________________________________________________...

This manual is also suitable for:

Spitfire 1410
